2012 Chevrolet Corvette Base, 2D Convertible, Automatic TransFACTORY OEM SERVICE PROCEDURE
Fuel Pump Flow Control Module Relay Replacement
Fuel Pump Flow Control Module Relay Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Partially remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement (Convertible) , Rear Compartment Floor Panel Carpet Replacement (Coupe) . |
|

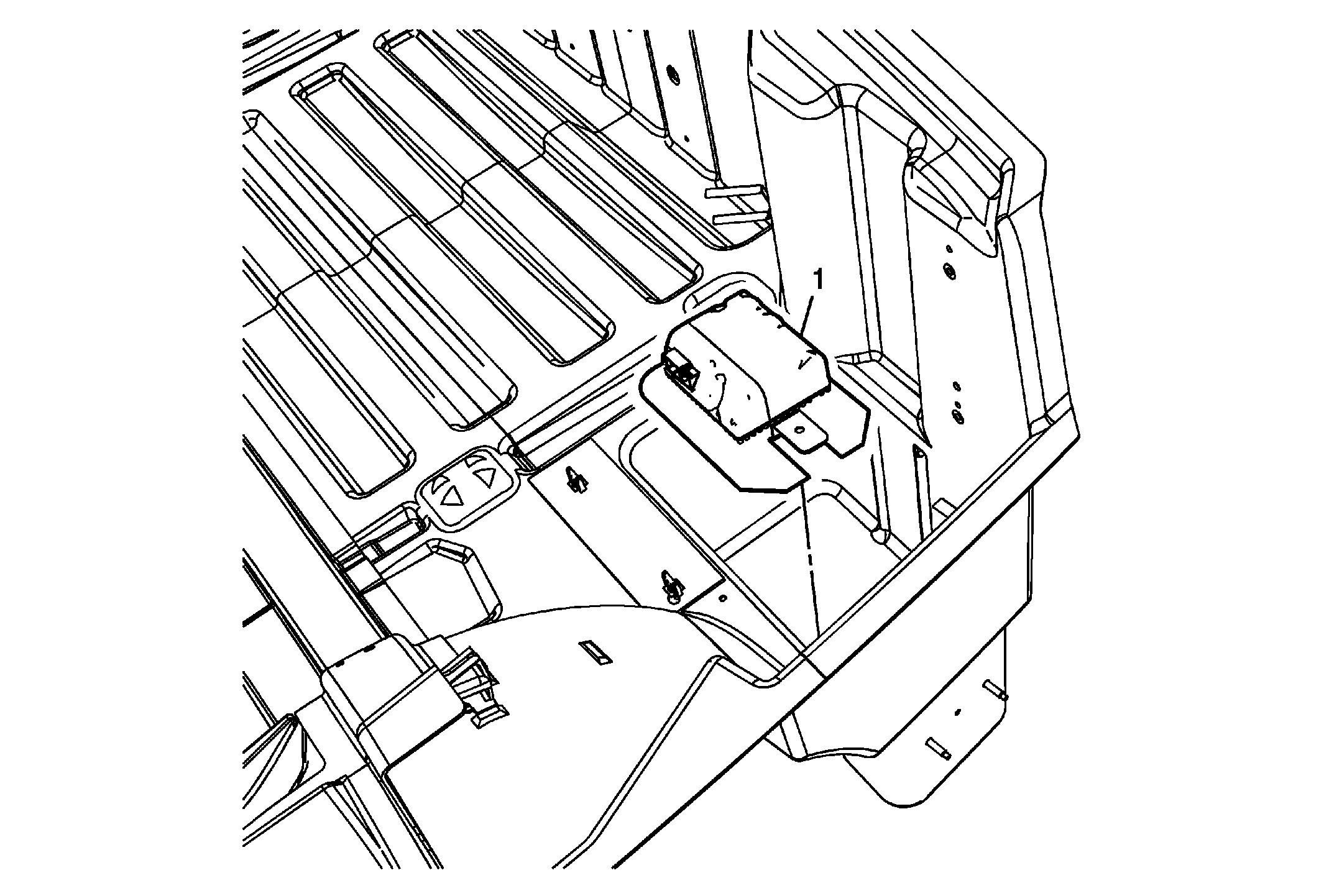

| 1 | Fuel Pump Flow Control Module Relay Procedure
TIP: The relay is secured with adhesive tape. |
