2012 Chevrolet Colorado 2WD L5-3.7LFACTORY OEM SERVICE PROCEDURE

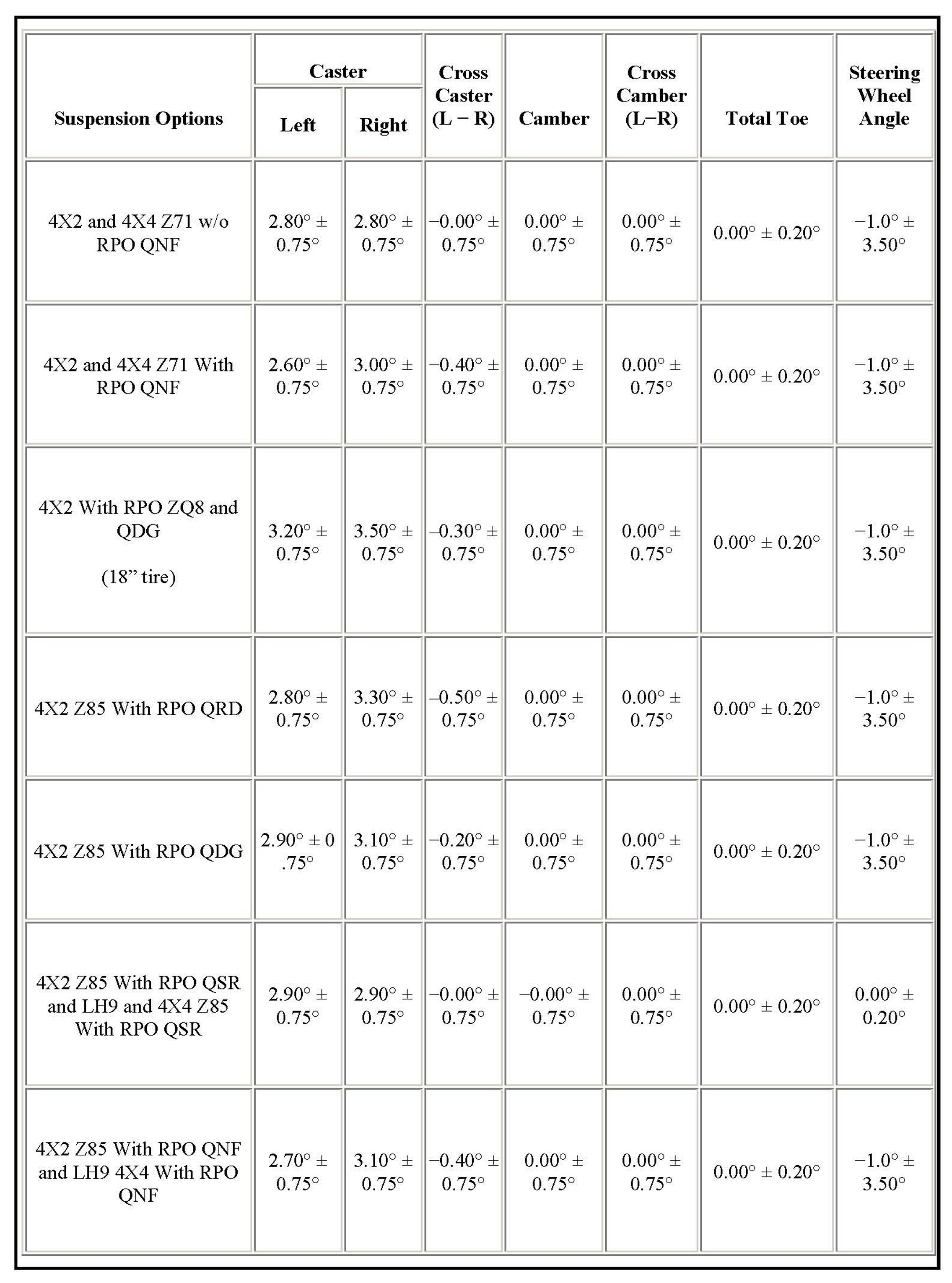

Wheel Alignment Specifications
Wheel Alignment Specifications
RPO LH9 Engine - Gas, 8 CYL, 5.3L, SFI, E85, MAX, ALUM, GM
RPO QDG Tire All - P235/50R18-97W BW R/PE ST TL HWY
RPO QNF Tire All - P235/75R16-106S BW R/PE ST TL ALS
RPO QRD Tire All - P215/70R16-99S BW PE/ST TL ALS
RPO QSR Tire All - P235/75R16-106S BW TL OOR
RPO Z71 Chassis Package - Off Road
RPO Z85 Chassis Package - Increased Capacity
RPO ZQ8 Chassis Package - Sport
