2012 Chevrolet Colorado 2WD L5-3.7LFACTORY OEM SERVICE PROCEDURE
Right Side of Engine Components
Powertrain Component Views

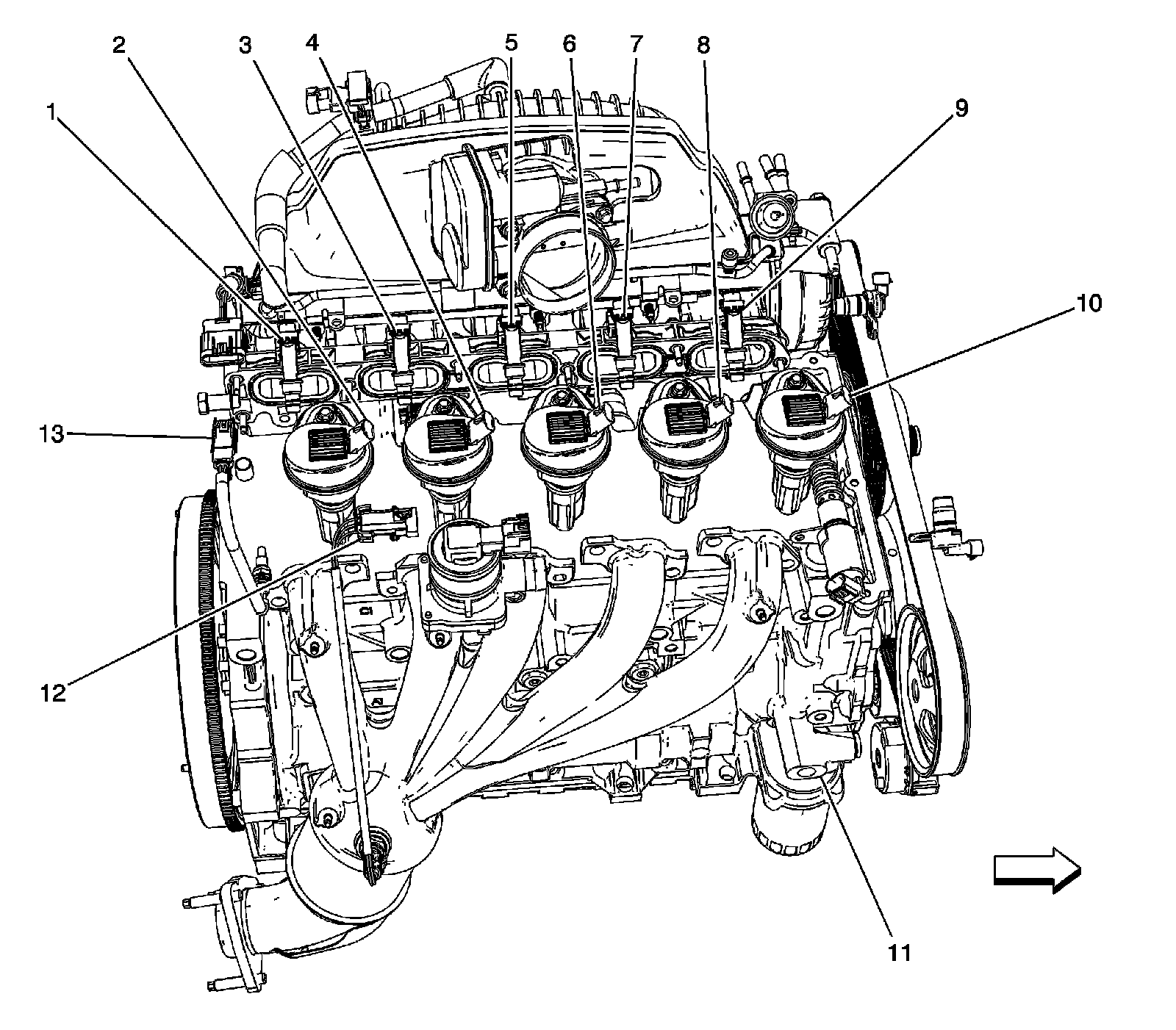

Right Side of Engine Components (LLR)
1 - Fuel Injector 5
2 - Ignition Coil 5
3 - Fuel Injector 4
4 - Ignition Coil 4
5 - Fuel Injector 3
6 - Ignition Coil 3
7 - Fuel Injector 2
8 - Ignition Coil 2
9 - Fuel Injector 1
10 - Ignition Coil 1
11 - Engine Oil Pressure (EOP) Switch
12 - Heated Oxygen Sensor (HO2S) 1
13 - Engine Coolant Temperature (ECT) Sensor Connector
