2012 Chevrolet Colorado 2WD L4-2.9LFACTORY OEM SERVICE PROCEDURE
Right Side of Engine Components
Powertrain Component Views

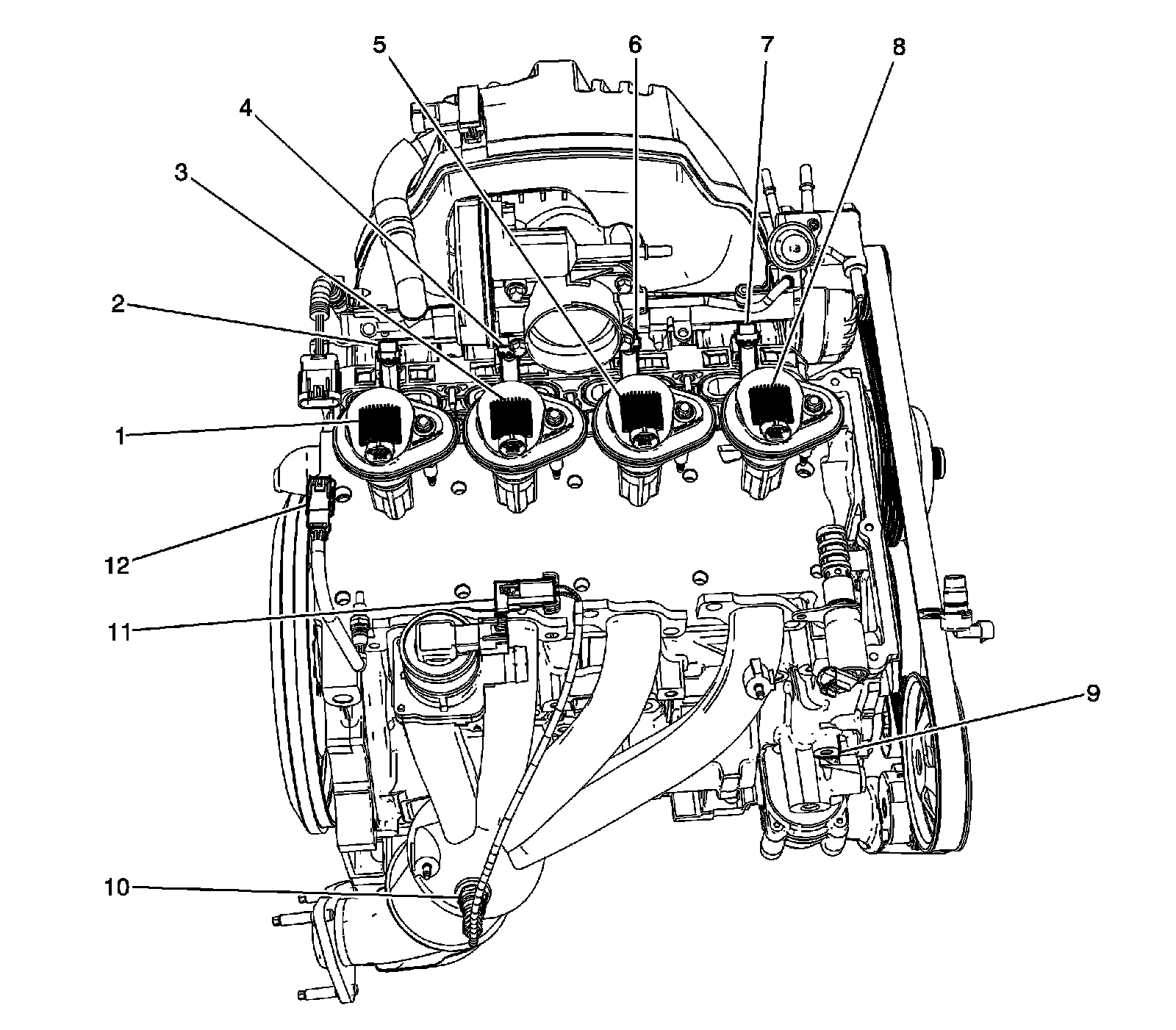

Right Side of Engine Components (LLV)
1 - Ignition Coil 4
2 - Fuel Injector 4
3 - Ignition Coil 3
4 - Fuel Injector 3
5 - Ignition Coil 2
6 - Fuel Injector 2
7 - Fuel Injector 1
8 - Ignition Coil 1
9 - Engine Oil Pressure (EOP) Switch
10 - Heated Oxygen Sensor (HO2S) 1
11 - Heated Oxygen Sensor (HO2S) 1 Connector
12 - Engine Coolant Temperature (ECT) Sensor
