Removal Procedure
- Open the liftgate.
- Install a suitable liftgate brace to the vehicle.
- Remove the left side rear compartment side trim panel access hole cover.
- Remove the battery. Refer to Battery Replacement .
- Remove the battery tray. Refer to Battery Tray Replacement .

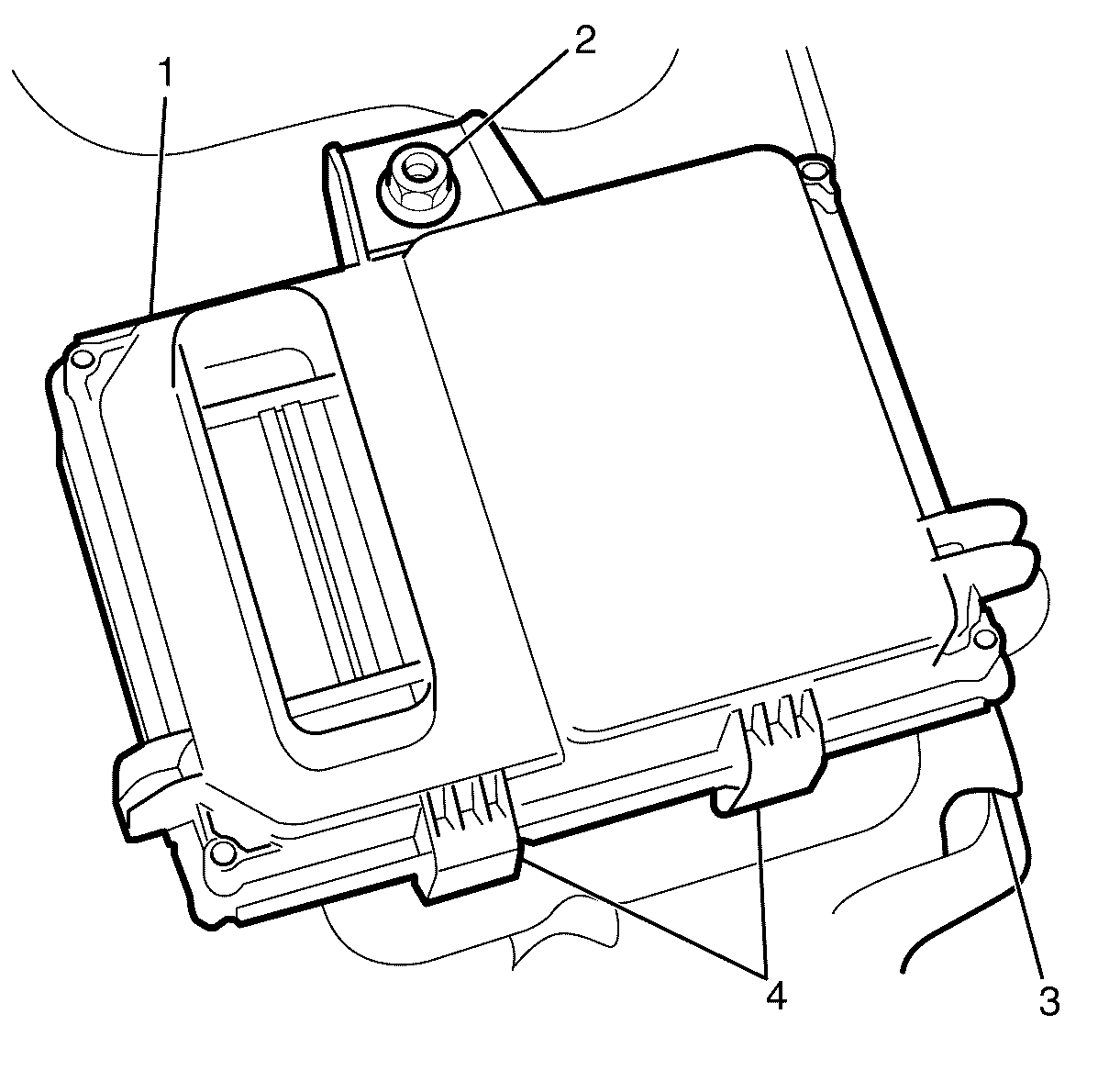

- Remove the fuel pump flow control module to battery tray underside retaining nut (2).
- Detach the fuel pump flow control module retainers (4).
- Remove the fuel pump flow control module (1) from the battery tray (3).
When a suitable hold open device is being removed or installed, provide alternate support.
