2012 Chevrolet Camaro LS, Standard TransFACTORY OEM SERVICE PROCEDURE

Body Control Module Replacement

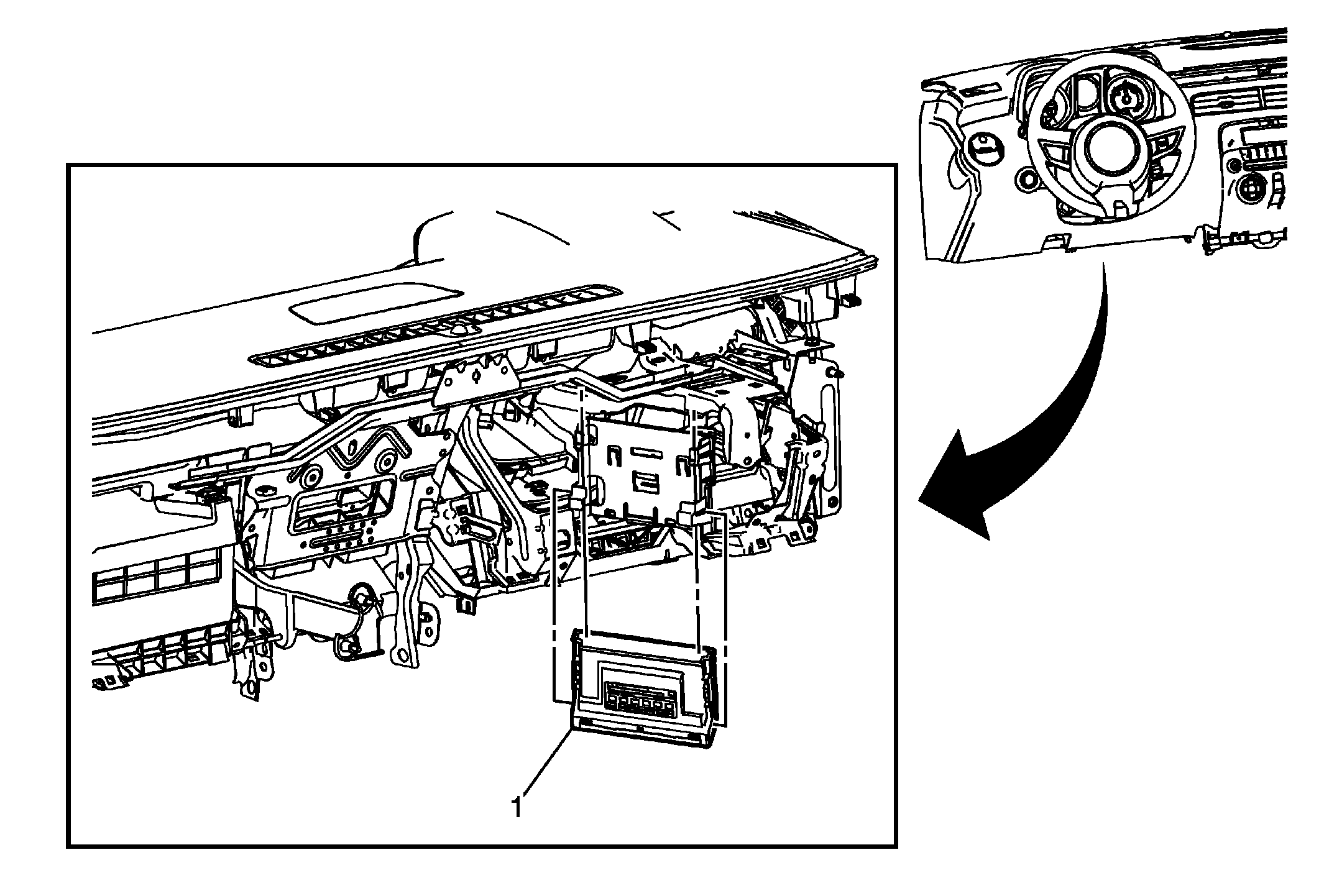

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Body Control Module Procedure Disconnect the electrical connectors. Release the body control module bracket tab and slide module out of the bracket. Refer to Control Module References for programming and set-up information.
