2012 Chevrolet Camaro LS, Standard TransFACTORY OEM SERVICE PROCEDURE

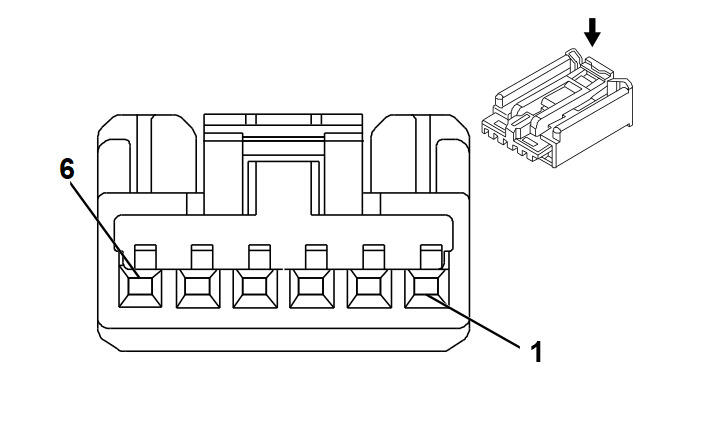

T11 Multimedia Player Interface Module X2 (USR)
Connector Part Information
|
Terminal Part Information
|
T11 Multimedia Player Interface Module X2 (USR)
| Pin | Size | Color | Circuit | Function | Option |
|---|---|---|---|---|---|
| 1 | 0.35 | L-GN | 3149 | USB Serial Data Supply Voltage | USR |
| 2 | 0.35 | D-GN/WH | 3147 | USB D (-) Serial Data | USR |
| 3 | 0.35 | D-BU | 3146 | USB D (+) Serial Data | USR |
| 4 | - | - | - | Not Used | USR |
| 5 | 0.35 | PK | 2060 | Auxiliary Detection Signal | USR |
