2012 Chevrolet Camaro LS, Standard TransFACTORY OEM SERVICE PROCEDURE

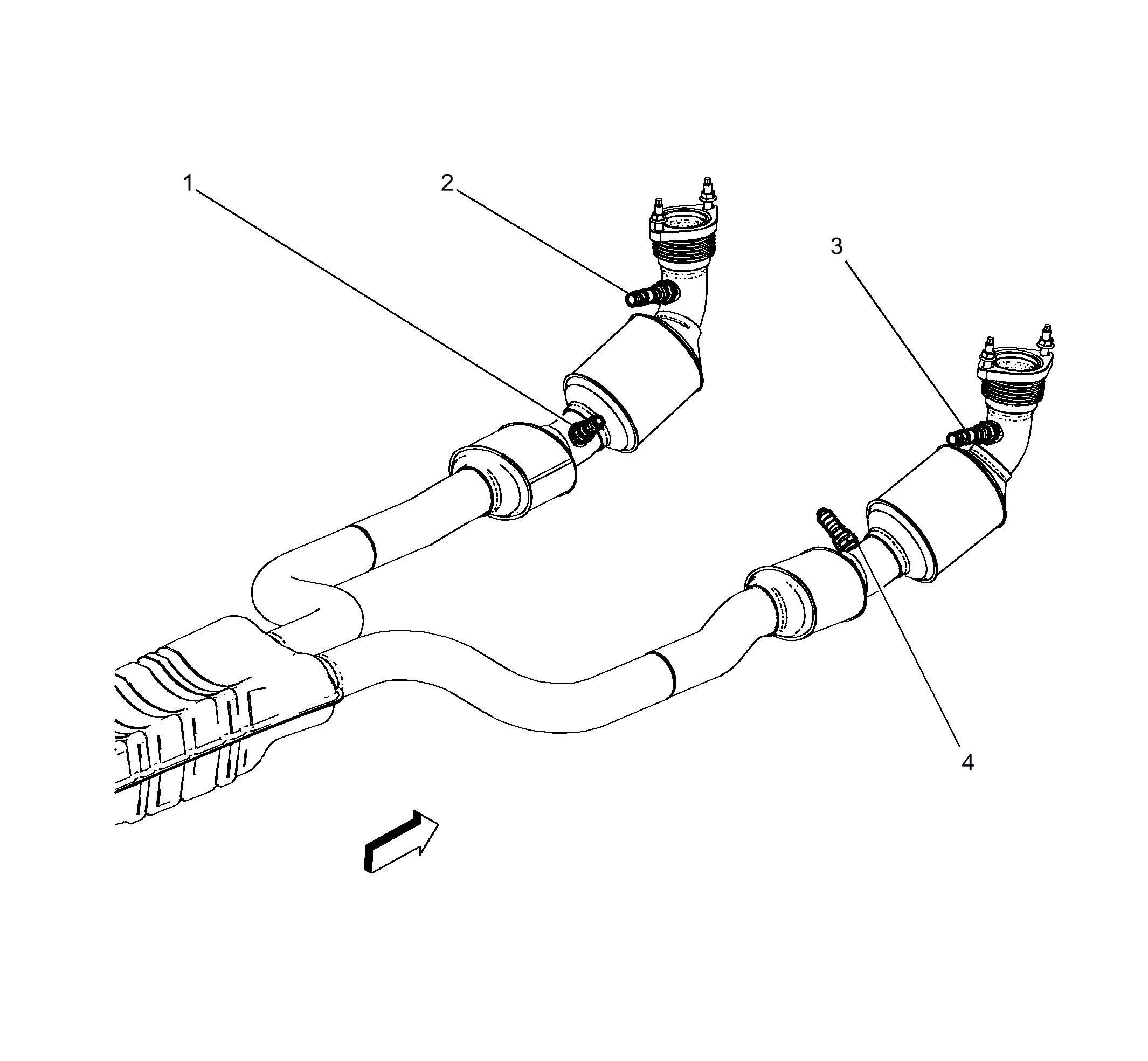

Front of the Exhaust System Components
Front of the Exhaust System Components
| Component Name | Callout |
|---|---|
| B52F Heated Oxygen Sensor Bank 2 Sensor 2 (LLT) B52D Heated Oxygen Sensor Bank 1 Sensor 2 (L99/LS3, LSA) | 1 |
| B52E Heated Oxygen Sensor Bank 2 Sensor 1 (LLT) B52C Heated Oxygen Sensor Bank 1 Sensor 1 (L99/LS3, LSA) | 2 |
| B52C Heated Oxygen Sensor Bank 1 Sensor 1 (LLT) B52E Heated Oxygen Sensor Bank 2 Sensor 1 (L99/LS3, LSA) | 3 |
| B52D Heated Oxygen Sensor Bank 1 Sensor 2 (LLT) B52F Heated Oxygen Sensor Bank 2 Sensor 2 (L99/LS3, LSA) | 4 |
