2012 Chevrolet Camaro LS, Standard TransFACTORY OEM SERVICE PROCEDURE
Front Passenger Seat Components

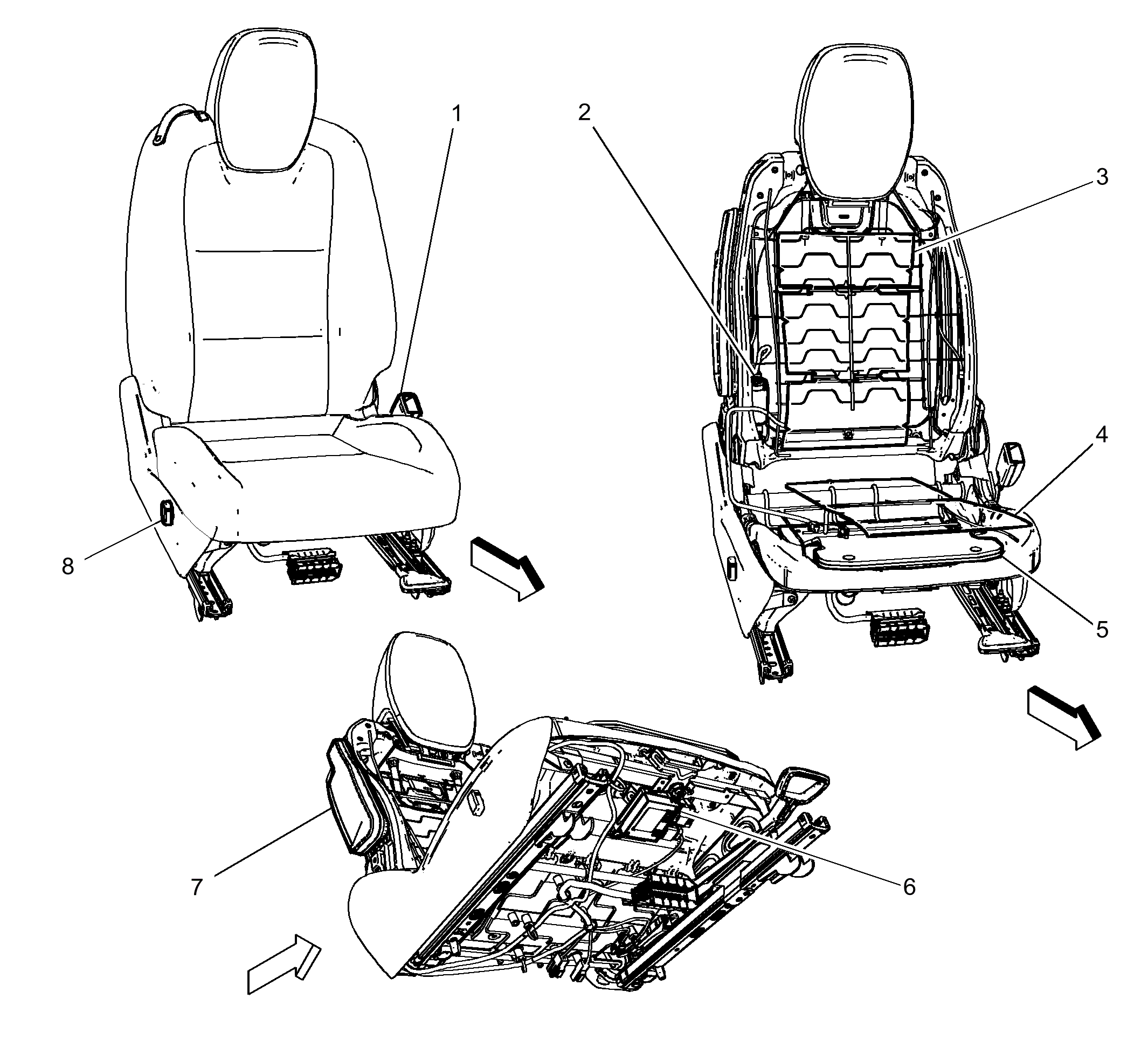

Front Passenger Seat Components
| Component Name | Callout |
|---|---|
| Passenger Seat Back Cushion | 1 |
| B88P Seat Belt Switch - Passenger | 2 |
| M56P Seat Recline Motor - Passenger | 3 |
| E14C Seat Heating Element - Passenger Back (KA1) | 4 |
| E14D Seat Heating Element - Passenger Cushion (KA1) | 5 |
| B60 Passenger Presence Sensor | 6 |
| K85 Passenger Presence Detection Module | 7 |
| B62P Seat Position Sensor - Passenger | 8 |
| F106RF Seat Air Bag - Right Front | 9 |
| Passenger Seat Cushion | 10 |
| S64P Seat Adjuster Switch - Passenger | 11 |
