2012 Chevrolet Camaro LS, Standard TransFACTORY OEM SERVICE PROCEDURE
Rearview Camera Image Display Module Replacement
Rearview Camera Image Display Module Replacement

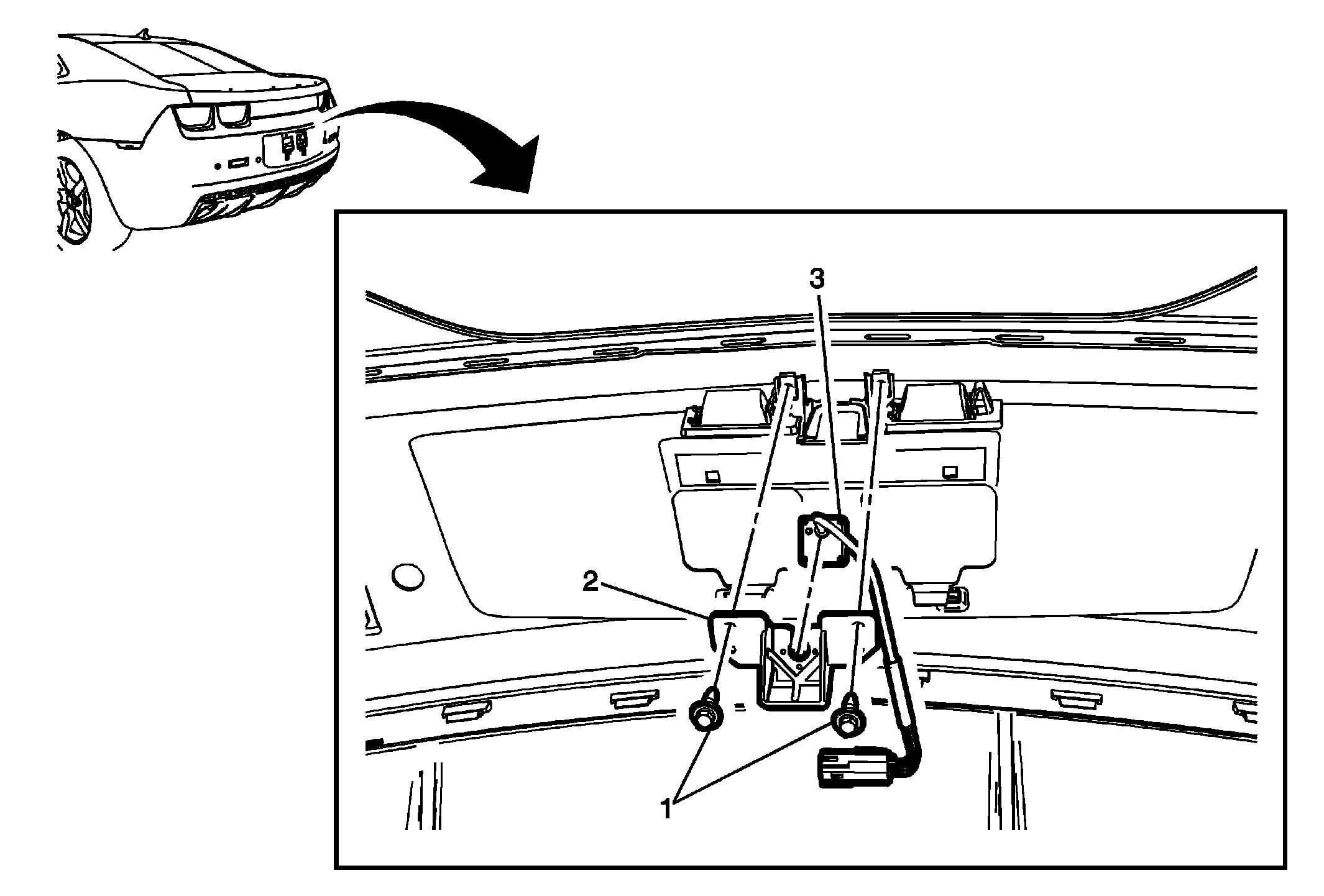

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Rearview Camera Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Rearview Camera Image Display Module Bracket |
| 3 | Rearview Camera Image Display Module Procedure Disconnect electrical connector. |
