2012 Chevrolet Camaro LS, Automatic TransFACTORY OEM SERVICE PROCEDURE

Throttle Body Assembly Replacement

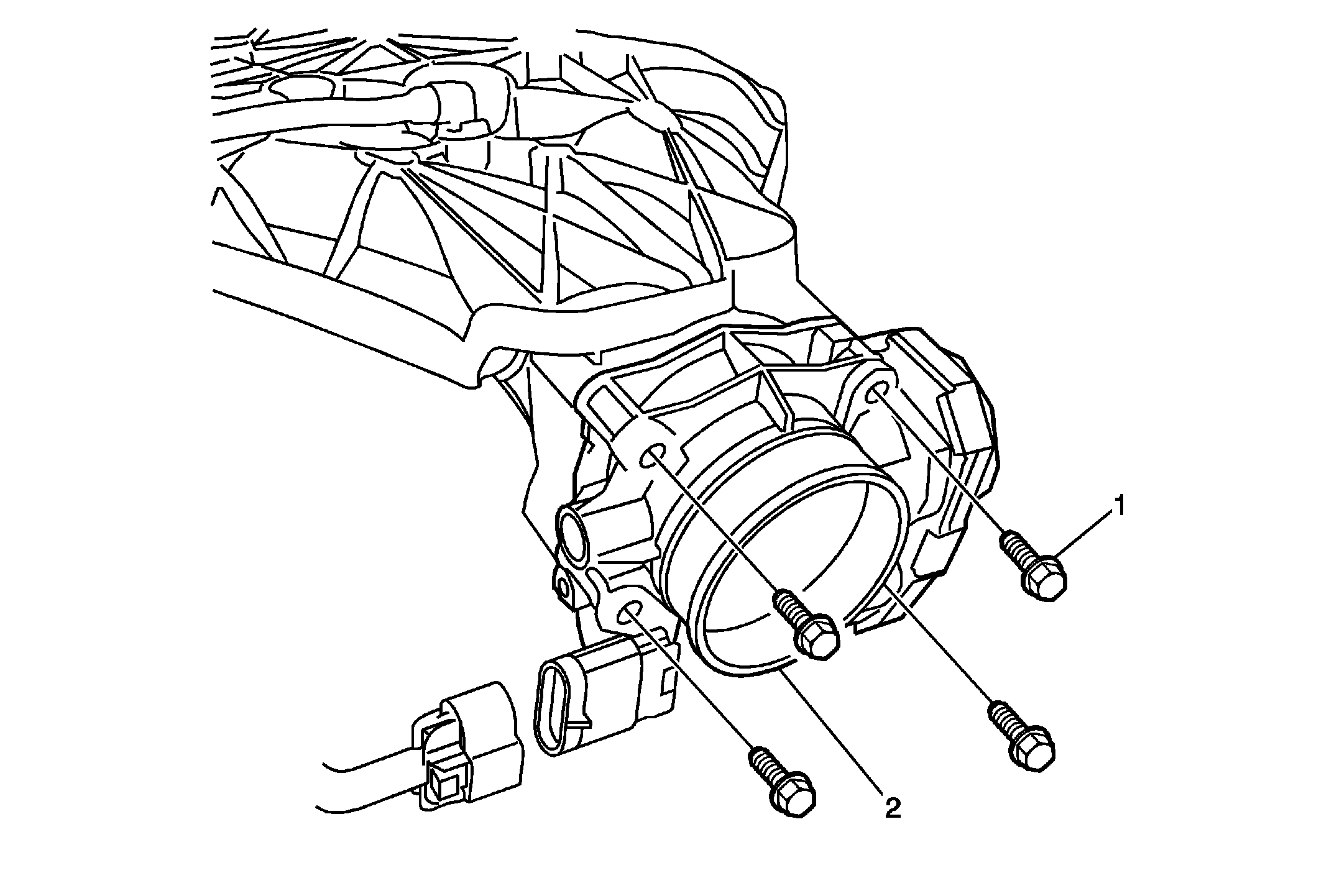

Fig 1: Throttle Body Assembly & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the fuel injector sight shield.
Remove the outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Throttle Body Assembly Fastener (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Throttle Body Assembly

Procedure

Install a NEW throttle body seal.
Disconnect the electrical connectors.
Perform the throttle learn procedure. Refer to Control Module References .
