2012 Chevrolet Camaro LS, Automatic Trans

Spark Plug Replacement

2012 Chevrolet Camaro LS, Automatic TransSECTION Spark Plug Replacement

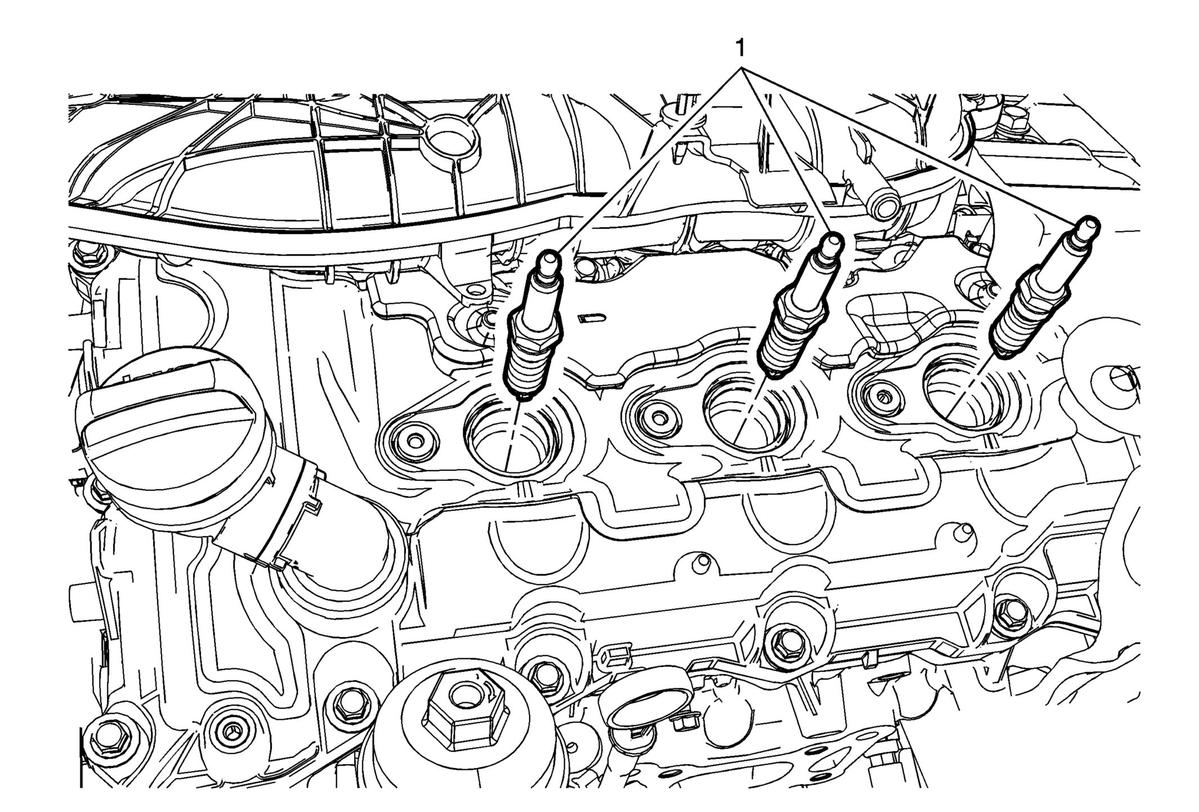

Fig 1: Spark Plugs

GM2669455

Courtesy of GENERAL MOTORS COMPANY

Spark Plug Replacement

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front
Remove the ignition coil. Refer to Ignition Coil Replacement - Bank 1 , and Ignition Coil Replacement - Bank 2 .

1

Spark Plugs

CAUTION:

Refer to Fastener Caution

Tighten
25 Y (18 lb ft)
Special Tools
EN-194-E Spark Plug Remover
For equivalent regional tools, refer to Special Tools.
