2012 Chevrolet Avalanche 2WD V8-5.3LFACTORY OEM SERVICE PROCEDURE
Control Module: Locations
Powertrain Component Views

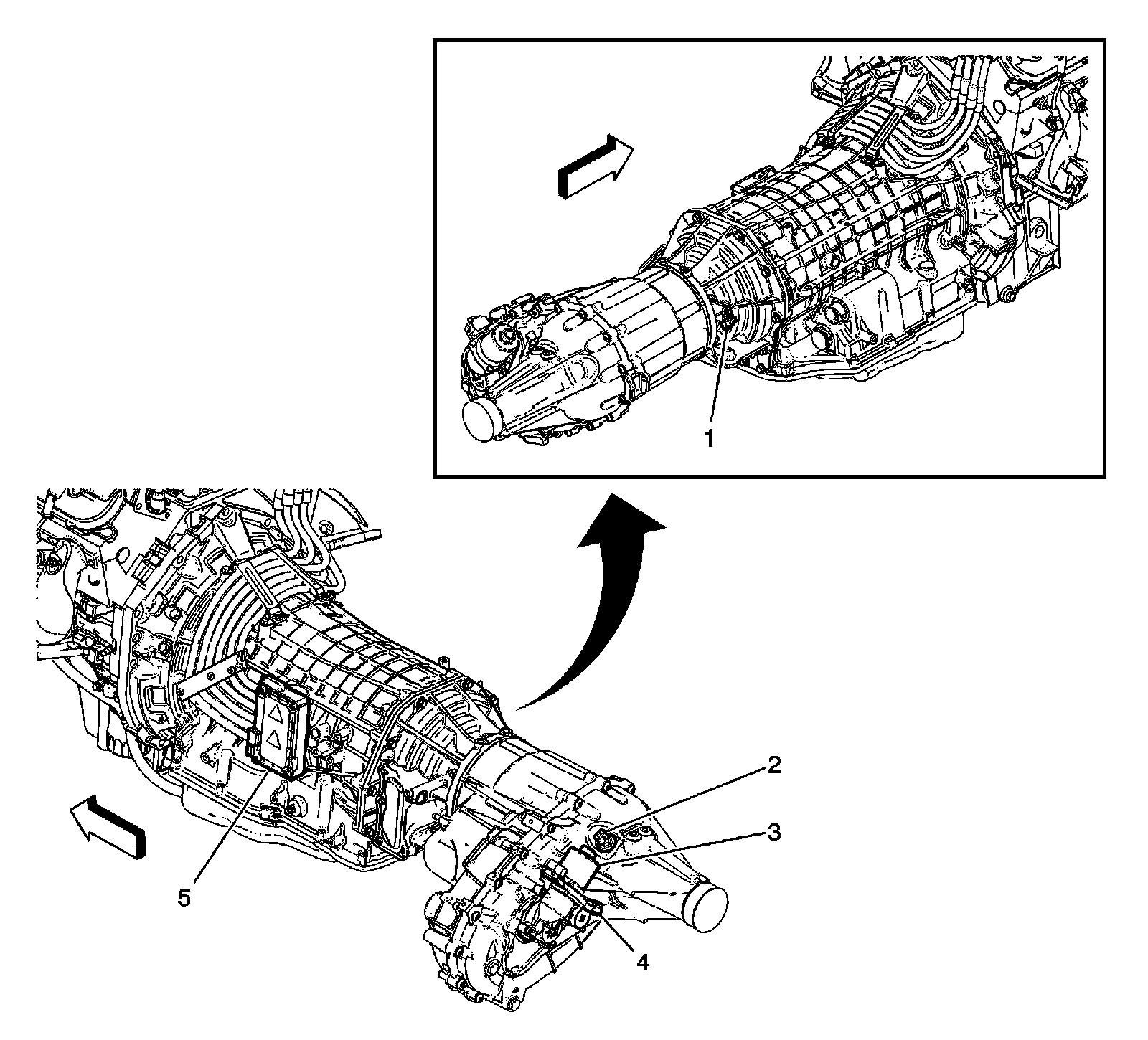

Transmission and Transfer Case Components (M99 with NQH)
1 - Automatic Transmission Output Shaft Speed (OSS) Sensor
2 - Vehicle Speed Sensor (VSS)
3 - Transfer Case Encoder Motor
4 - Transfer Case 2/4 Wheel Drive Actuator Position Sensor
5 - Transmission Power Inverter Module (3 Phase) Cable Cover
