2011 Chevrolet VoltFACTORY OEM SERVICE PROCEDURE

Body Control Module Replacement

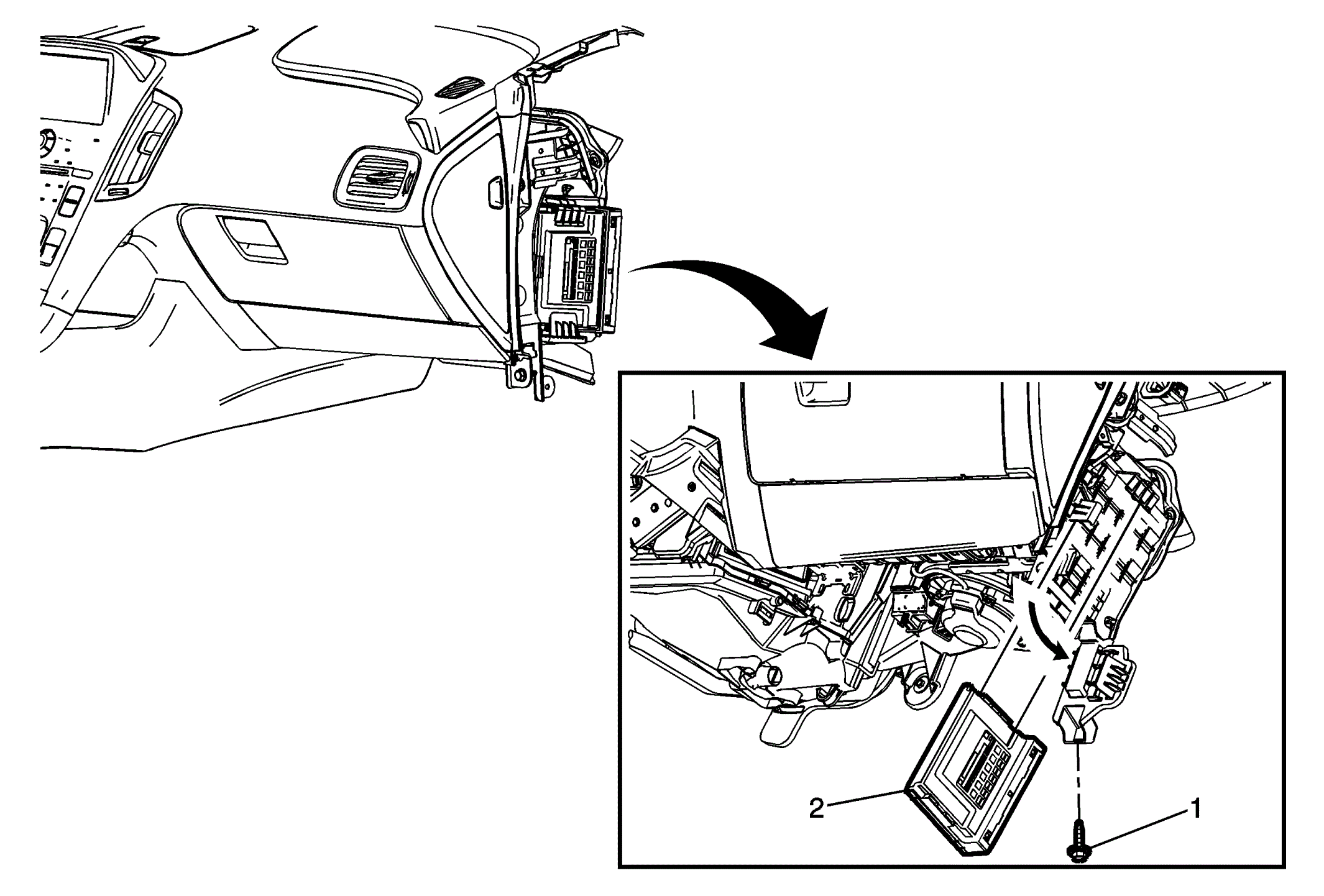

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement

Communication Interface Module Bracket Bolt

CAUTION: Refer to Fastener Caution .

Body Control Module

Procedure

Open the bottom of the hinged bracket and slide the module downward.
Disconnect the electrical connections.
For programming and set up procedures, refer to Control Module References
