2011 Chevrolet Impala LTZFACTORY OEM SERVICE PROCEDURE

Installation Procedure

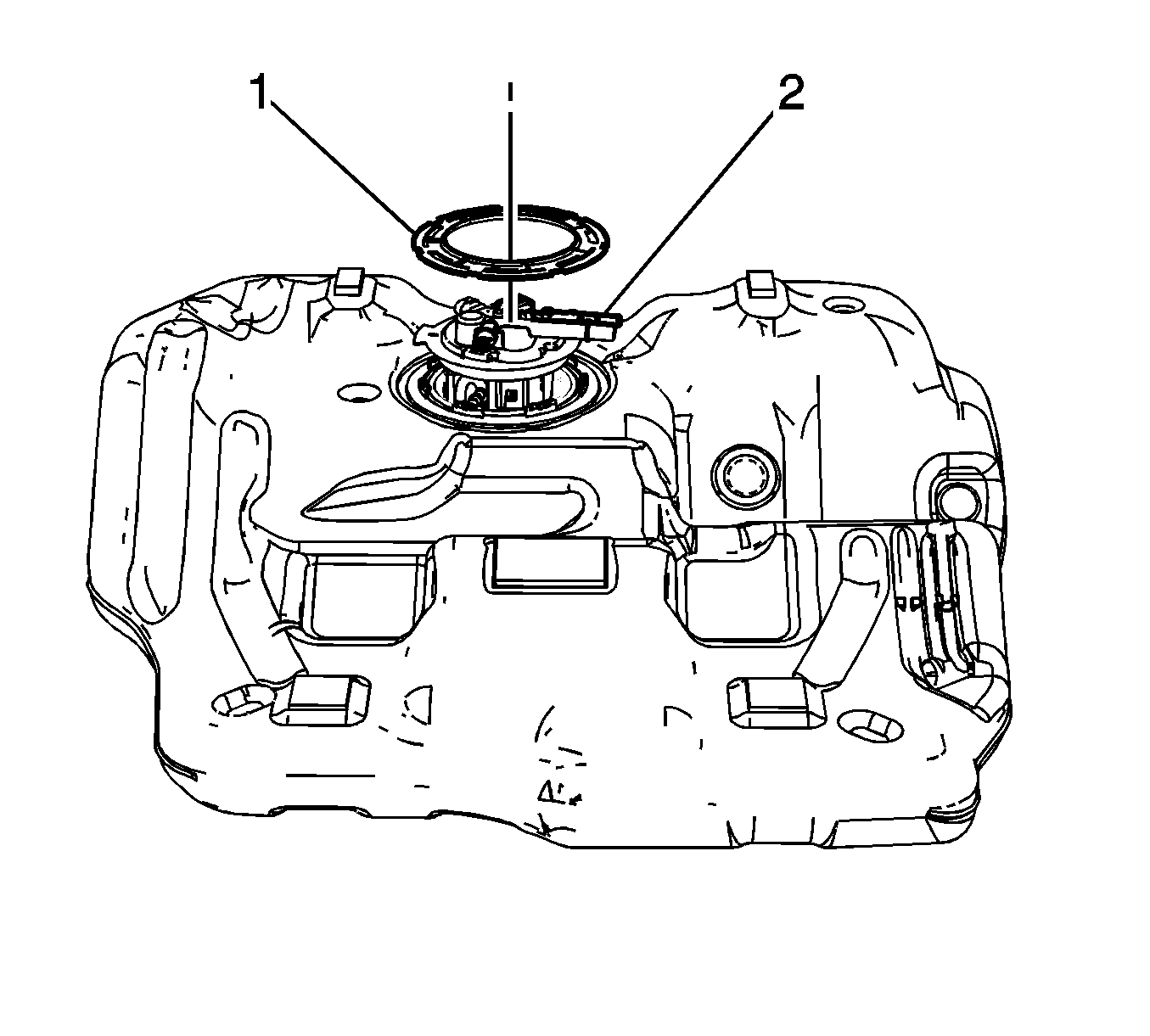

Fig 1: Identifying Fuel Sender Assembly & Lock Ring

Courtesy of GENERAL MOTORS CORP.

Position the NEW fuel sender O-ring seal onto the fuel tank.
Install the fuel sender (2) into the fuel tank. Ensure that the align tab is in the proper location.
Push down the fuel sender and position the lock ring (1) onto the fuel tank.

Fig 2: Identifying Lock Ring

Courtesy of GENERAL MOTORS CORP.
