2011 Chevrolet HHR LS, AutomaticFACTORY OEM SERVICE PROCEDURE
Body Control Module Replacement
Body Control Module Replacement

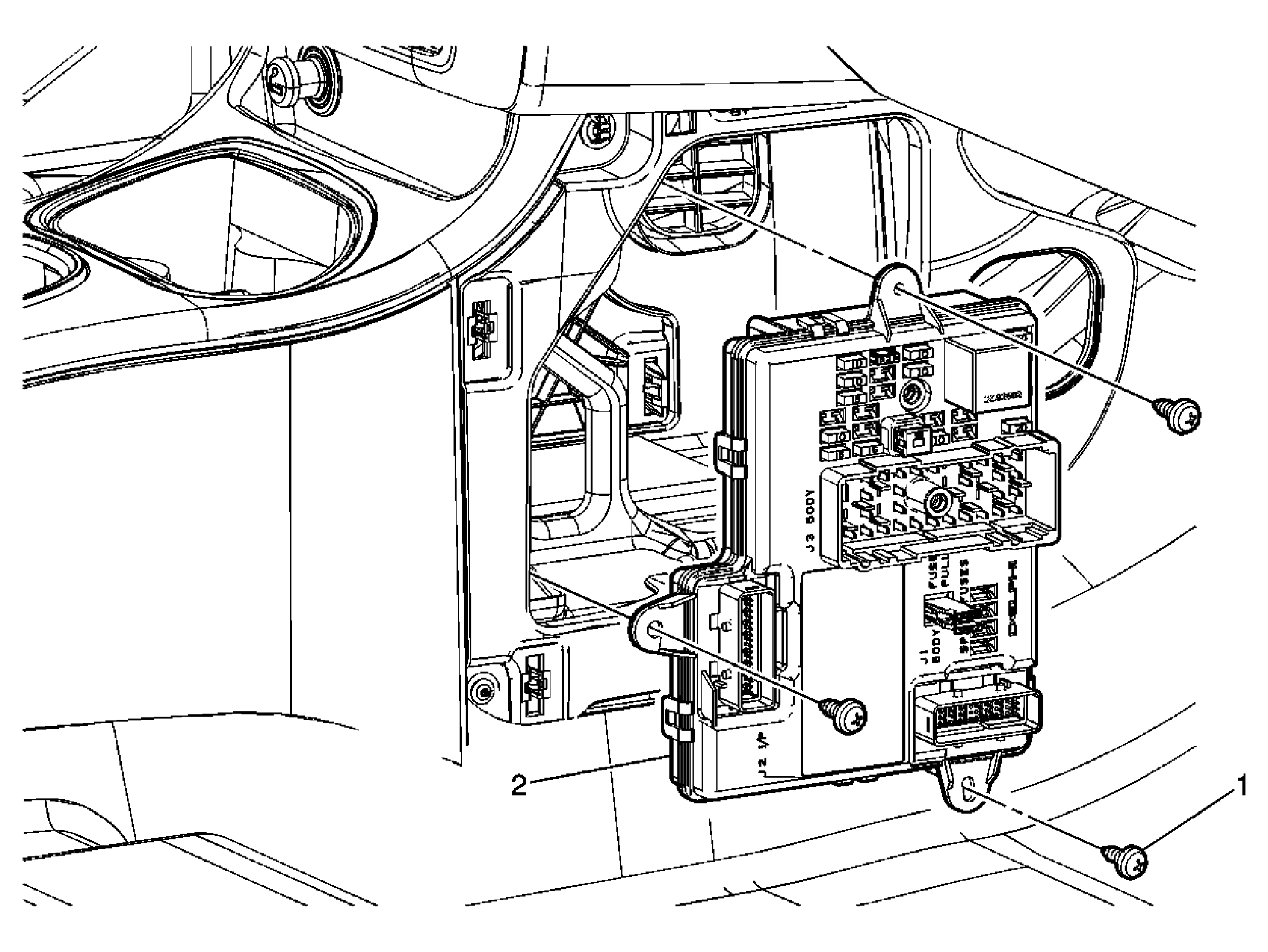

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the right console extension panel. Refer to Front Floor Console Extension Replacement - Side . |
|
| 1 | Body Control Module Assembly Screw
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Body Control Module Assembly TIP: Reprogram the body control module (BCM) after replacement. Refer to Control Module References . |
