2011 Chevrolet Equinox LS, AWDFACTORY OEM SERVICE PROCEDURE

Data Communication System Wiring Schematics

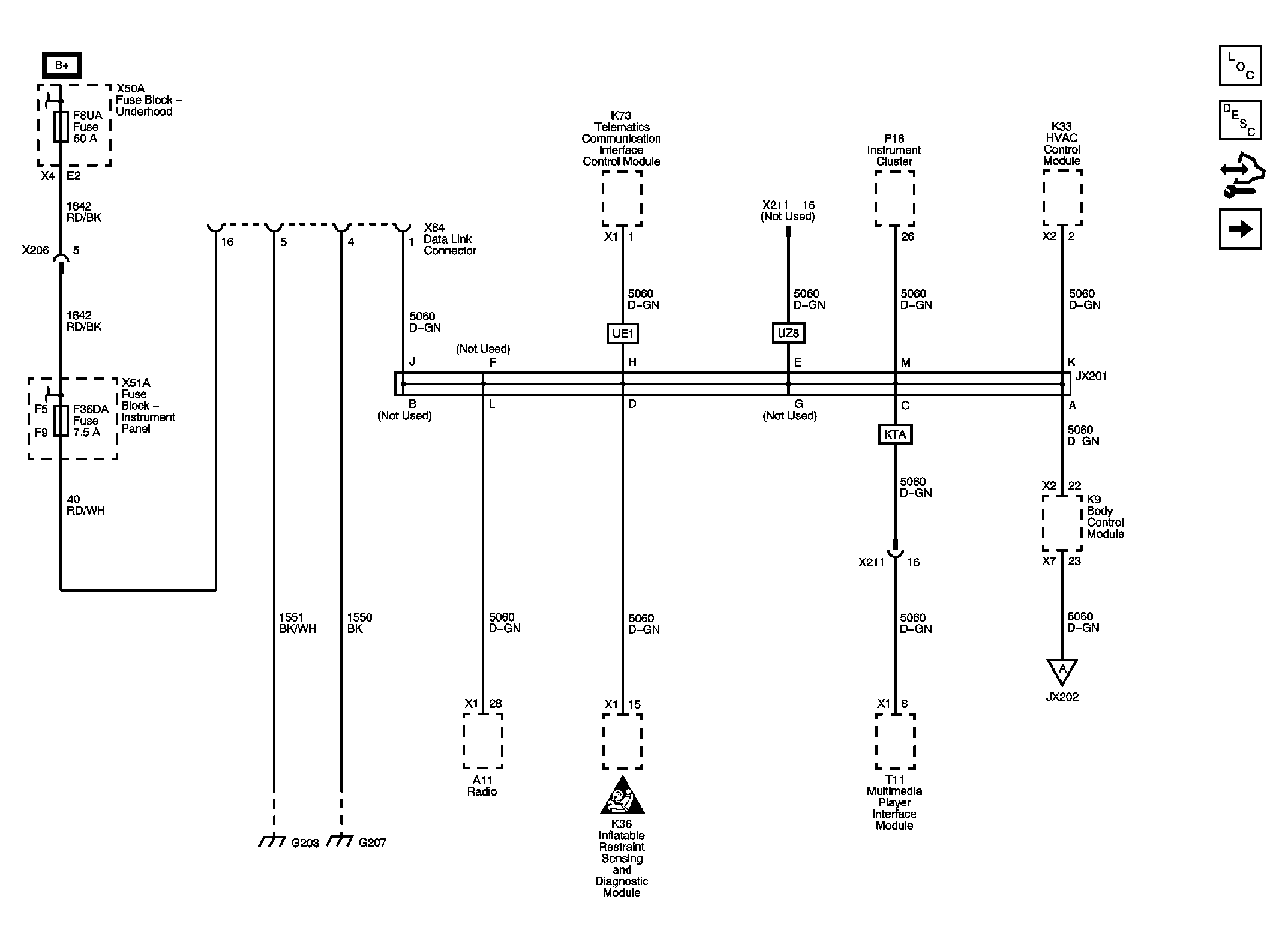

Fig 1: Low Speed GMLAN Wiring Schematic (1 of 2)
GM2409756Courtesy of GENERAL MOTORS CORP.
