2011 Chevrolet Equinox LS, AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- If replacing the fuel pump module only, install the primary fuel level sensor. Refer to Primary Fuel Level Sensor Replacement .

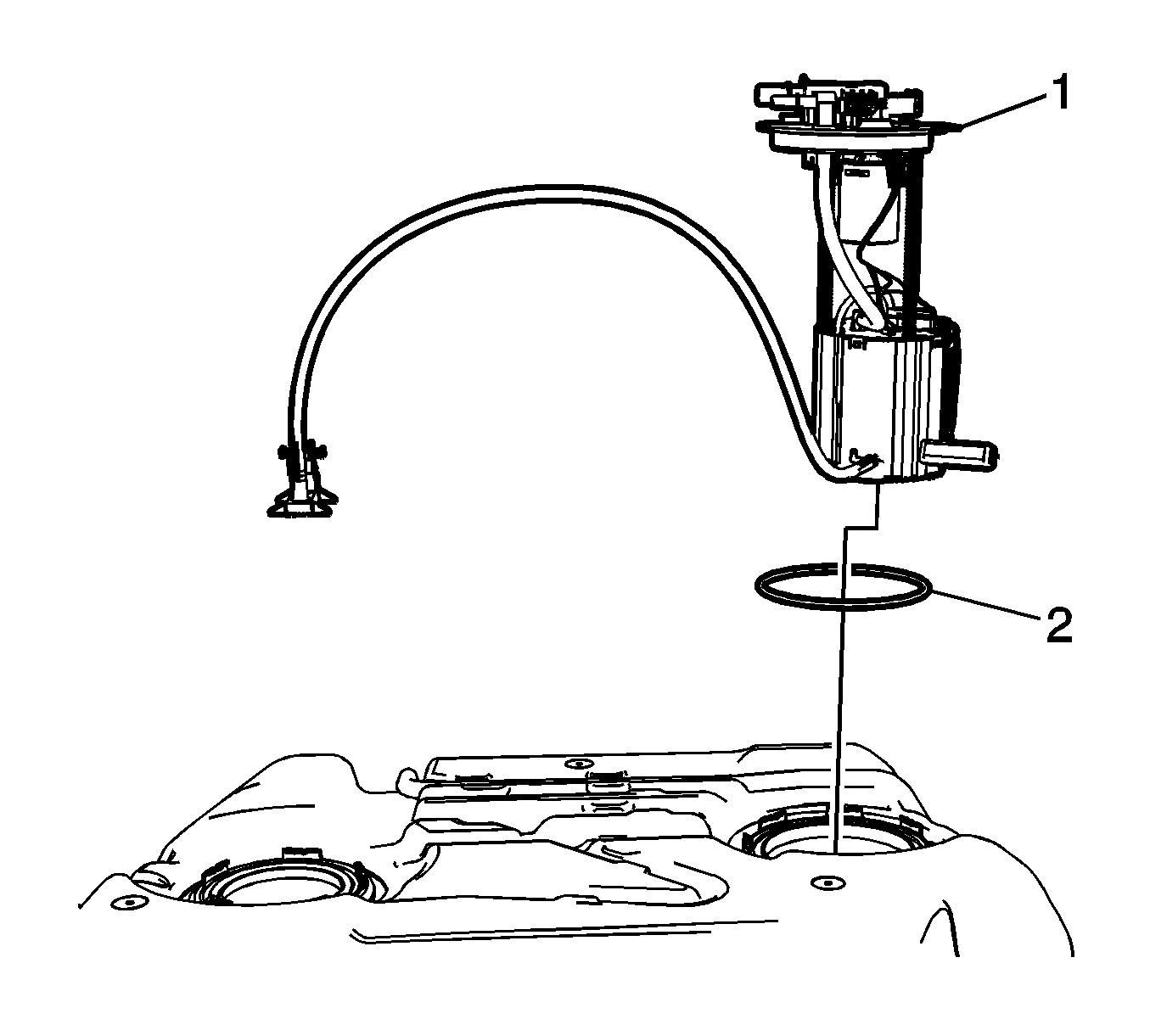

- Install a NEW O-ring (2) and the primary fuel tank module (1).

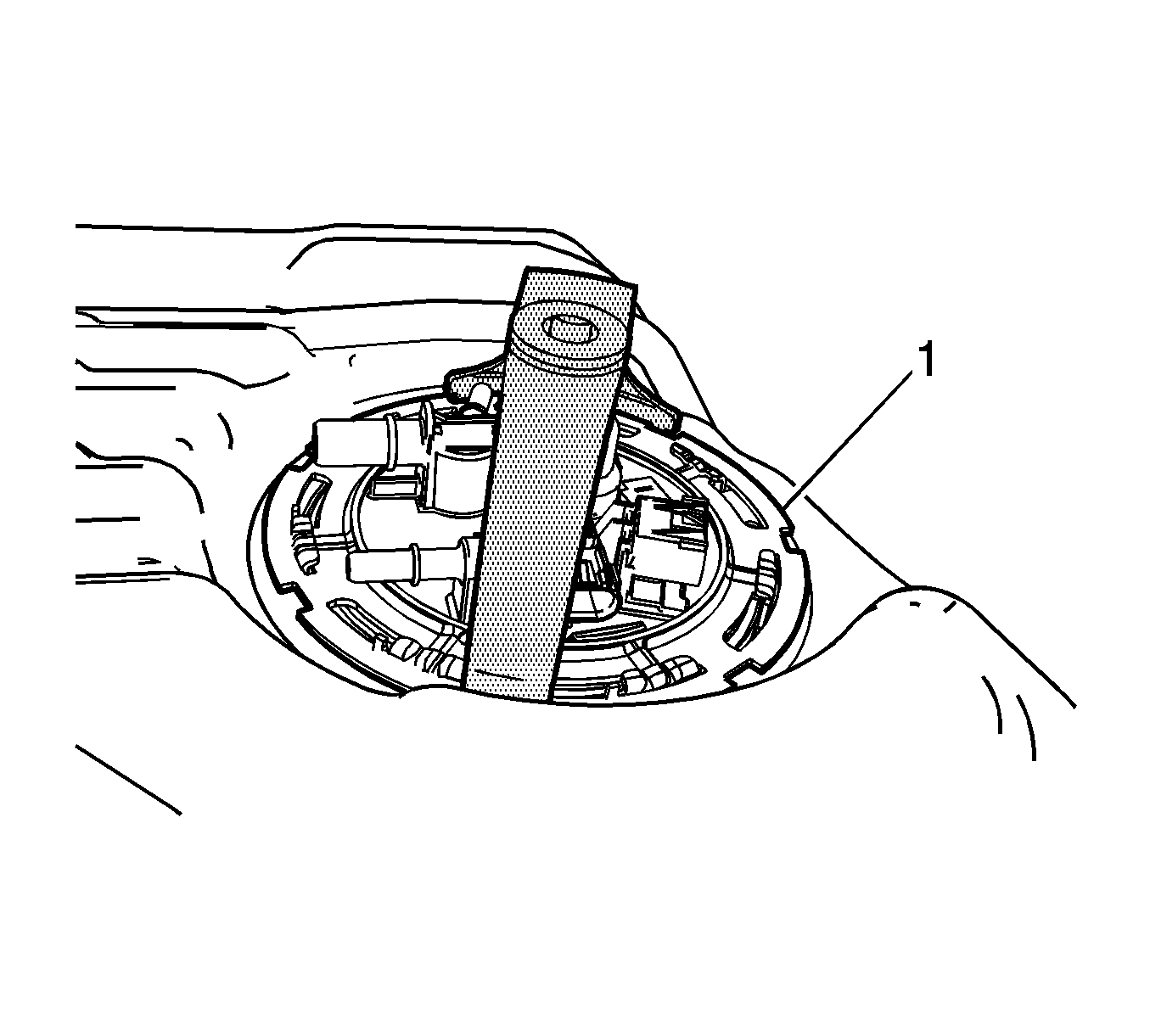

- Using the J-45722: wrench, install the cam lock ring (1) by turning clockwise.

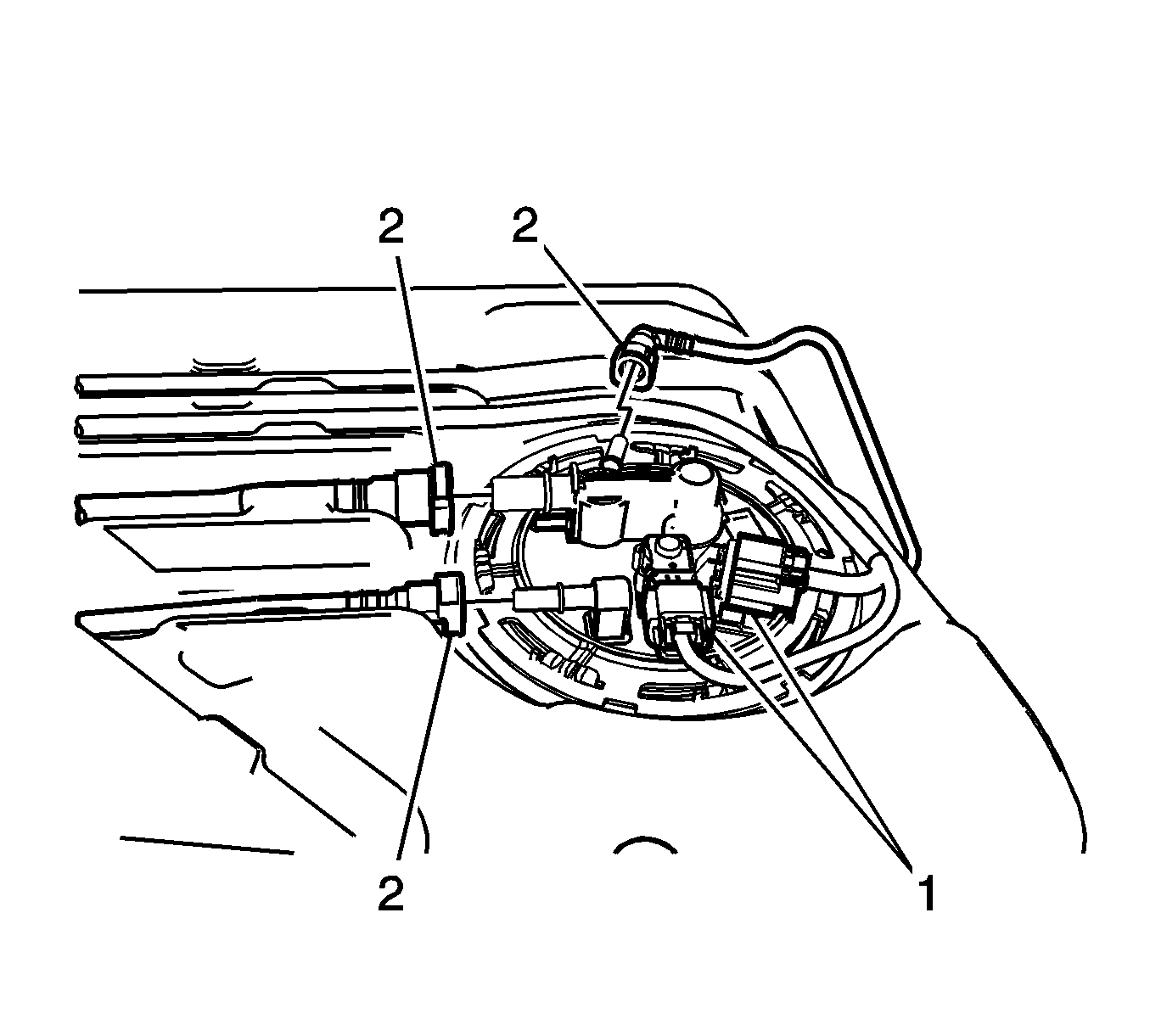

- Connect the electrical connectors (1).
- Connect the fuel and evaporative emission lines (2). Refer to Plastic Collar Quick Connect Fitting Service .
- Connect the crossover tube to the secondary fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement - Secondary .
- Install the fuel tank. Refer to Fuel Tank Replacement (AWD) or Fuel Tank Replacement (FWD) .
