2011 Chevrolet Corvette V8-6.2L SCFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor: Locations
Wheels/Vehicle Underbody Component Views

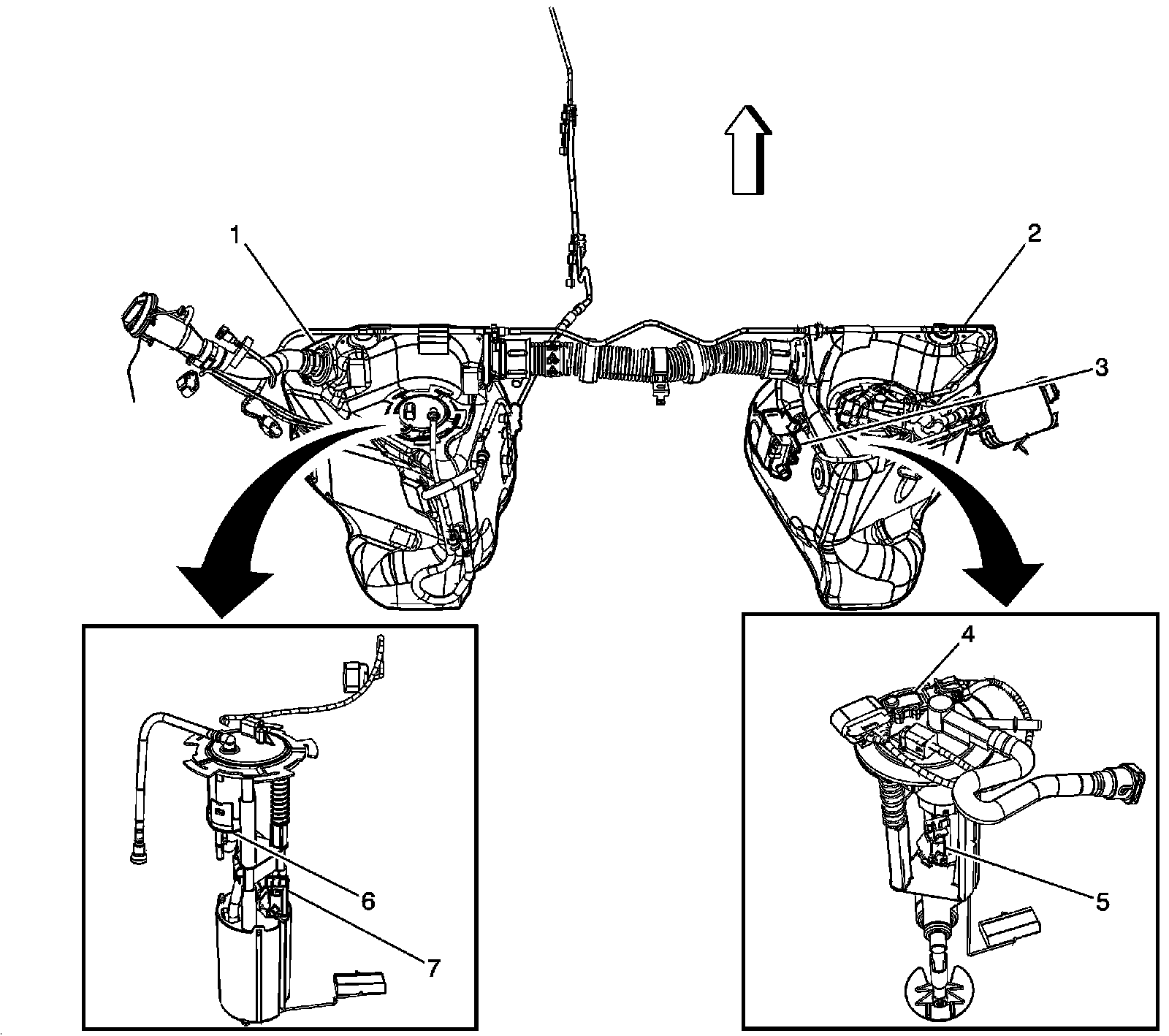

Fuel Tank Components
1 - Fuel Tank - Primary
2 - Fuel Tank - Secondary
3 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
4 - Fuel Tank Pressure (FTP) Sensor
5 - Fuel Level Sensor - Secondary
6 - Fuel Pump and Sender Assembly
7 - Fuel Level Sensor - Primary
