2011 Chevrolet Corvette V8-6.2L SCFACTORY OEM SERVICE PROCEDURE
Seat Temperature Control Module: Locations
Passenger Compartment/Roof Component Views

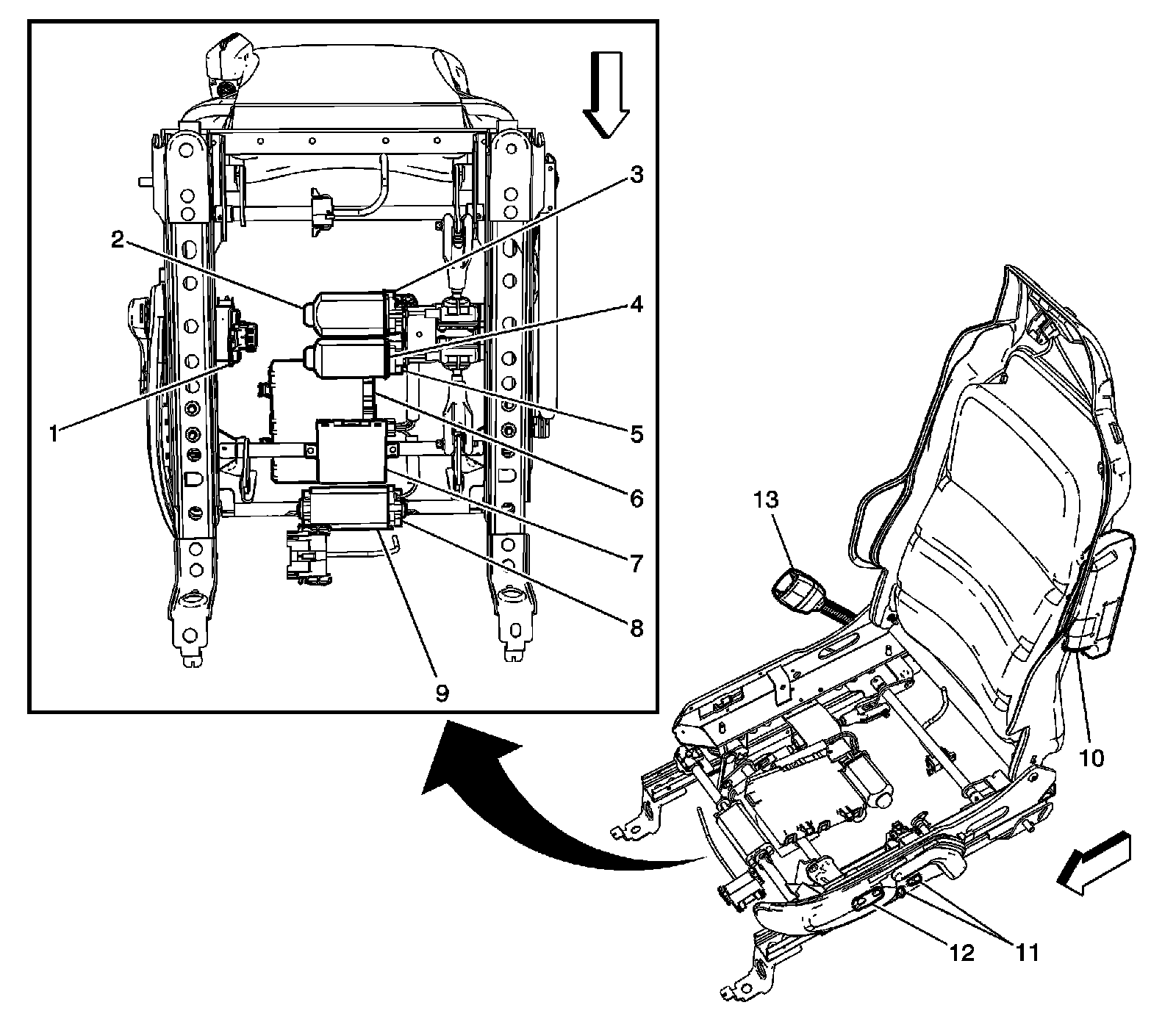

Driver Seat Components
1 - Inflatable Restraint Seat Position Sensor - Driver
2 - Seat Rear Vertical Motor - Driver
3 - Seat Rear Vertical Motor Position Sensor - Driver (AAB)
4 - Seat Front Vertical Motor - Driver (AAB)
5 - Seat Front Vertical Motor Position Sensor - Driver (AAB)
6 - Memory Seat Module - Driver (AAB)
7 - Heated Seat Control Module - Driver (KA1)
8 - Seat Horizontal Motor Position Sensor - Driver (AAB)
9 - Seat Horizontal Motor - Driver
10 - Inflatable Restraint Side Impact Module - Left
11 - Seat Lumbar Adjuster Switch - Driver
12 - Seat Adjuster Switch - Driver
13 - Seat Belt Pretensioner - Driver

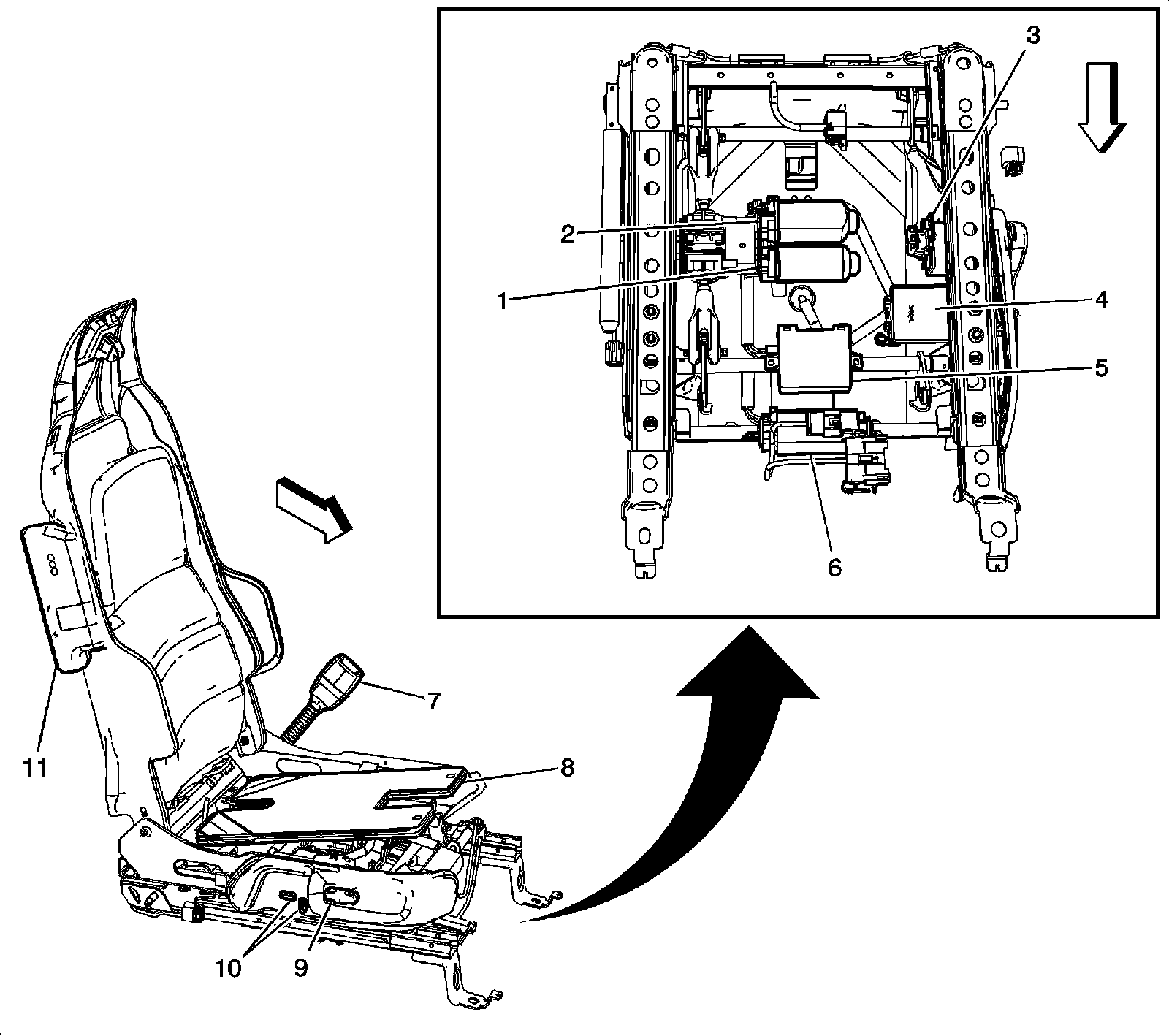

Passenger Seat Components
1 - Seat Front Vertical Motor - Passenger (AG2)
2 - Seat Rear Vertical Motor - Passenger (AG2)
3 - Inflatable Restraint Seat Position Sensor - Passenger
4 - Inflatable Restraint Front Passenger Presence System (PPS) Module
5 - Heated Seat Control Module - Passenger (KA1)
6 - Seat Horizontal Motor - Passenger (AG2)
7 - Seat Belt Pretensioner - Passenger
8 - Heated Seat Element - Passenger Cushion
9 - Seat Adjuster Switch - Passenger
10 - Seat Lumbar Switch - Passenger
11 - Inflatable Restraint Side Impact Module - Right
