2011 Chevrolet CapriceFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the floor shift control knob. Refer to Transmission Control Lever Knob Replacement .
- Remove the centre console trim plate. Refer to Console Trim Plate Replacement (9C3) .
- Using the manual override lever, shift the selector lever to the drive (D) position.

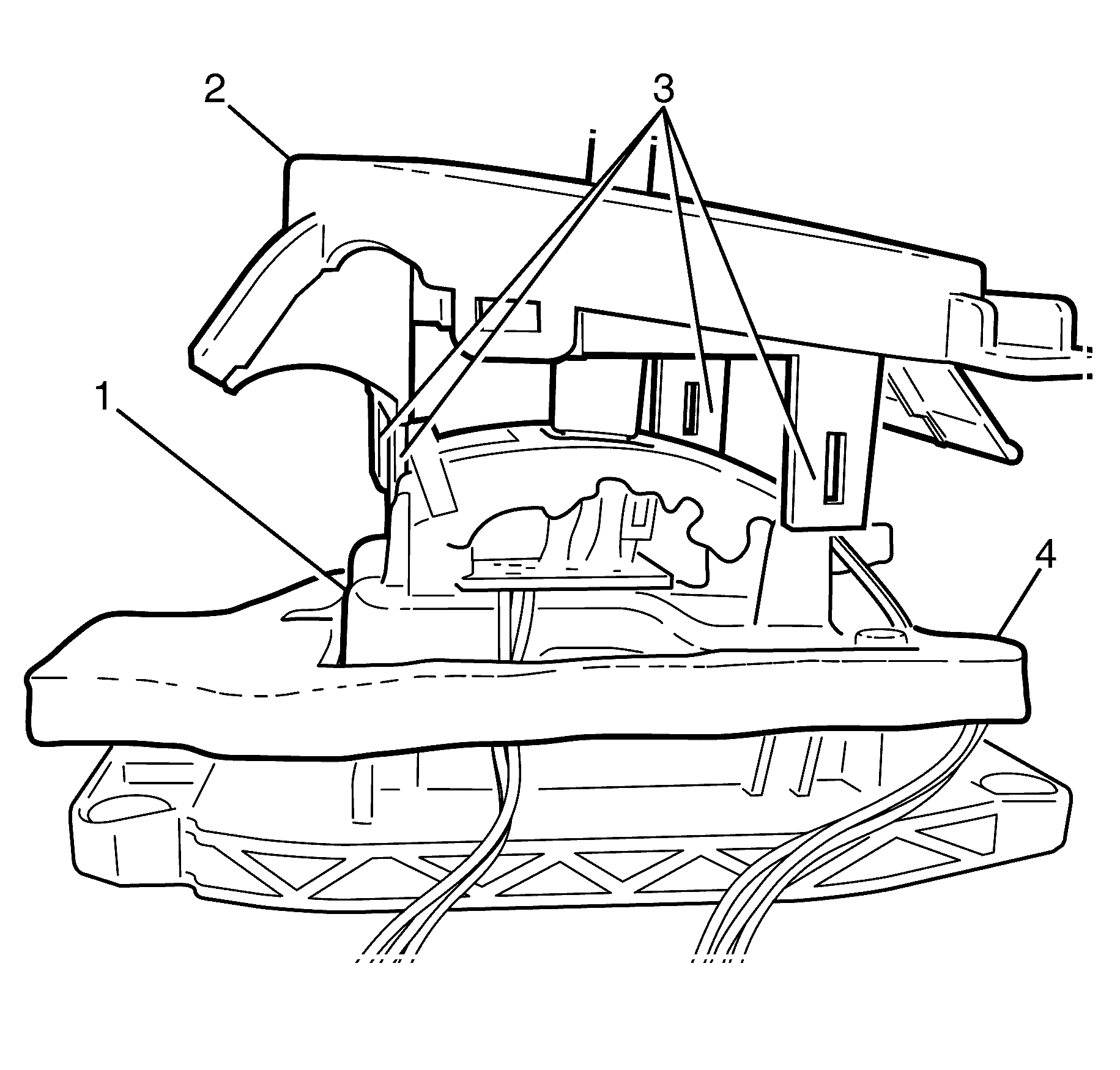

- Disconnect the selector lever housing (2) from the base (1) by depressing the four retaining tabs (3).
- Lift the shift lever housing assembly (2) from the base (1).
- Remove the insulator (4) from the base (1).

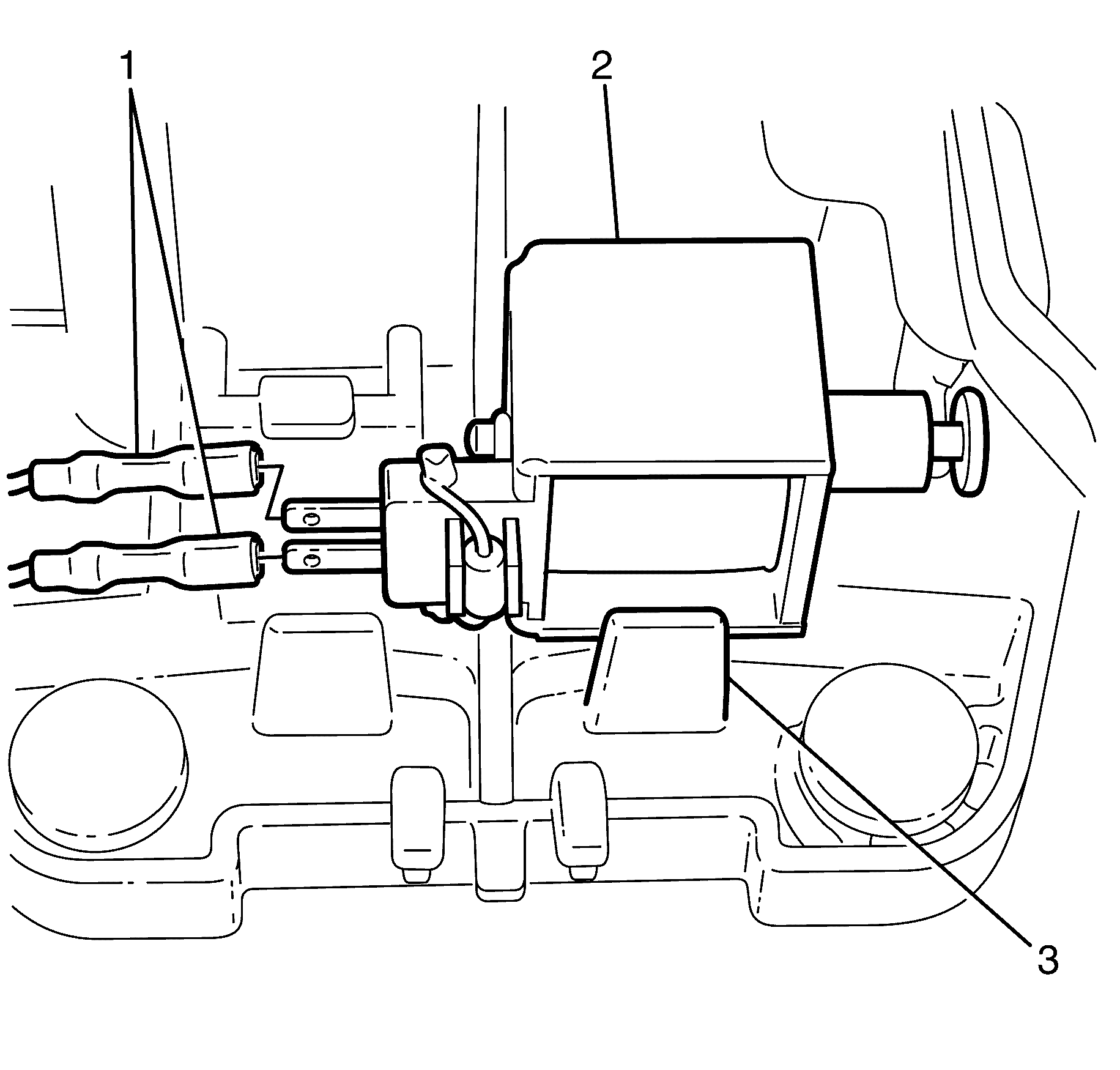

- Disconnect the solenoid wiring harness connector (1) from the shift lock solenoid (2).
- Disengage the solenoid retainer clip (3).
- Remove the solenoid (2).
