Rear Object Alarm Module Replacement

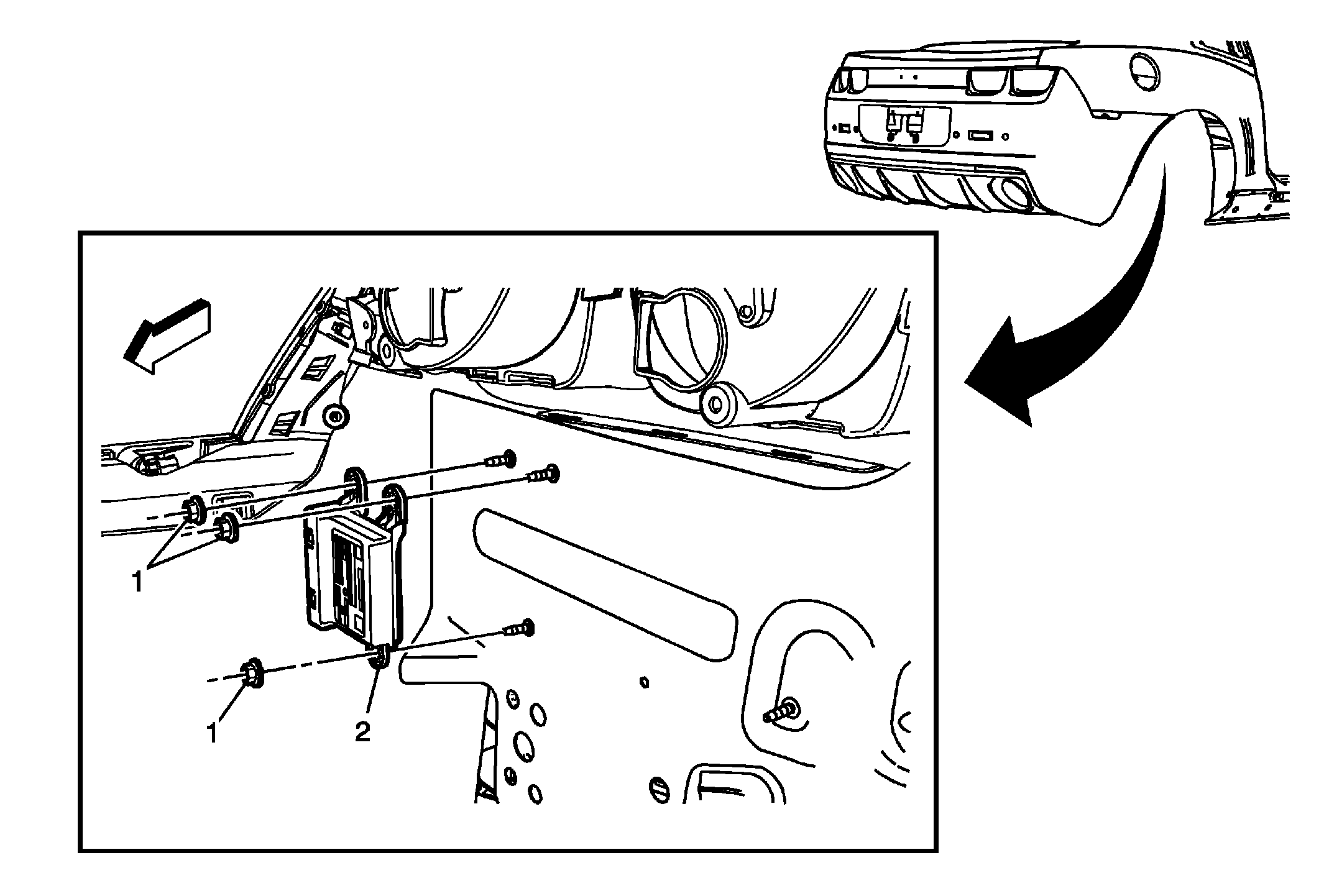

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear end trim panel. Refer to Rear End Trim Finish Panel Replacement . |
|
| 1 | Rear Object Alarm Module Nut (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 6 N.m (53 lb in) |
| 2 | Rear Object Alarm Module Procedure
|
