2011 Chevrolet CapriceFACTORY OEM SERVICE PROCEDURE

Radio Control Assembly Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

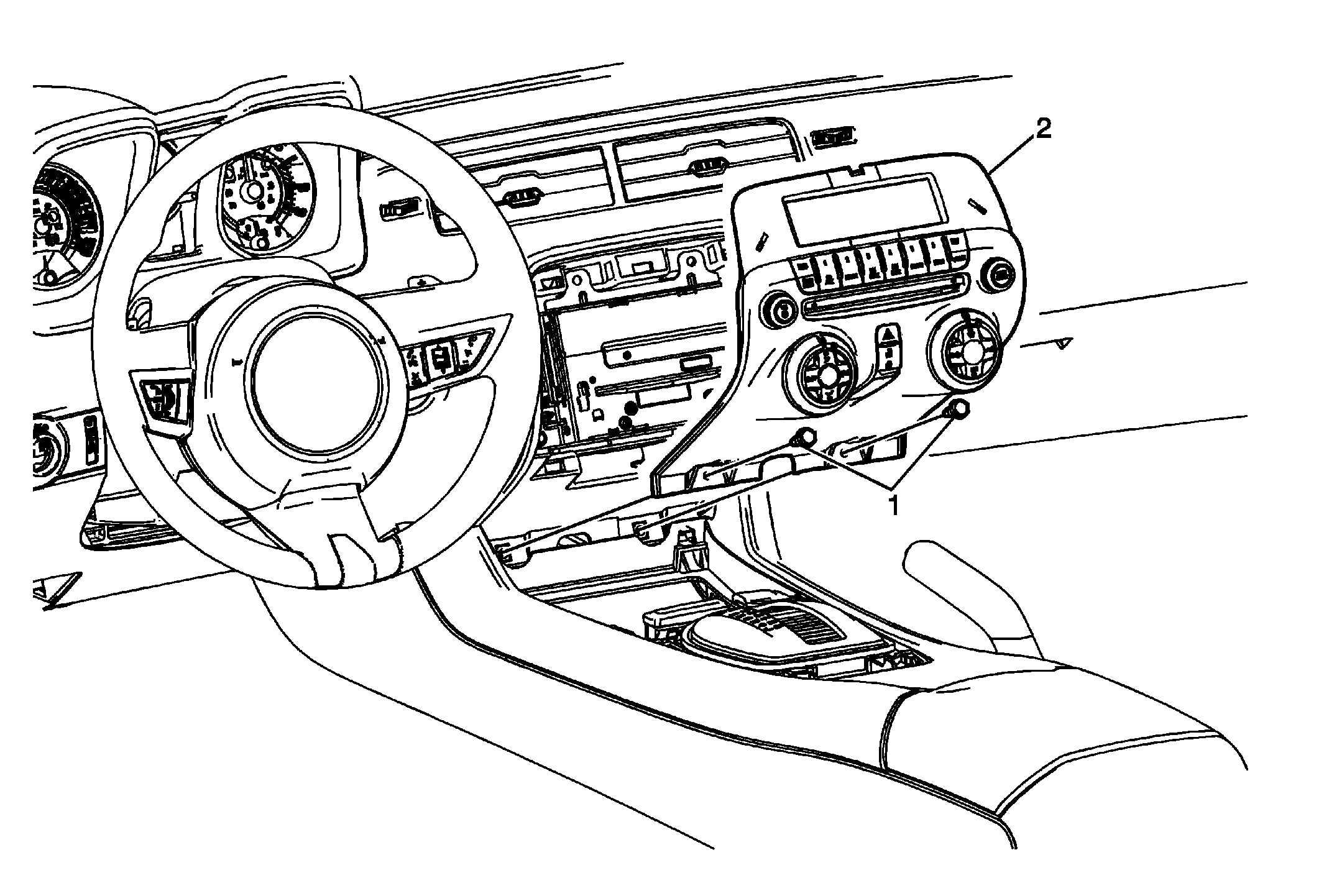

Fig 1: Radio Control Assembly

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Remove the front floor console front cover. Refer to Front Floor Console Front Cover Replacement (Without UMQ) or Front Floor Console Front Cover Replacement (With UMQ)

Radio Control Assembly Bolt/Screw(Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb in)

Radio Control Assembly

Procedure

Use a flat-bladed plastic trim tool in order to release the retainer clips securing the radio control assembly to the instrument panel.
Disconnect the electrical connections.
When replacing the radio control assembly, transfer components as necessary.
Refer to Control Module References for programming and setup information.
