2011 Chevrolet CapriceFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the knee bolster. Refer to Knee Bolster Replacement .
- Remove the front floor console side cover. Refer to Front Floor Console Side Cover Replacement - Right Side (9C3) , Front Floor Console Side Cover Replacement - Right Side (9C1) .
- Remove the instrument panel extension trim panel. Refer to Instrument Panel Lower Extension Side Trim Panel Replacement - Right Side .

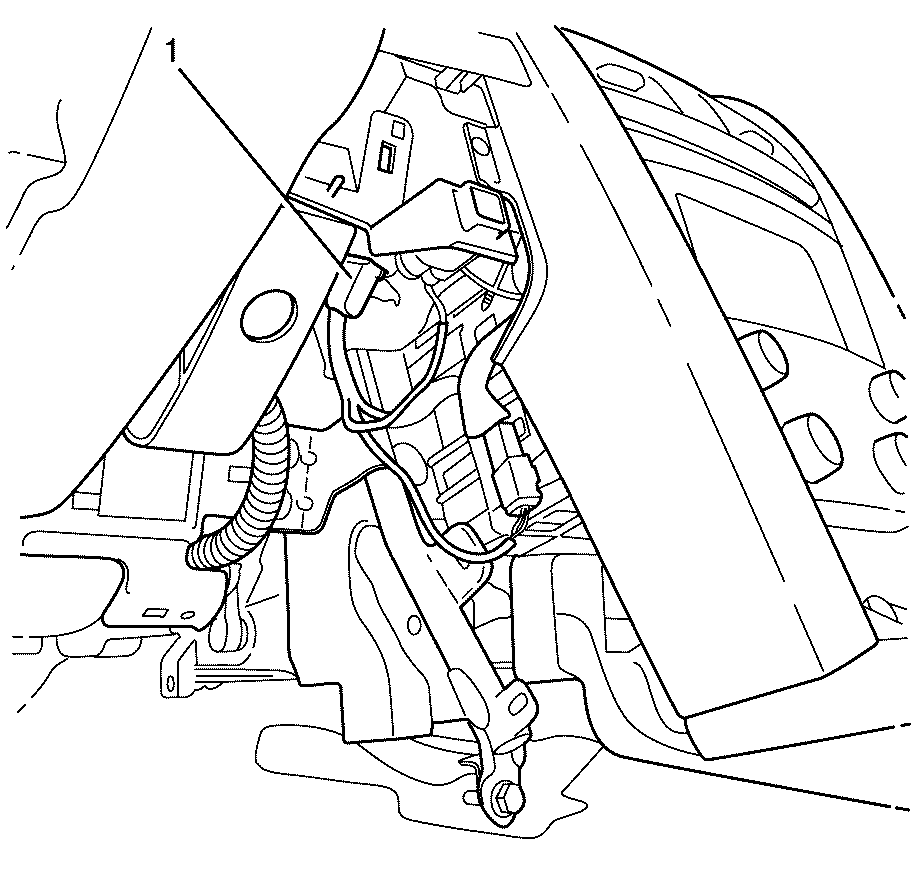

- Remove the tape from the data link resistor (1).
- Disconnect the data link resistor (1) from the instrument panel harness.
