2011 Chevrolet CapriceFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .

WARNING:

Refer to SIR Warning .

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the left floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side (LHD) .

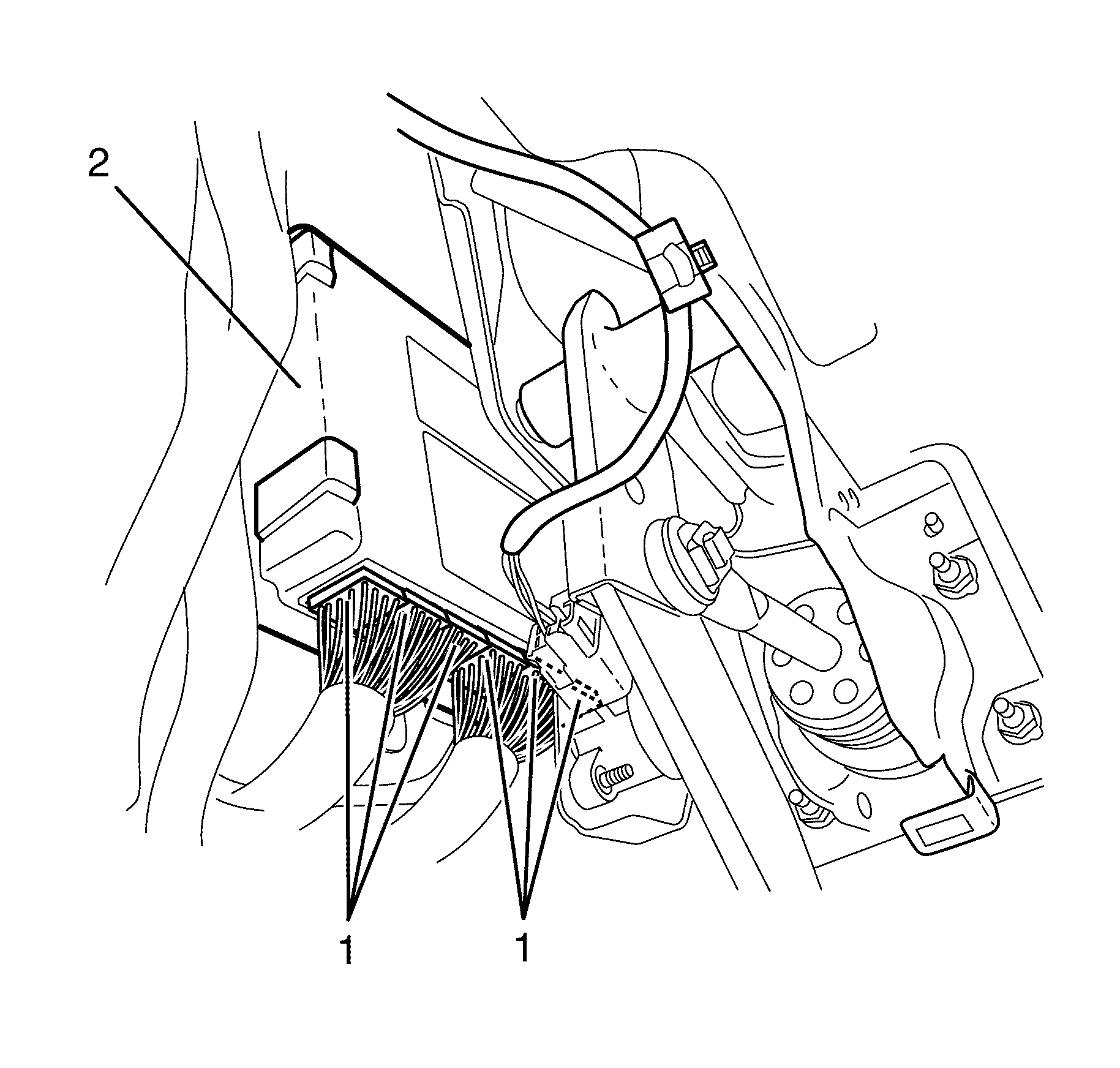

Fig 1: Identifying BCM Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Disconnect the body control module (BCM) electrical connectors (1) from the BCM (2).

Fig 2: Identifying BCM Upper & Lower Retaining Clips

Courtesy of GENERAL MOTORS CORP.
