Fuel Pump Flow Control Module Replacement

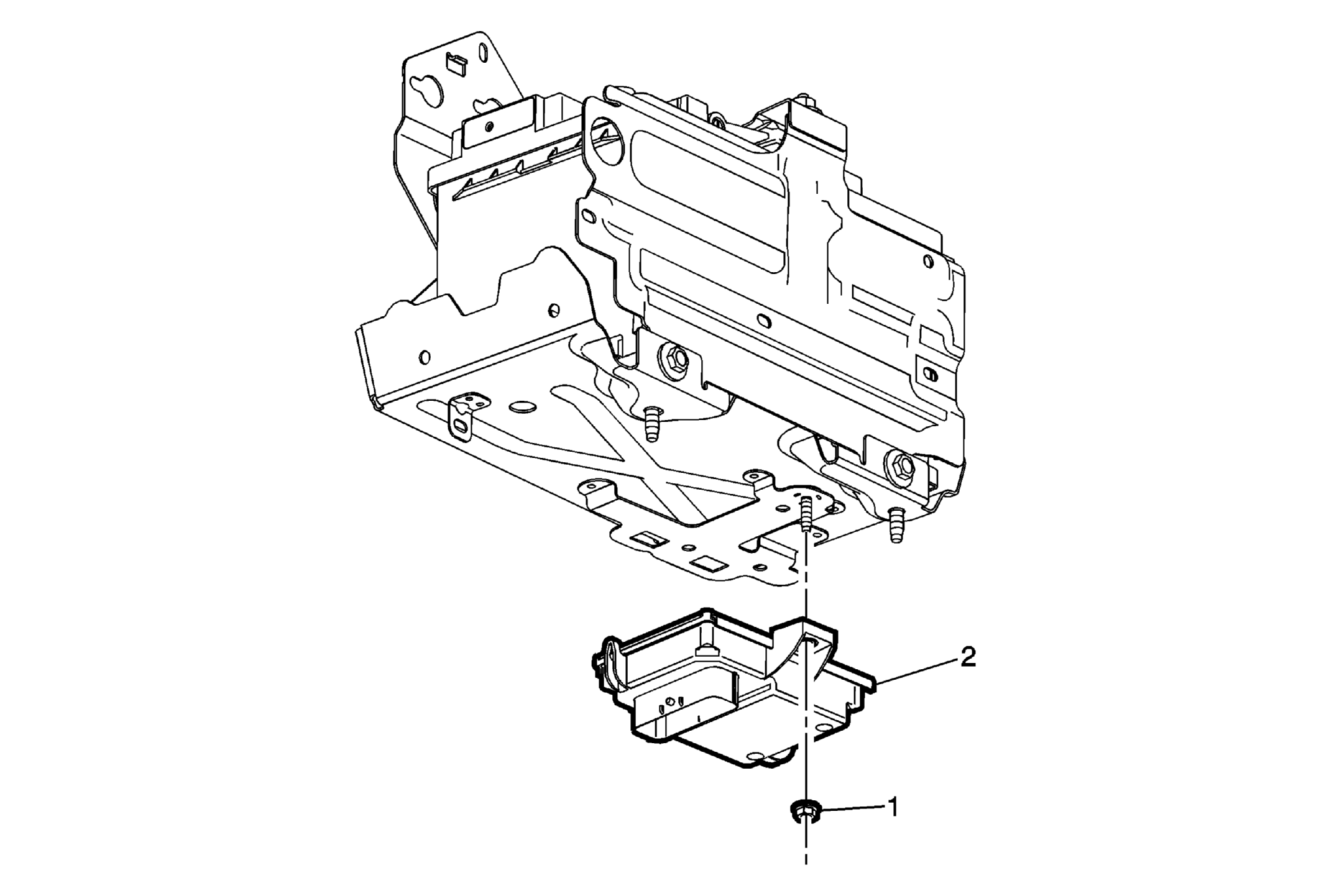

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the battery tray. Refer to Battery Tray Replacement . |
|
| 1 | Fuel Pump Flow Control Module Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m(80 lb in) |
| 2 | Fuel Pump Flow Control Module Procedure
|
