Removal Procedure
- Turn OFF the ignition.
- Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
- Drain the engine coolant below the level of the engine coolant temperature (ECT) sensor. Refer to Cooling System Draining and Filling .
- Lower the vehicle.

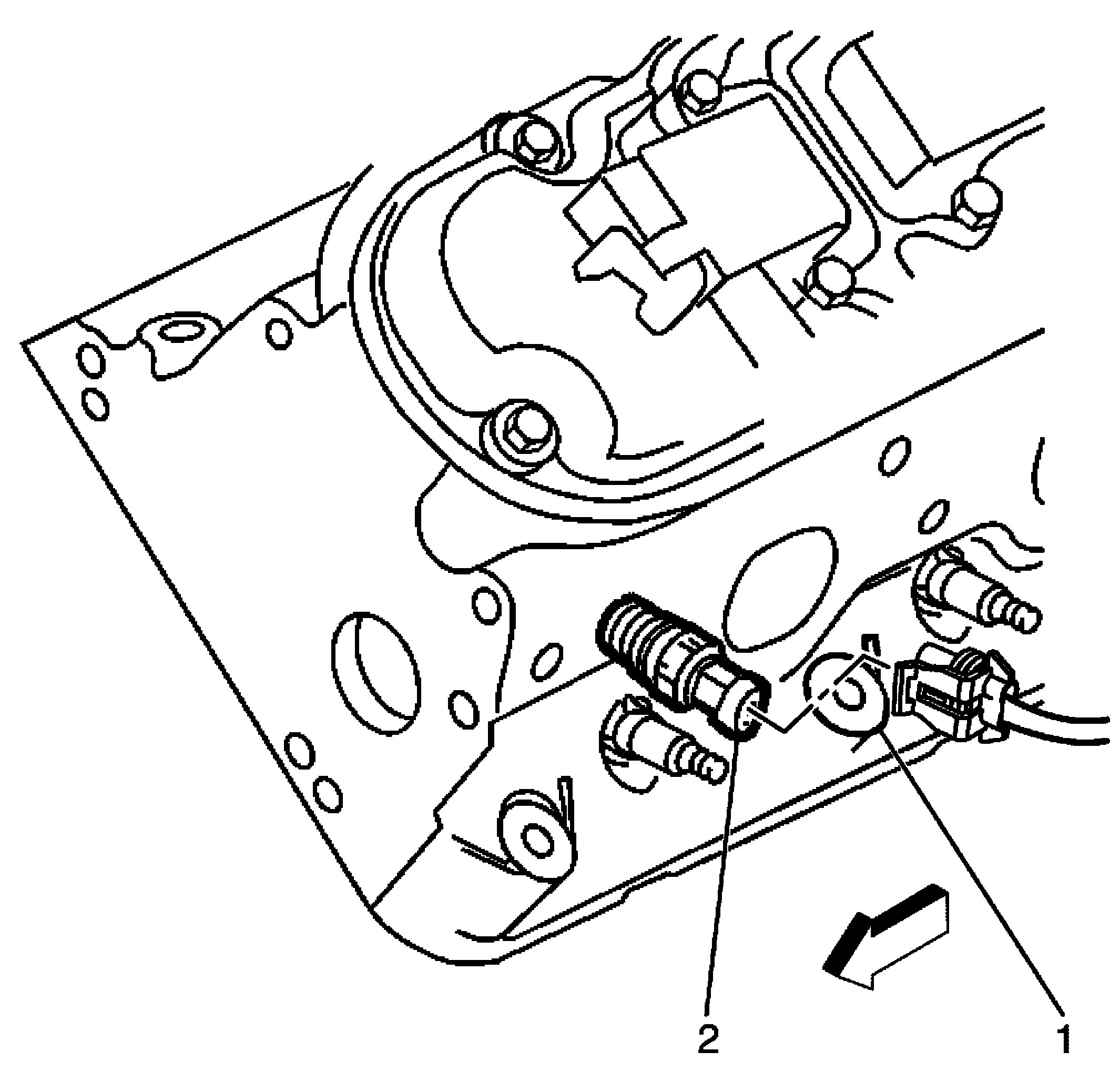

- Disconnect the ECT wiring harness connector (1) from the ECT sensor.
To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.
