Removal Procedure
- Using a scan tool, retrieve the percentage of remaining engine oil. Record the remaining engine oil life.
- Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
- Remove the junction block. Refer to Underhood Electrical Center or Junction Block Replacement .

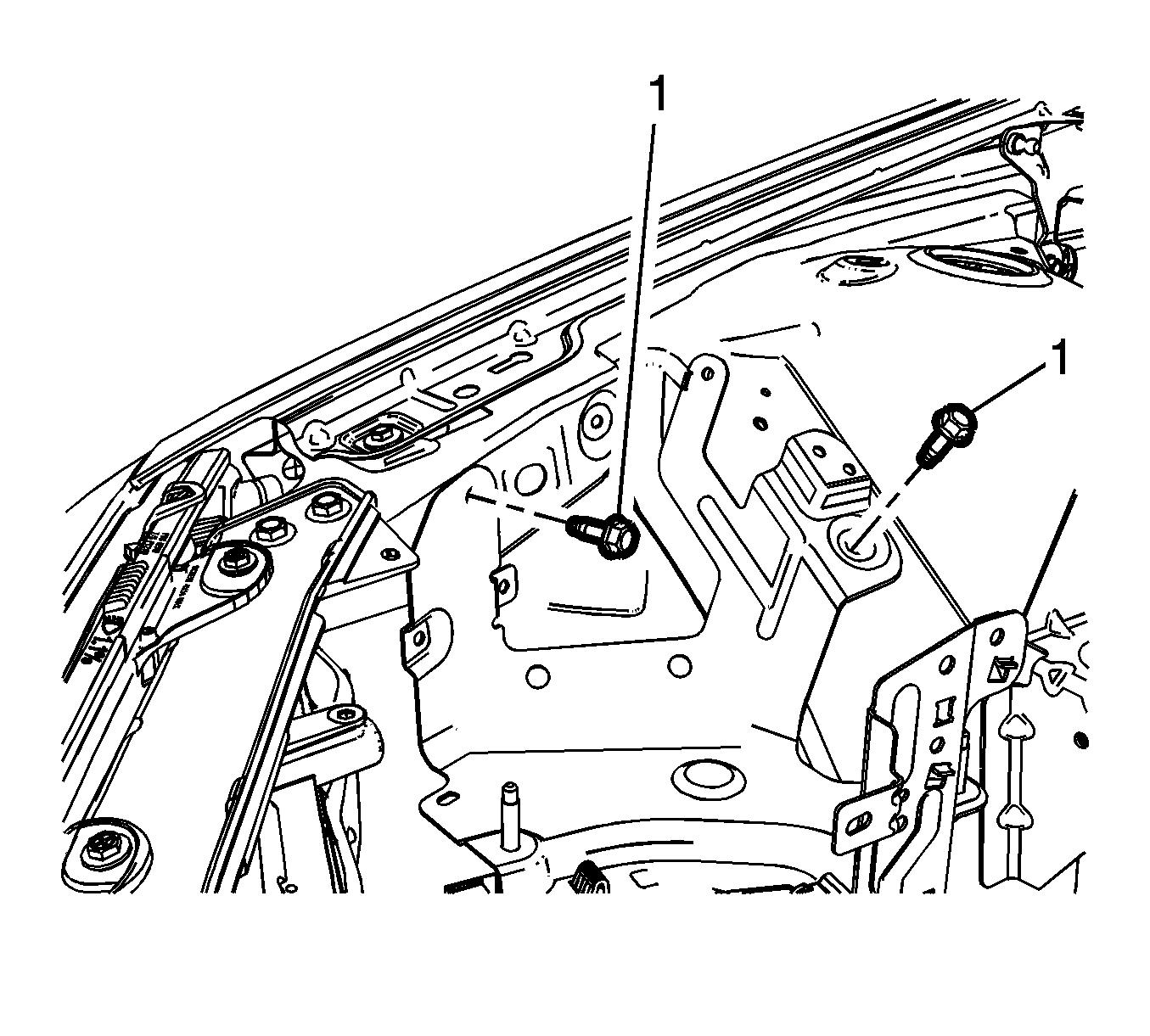

- Remove the ECM bracket fasteners (1).

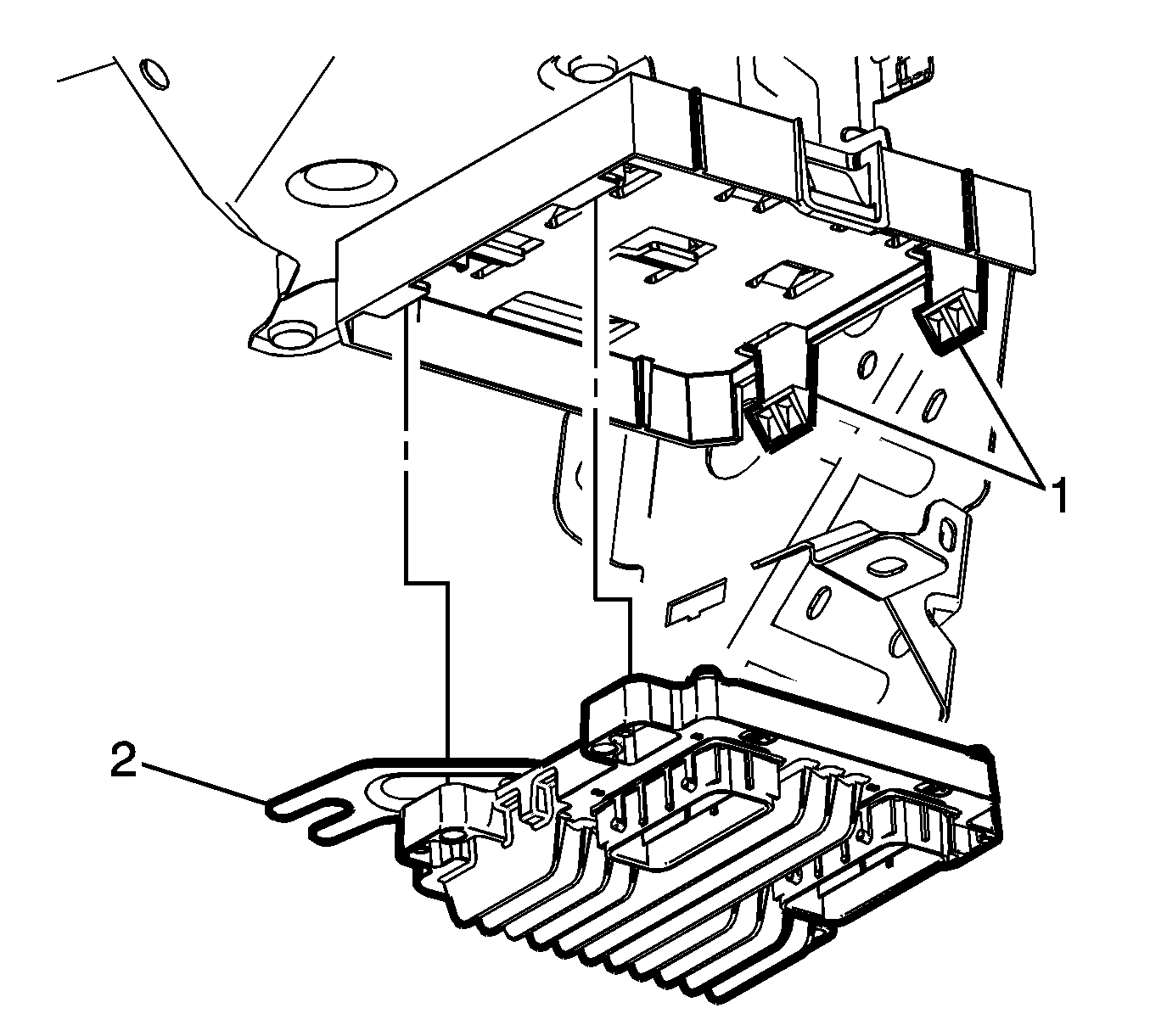

- Release the ECM retaining clips (1) and detach the ECM (2).

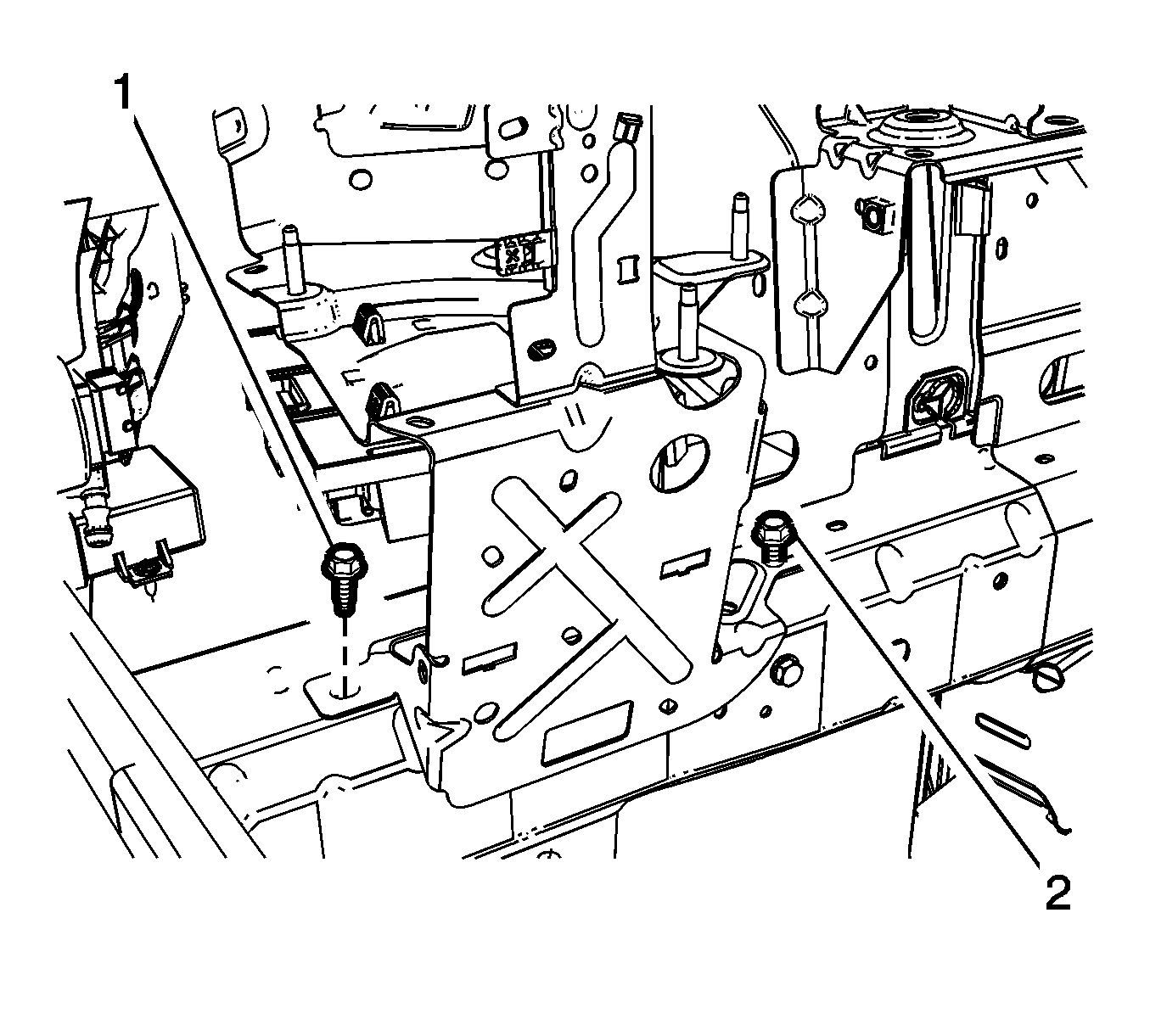

- Remove the ECM bracket fastener (1) and partially loosen the rear ECM bracket fastener (2).

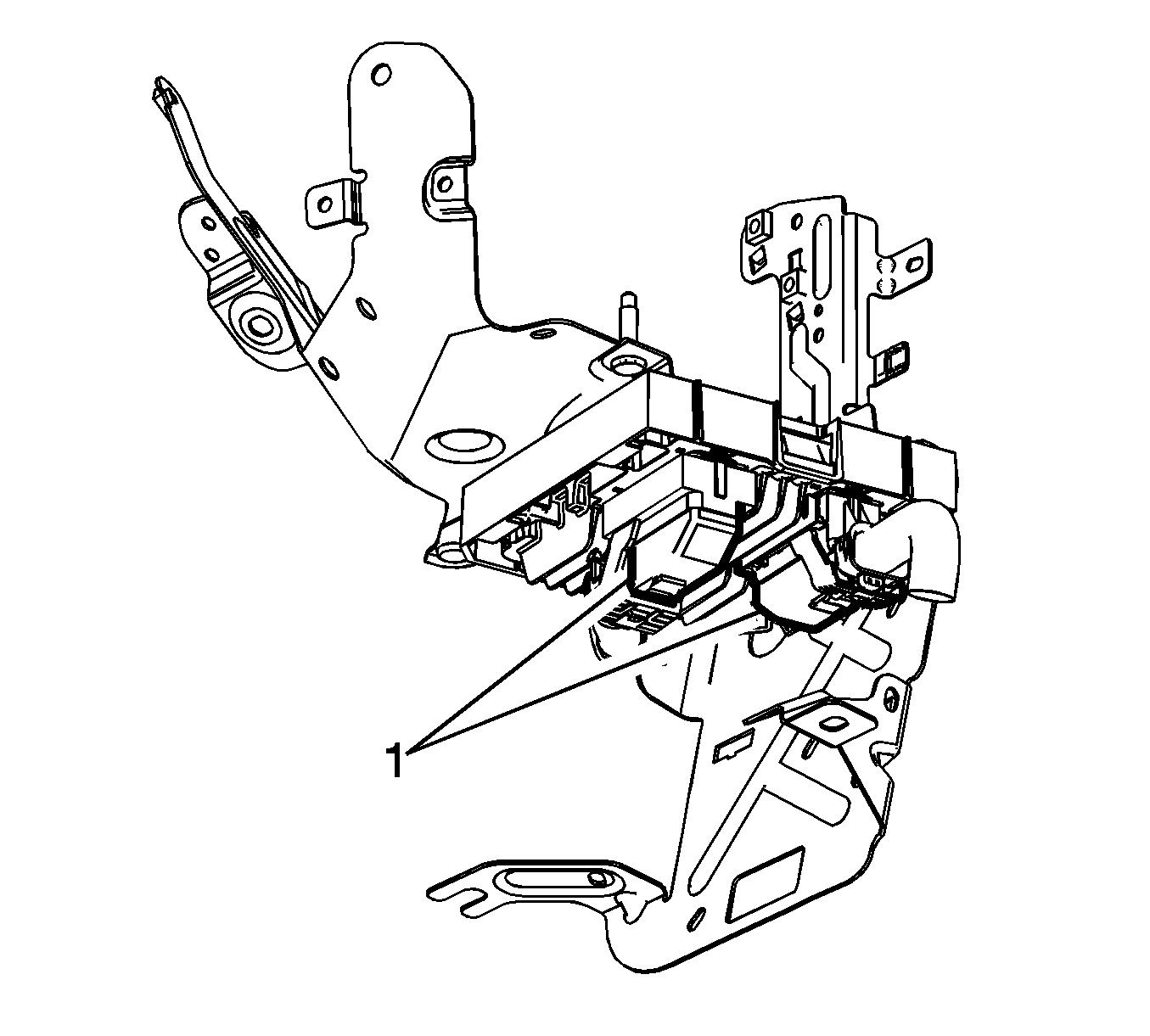

- Move the connector lock levers to the unlock position and disconnect the ECM electrical connectors (1).
- Release the plastic retaining tabs (1) and remove the ECM (2).
Record the current engine oil life percentage and use a scan tool to update the NEW ECM, if replacing.
