2011 Chevrolet CapriceFACTORY OEM SERVICE PROCEDURE
Installation Procedure

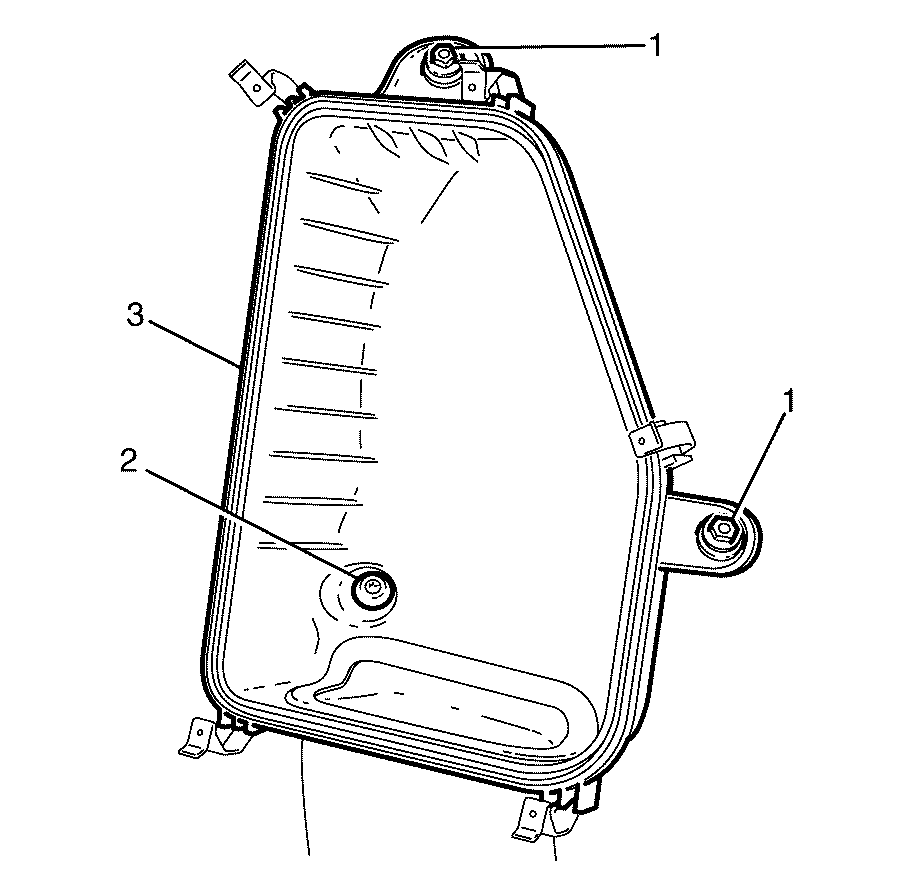

- Install the air cleaner lower housing (3) to the vehicle.
- Apply suitable downward pressure to the air cleaner lower housing (3) to engage the retainer (2).
- Install the air cleaner to chassis retaining fasteners (1) and tighten to 10 N.m (89 lb in).
- Install the air cleaner element. Refer to Air Cleaner Element Replacement .
CAUTION:
Refer to Fastener Caution .
