Fuel Pump Flow Control Module Replacement

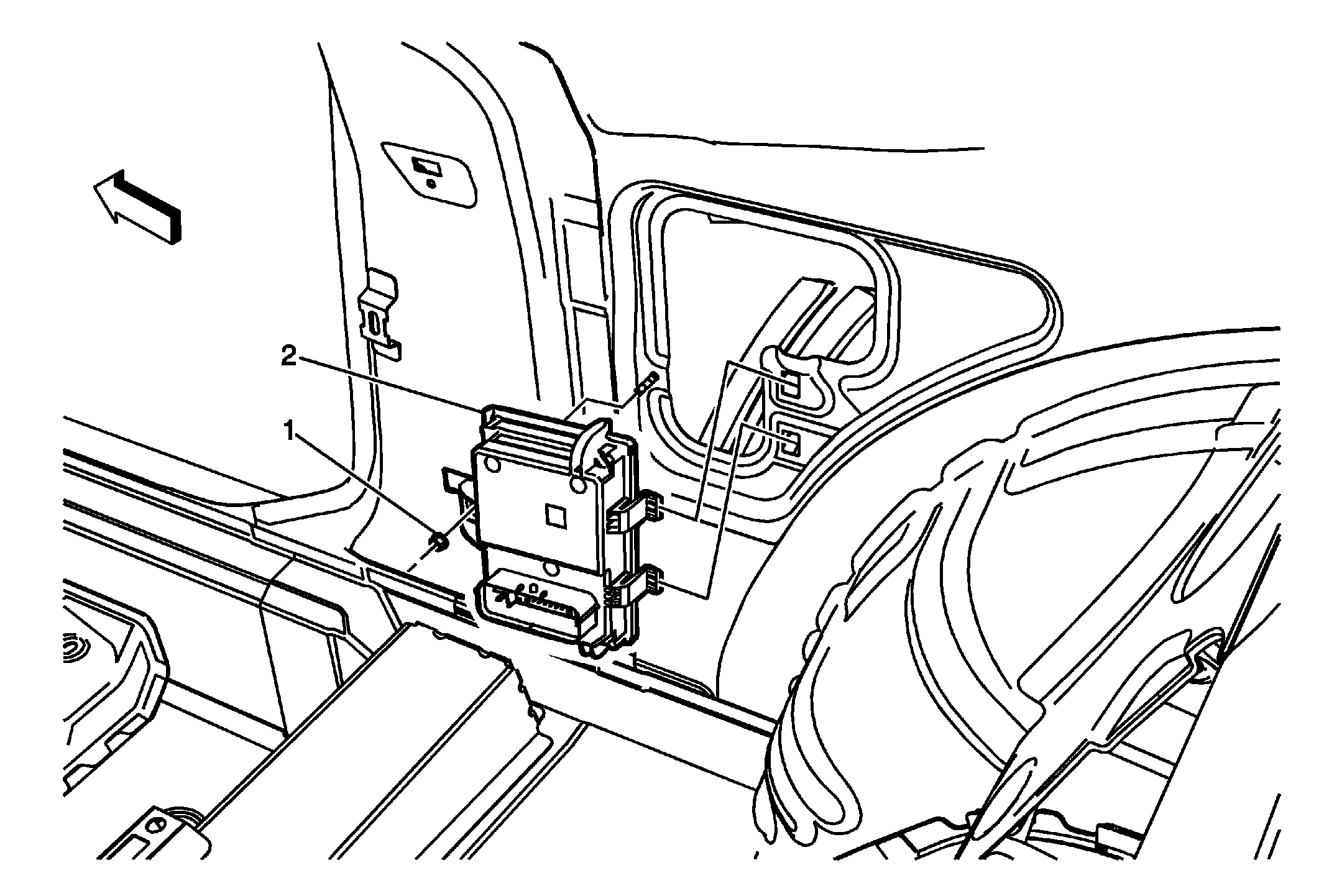

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the right side quarter trim panel. Refer to Quarter Trim Panel Replacement . |
|
| 1 | Fuel Pump Flow Control Module Fastener
CAUTION:
Refer to Fastener Caution
.
Tighten: 3 N.m (27 lb in) |
| 2 | Fuel Pump Flow Control Module Procedure
|
