2010 Chevrolet Traverse LS, FWDFACTORY OEM SERVICE PROCEDURE
Powertrain Component Views

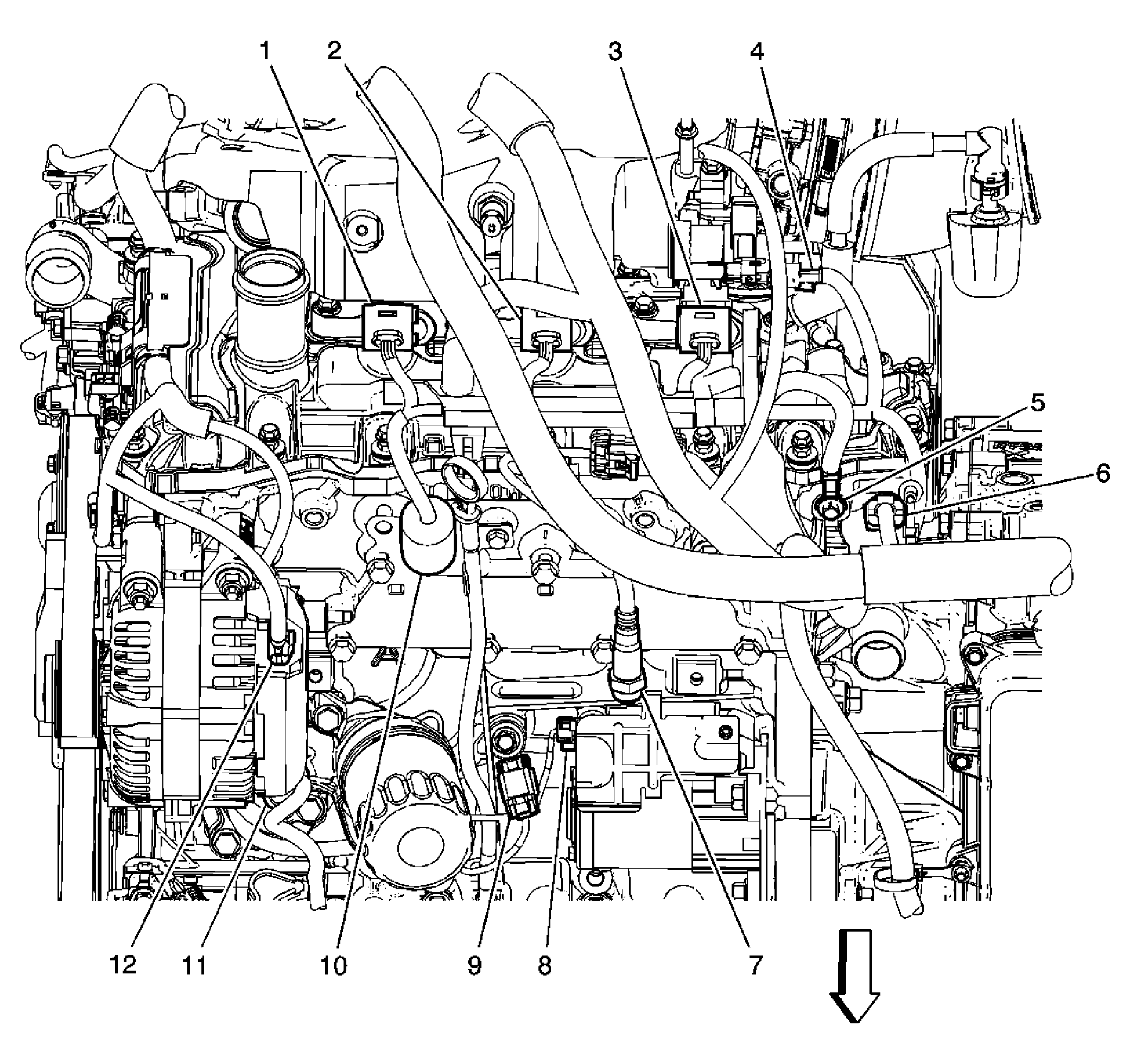

| Callout | Component Name |
|---|---|
| 1 | Ignition Coil 2 |
| 2 | Ignition Coil 4 |
| 3 | Ignition Coil 6 |
| 4 | Evaporative Emission (EVAP) Canister Purge Solenoid Valve |
| 5 | G114 |
| 6 | High Pressure Fuel Pump |
| 7 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 |
| 8 | Starter Motor |
| 9 | Knock Sensor (KS) 2 |
| 10 | Engine Coolant Temperature (ECT) Sensor |
| 11 | Engine Oil Pressure (EOP) Sensor |
| 12 | Generator |

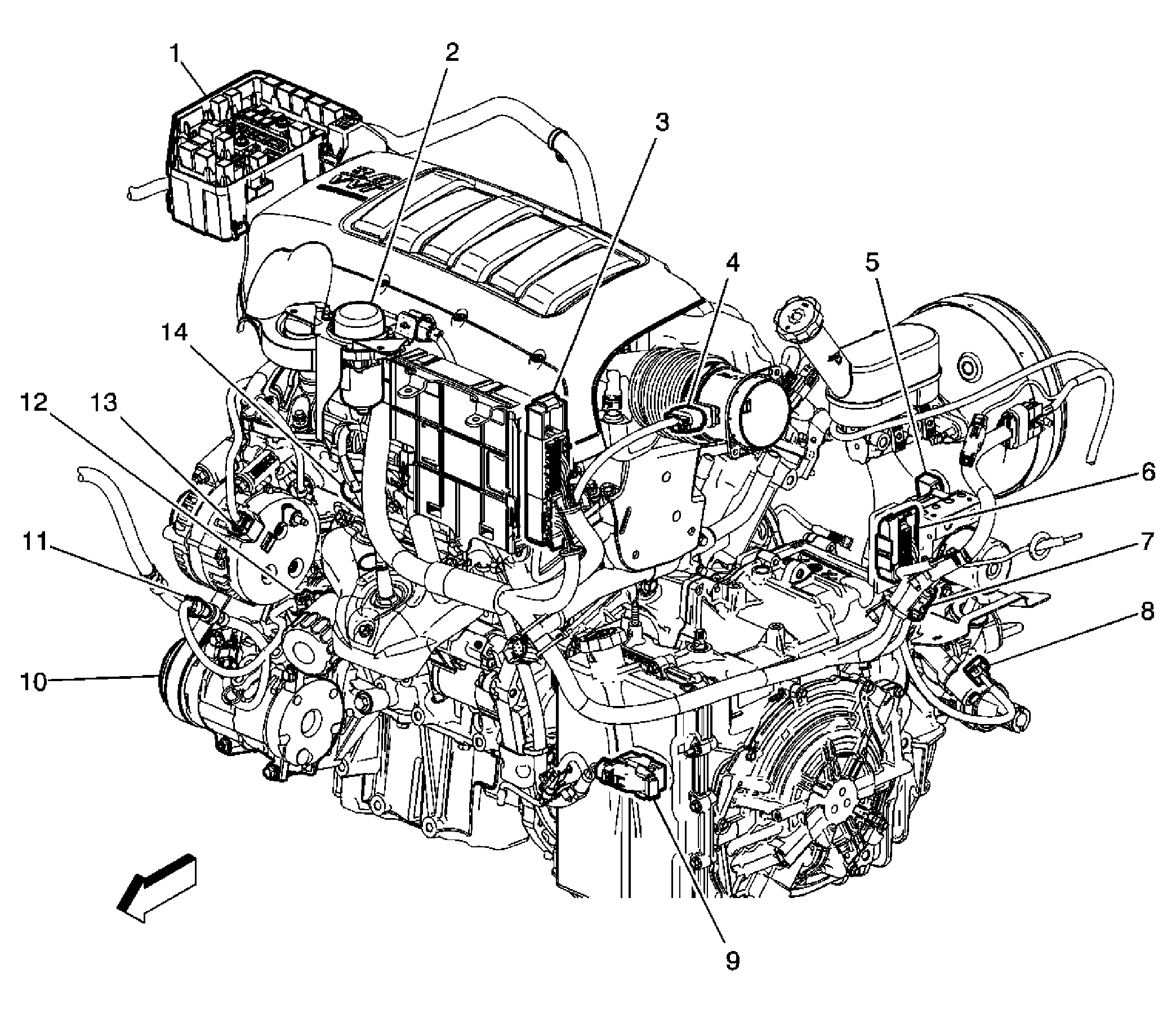

| Callout | Component Name |
|---|---|
| 1 | Fuse Block - Underhood |
| 2 | Brake Booster Pump - Auxiliary |
| 3 | Engine Control Module (ECM) |
| 4 | Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor |
| 5 | Brake Booster Vacuum Sensor |
| 6 | Electronic Brake Control Module (EBCM) Connector |
| 7 | Wheel Speed Sensor (WSS) - Left Front Connector |
| 8 | Variable Effort Steering Actuator (NV7) Connector |
| 9 | Control Solenoid Assembly |
| 10 | A/C Compressor Clutch |
| 11 | A/C Refrigerant Pressure Sensor |
| 12 | Engine Oil Pressure (EOP) Sensor |
| 13 | Generator |
| 14 | Engine Coolant Temperature (ECT) Sensor |
| Callout | Component Name |
|---|---|
| 1 | Fuel Injector 1 |
| 2 | Fuel Injector 3 |
| 3 | Fuel Injector 5 |
| 4 | Fuel Injector 6 |
| 5 | Fuel Injector 4 |
| 6 | Fuel Injector 2 |
| 7 | Fuel Rail Pressure (FRP) Sensor |

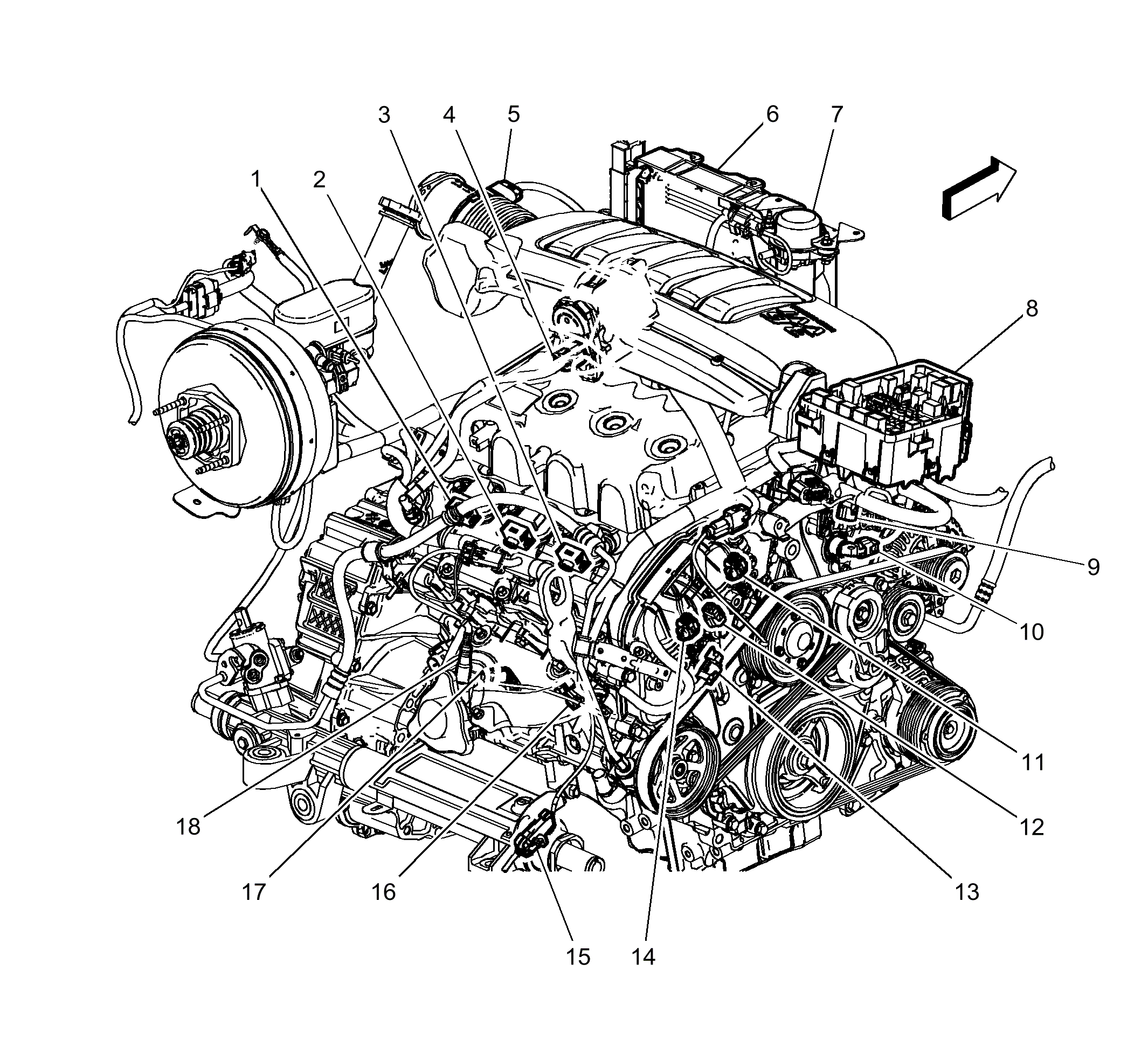

| Callout | Component Name |
|---|---|
| 1 | Ignition Coil 5 |
| 2 | Ignition Coil 3 |
| 3 | Ignition Coil 1 |
| 4 | Throttle Body |
| 5 | Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor |
| 6 | Engine Control Module (ECM) |
| 7 | Brake Booster Pump - Auxiliary |
| 8 | Fuse Block - Underhood |
| 9 | Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2 |
| 10 | Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2 |
| 11 | Wheel Speed Sensor (WSS) - Right Front Connector |
| 12 | Camshaft Position (CMP) Sensor - Intake Bank 1 |
| 13 | Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1 |
| 14 | Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1 |
| 15 | Camshaft Position (CMP) Sensor - Exhaust Bank 1 |
| 16 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 Connector |
| 17 | Knock Sensor (KS) 1 |
| 18 | Crankshaft Position (CKP) Sensor |
| 19 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 |

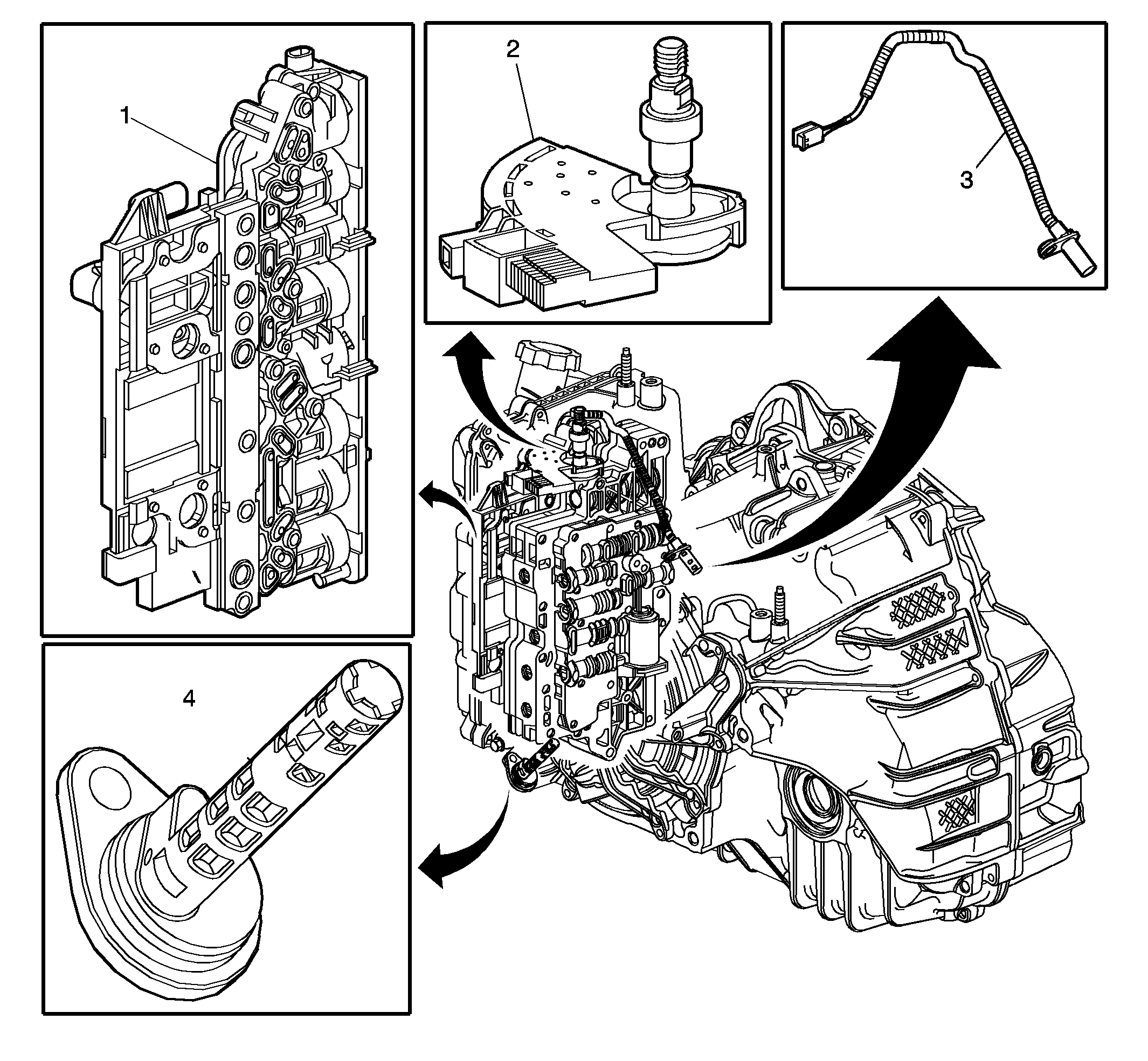

| Callout | Component Name |
|---|---|
| 1 | Control Solenoid Valve Assembly |
| 2 | Automatic Transmission Internal Mode Switch (IMS) |
| 3 | Automatic Transmission Output Shaft Speed (OSS) Sensor |
| 4 | Automatic Transmission Input Shaft Speed (ISS) Sensor |
