2010 Chevrolet Colorado 4WD V8-5.3LFACTORY OEM SERVICE PROCEDURE
Door Component Views
Door Component Views

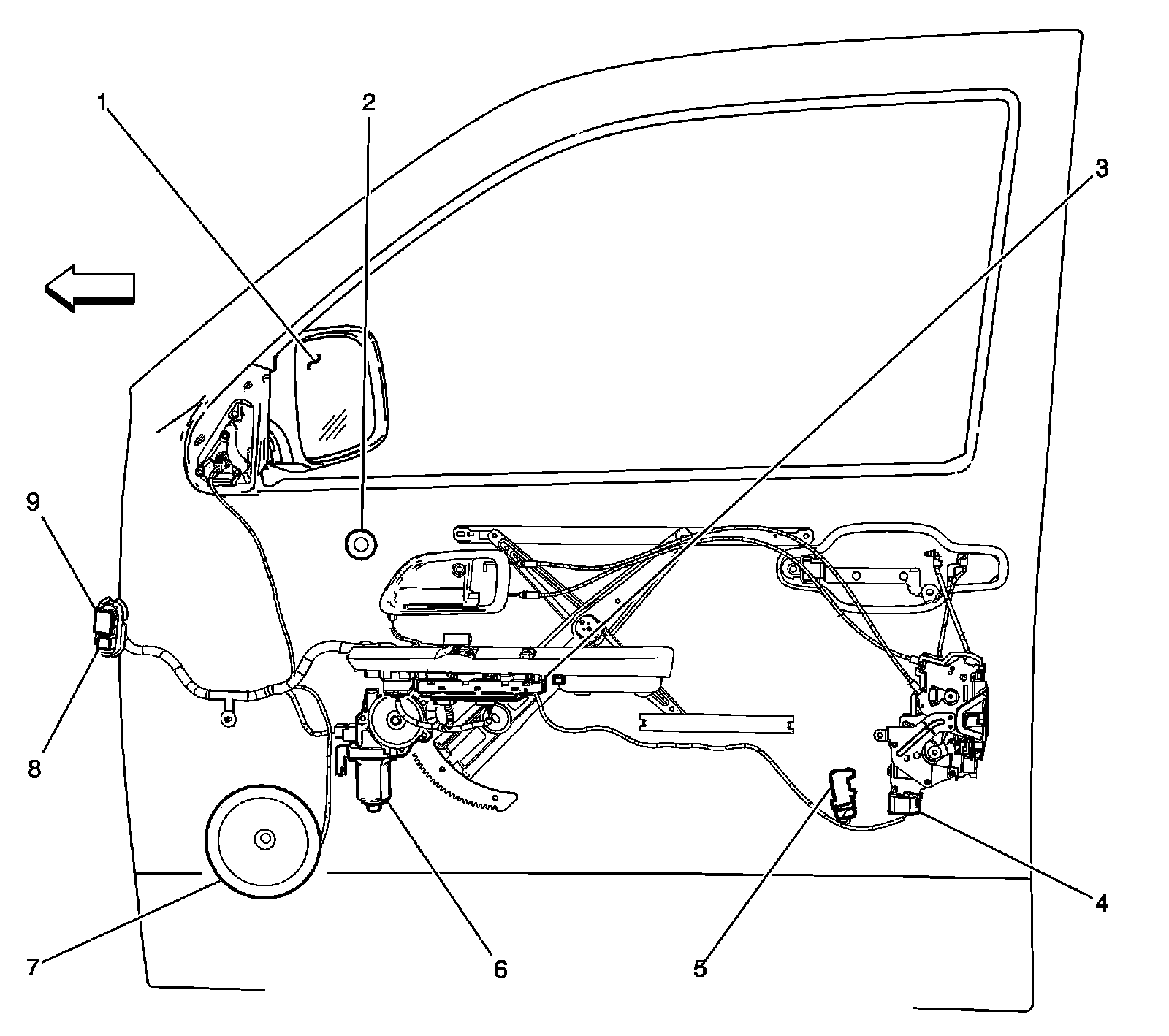

Driver Door Components
1 - Door Lock Actuator - Driver (ZQ6 or UE1 without ZQ6)
2 - Door Lock/Window Switch - Driver (ZQ6)
3 - Speaker - Left Front Tweeter
4 - Outside Rearview Mirror - Driver
5 - Outside Rearview Mirror Switch (ZQ6)
6 - X500
7 - X501 (ZQ6 or UE1 without ZQ6)
8 - Speaker - Left Front
9 - Window Motor - Driver (ZQ6)
10 - Door Unlock Relay (UE1without ZQ6)
11 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

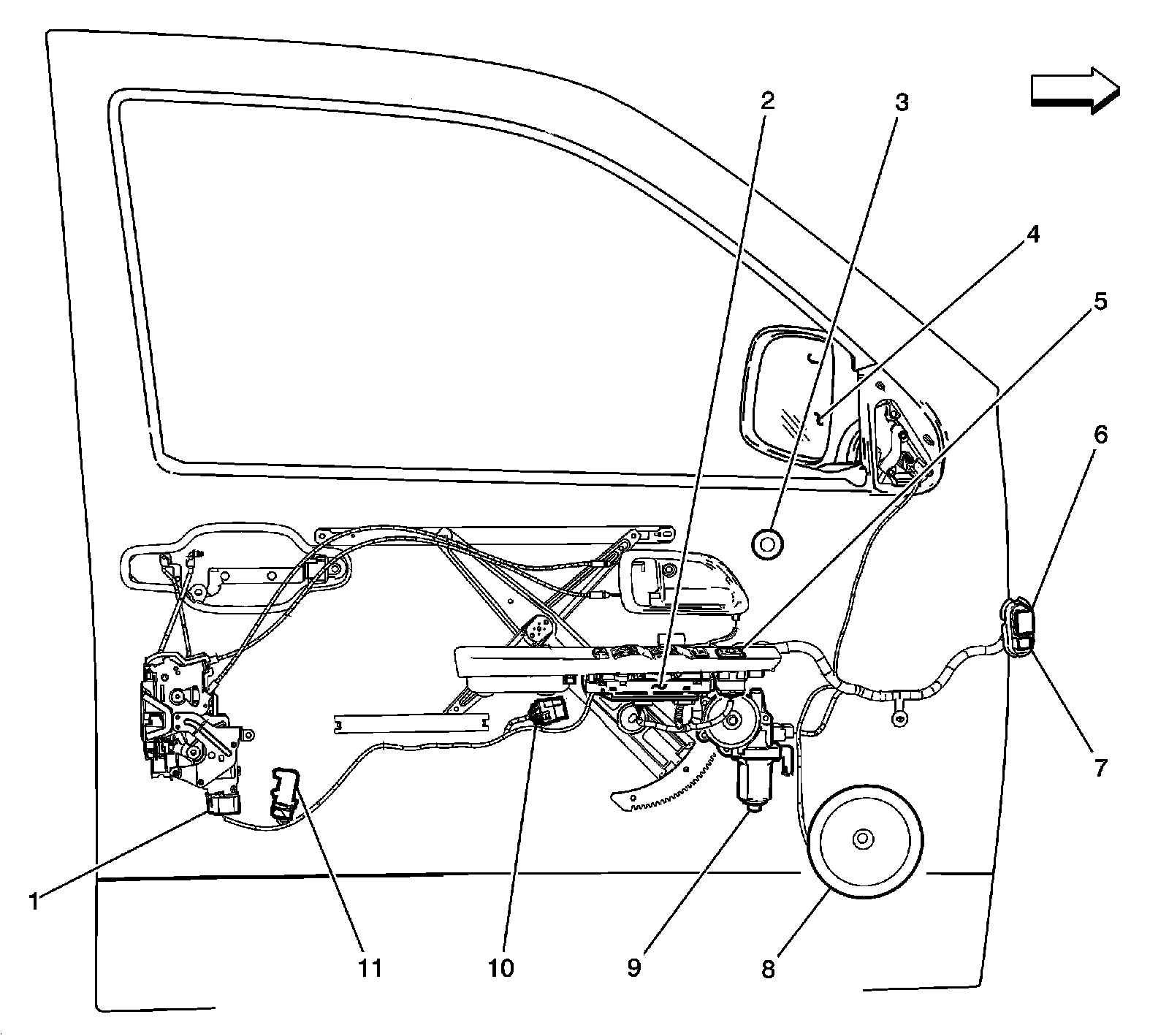

Passenger Door Components
1 - Outside Rearview Mirror - Passenger
2 - Speaker - Right Front Tweeter
3 - Door Lock/Window Switch - Passenger (ZQ6)
4 - Door Lock Actuator - Passenger (ZQ6)
5 - Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
6 - Window Motor - Passenger (ZQ6)
7 - Speaker - Right Front
8 - X601 (ZQ6)
9 - X600

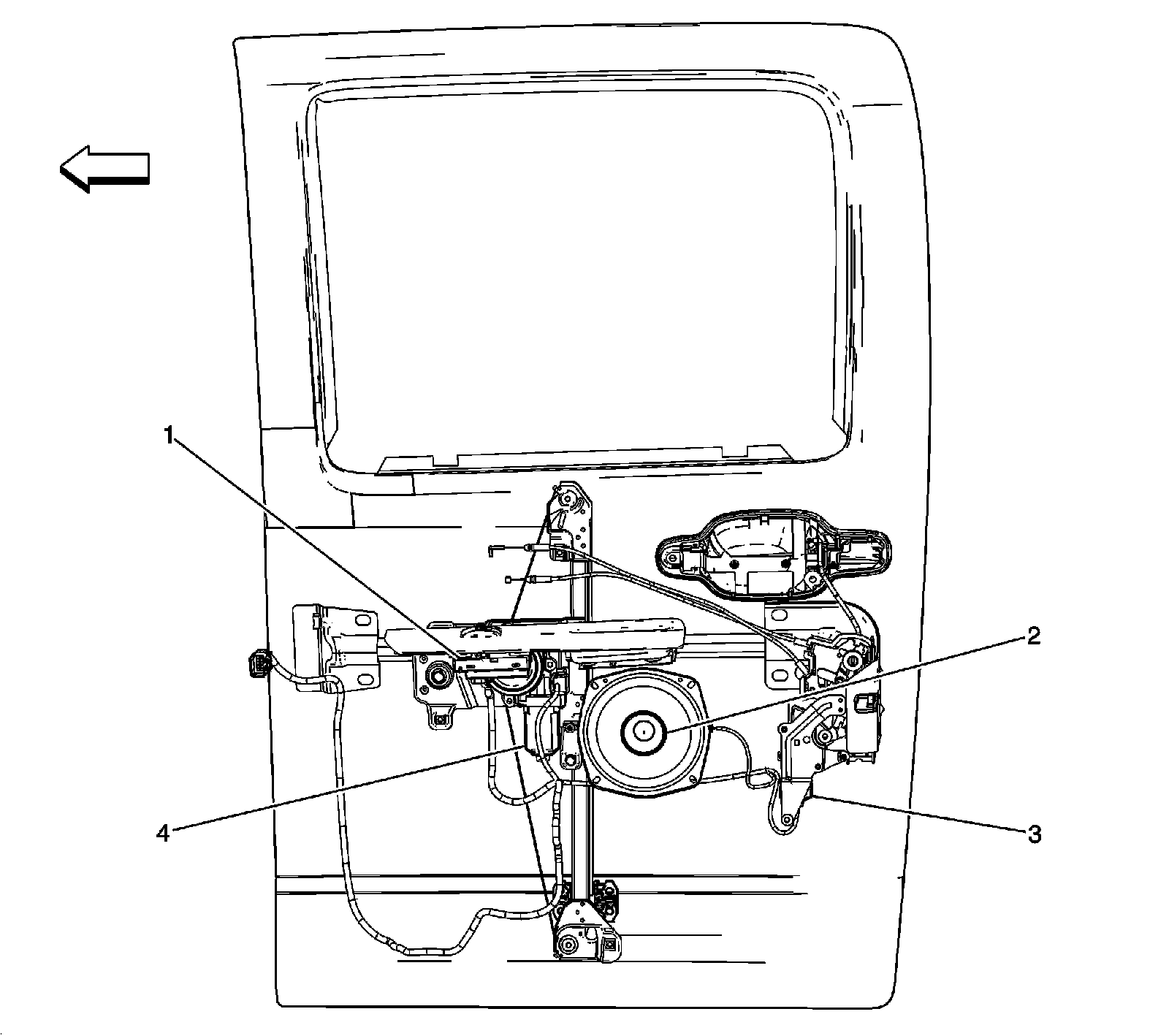

Left Rear Door Components (Crew Cab)
1 - Speaker - Left Rear
2 - Window Switch - Left Rear
3 - Window Motor - Left Rear
4 - Door Lock Actuator - Left Rear
Left Rear Door Components (Extended Cab)

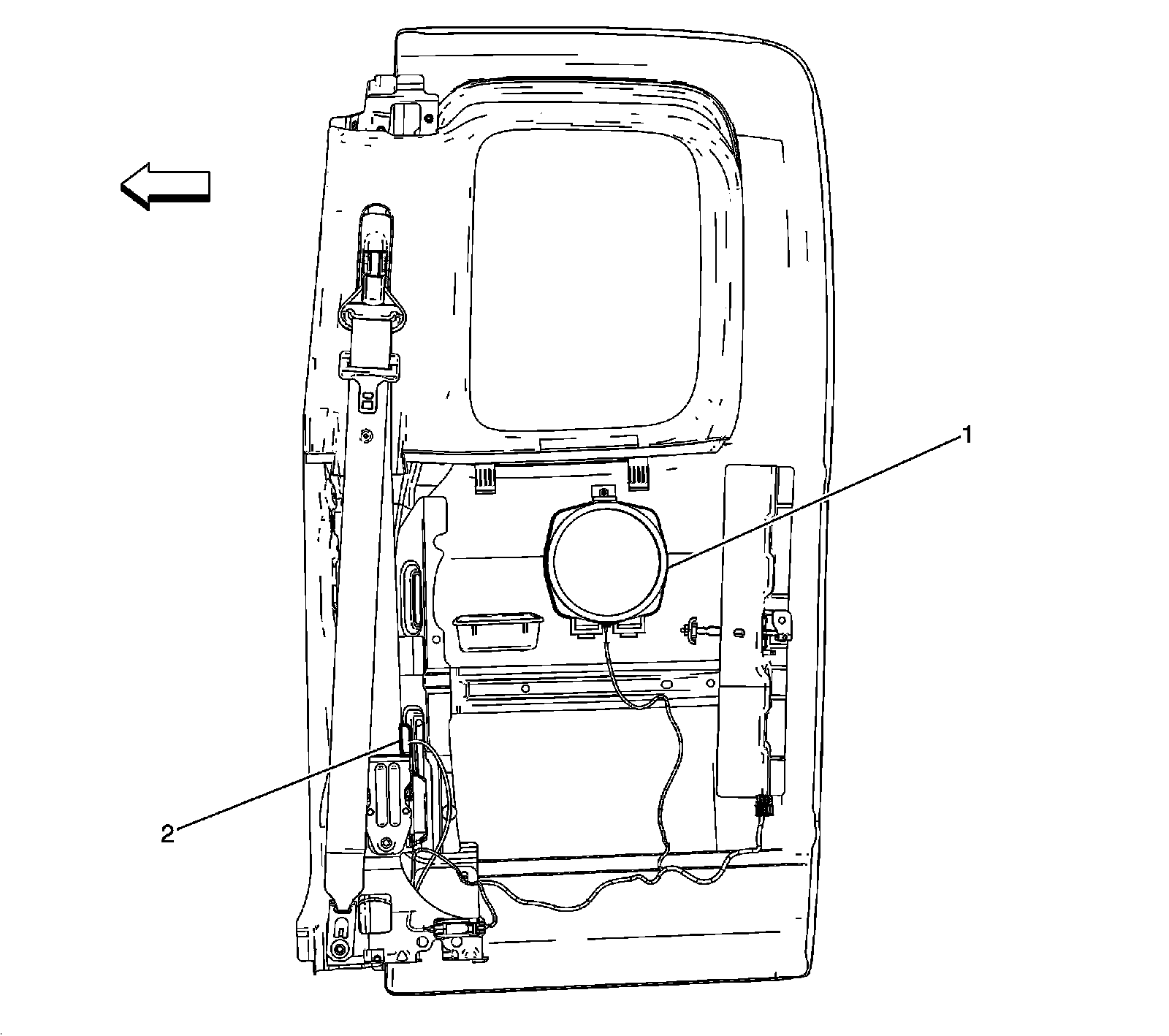

1 - Speaker - Left Rear
2 - Seat Belt Pretensioner - Driver

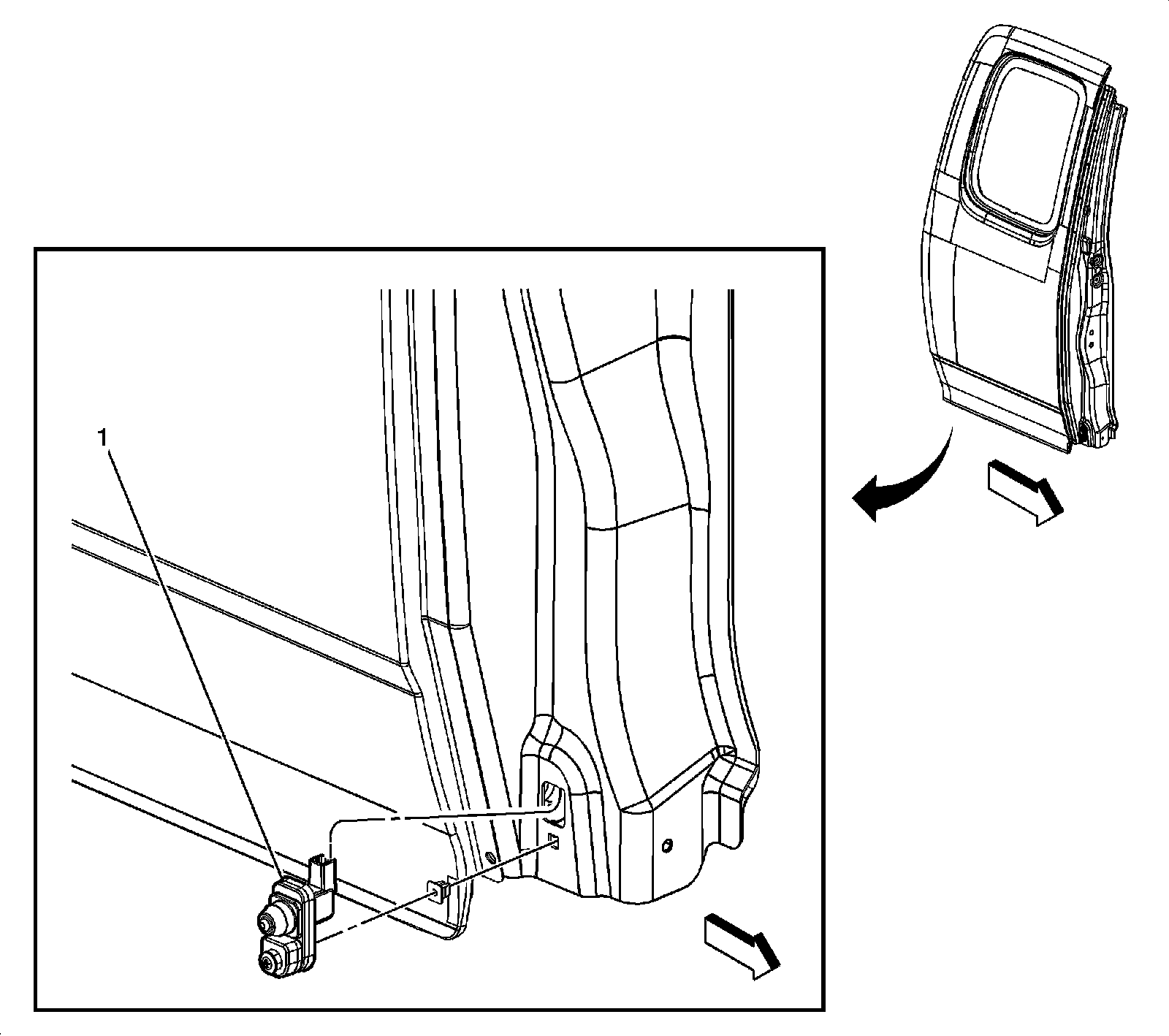

Left Rear Door Frame Components (Extended Cab)
1 - Door Jamb Switch - Driver

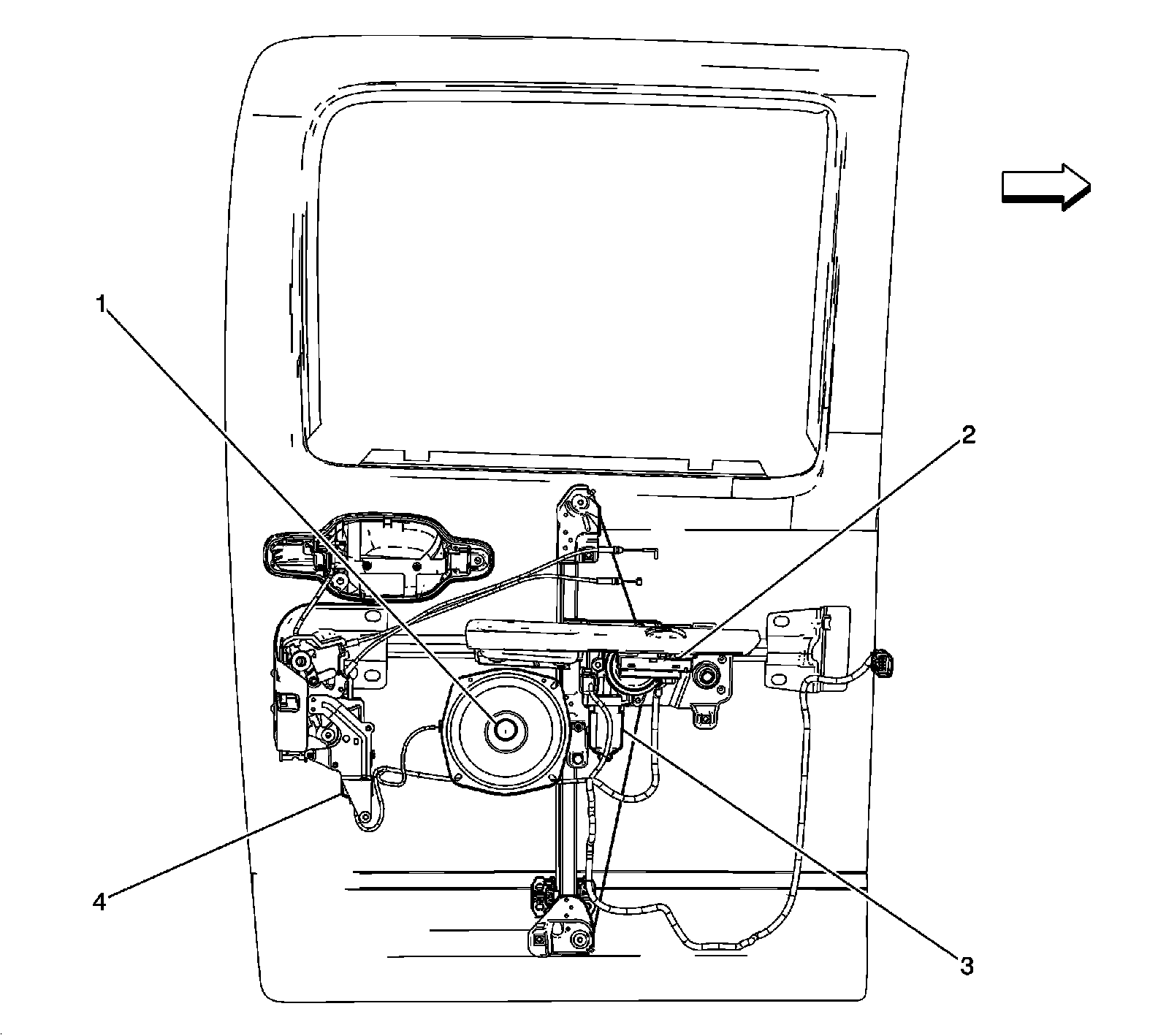

Right Rear Door Components (Crew Cab)
1 - Window Switch - Right Rear
2 - Speaker - Right Rear Door
3 - Door Lock Actuator - Right Rear
4 - Window Motor - Right Rear
Right Rear Door Components (Extended Cab)

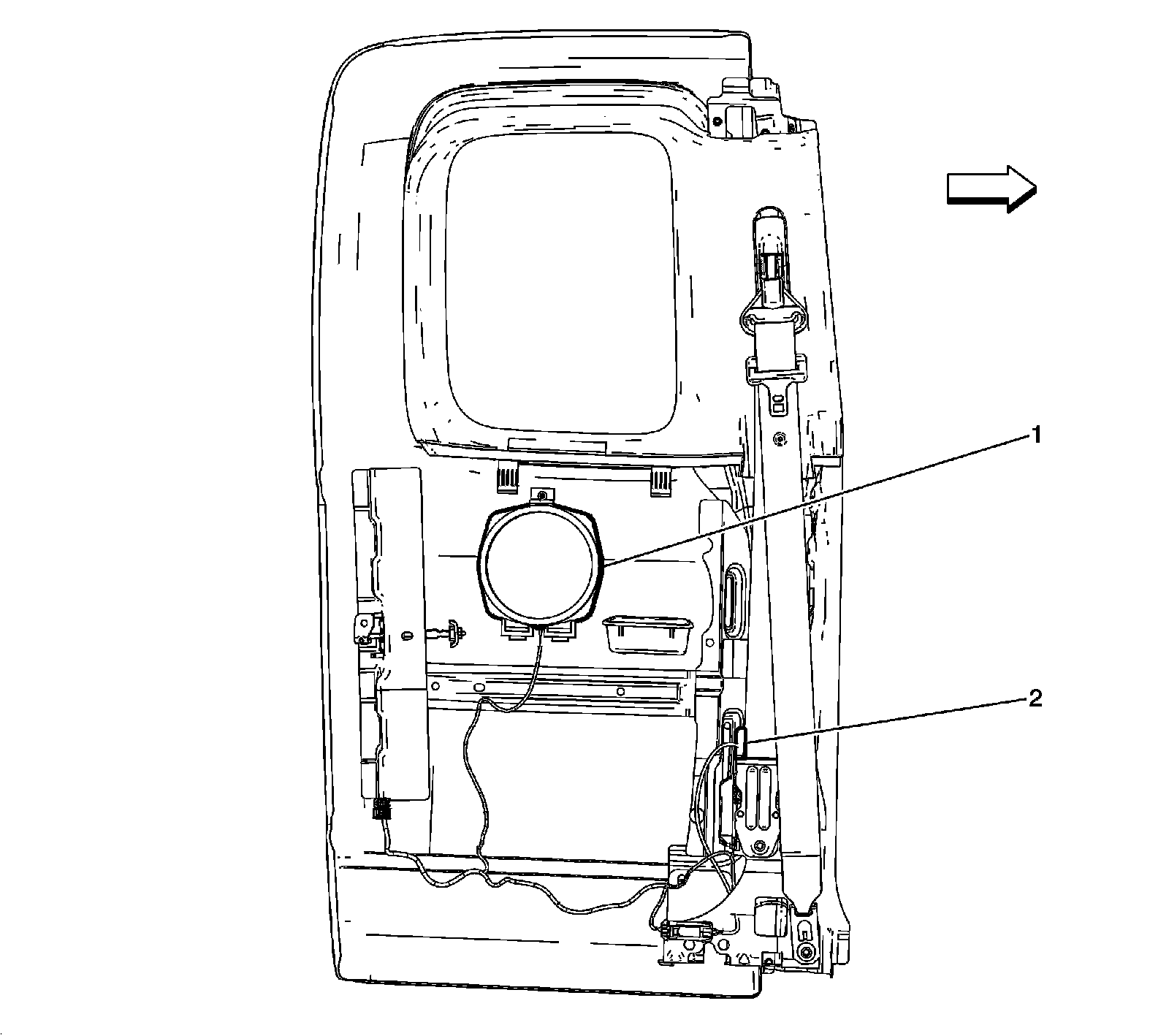

1 - Speaker - Right Rear
2 - Seat Belt Pretensioner - Passenger

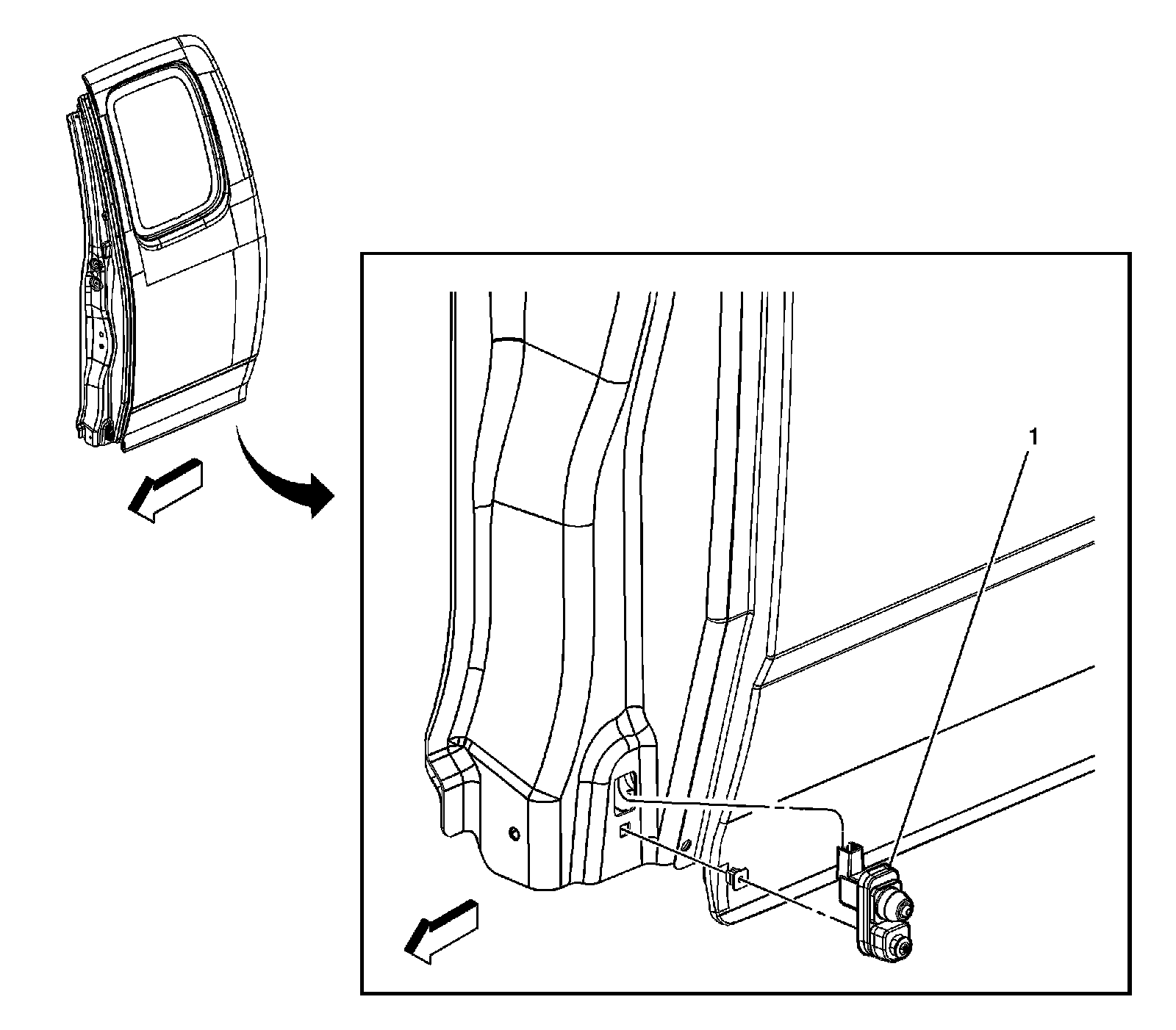

Right Rear Door Frame Components (Extended Cab)
1 - Door Jamb Switch - Passenger
