2010 Chevrolet Colorado 4WD V8-5.3LFACTORY OEM SERVICE PROCEDURE
Initial Inspection and Diagnostic Overview
Air Conditioning (A/C) System Performance Test
This test measures the operating efficiency of the A/C system under the following conditions:
* The current ambient air temperature
* The current relative humidity
* The high side pressure of the A/C system
* The low side pressure of the A/C system
* The temperature of the air being discharged into the passenger compartment
Test Description

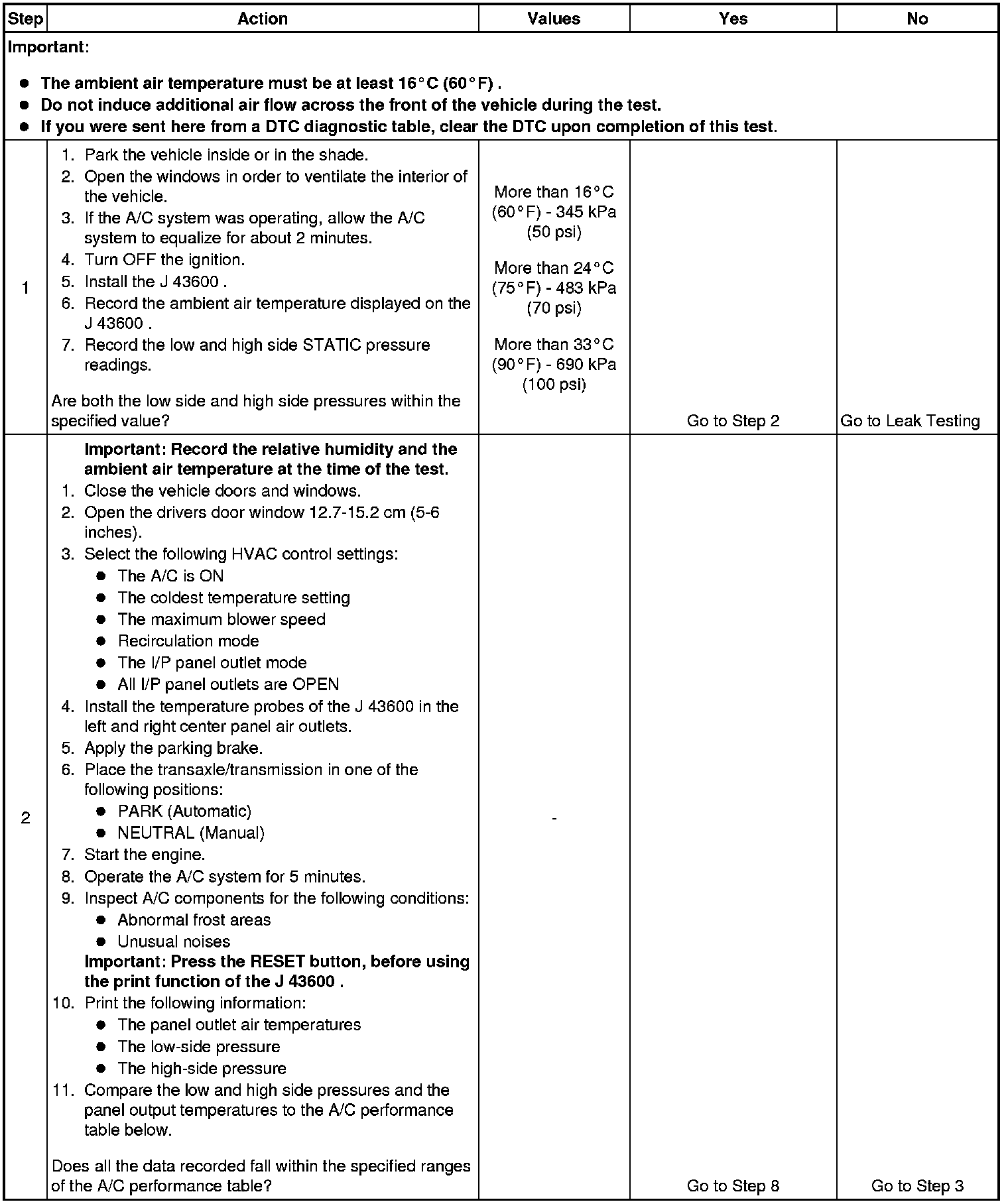

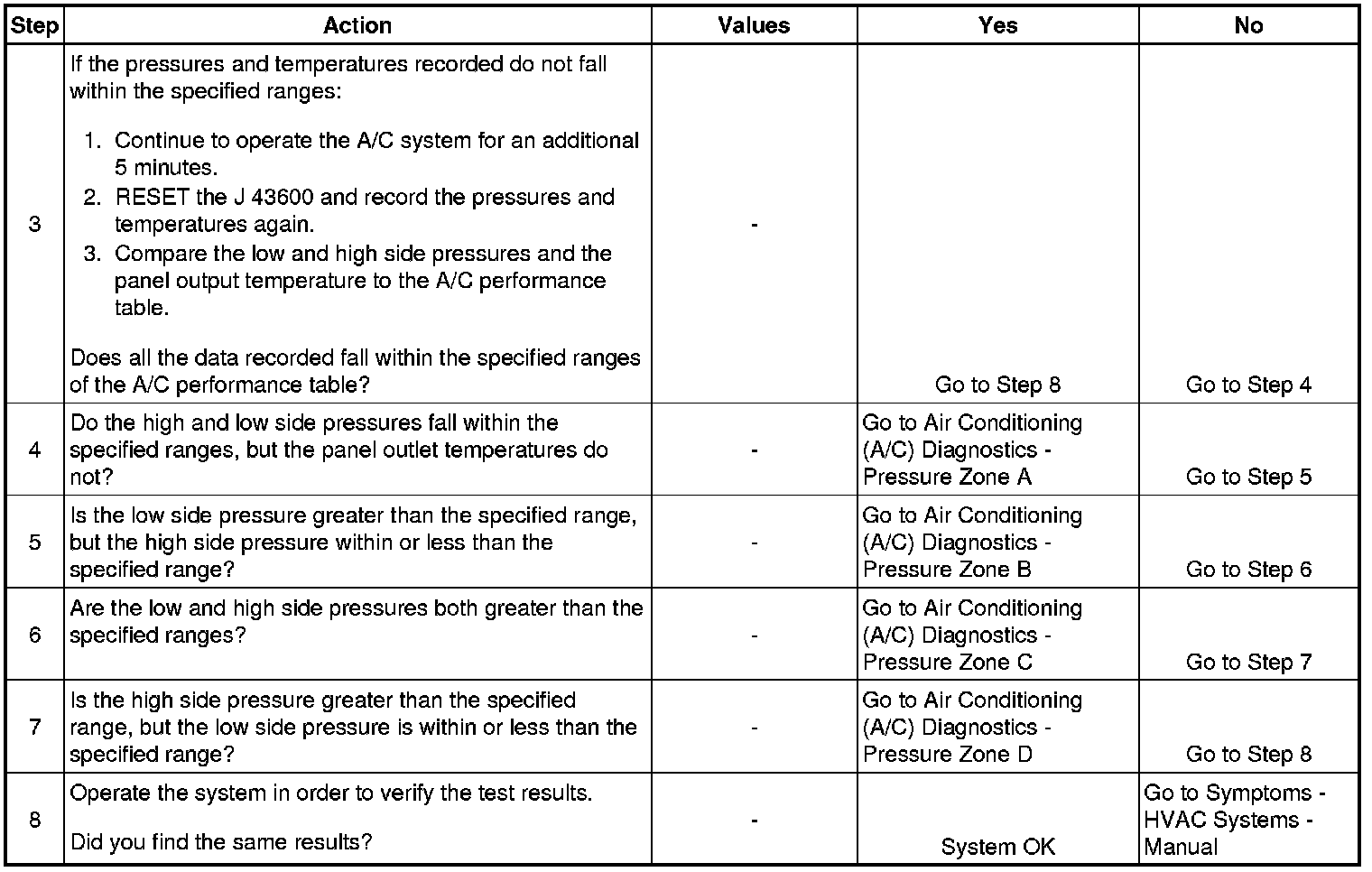

The numbers below refer to the step numbers on the diagnostic table.
1. This step determines if the A/C system has at least the minimum refrigerant charge required to operate the system without damage.

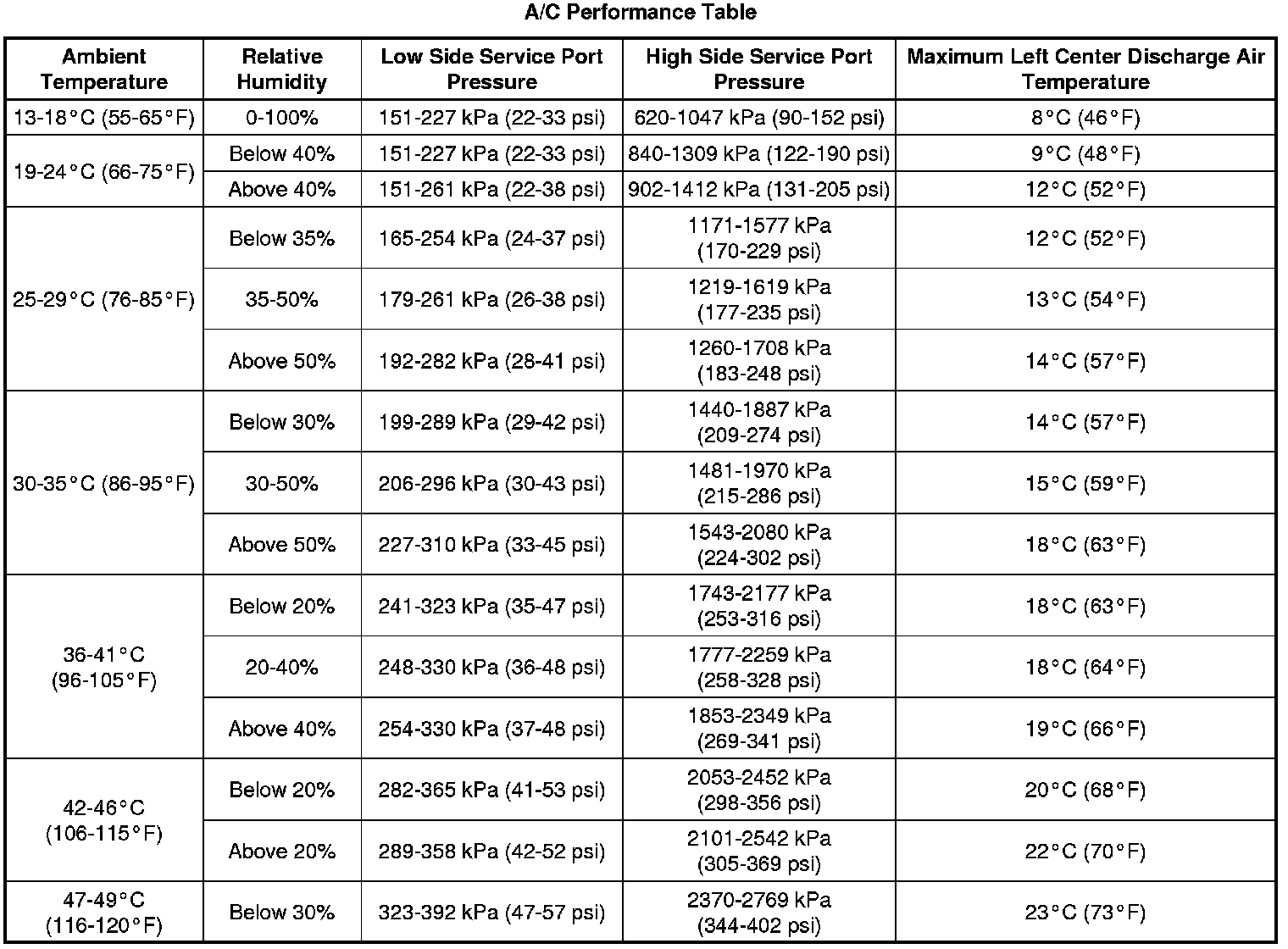

2. This step measures the performance of the A/C system.
3. This step is to allow for vehicle variations as well as high ambient temperatures.
Air Conditioning (A/C) System Performance Test
