2010 Chevrolet Colorado 4WD V8-5.3LFACTORY OEM SERVICE PROCEDURE
System Diagram
Engine Controls Schematics

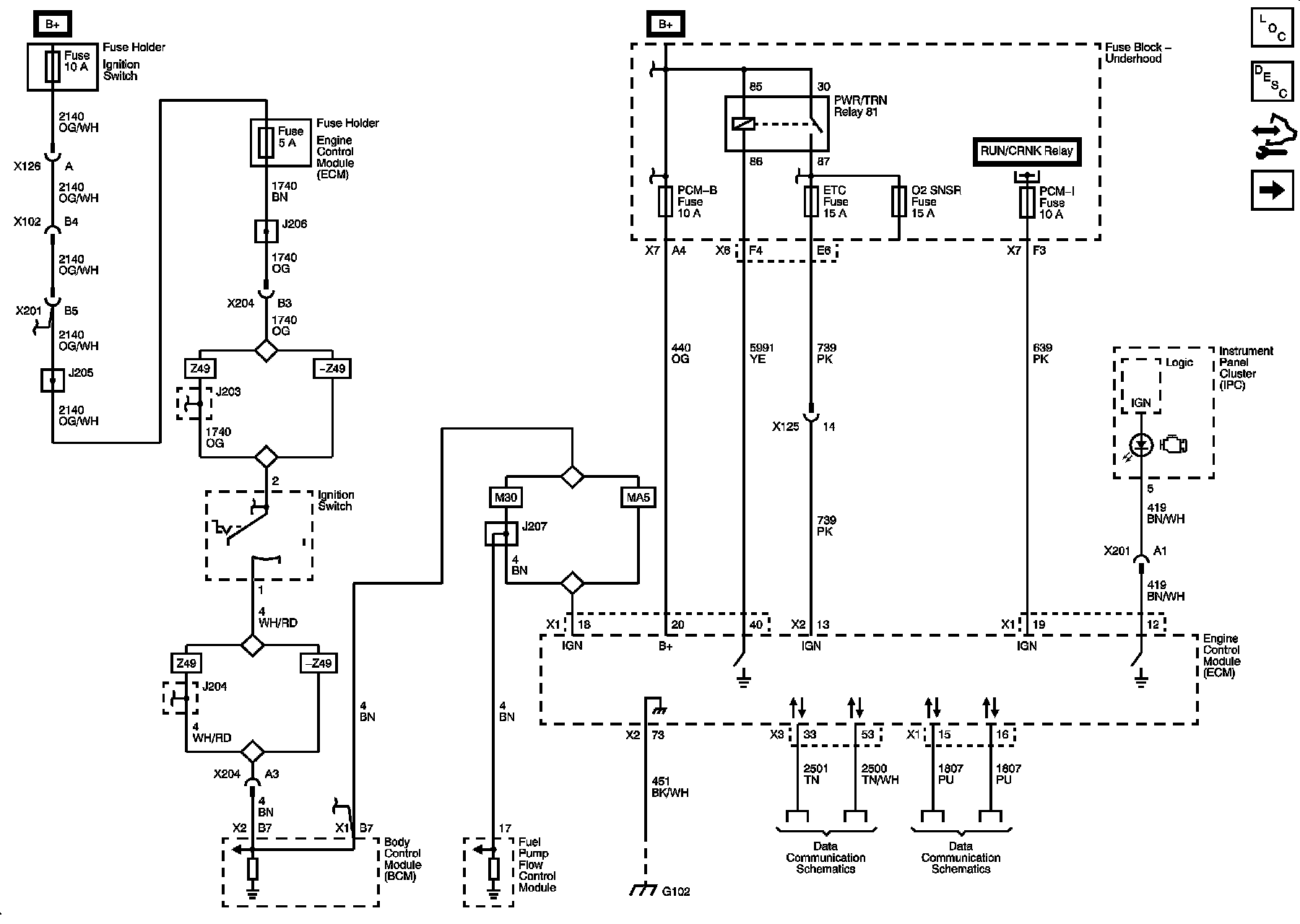

Power, Ground, Serial Data, and MIL

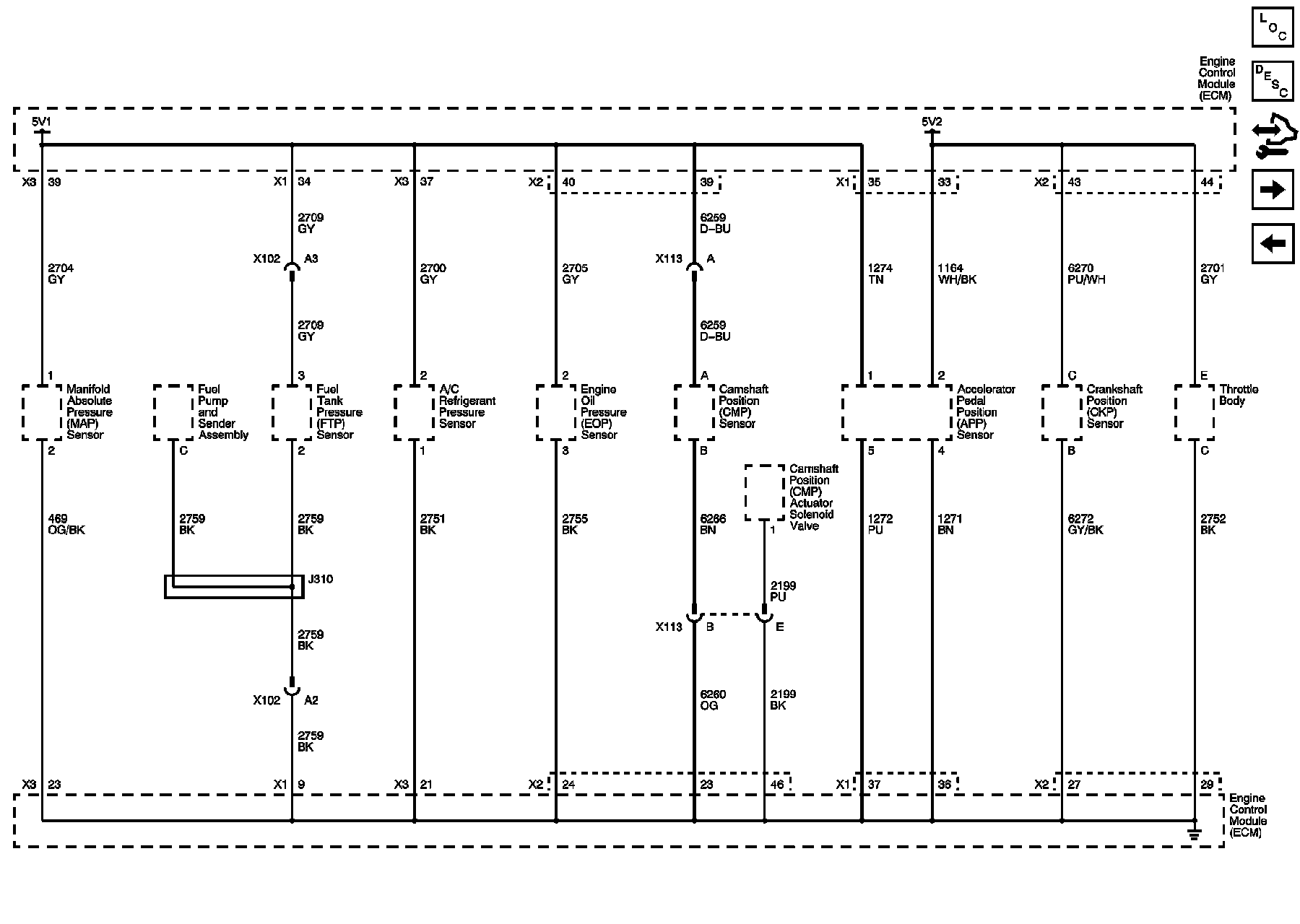

Engine Data Sensors - 5-Volt and Low Reference

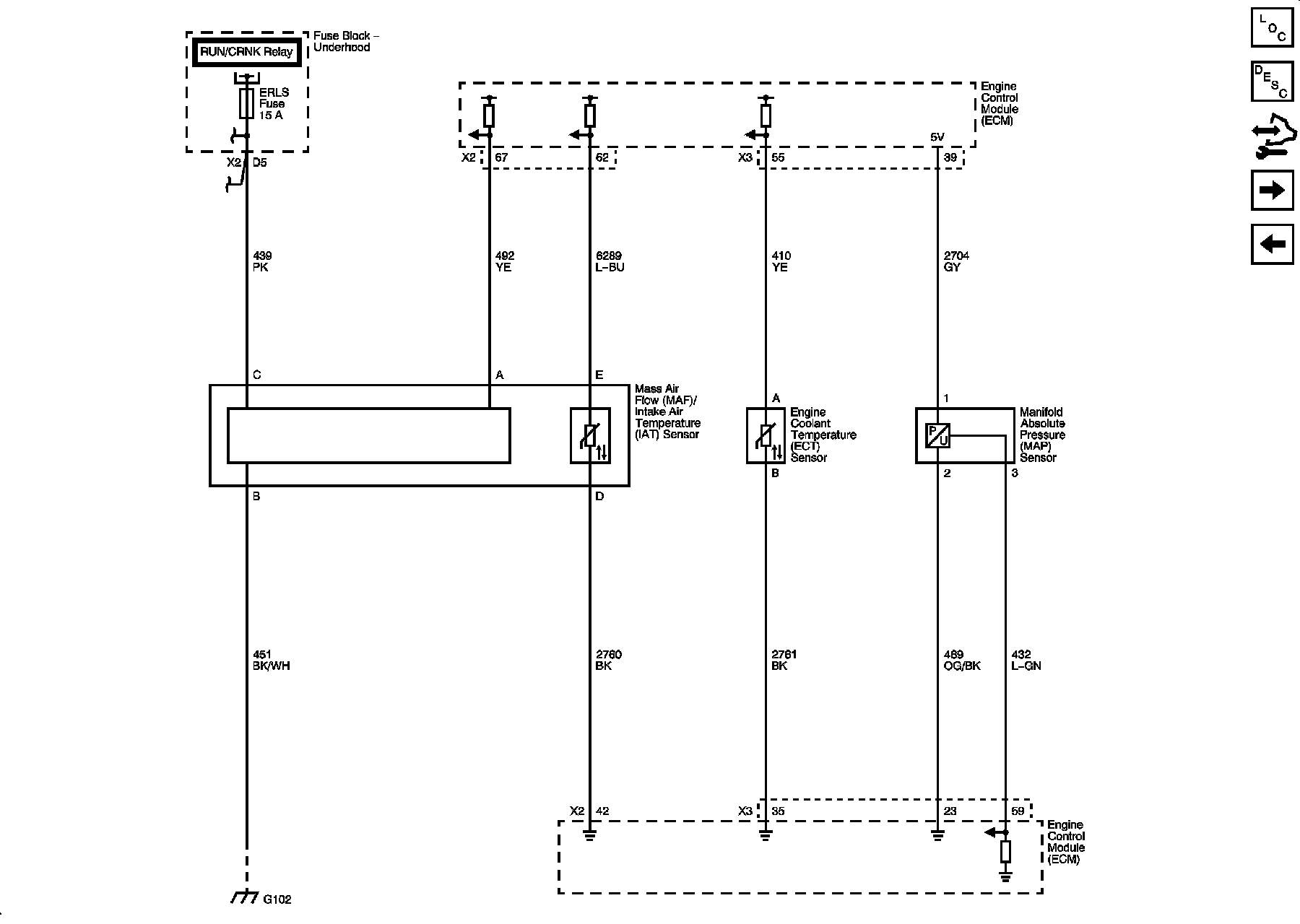

Engine Data Sensors - Pressure and Temperature

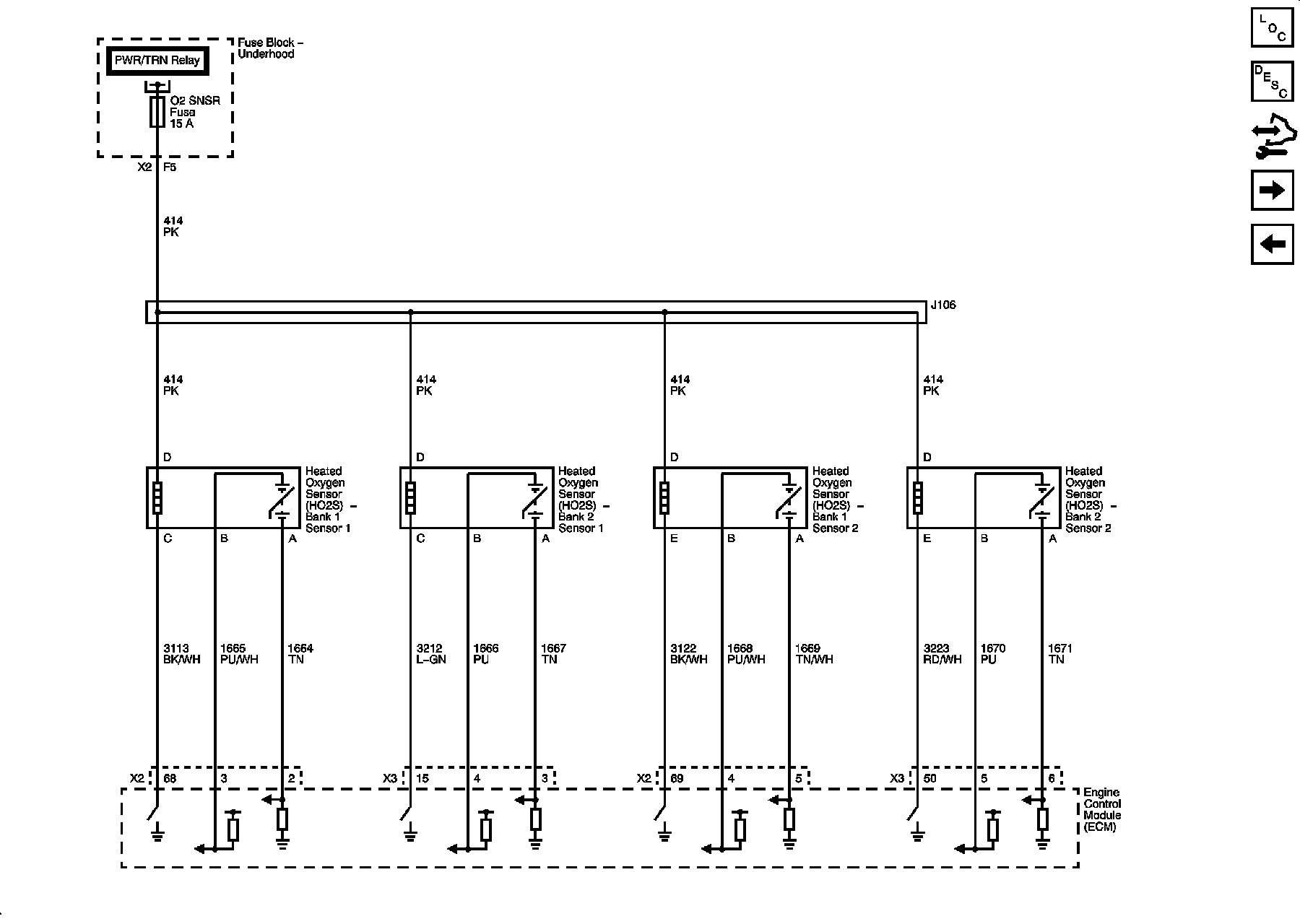

Engine Data Sensors - Heated Oxygen Sensors

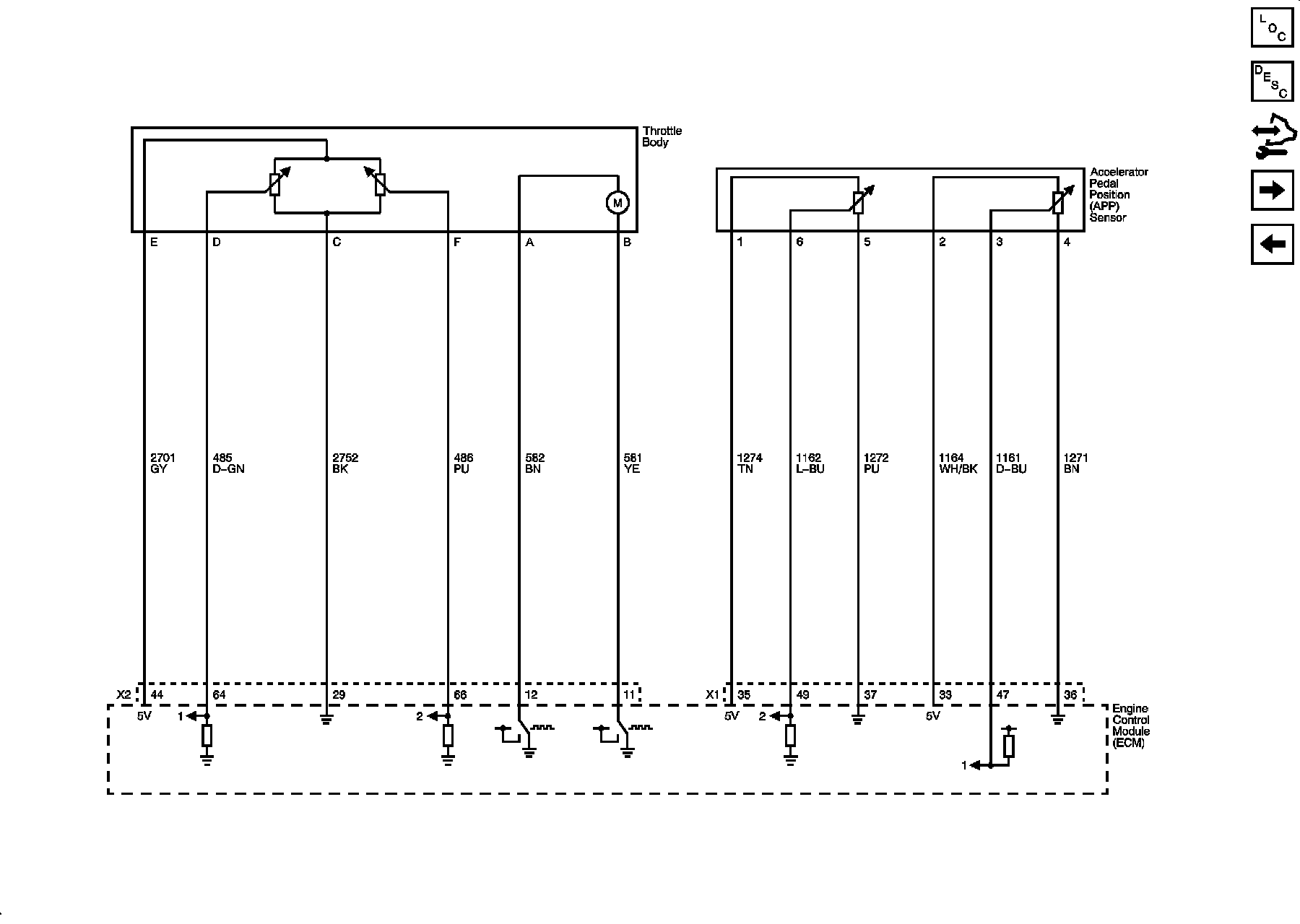

Engine Data Sensors - Electronic Throttle Control

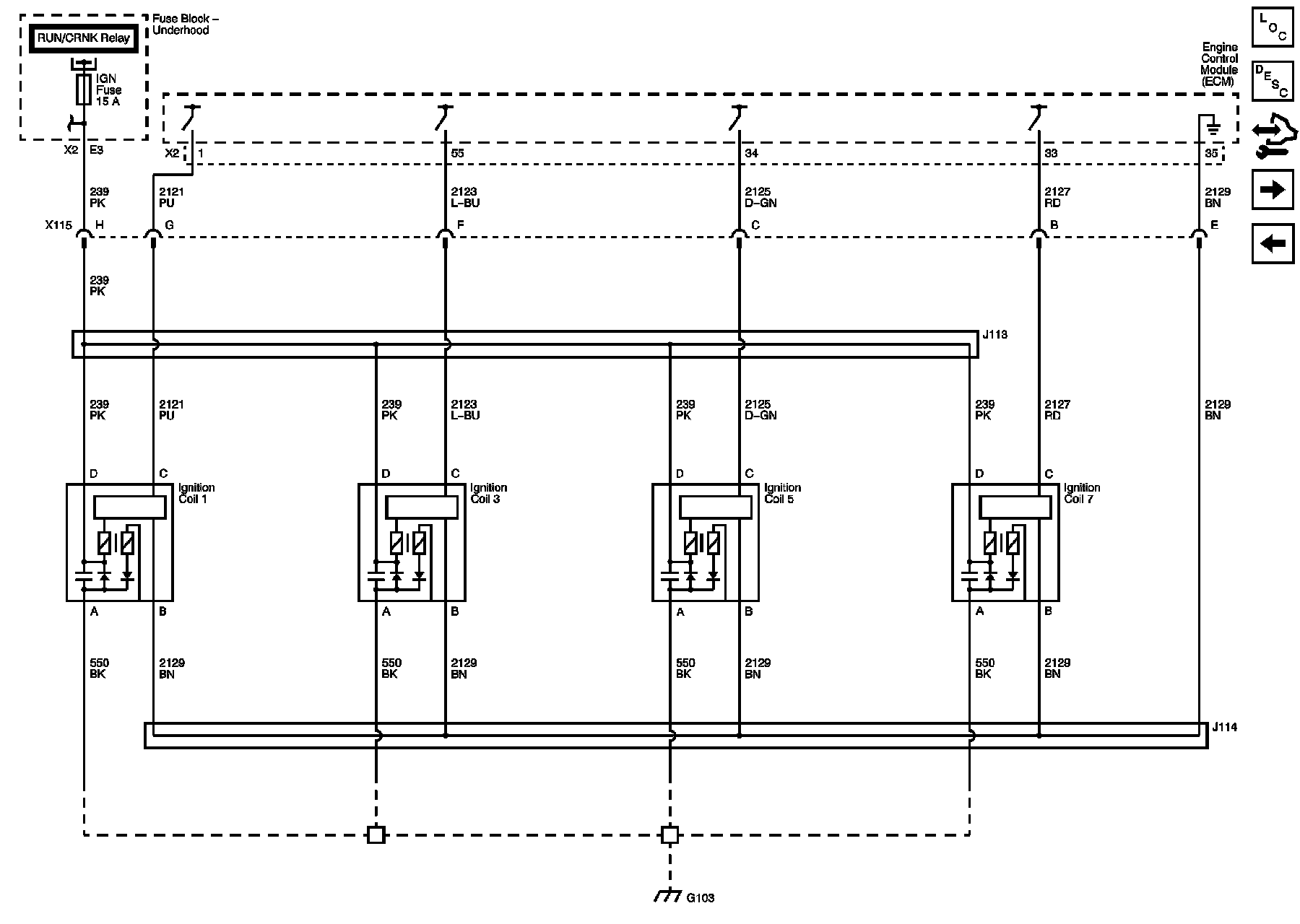

Ignition Controls - Ignition Coils 1, 3, 5, and 7

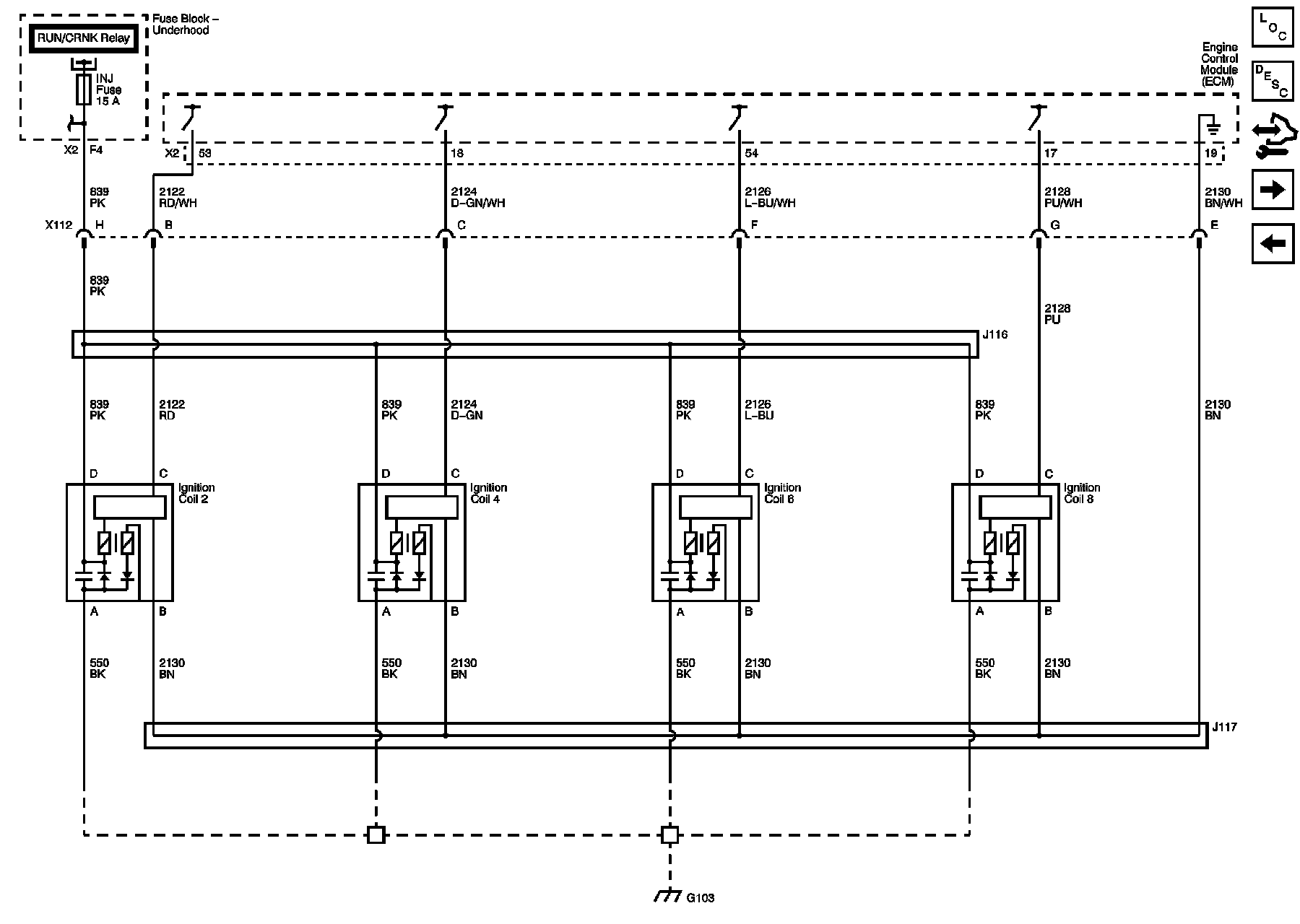

Ignition Controls - Ignition Coils 2, 4, 6, and 8

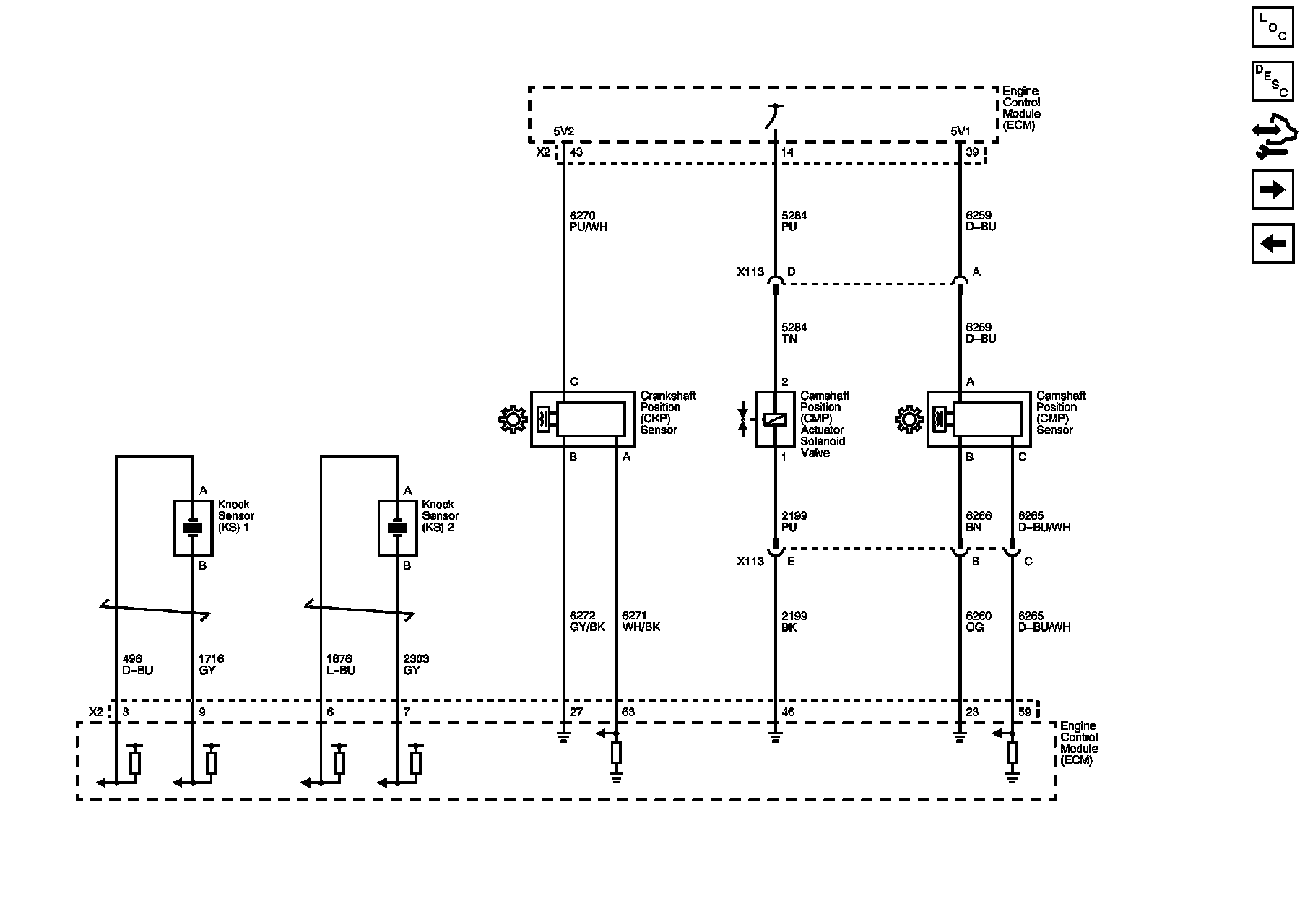

Ignition Controls - Sensors

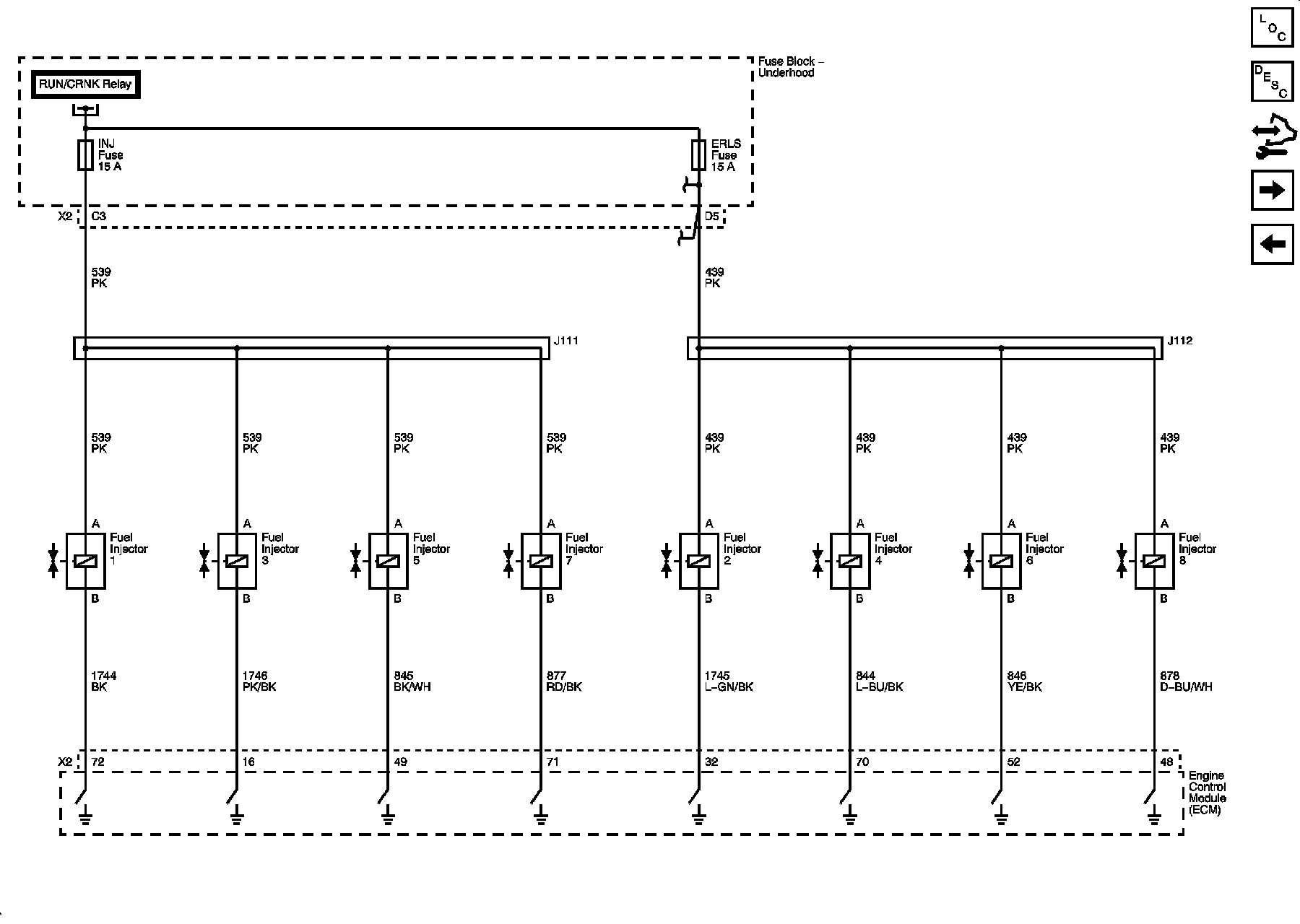

Fuel Controls - Fuel Injectors

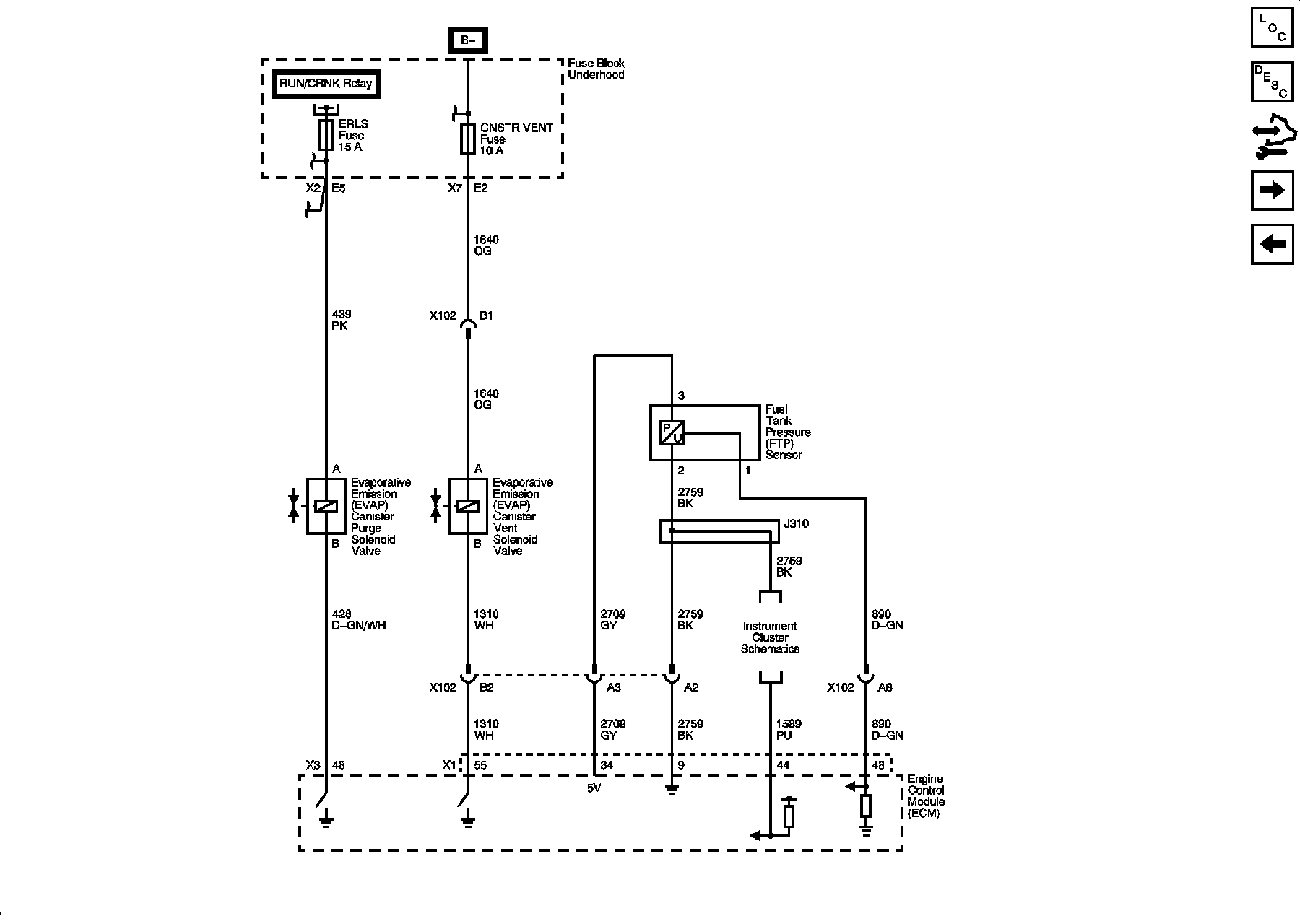

Fuel Controls - EVAP Controls

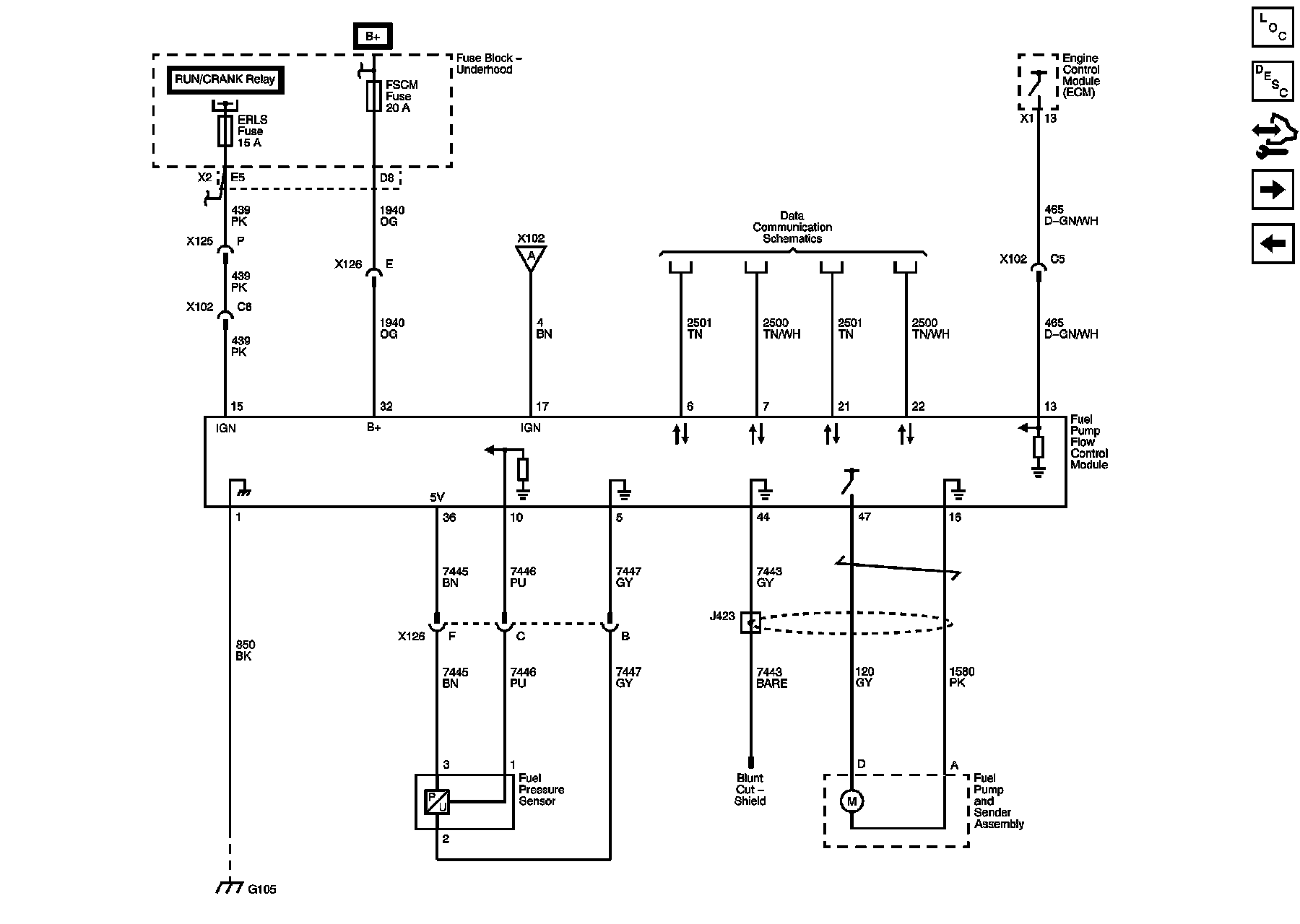

Fuel Controls - Fuel Pump Controls

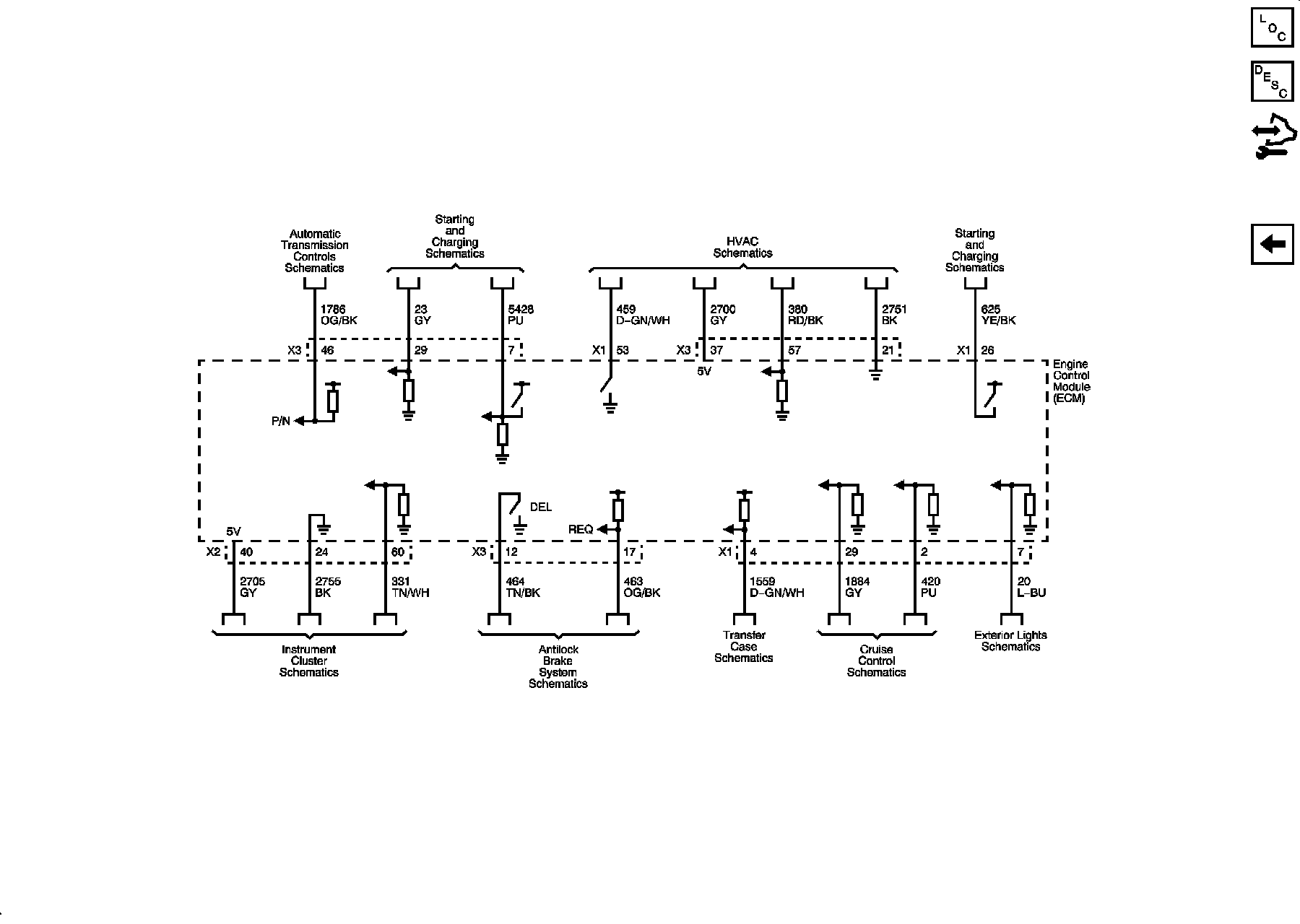

Controlled/Monitored Subsystem References
