2010 Chevrolet Colorado 4D Pickup Extra Cab, 5.3 P, 4WDFACTORY OEM SERVICE PROCEDURE

Instrument Panel/Center Console Component Views

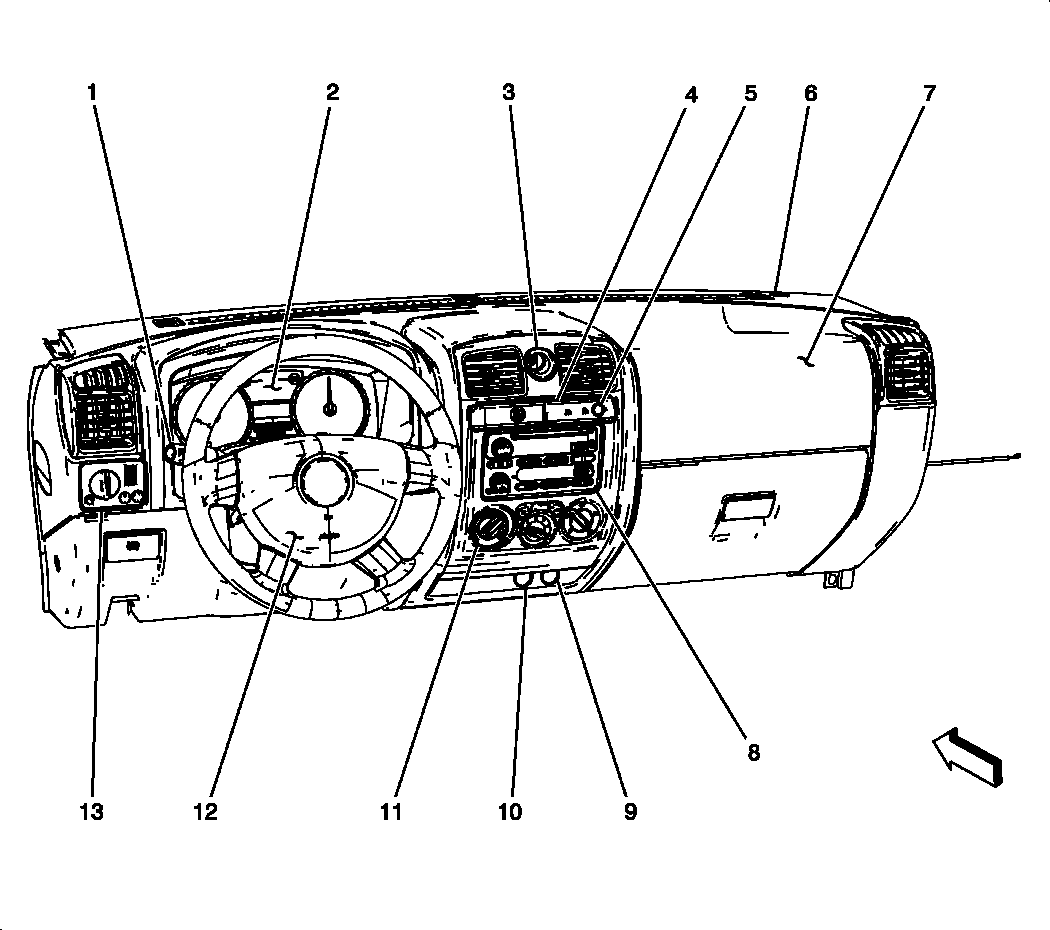

Fig 1: Front of the I/P Components
GM1974103Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Instrument Panel Cluster (IPC)
3 Hazard Warning Switch
4 Multifunction Switch - I/P
5 Ambient Light Sensor
6 Inflatable Restraint I/P Module
7 Radio
8 Accessory Power Outlet - I/P 2
9 Accessory Power Outlet - I/P 1
10 HVAC Control Module
11 Inflatable Restraint Steering Wheel Module
12 Headlamp and Panel Dimming Switch

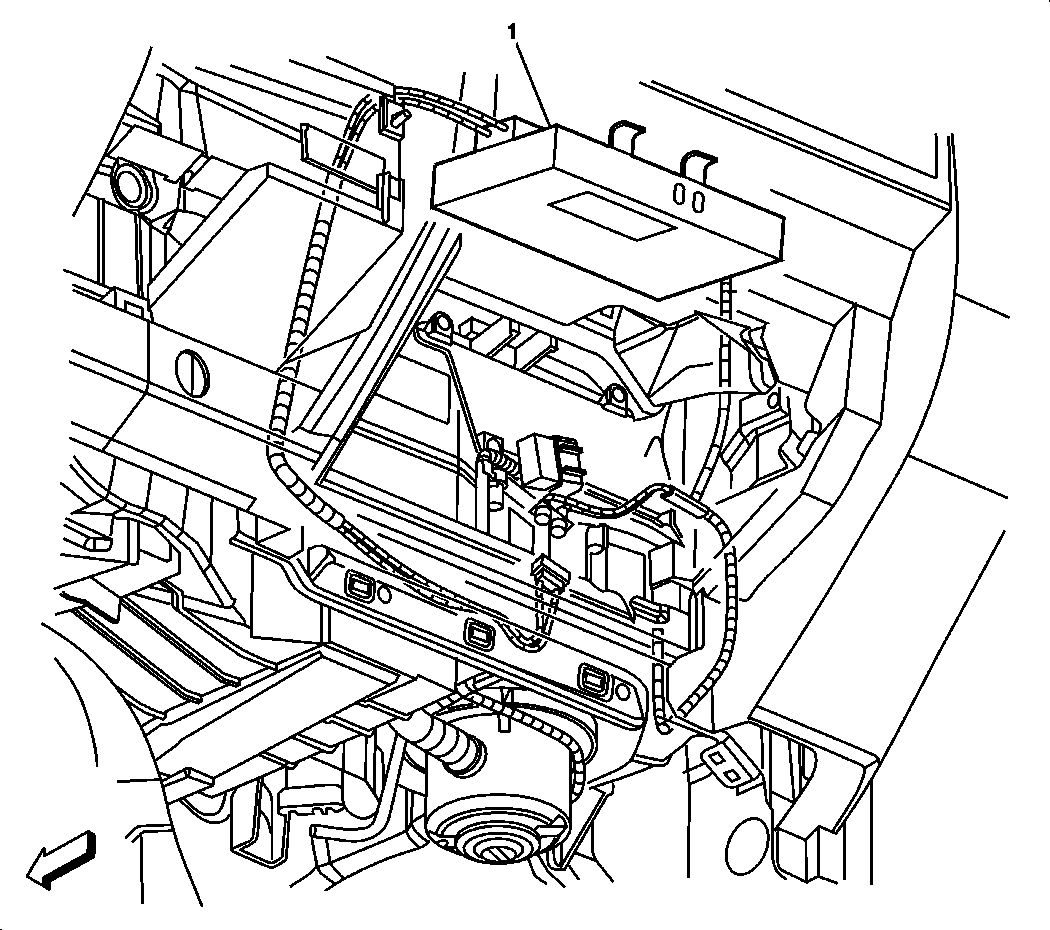

Fig 2: Digital Radio Receiver Component View (U2K)
GM1358872Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Digital Radio Receiver

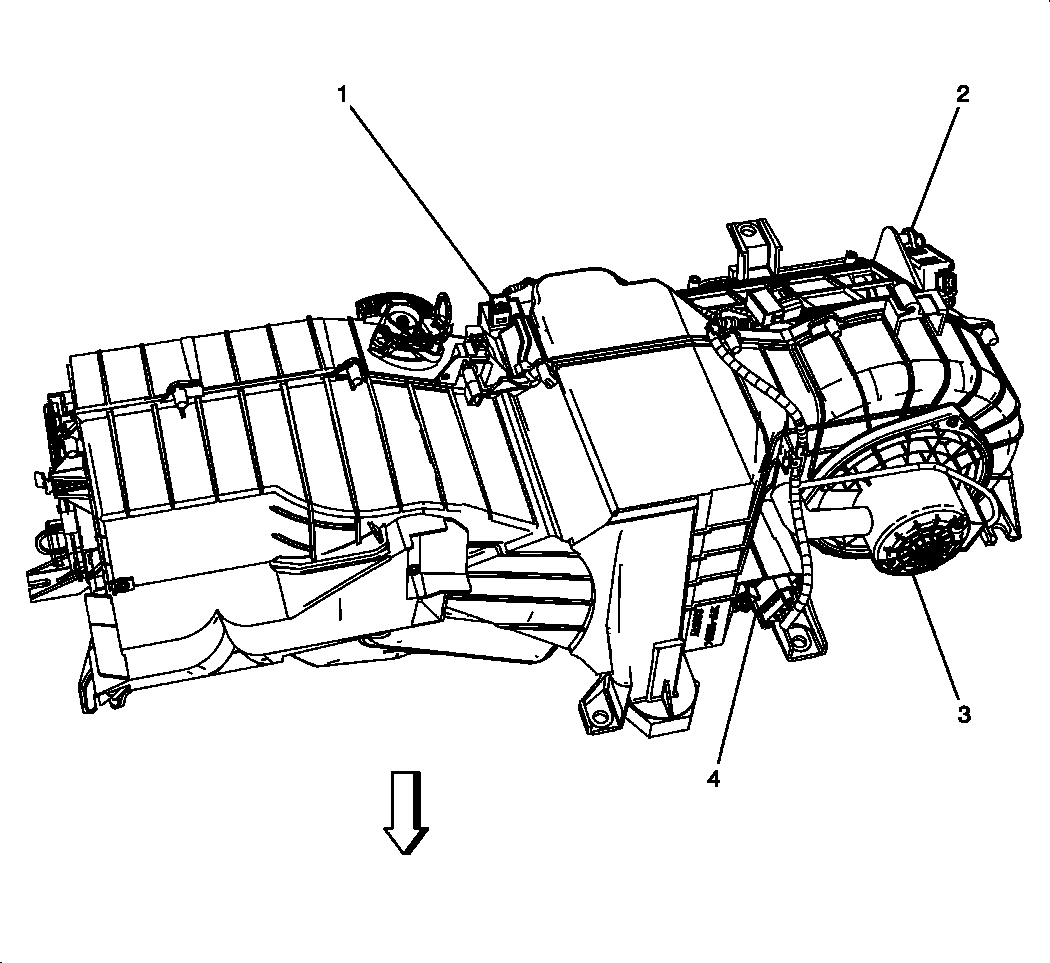

Fig 3: HVAC Module Components
GM2364481Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporator Temperature Sensor (C60)
2 Recirculation Actuator (C60)
3 Blower Motor
4 Blower Motor Resistor

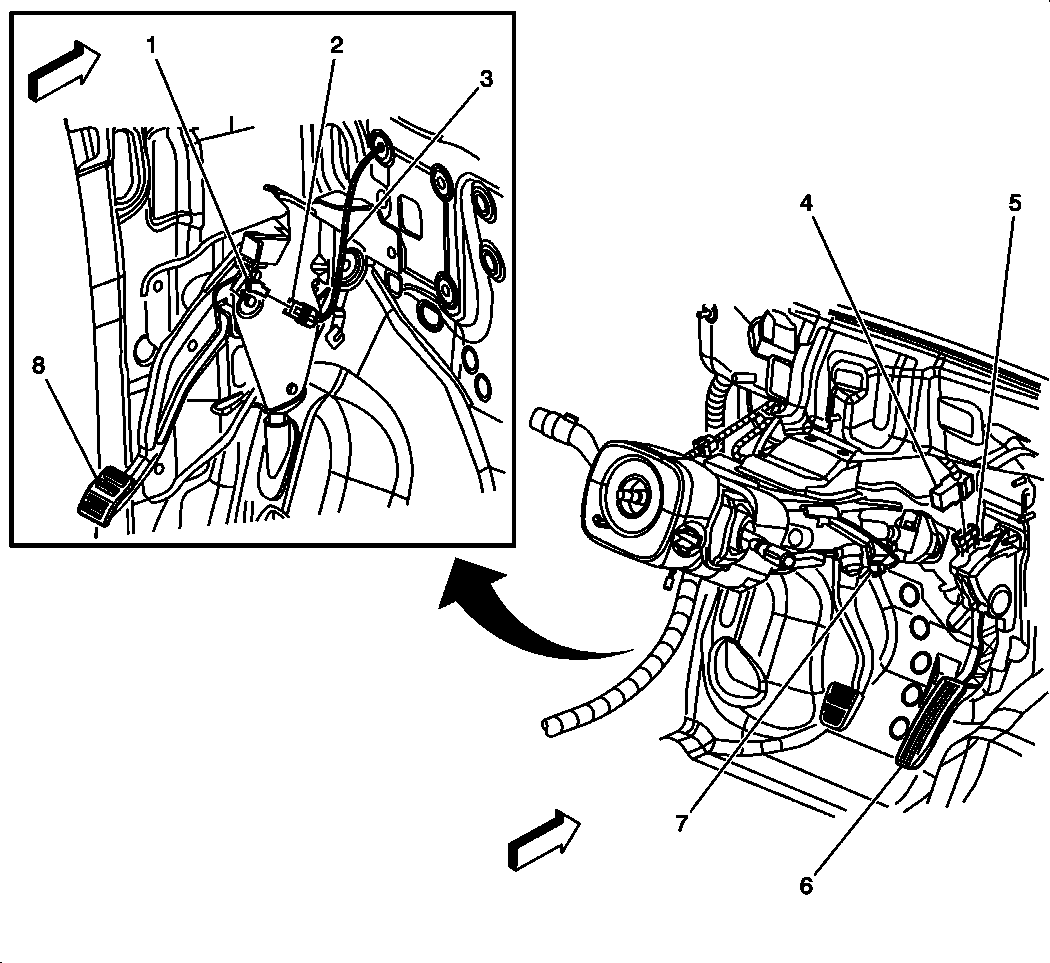

Fig 4: Behind the Left Side of the I/P Components
GM2364483Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Brake Switch
2 Park Brake Switch Connector
3 Body Harness
4 Accelerator Pedal Position (APP) Sensor Connector
5 Accelerator Pedal Position (APP) Sensor
6 Accelerator Pedal
7 Automatic Transmission Shift Lock Control Solenoid (M30)
8 Park Brake Lever

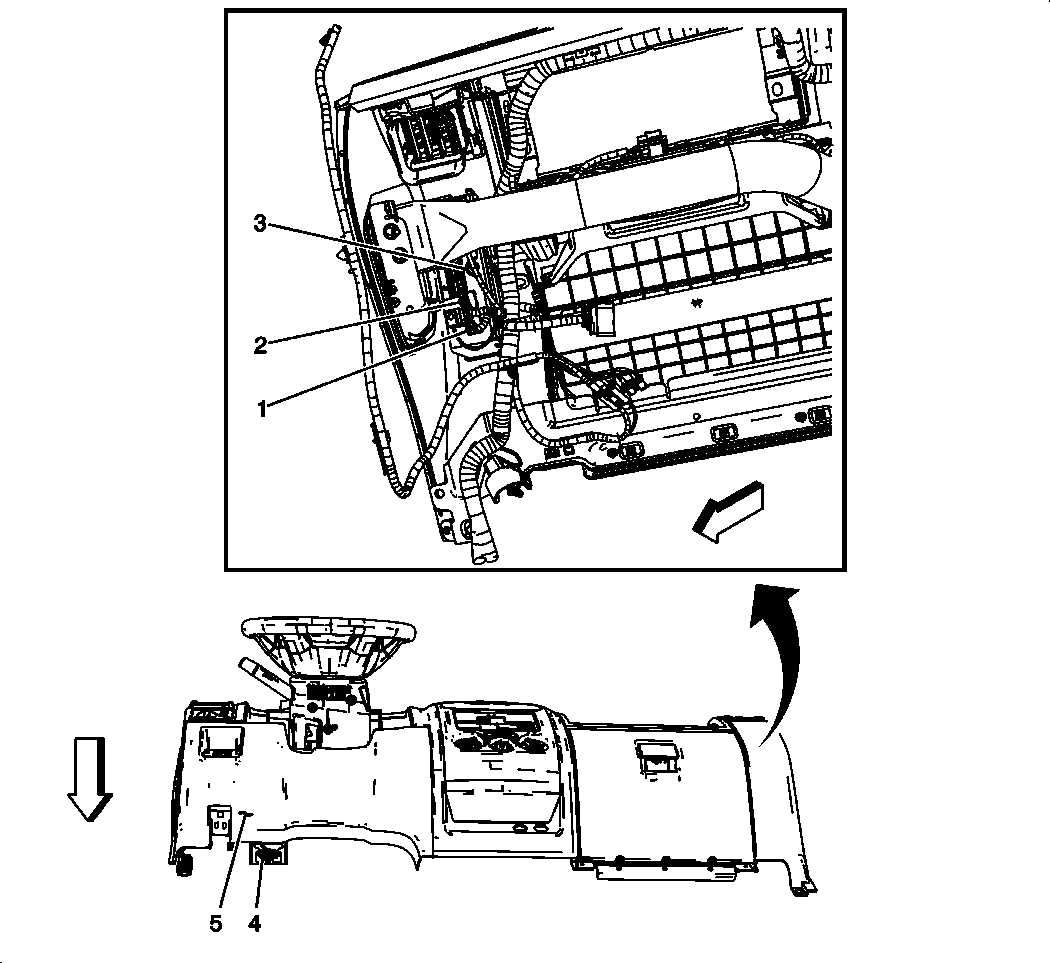

Fig 5: Bottom of I/P and Behind I/P Compartment Components
GM2364501Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vehicle Communication Interface Module (VCIM) X1 (UE1)
2 Vehicle Communication Interface Module (VCIM) X2 (UE1)
3 Vehicle Communication Interface Module (VCIM) (UE1)
4 Data Link Connector (DLC)
5 Inline Fuse - Ignition Switch

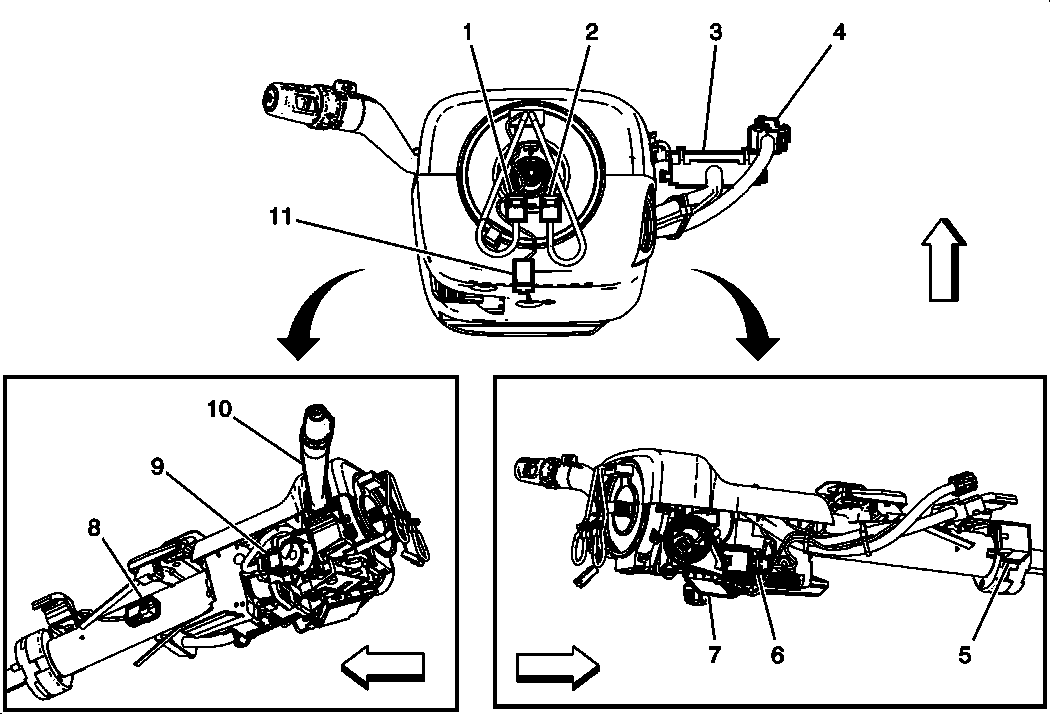

Fig 6: Steering Column Components
GM2293441Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module X2
2 Inflatable Restraint Steering Wheel Module X1
3 X204
4 X275
5 Steering Wheel Position Sensor
6 Automatic Transmission Shift Lock Control Solenoid (M30)
7 Theft Deterrent Module (TDM) (BAE)
8 Ignition Switch
9 Turn Signal/Multifunction Switch
10 Horn Switch Connector

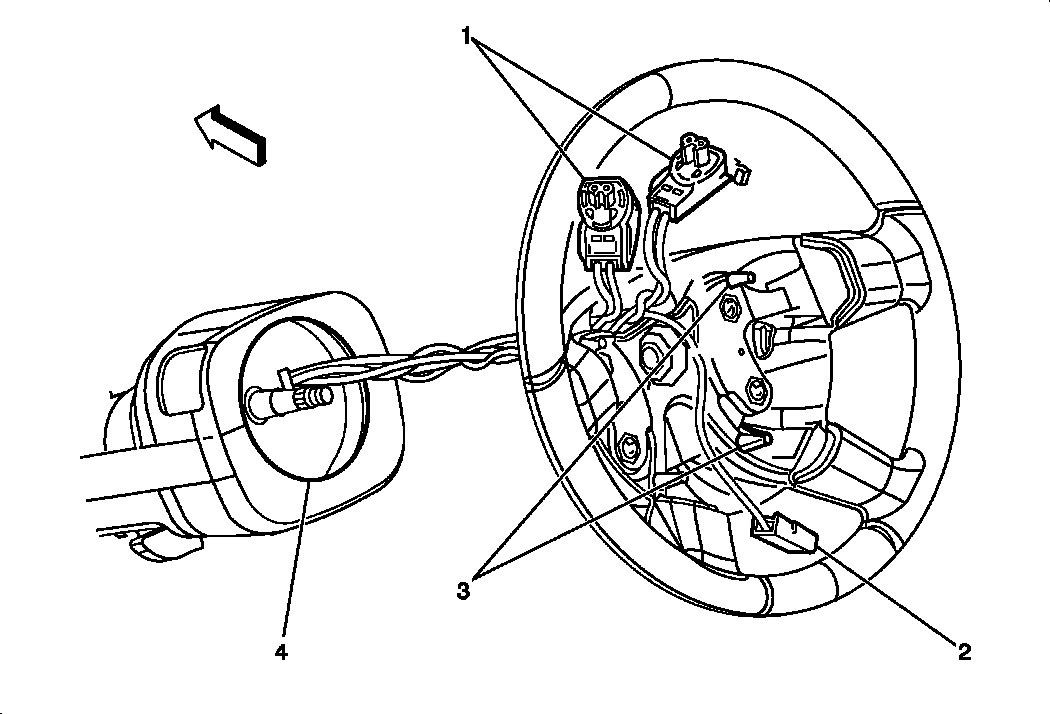

Fig 7: Steering Wheel Components
GM1442396Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module Connectors
2 Horn Switch Connector
3 Horn Contact
4 Inflatable Restraint Steering Wheel Module Coil

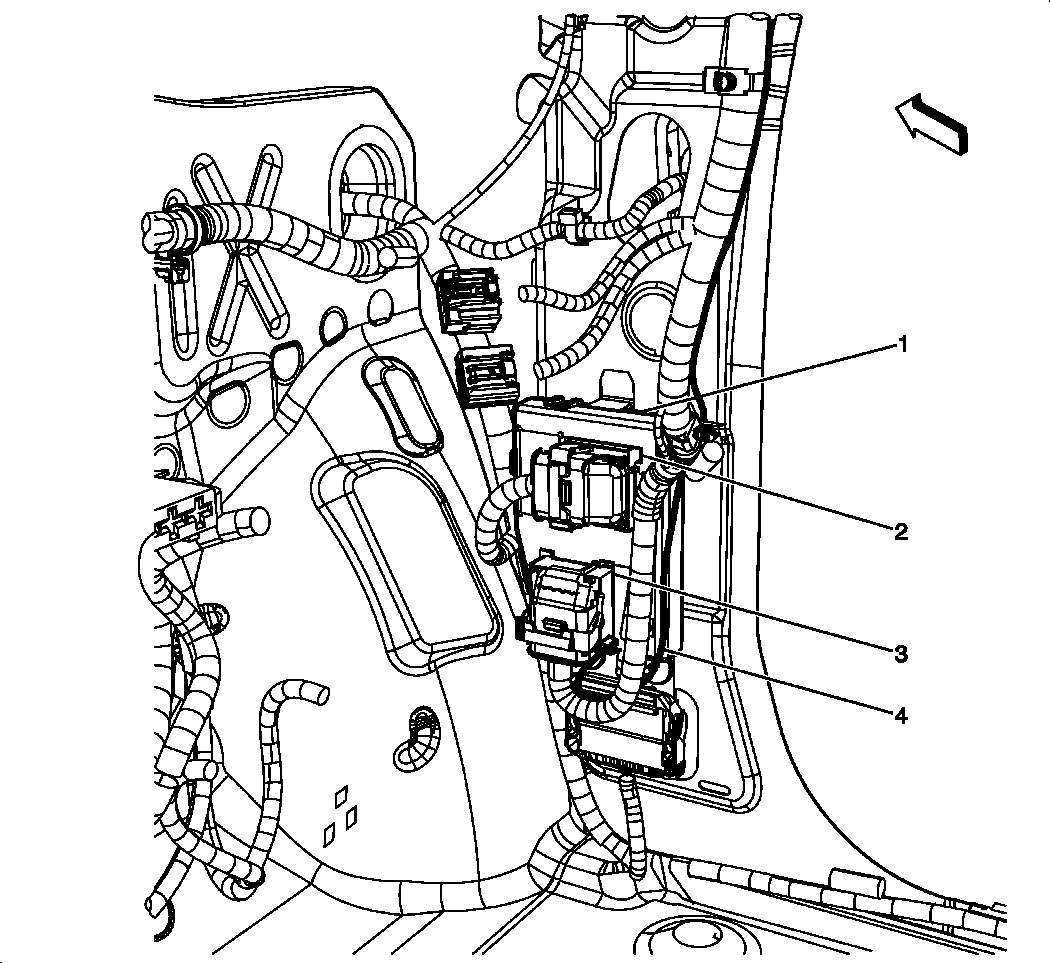

Fig 8: Right Kick Panel Components
GM2364495Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 Body Control Module (BCM) X1
3 Body Control Module (BCM) X2
