2010 Chevrolet Cobalt L4-2.2LFACTORY OEM SERVICE PROCEDURE
Harness Locations
Harness Routing Views

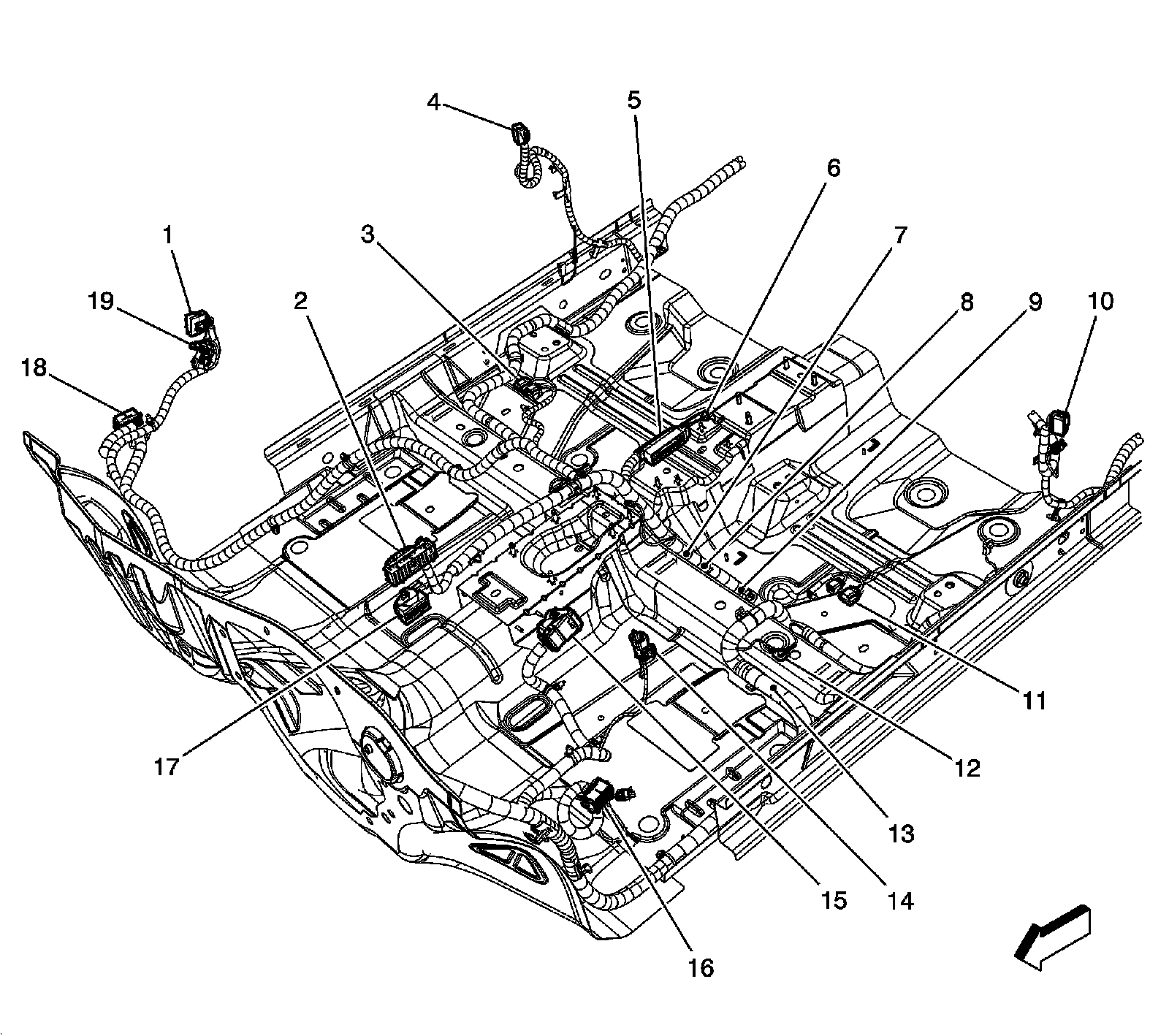

Body Harness - Passenger Compartment
1 - X200
2 - Body Control Module (BCM) X3
3 - X314
4 - X800 (Sedan)
5 - Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
6 - G306
7 - J361
8 - J210
9 - J360
10 - X700 (Sedan)
11 - X315
12 - G301
13 - J335
14 - X275
15 - X201
16 - X301
17 - Body Control Module (BCM) X1
18 - X600
19 - X304
