2010 Chevrolet Cobalt L4-2.2LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair

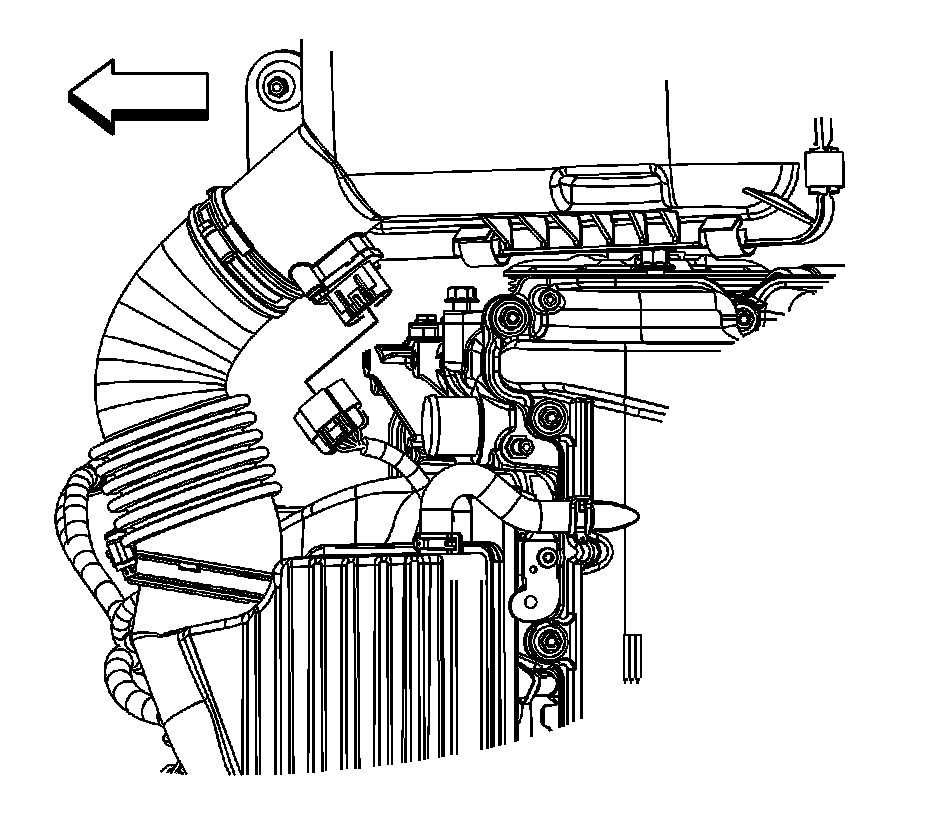

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement
Removal Procedure
1. Disconnect the engine harness electrical connector from the mass air flow (MAF)/intake air temperature (IAT) sensor.
2. Remove the MAF/IAT sensor screws.
3. Remove the MAF/IAT sensor.
Installation Procedure
1. Install the MAF/IAT sensor.
Caution: Refer to Fastener Caution (Fastener Caution).
2. Install the MAF/IAT sensor screws and tighten to 0.6 Nm (5 lb in).
3. Connect the engine harness electrical connector to the MAF/IAT sensor.
