Powertrain Component Views




Powertrain Component Views

Engine, Front View (LAP)

Factory service manual diagram

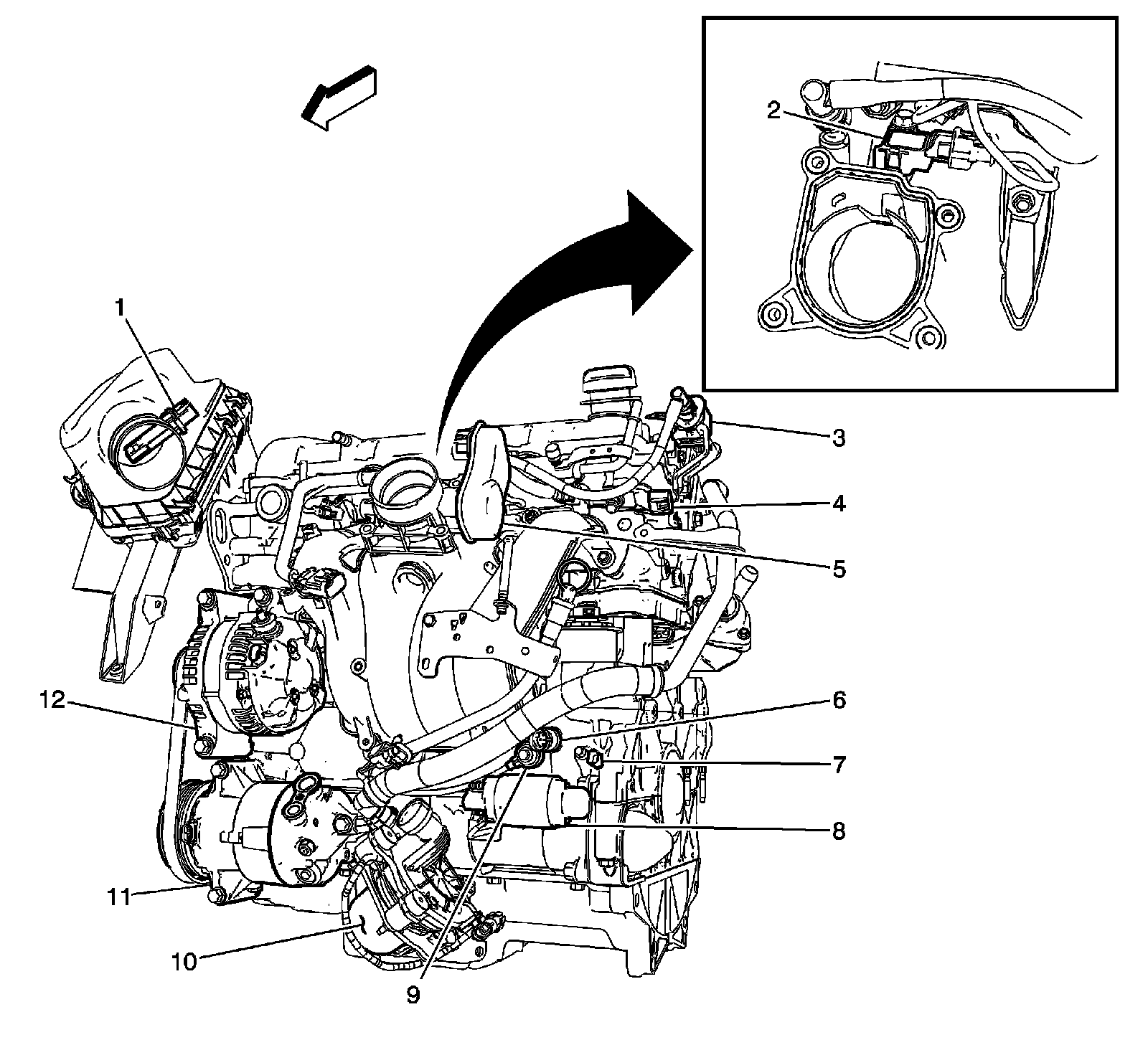

1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Camshaft Position (CMP) Sensor - Intake
5 - Throttle Body
6 - Engine Oil Pressure (EOP) Switch
7 - Crankshaft Position (CKP) Sensor
8 - Starter Motor
9 - Knock Sensor (KS)
10 - Secondary Air Injection (AIR) Pump (NU6)
11 - A/C Compressor Clutch (C67)
12 - Generator

Engine, Top View (LAP or LNF)

Factory service manual diagram

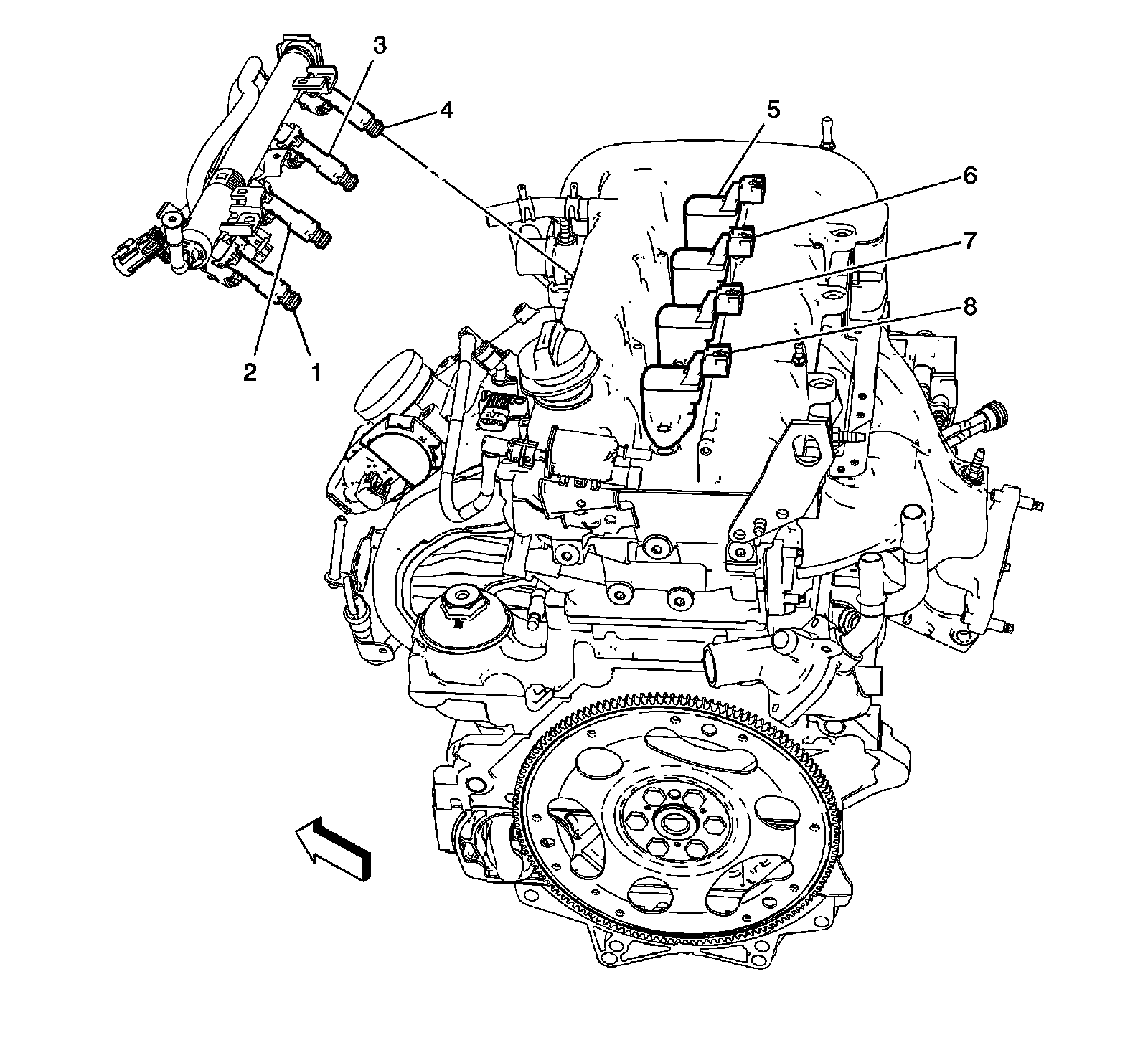

1 - Fuel Injector 4
2 - Fuel Injector 3
3 - Fuel Injector 2
4 - Fuel Injector 1
5 - Ignition Coil 1
6 - Ignition Coil 2
7 - Ignition Coil 3
8 - Ignition Coil 4

Engine, Rear View

Factory service manual diagram

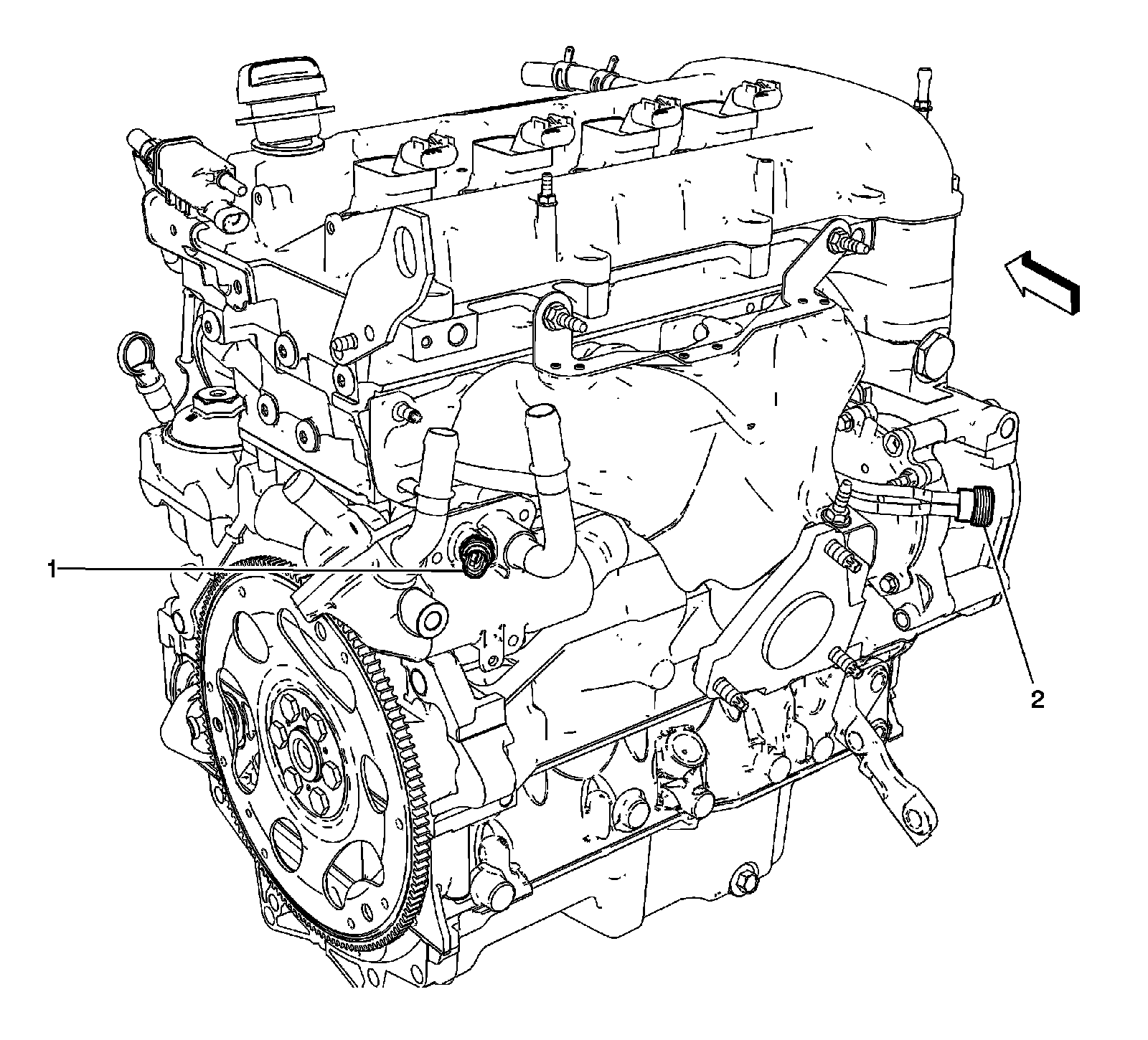

1 - Engine Coolant Temperature (ECT) Sensor
2 - Engine Block Heater Connector

Engine (LAP) and Manual Transmission (M86)

Factory service manual diagram



1 - Backup Lamp Switch
2 - Heated Oxygen Sensor (HO2S) 1
3 - Heated Oxygen Sensor (HO2S) 2
4 - Vehicle Speed Sensor (VSS)

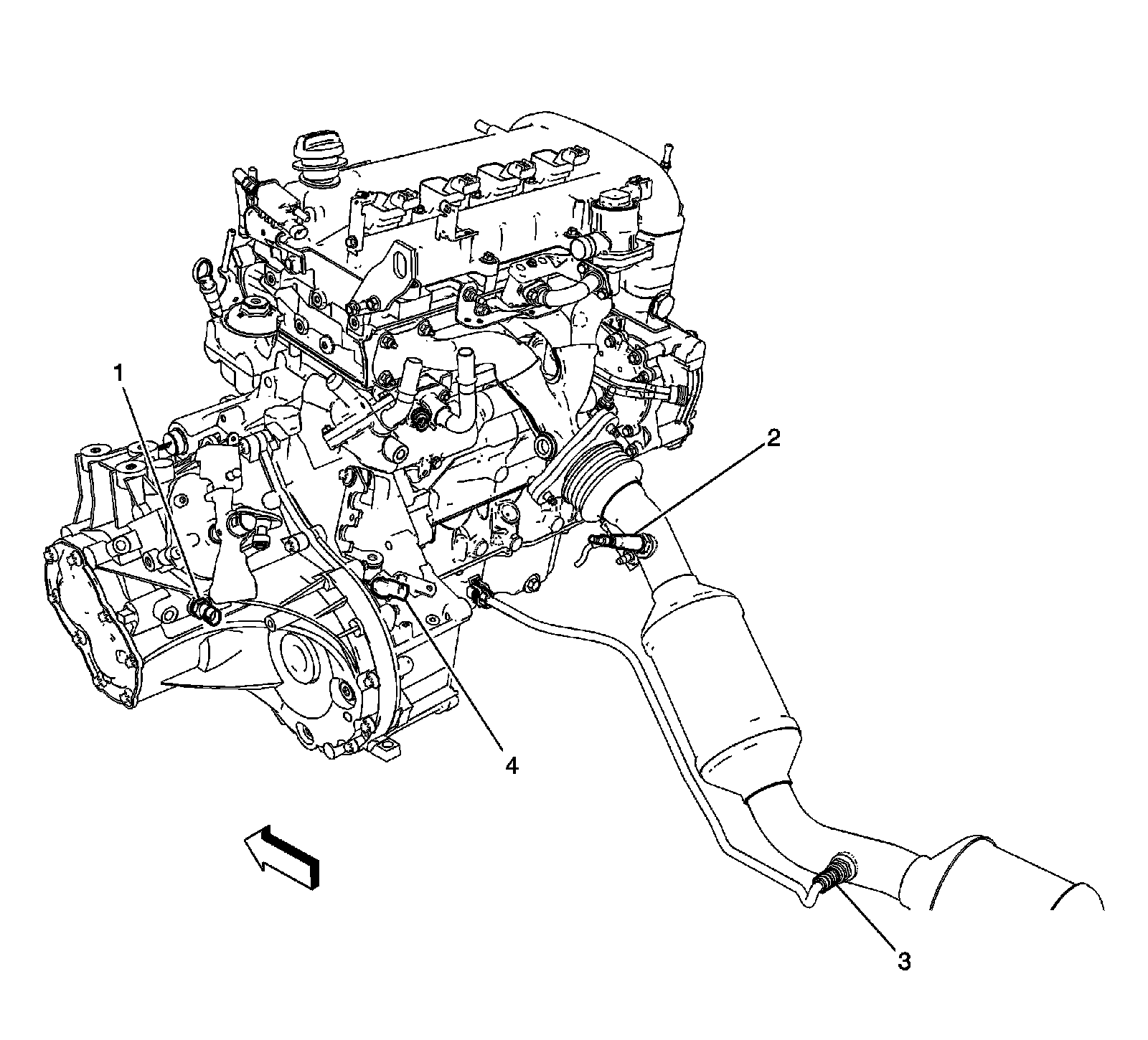

Engine (LAP) and Automatic Transmission (MN5)

Factory service manual diagram

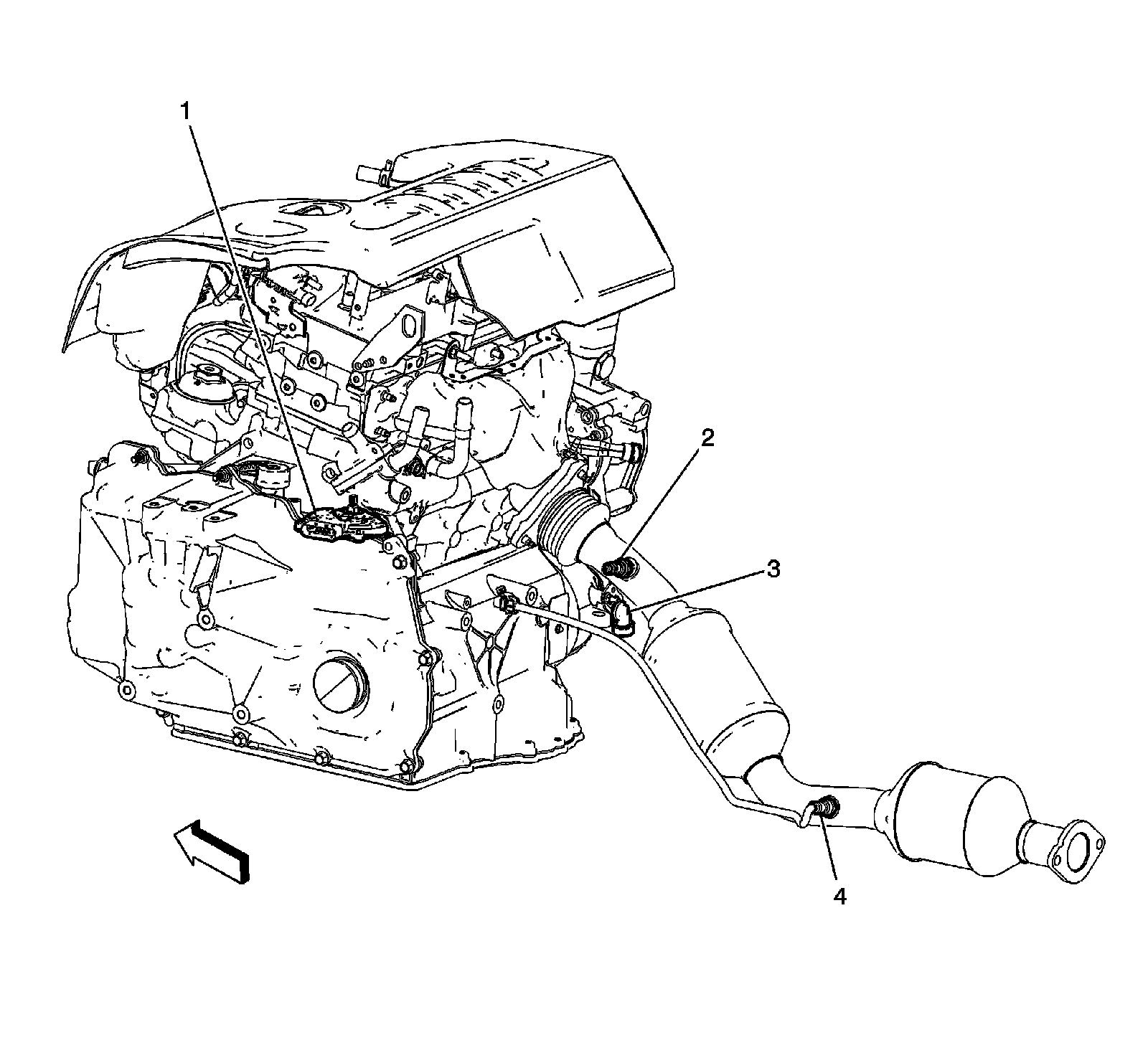

1 - Park/Neutral Position (PNP) Switch
2 - Heated Oxygen Sensor (HO2S) 1
3 - Vehicle Speed Sensor (VSS)
4 - Heated Oxygen Sensor (HO2S) 2

Engine - Front View (LNF)

Factory service manual diagram

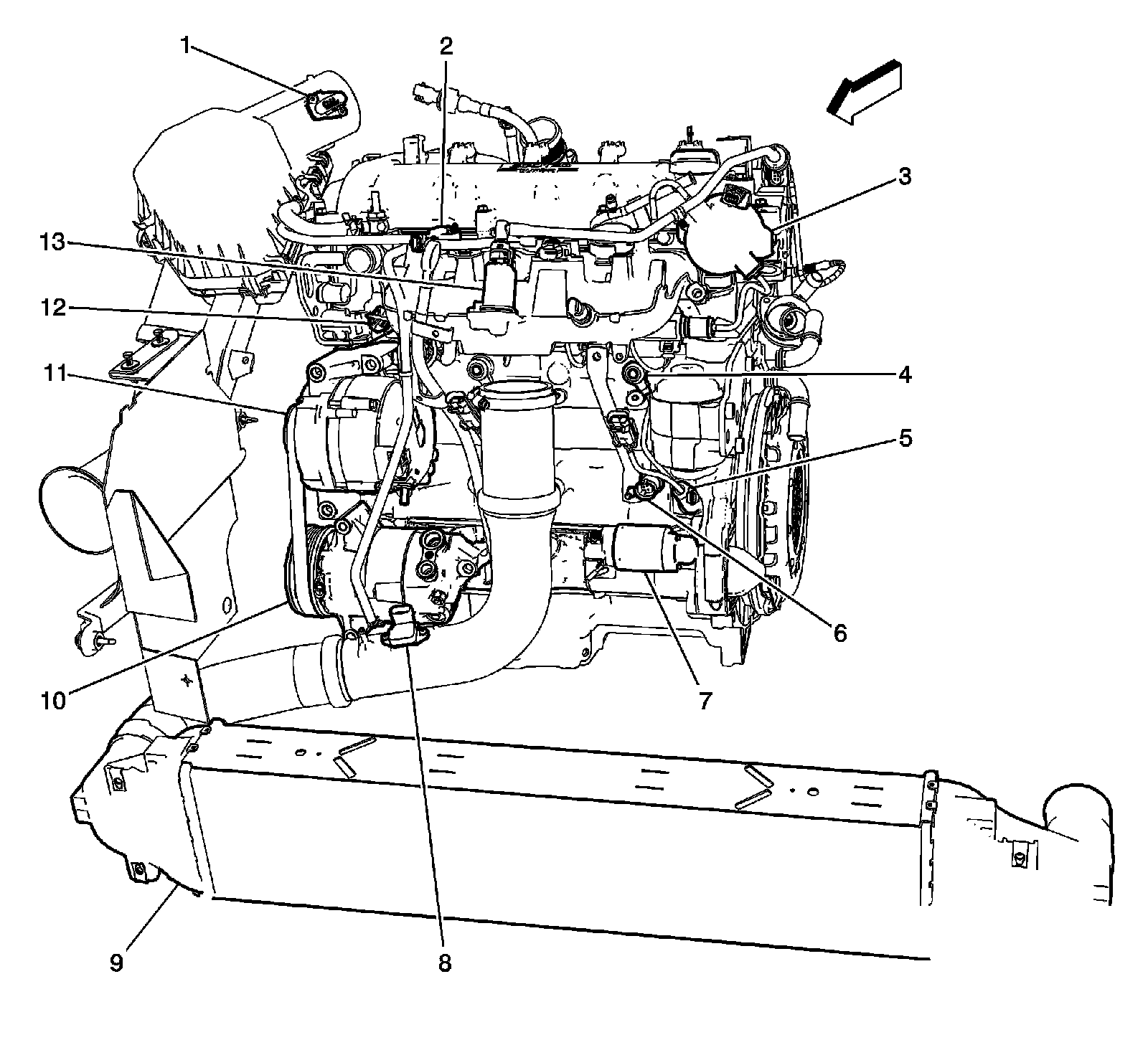

1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 - Turbocharger Bypass Valve Solenoid
3 - Manifold Absolute Pressure (MAP) Sensor
4 - Throttle Body
5 - High Pressure Fuel Pump
6 - Knock Sensor (KS) 2
7 - Crankshaft Position (CKP) Sensor
8 - Engine Oil Pressure (EOP) Switch
9 - Starter Motor
10 - Knock Sensor (KS) 1
11 - Intake Air Pressure and Temperature Sensor
12 - Charge Air Cooler
13 - A/C Compressor Clutch (C67)
14 - Generator
15 - Fuel Rail Pressure (FRP) Sensor
16 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

Engine - Rear View (LNF)

Factory service manual diagram

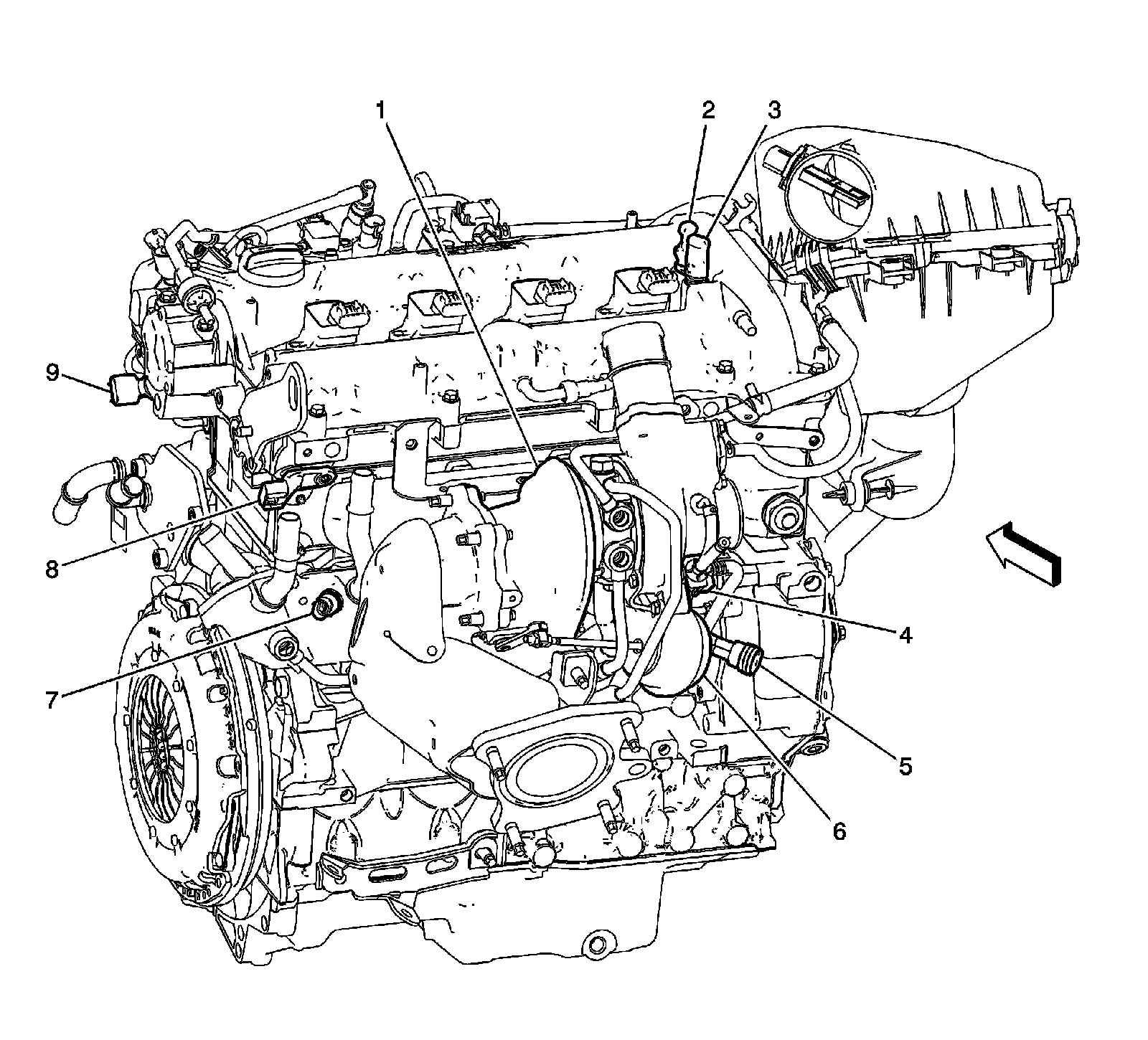

1 - Turbocharger
2 - Camshaft Position (CMP) Actuator Solenoid Valve - Intake
3 - Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust
4 - Turbocharger Wastegate Solenoid
5 - Heater Block Connector
6 - Engine Coolant Temperature (ECT) Sensor
7 - Camshaft Position (CMP) Sensor - Exhaust
8 - Camshaft Position (CMP) Sensor - Intake

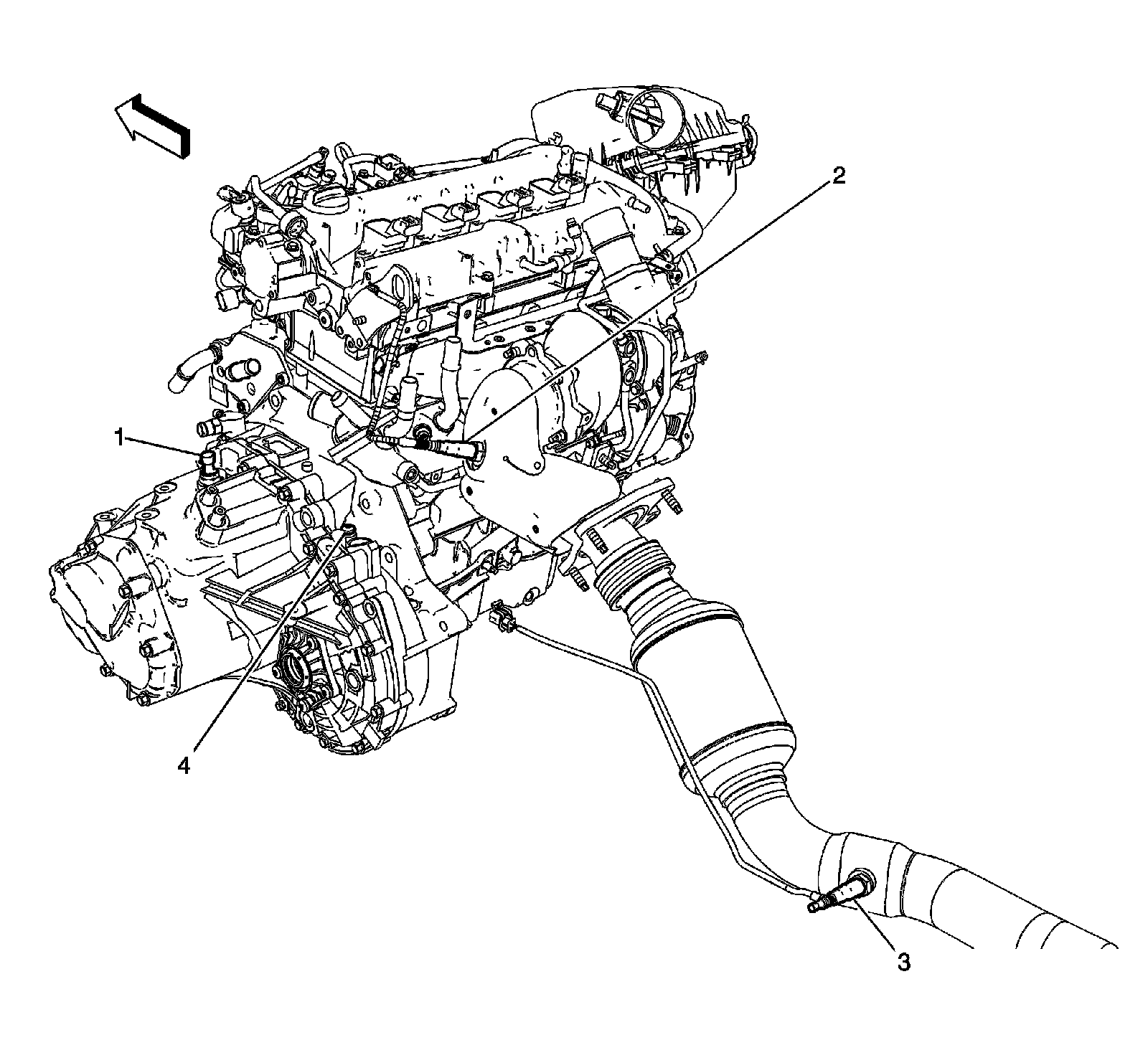

Engine (LNF) and Manual Transmission (MU3)

Factory service manual diagram



1 - Backup Lamp Switch
2 - Heated Oxygen Sensor (HO2S) 1
3 - Heated Oxygen Sensor (HO2S) 2
4 - Vehicle Speed Sensor (VSS)

Secondary Air Injection (AIR) Components (NU6)

Factory service manual diagram

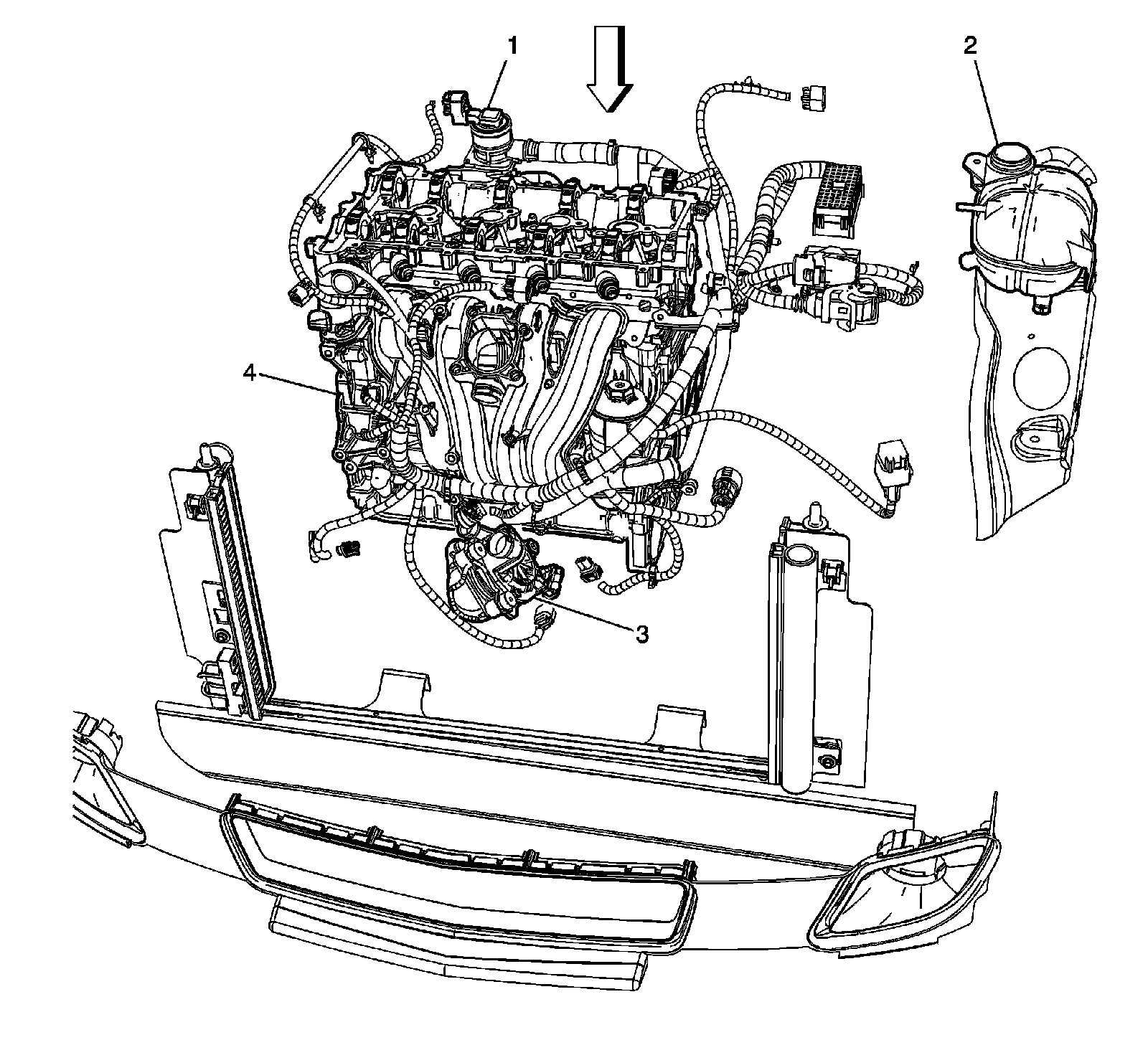

1 - Secondary Air Injection (AIR) Pump Solenoid
2 - Engine Coolant Overflow Container
3 - Secondary Air Injection (AIR) Pump
4 - Engine Block

Transmission Electronic Components (MN5)

Factory service manual diagram

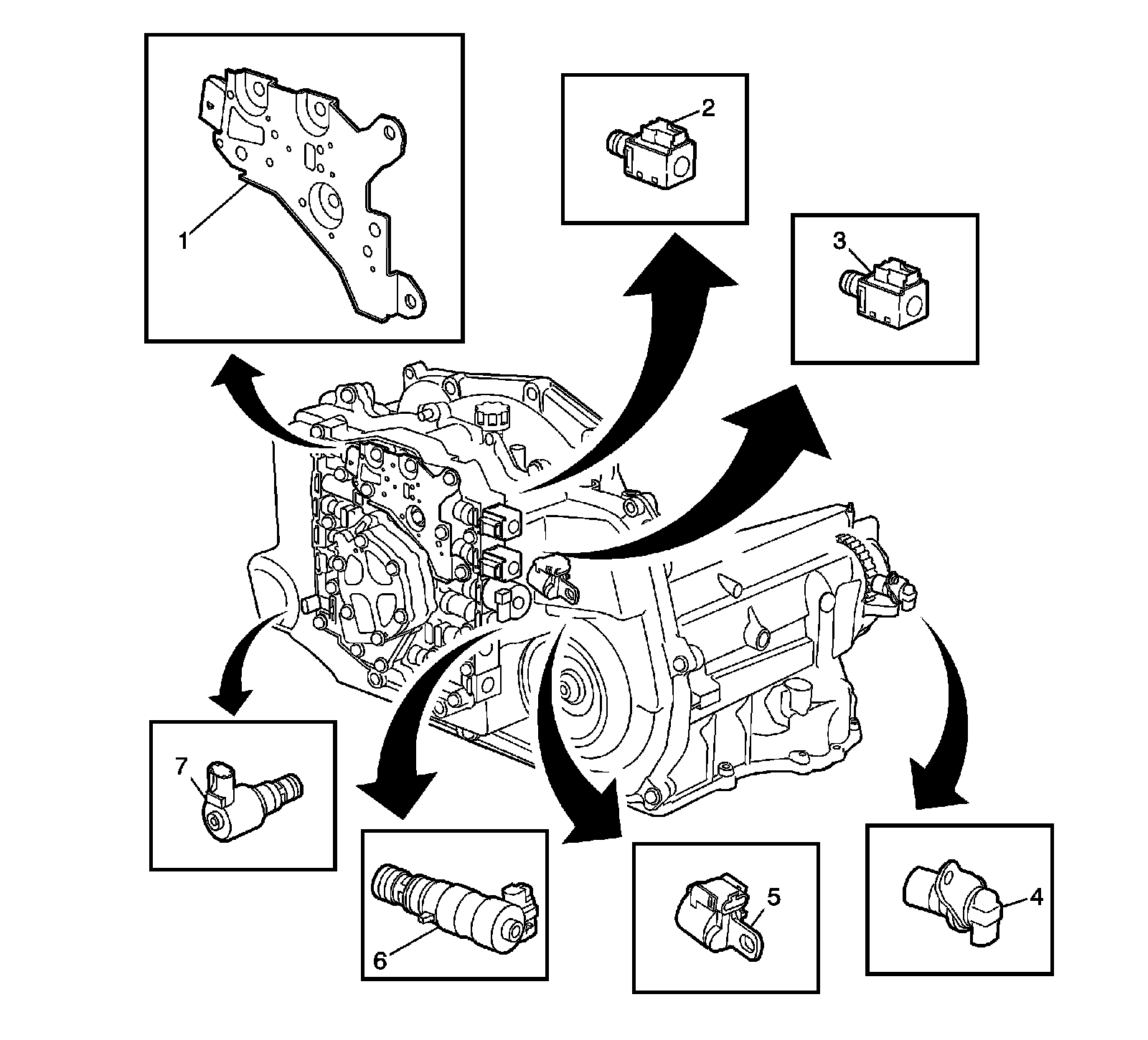

1 - Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
2 - 1-2 Shift Solenoid (SS) Valve
3 - 2-3 Shift Solenoid (SS) Valve
4 - Vehicle Speed Sensor (VSS)
5 - Automatic Transmission Input Shaft Speed (ISS) Sensor
6 - Pressure Control (PC) Solenoid Valve
7 - Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve
