2010 Chevrolet Cobalt L4-2.2LFACTORY OEM SERVICE PROCEDURE
Components

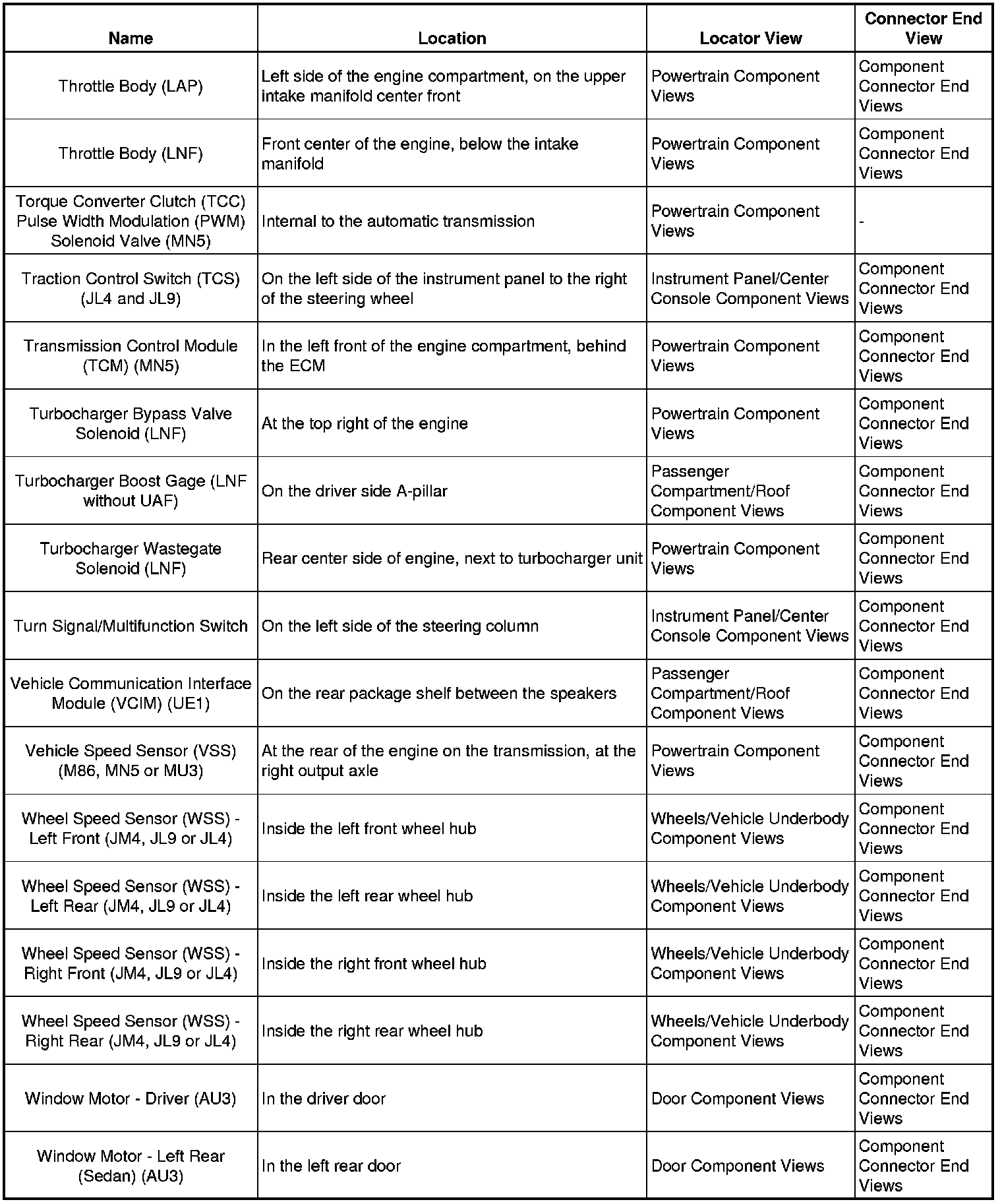

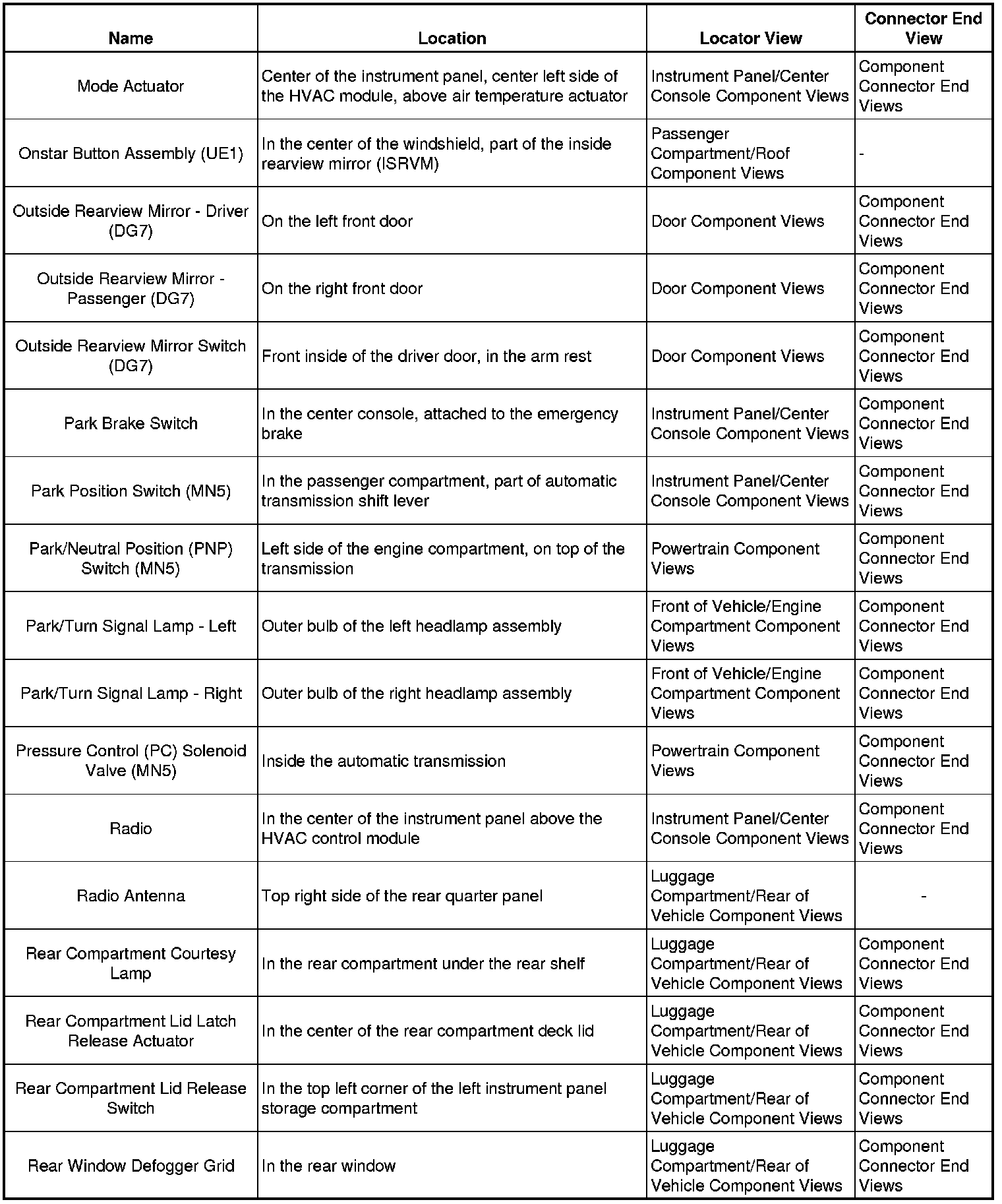

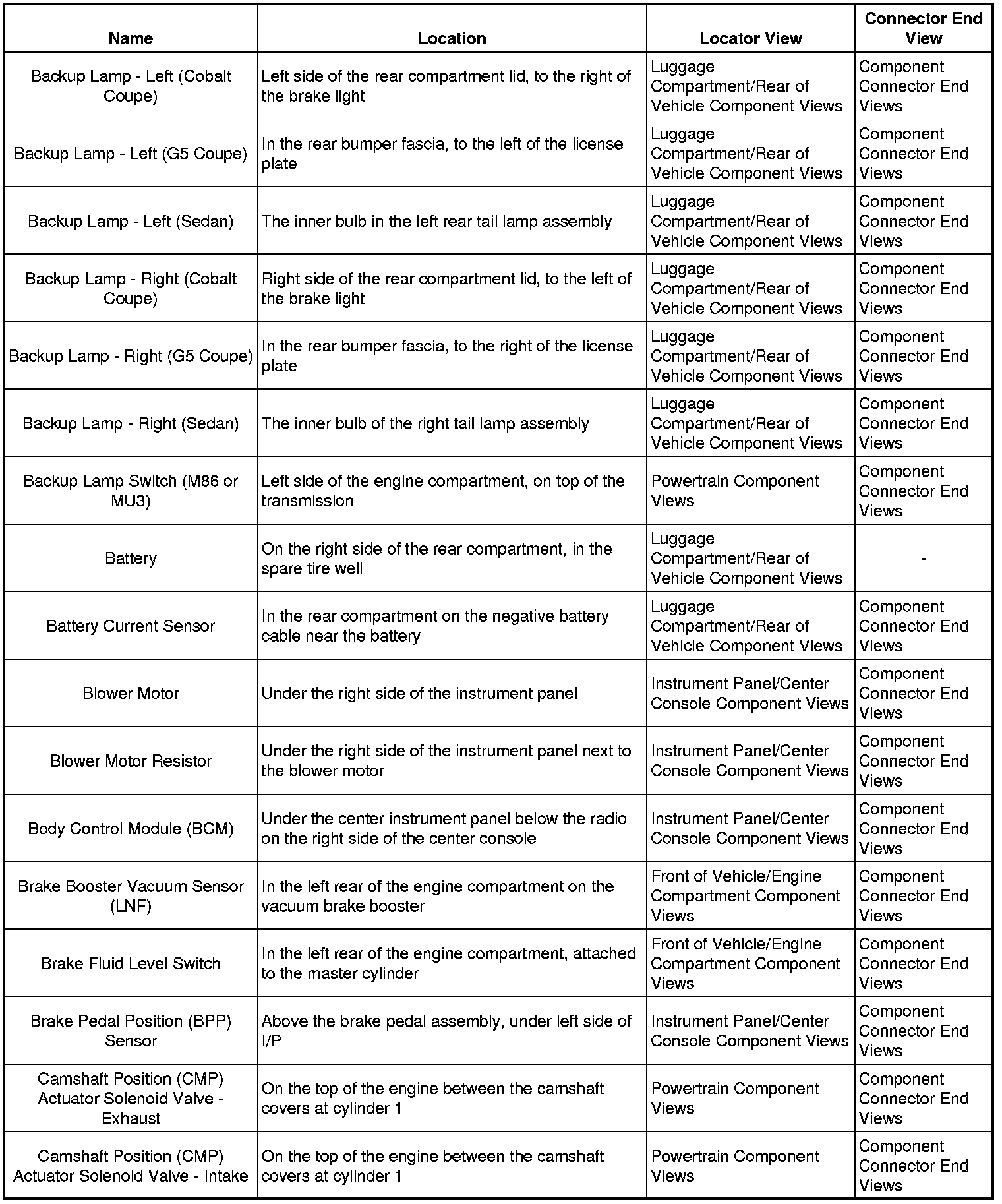

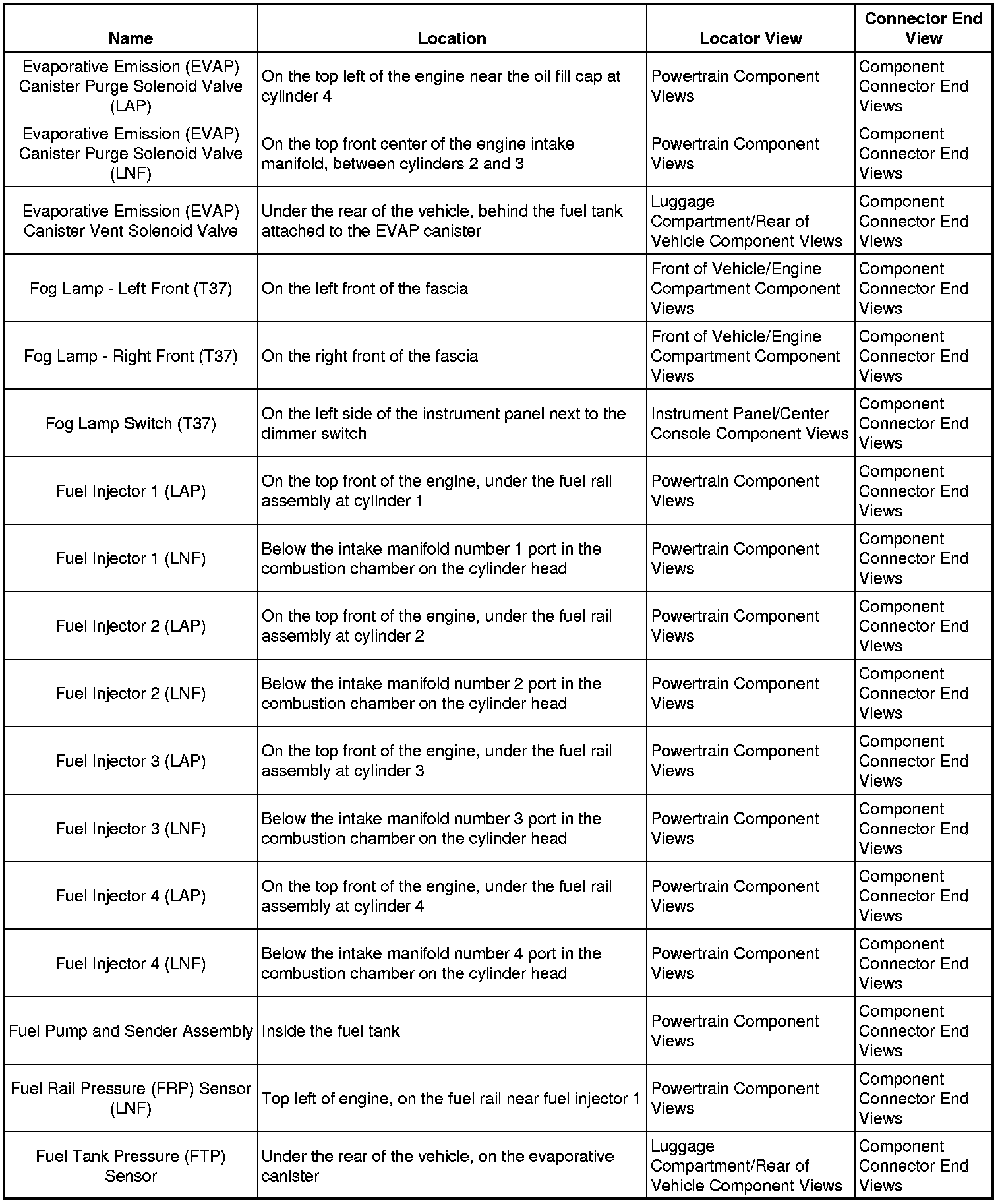

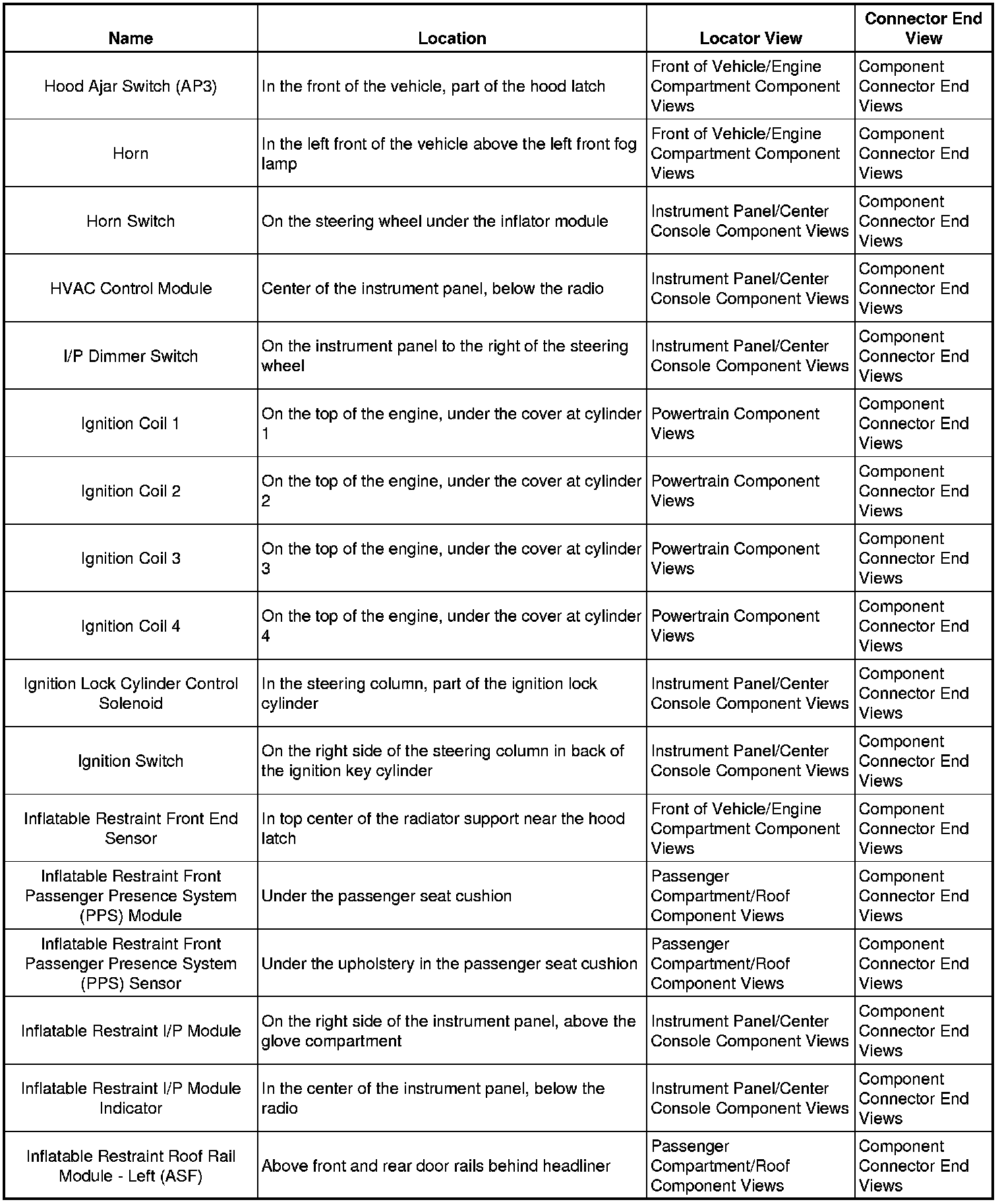

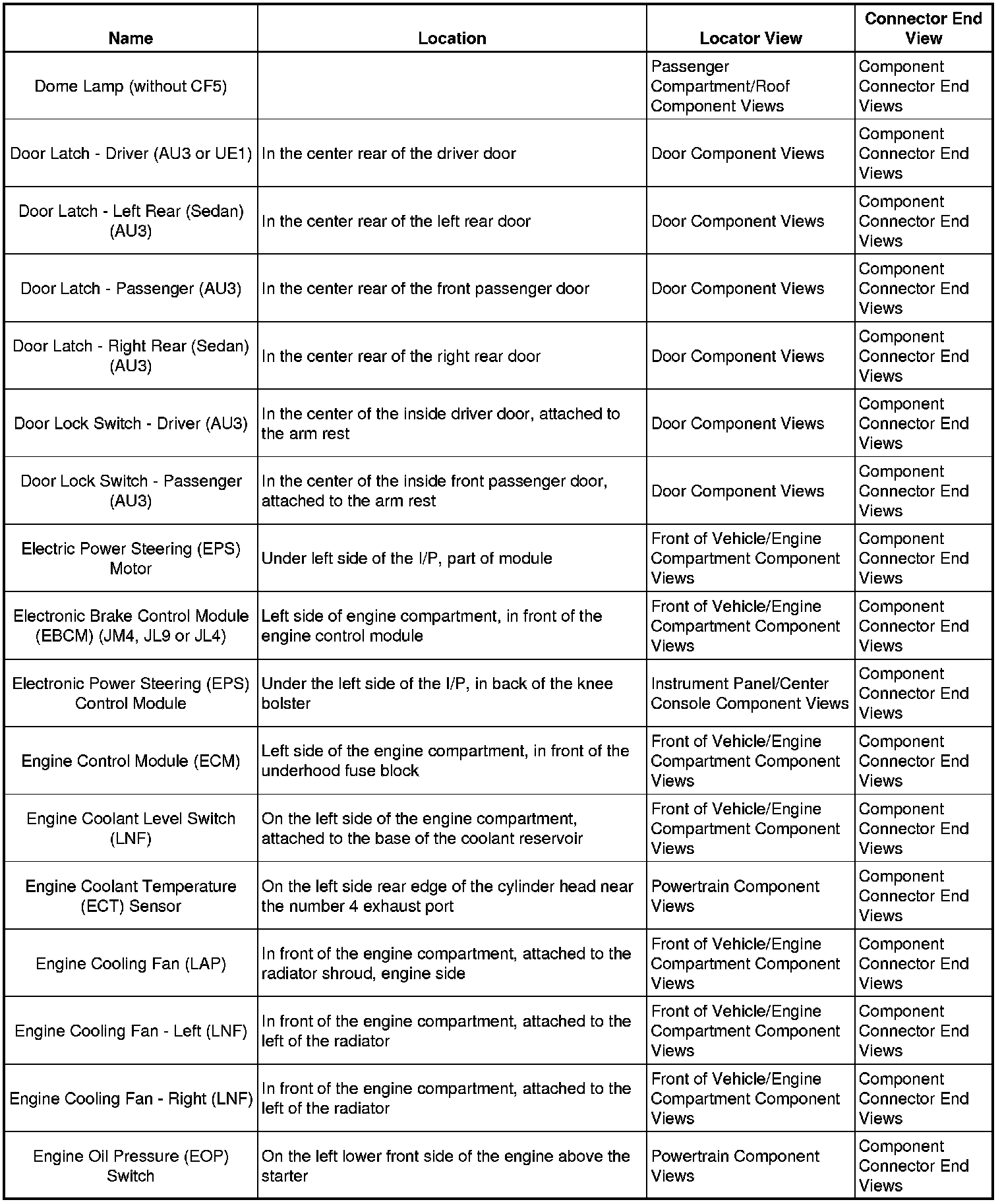

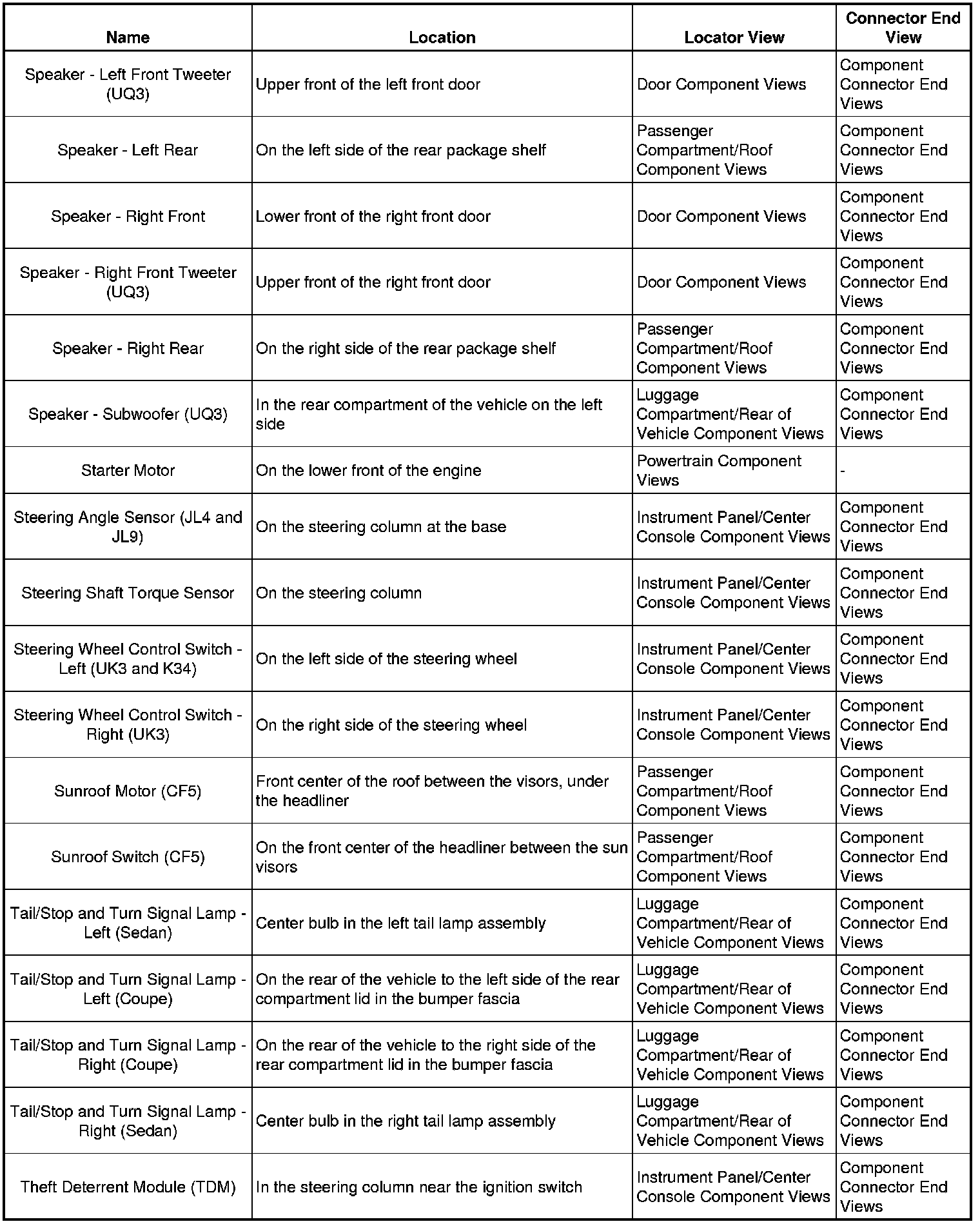

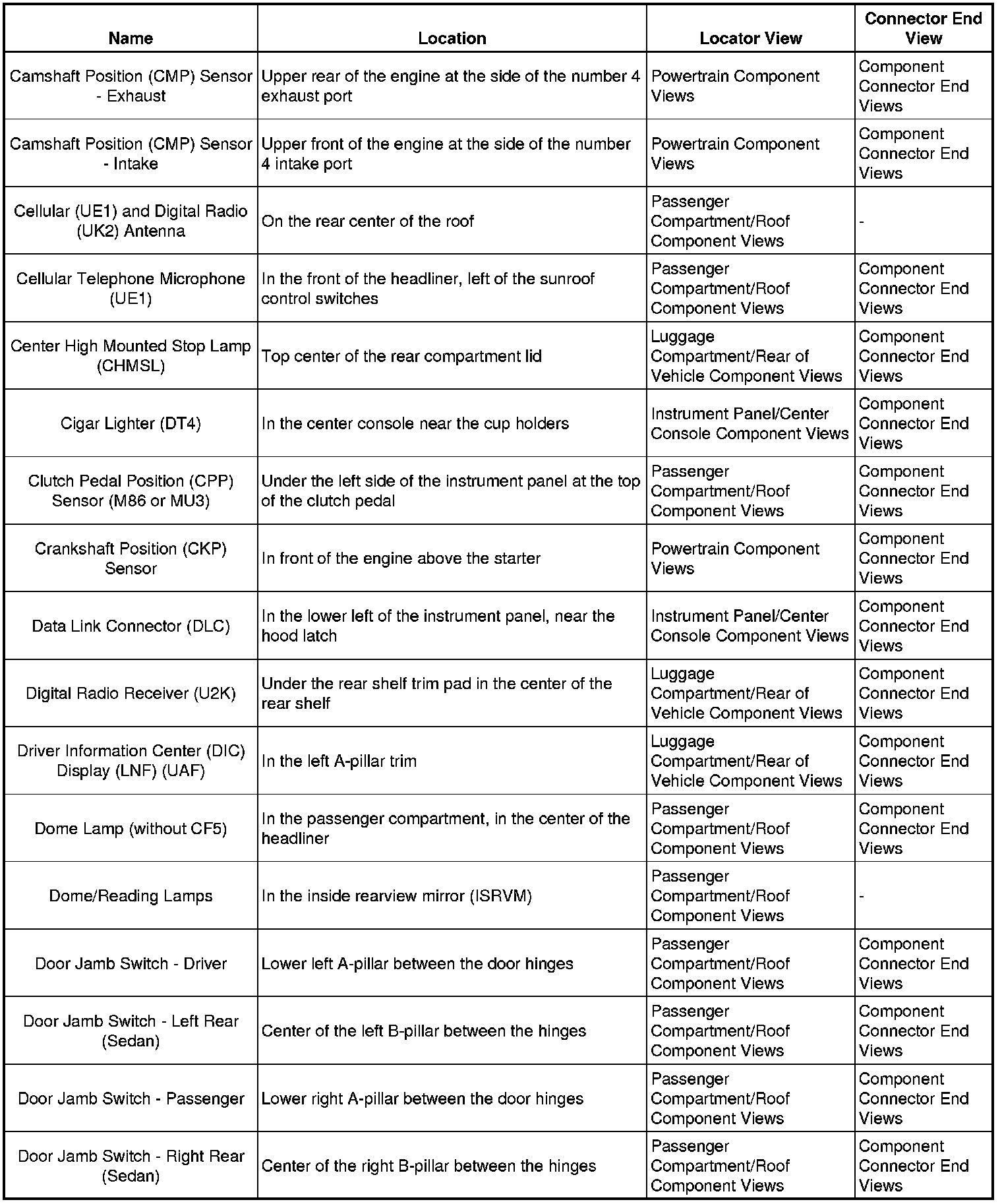

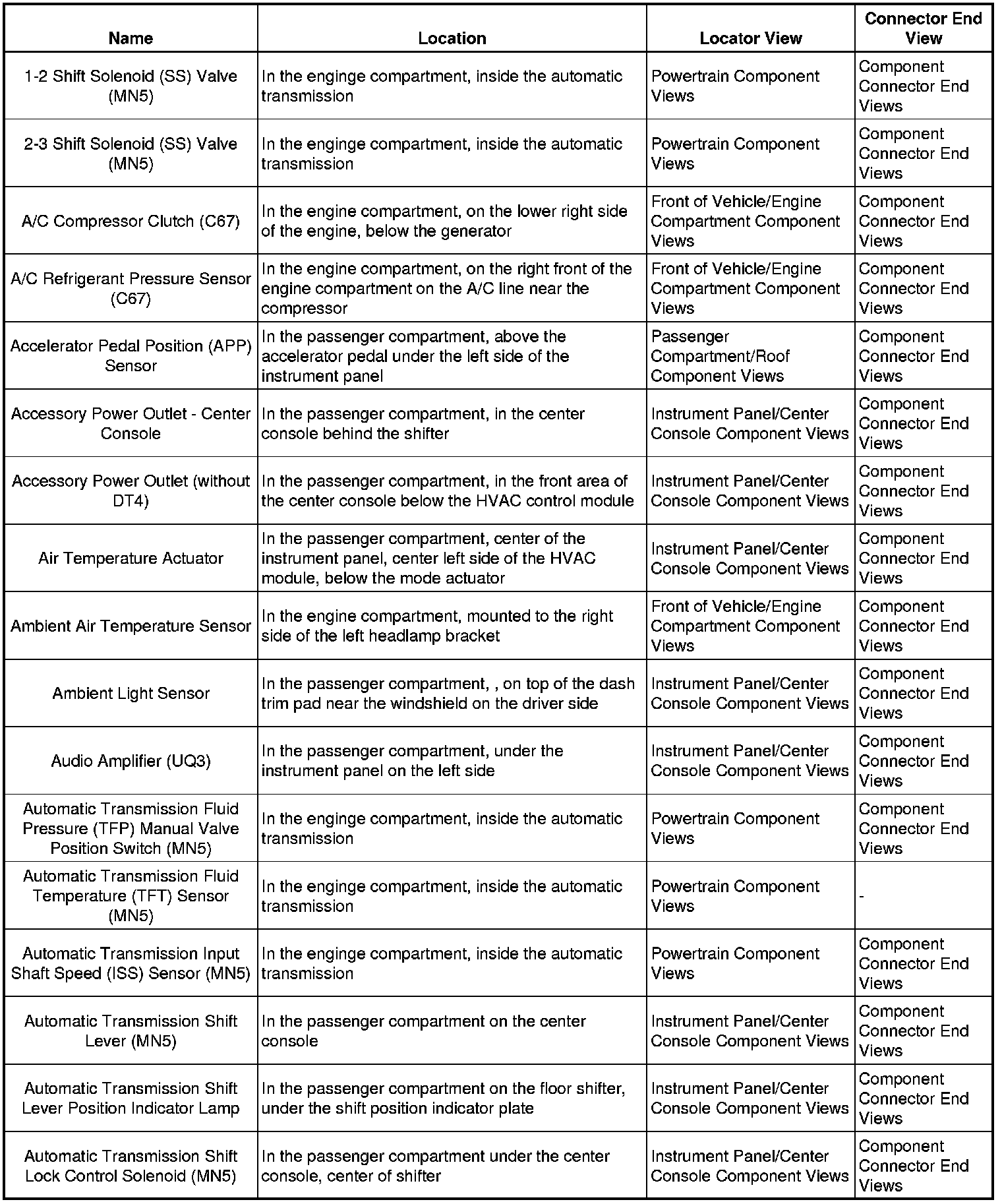

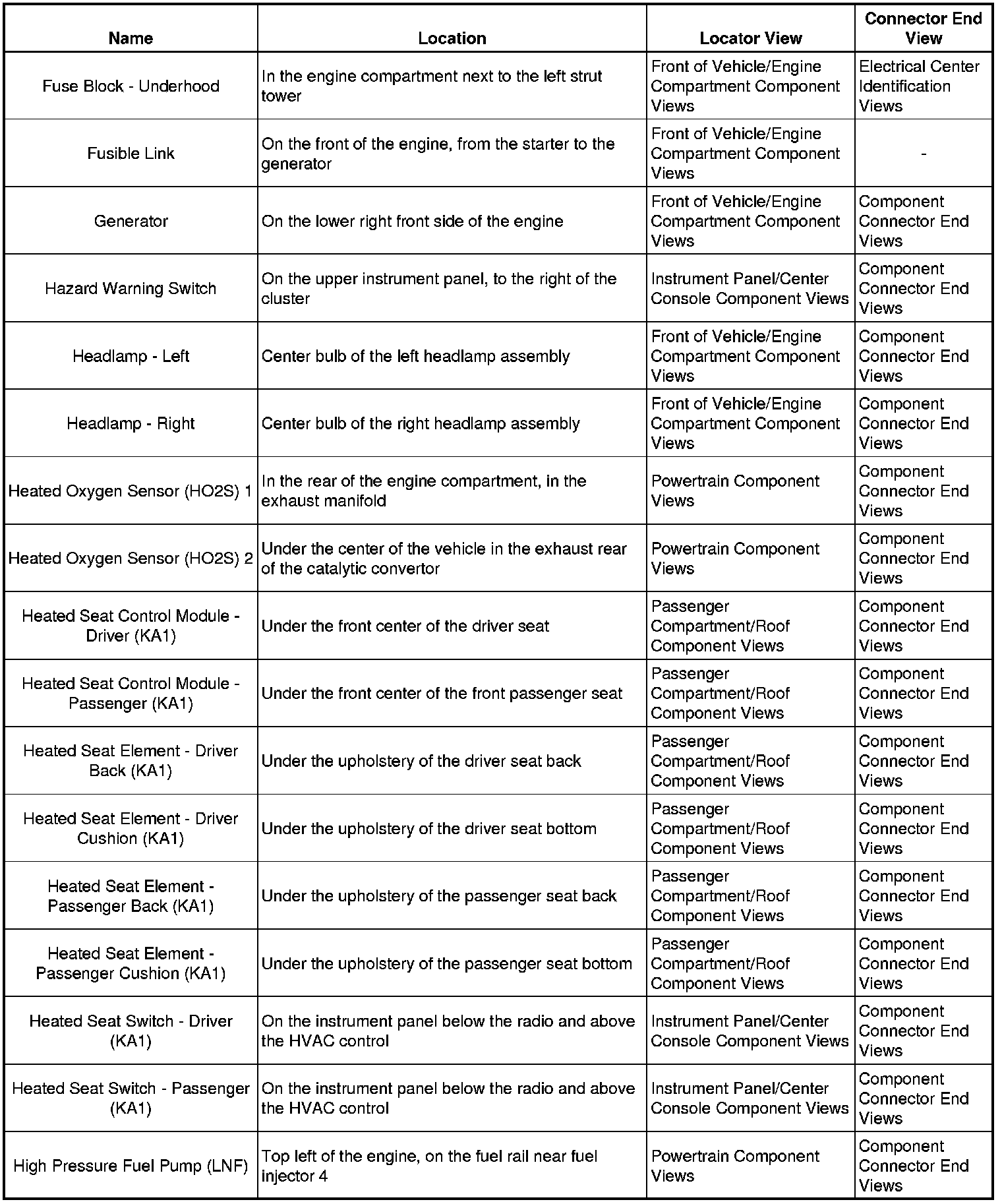

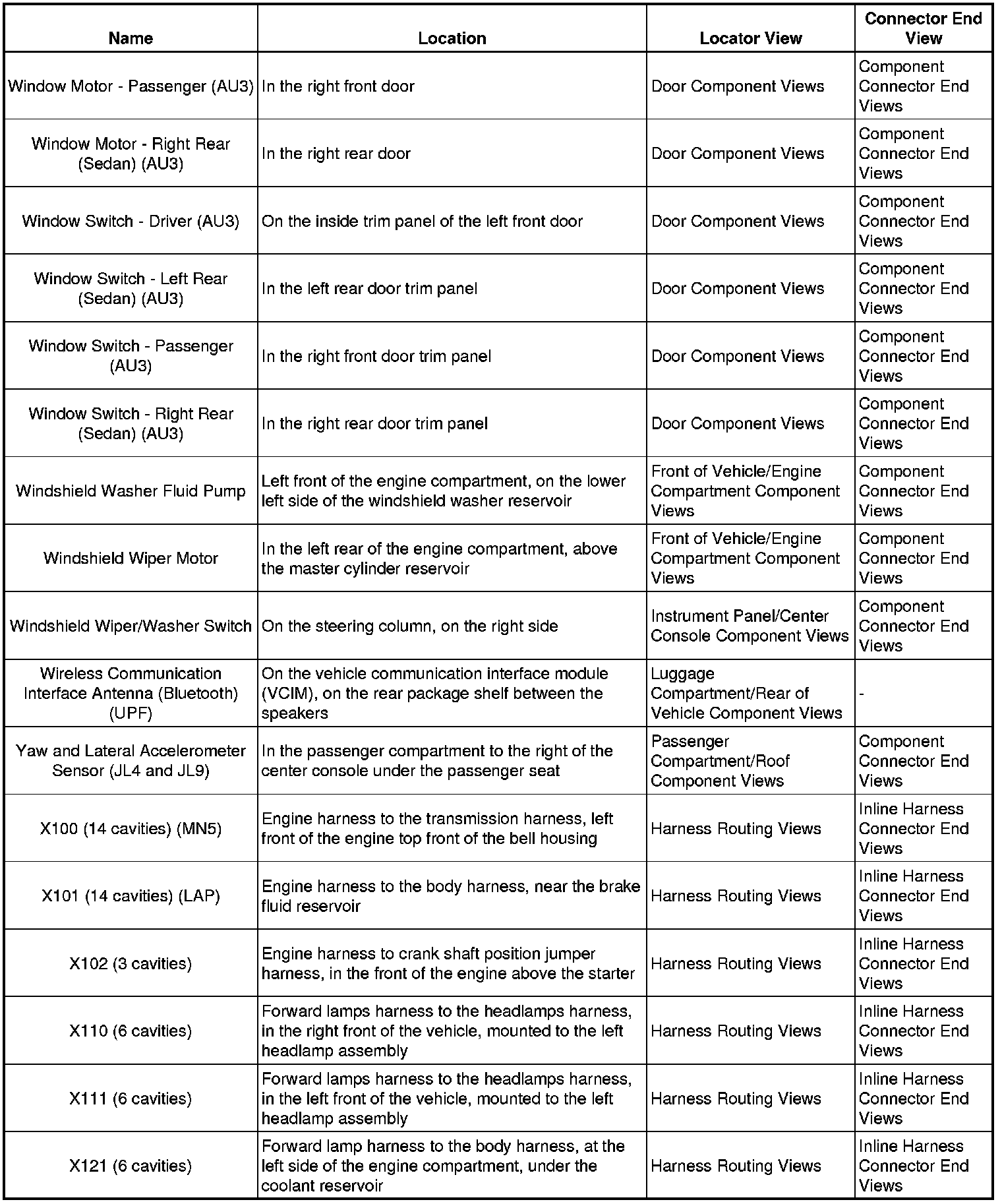

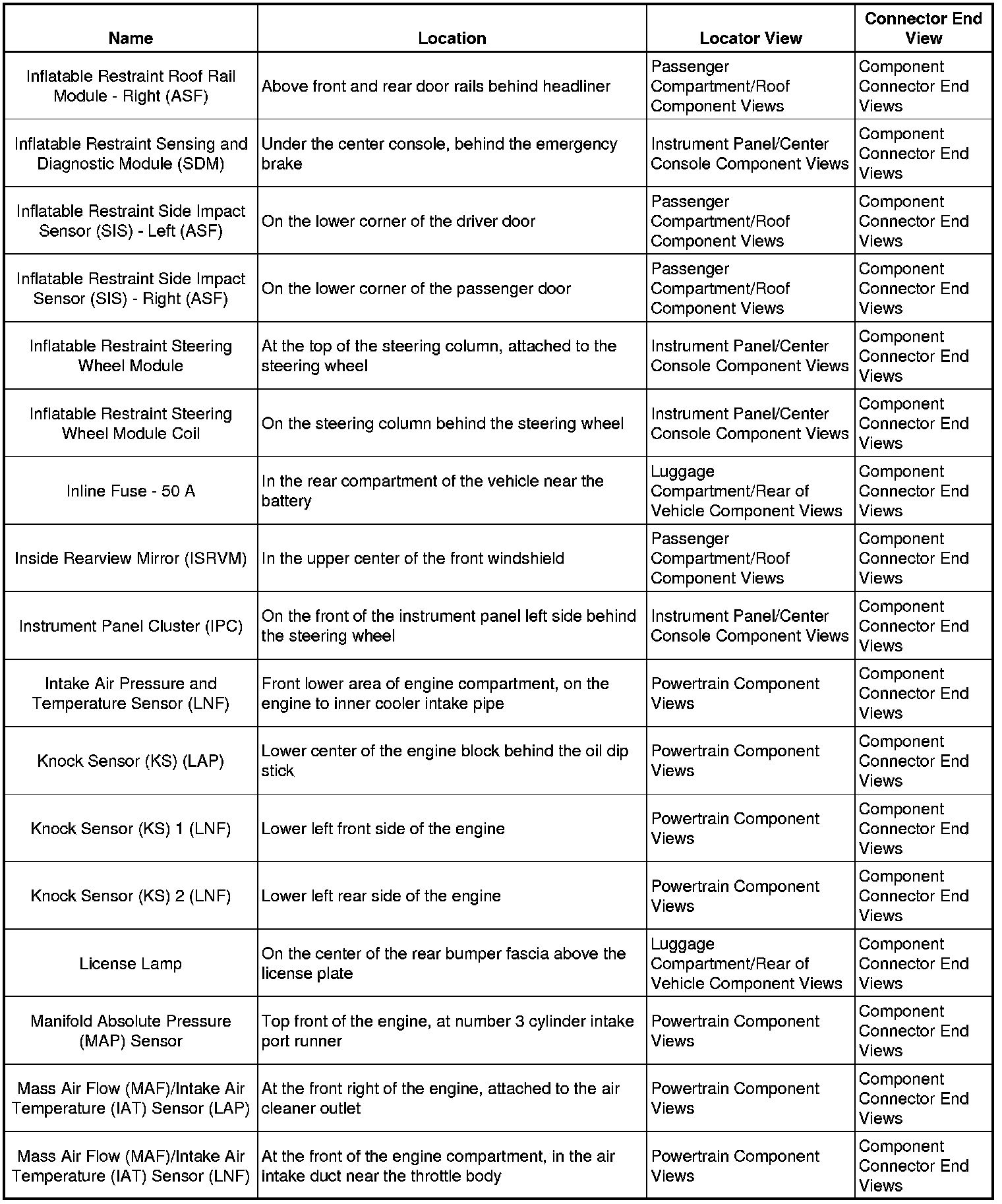

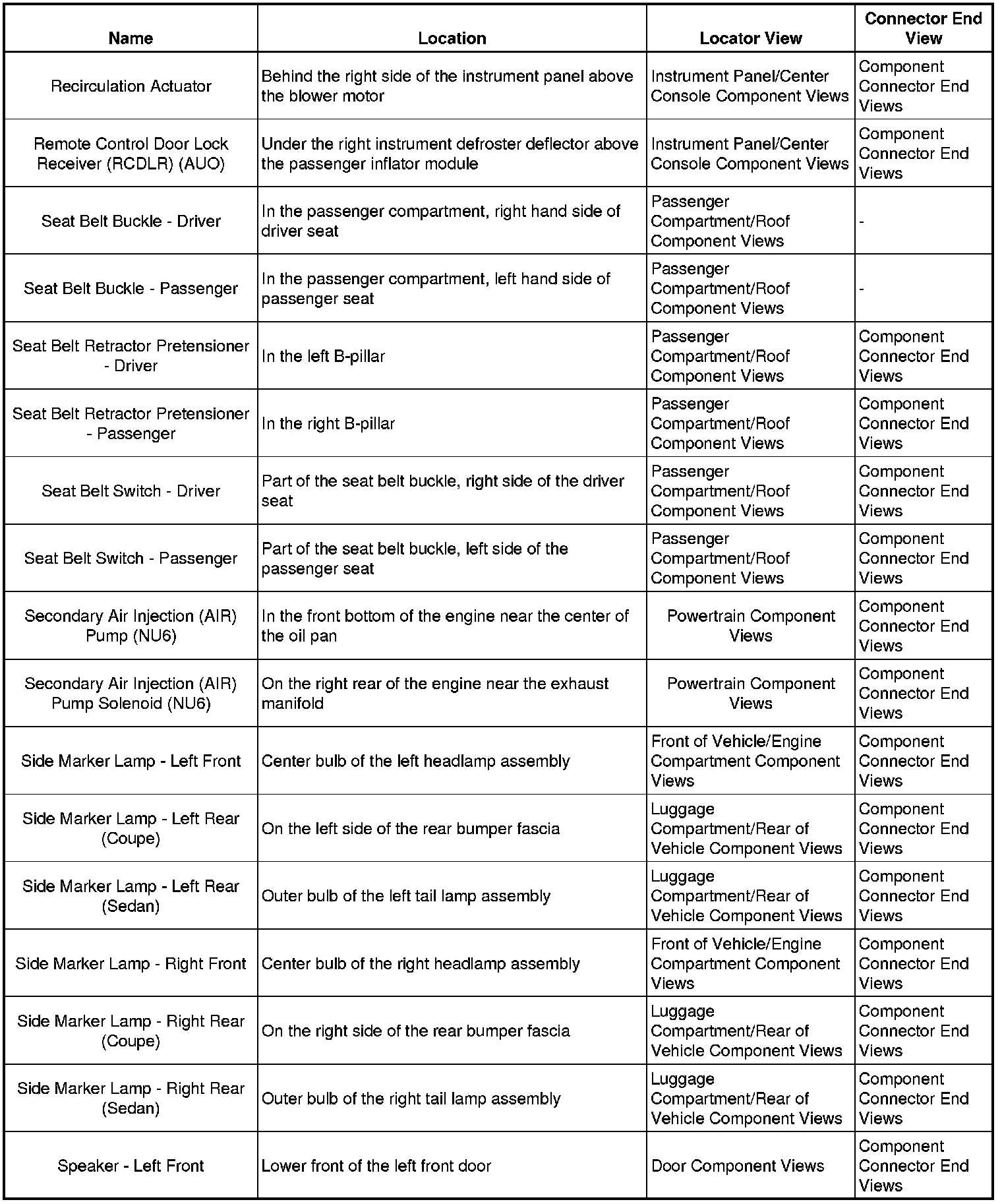

Master Electrical Component List
1-2 - Au:
Ba - Ca:
Ca - Do:
Do - En:
Ev - Fu:
Fu - Hi:
Ho - In:
In - Ma:
Mo - Re:
Re - Sp:
Sp - Th:
Th - Wi:
Wi - X121:
