2009 Chevrolet Traverse LS, FWDFACTORY OEM SERVICE PROCEDURE
Accessory AC and DC Power Control Module Replacement

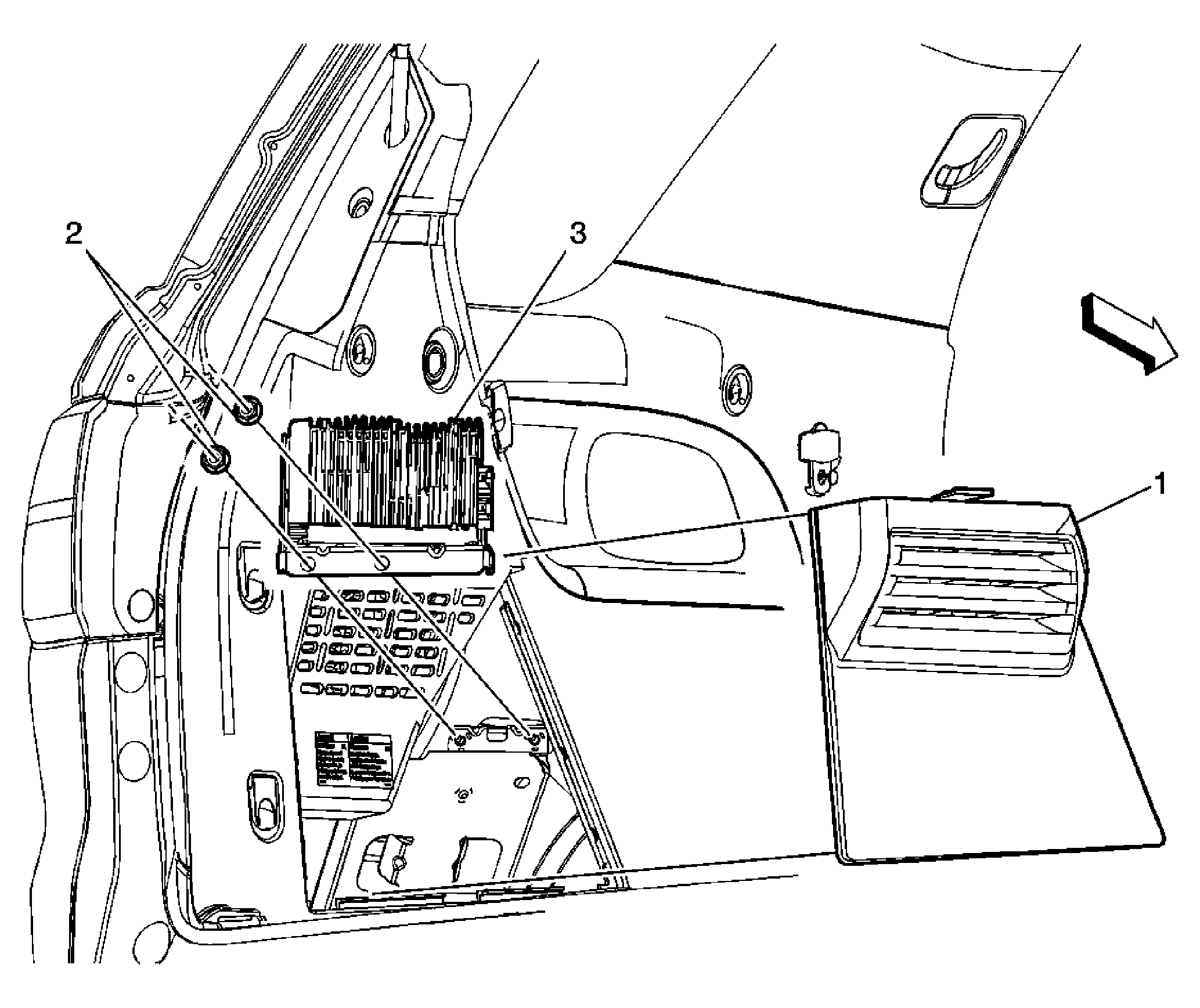

| Callout | Component Name |
|---|---|
| 1 | Body Side Trim Panel Stow Compartment Door Assembly |
| 2 | Accessory AC/DC Power Control Module Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 3 | Accessory AC/DC Power Control Module Assembly Procedure
|
