2009 Chevrolet Traverse LS, AWDFACTORY OEM SERVICE PROCEDURE
Rearview Camera Replacement (Traverse)
WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

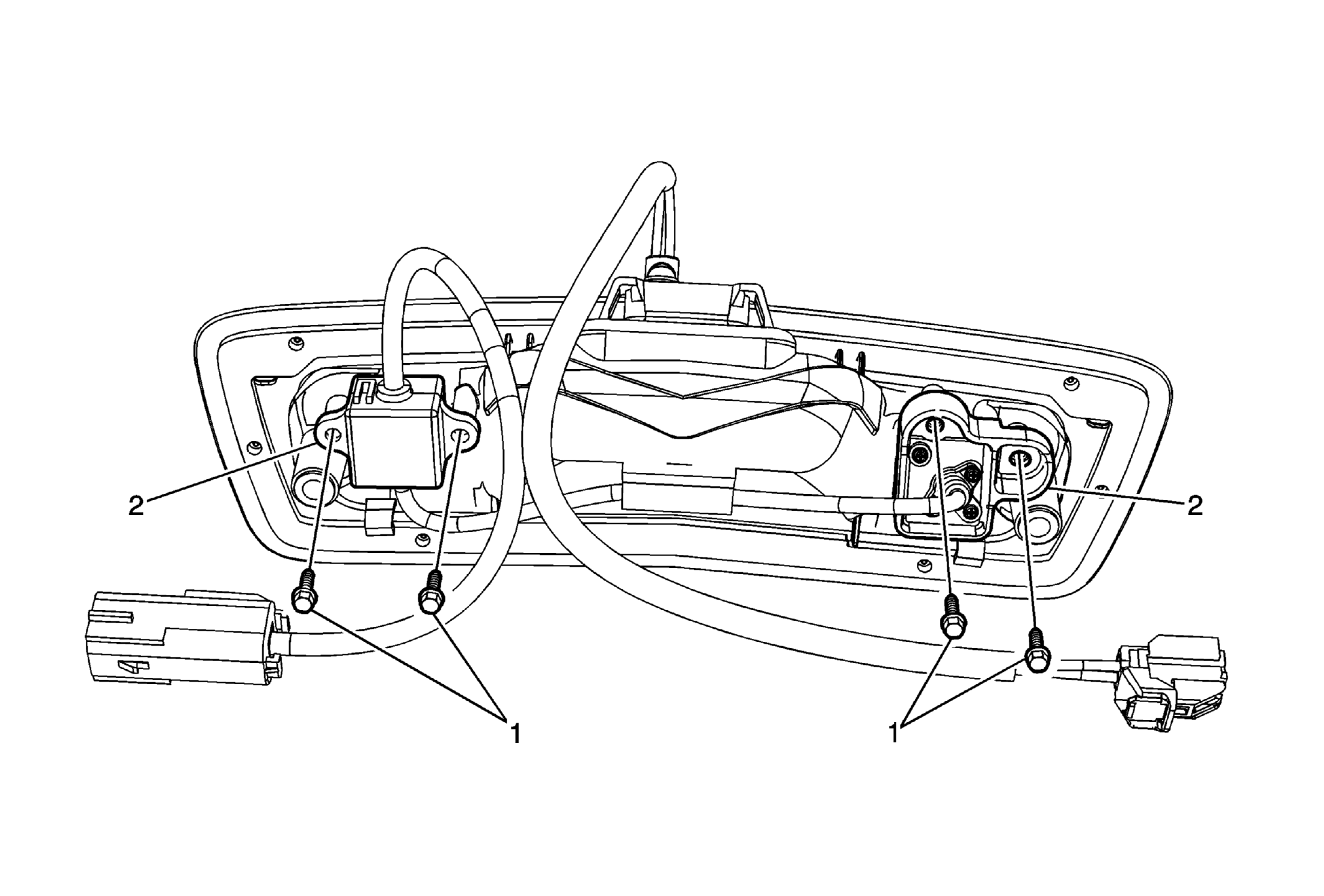

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the liftgate outside handle. Refer to Liftgate Outside Handle Replacement . |
|
| 1 | Rearview Camera Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Rearview Camera Tip: Release tape to remove the wiring harness. |
