Fuel Pump Flow Control Module Replacement

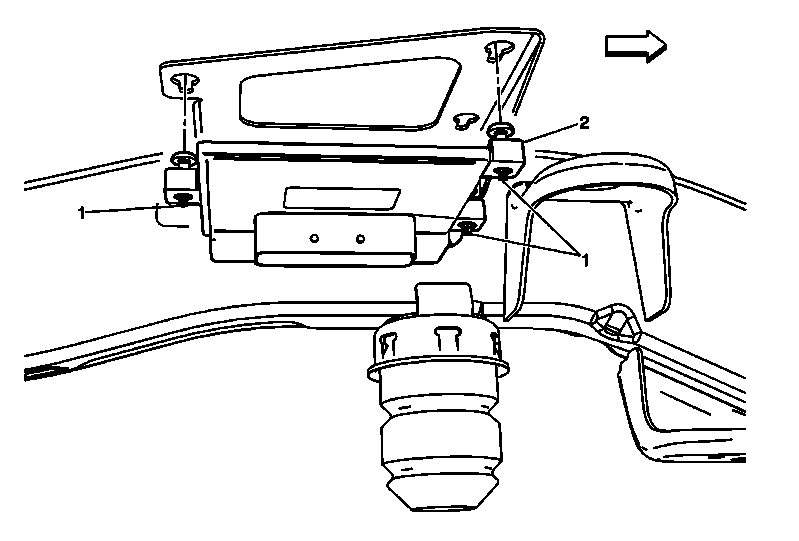

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Fuel Pump Flow Control Module Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution Tip: The bolts used are two headed and can be loosened from the module side, then maneuvered out of the slots. Tighten: 9 N.m (80 lb in) |
| 2 | Fuel Pump Flow Control Module Procedure
|
