2009 Chevrolet Traverse LS, AWDFACTORY OEM SERVICE PROCEDURE
Rear Body Control Module Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the left rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5) or Quarter Lower Rear Trim Panel Replacement (Traverse without TB4) or Quarter Lower Rear Trim Panel Replacement (Acadia/OUTLOOK with TB5) or Quarter Lower Rear Trim Panel Replacement (Acadia/OUTLOOK without TB4) or Quarter Lower Rear Trim Panel Replacement (Enclave with TB5) or Quarter Lower Rear Trim Panel Replacement (Enclave without TB4) . |
|

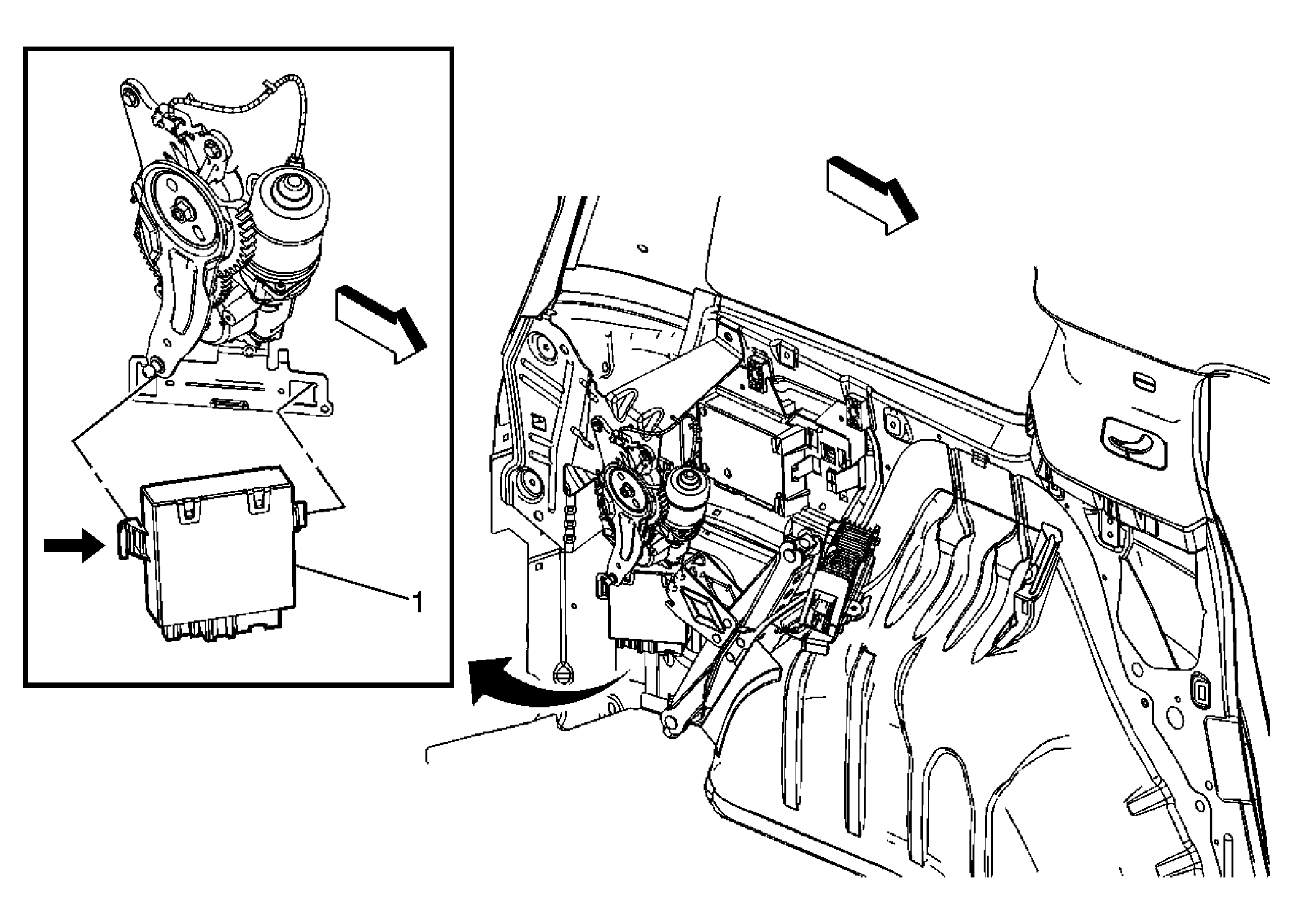

| 1 | Rear Body Control Module Assembly Procedure
Tip: Push in the tab to release the module from the liftgate actuator assembly. |
