2009 Chevrolet Tahoe Base, 4.8 CFACTORY OEM SERVICE PROCEDURE

Accessory and Liftgate Control Module Replacement

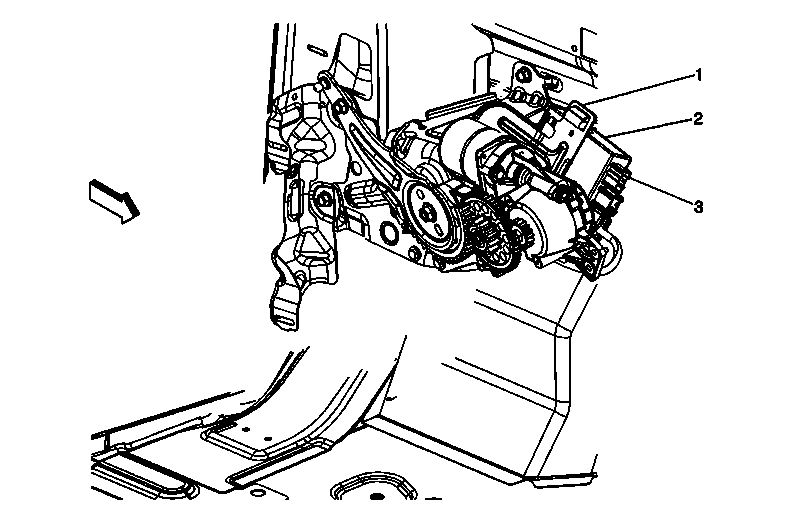

Fig 1: Power Liftgate Actuator Module & Components
GM1725895Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the body side trim panel. Refer to Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/E61) or Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/o E61) or Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/E61) or Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/o E61) .
1 Power Liftgate Actuator Module Retainer
Procedure:
Press the retainer to release.
2 Power Liftgate Actuator Module
3 Electrical Connector

Procedure

  1. Disconnect the electrical connector.
  2. If a replacement control module is installed, program the replacement module. Refer to Liftgate Control Module Programming and Setup .
