2009 Chevrolet Malibu L4-2.4L HybridFACTORY OEM SERVICE PROCEDURE
Thread Repair Specifications
Thread Repair Specifications

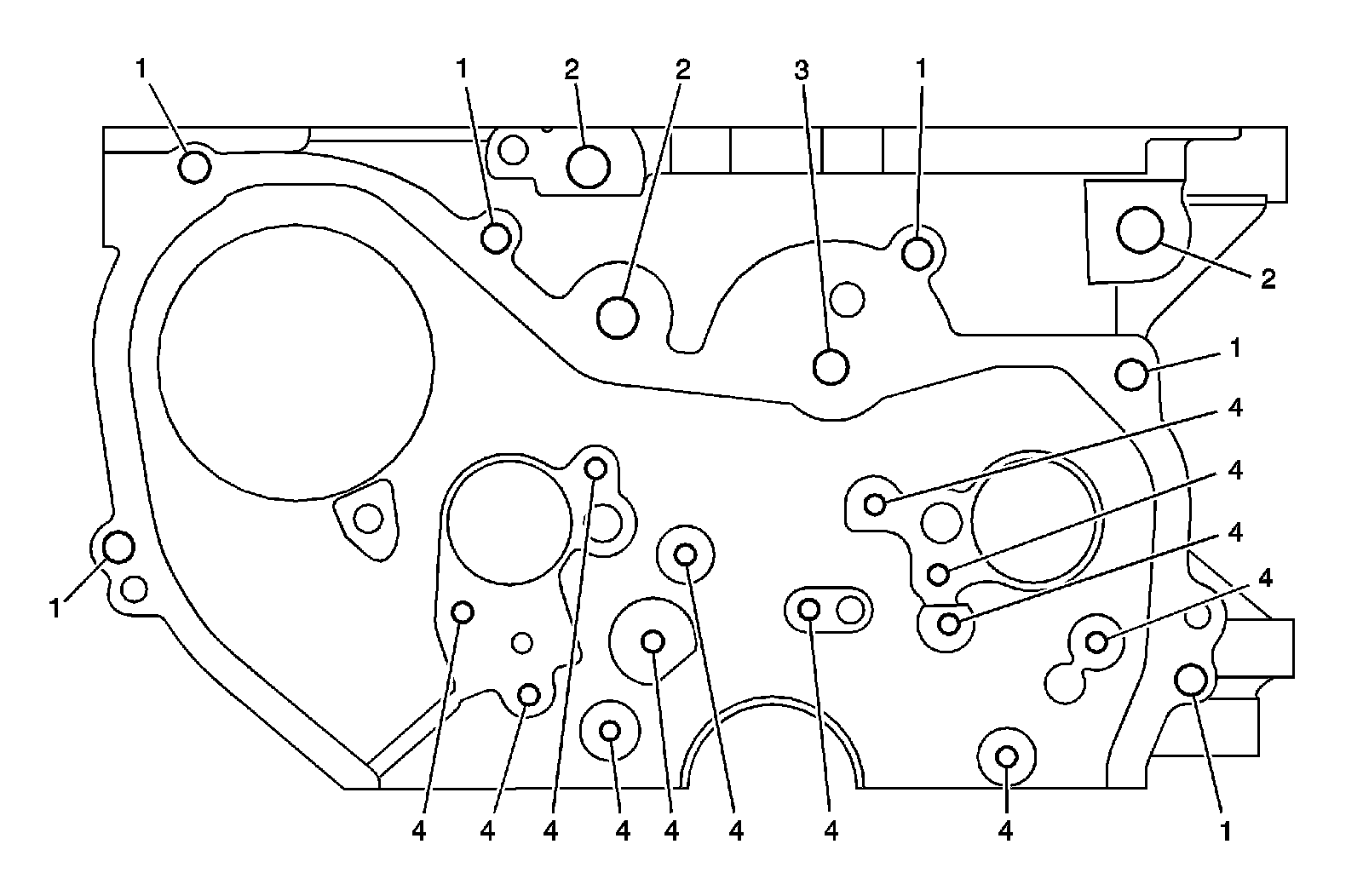

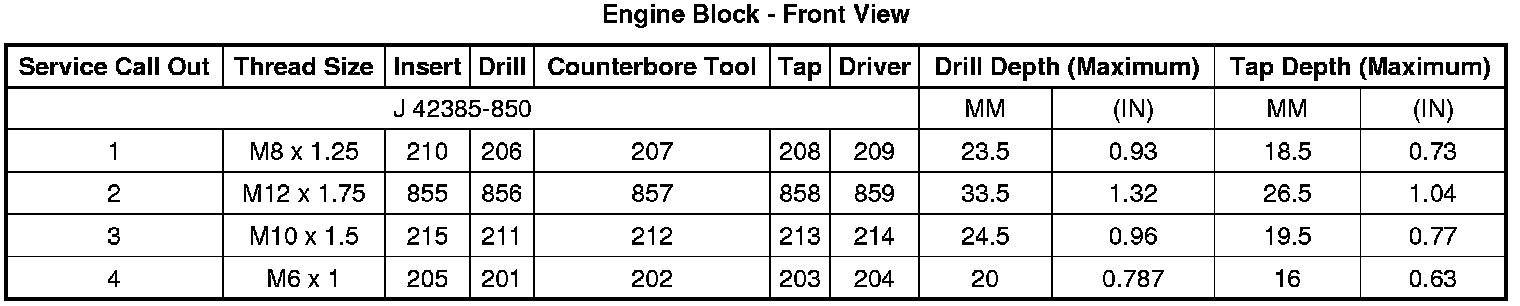

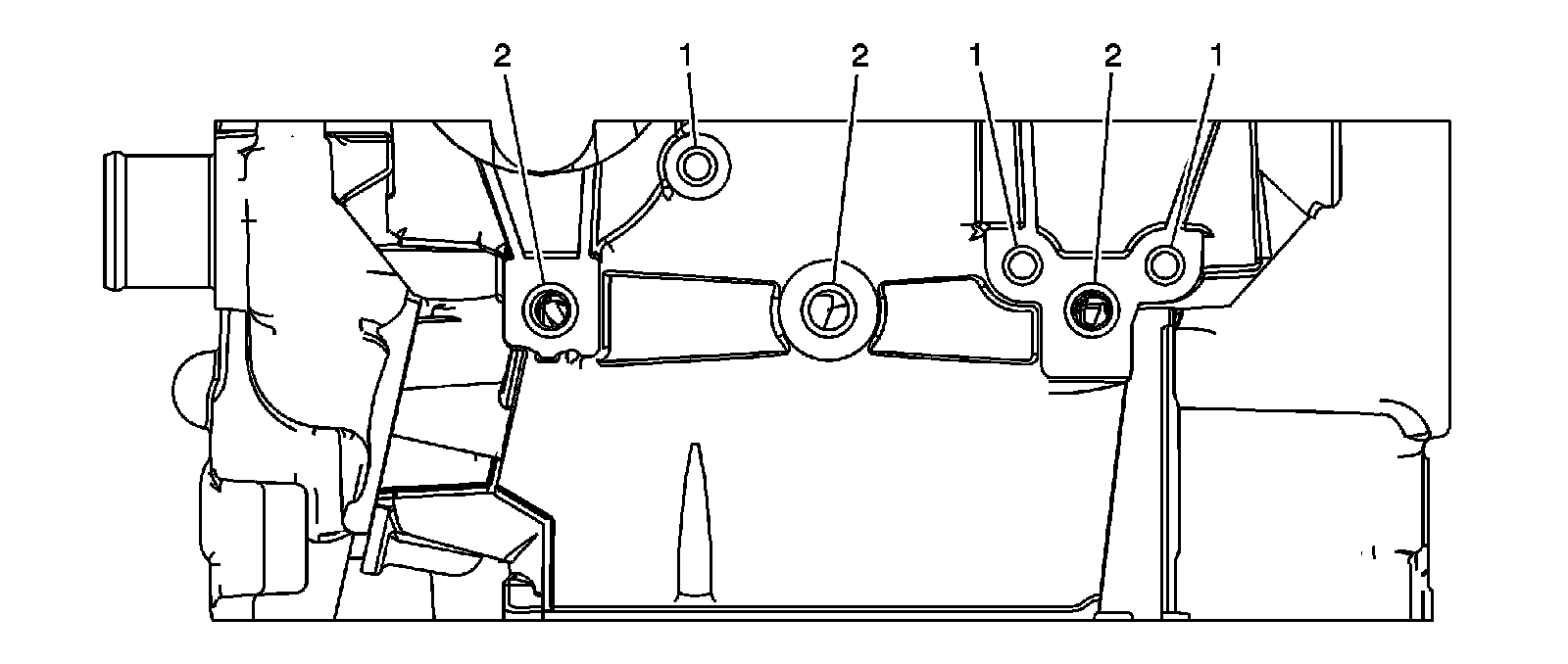

Engine Block - Front View

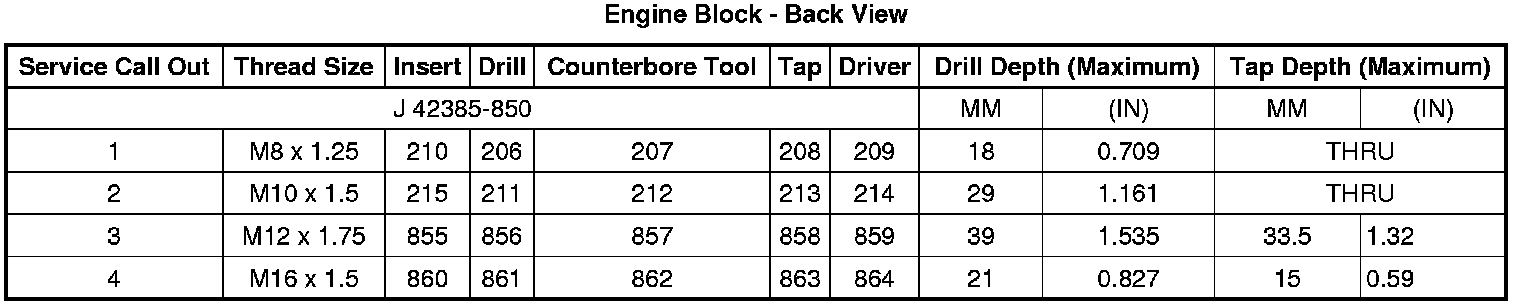

Engine Block - Back View

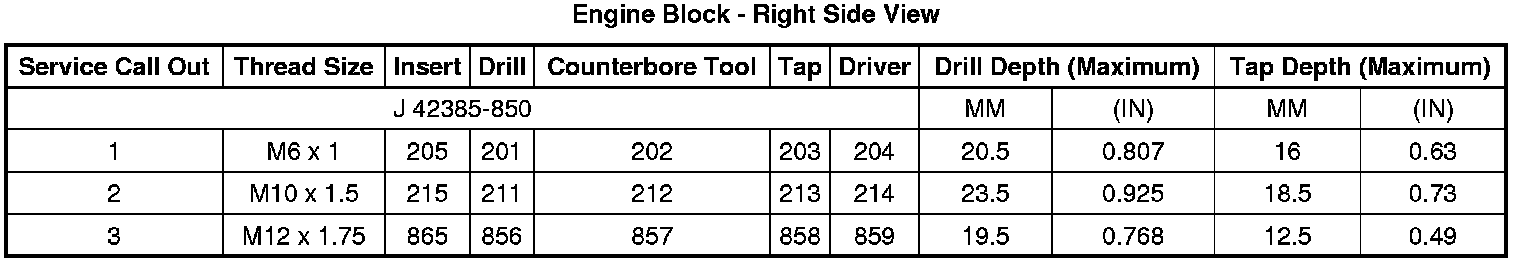

Engine Block - Right Side View

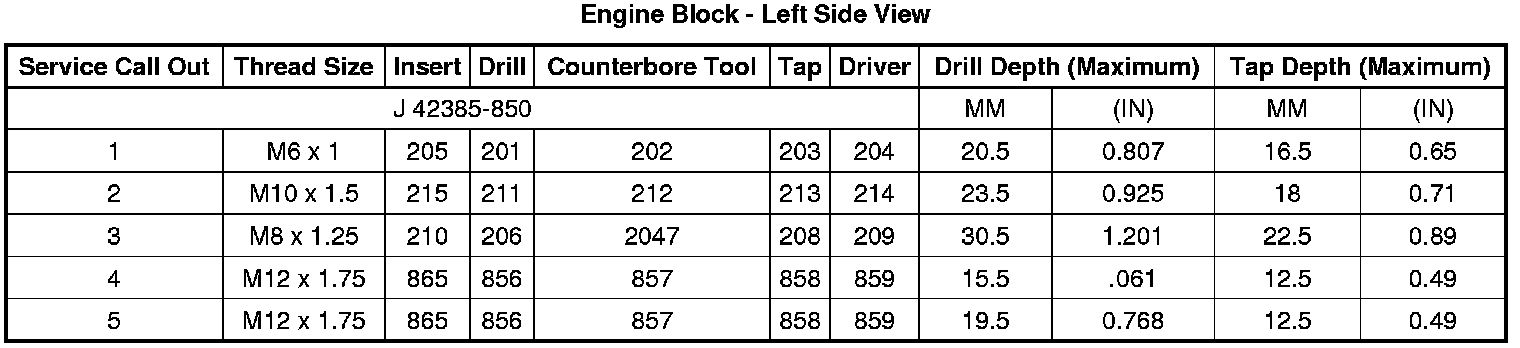

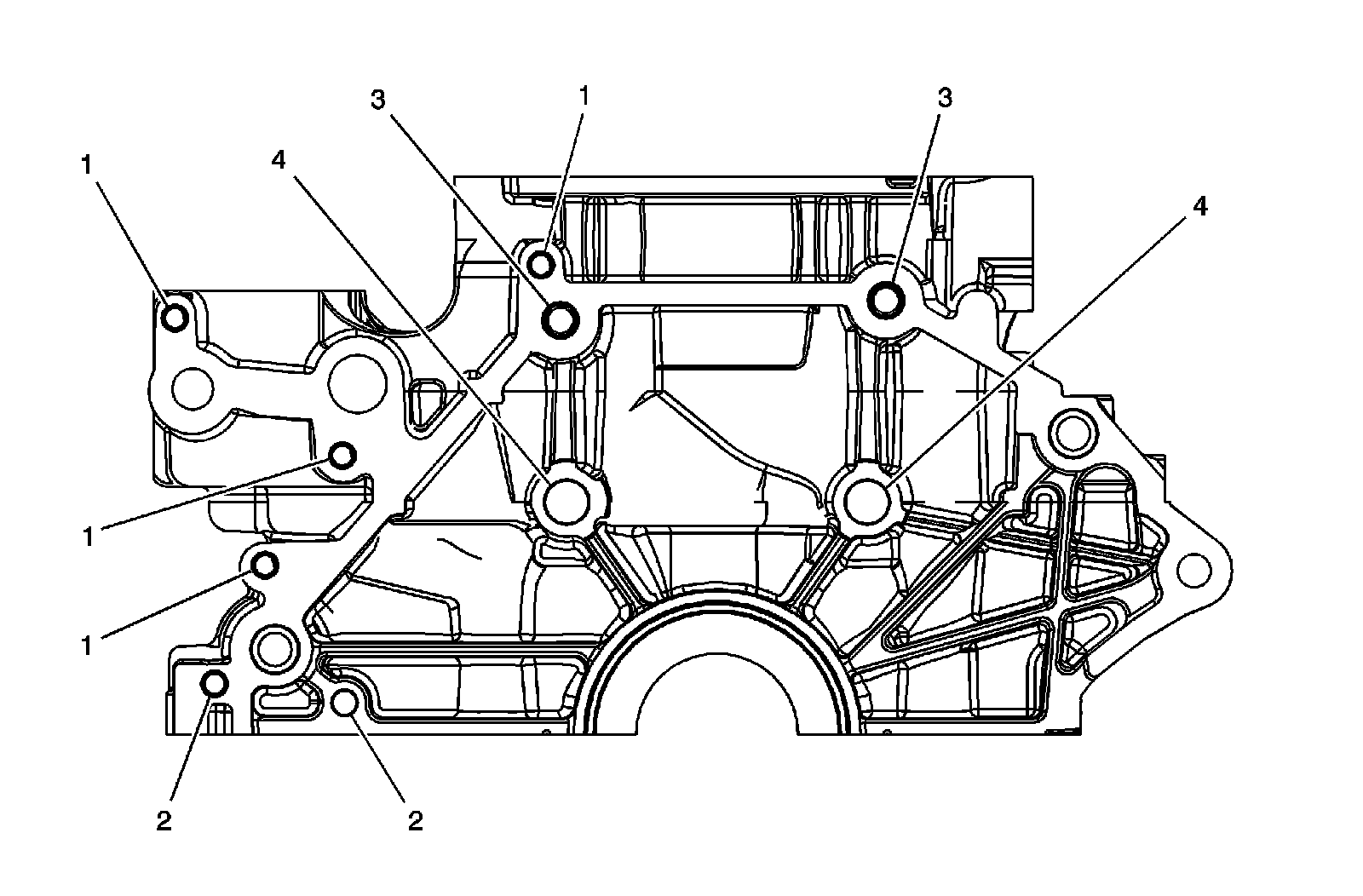

Engine Block - Left Side View

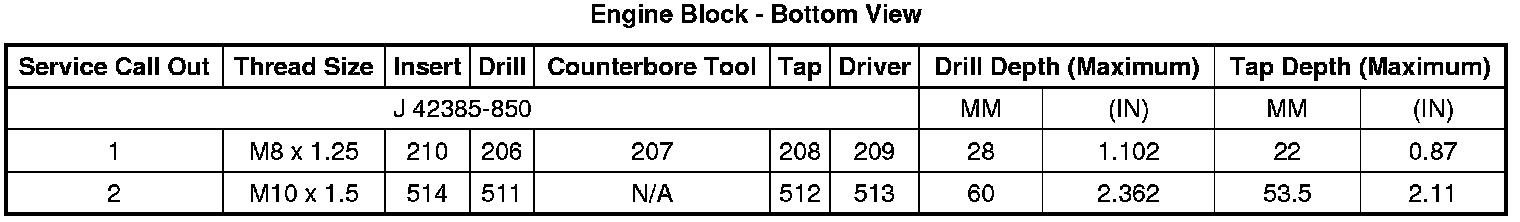

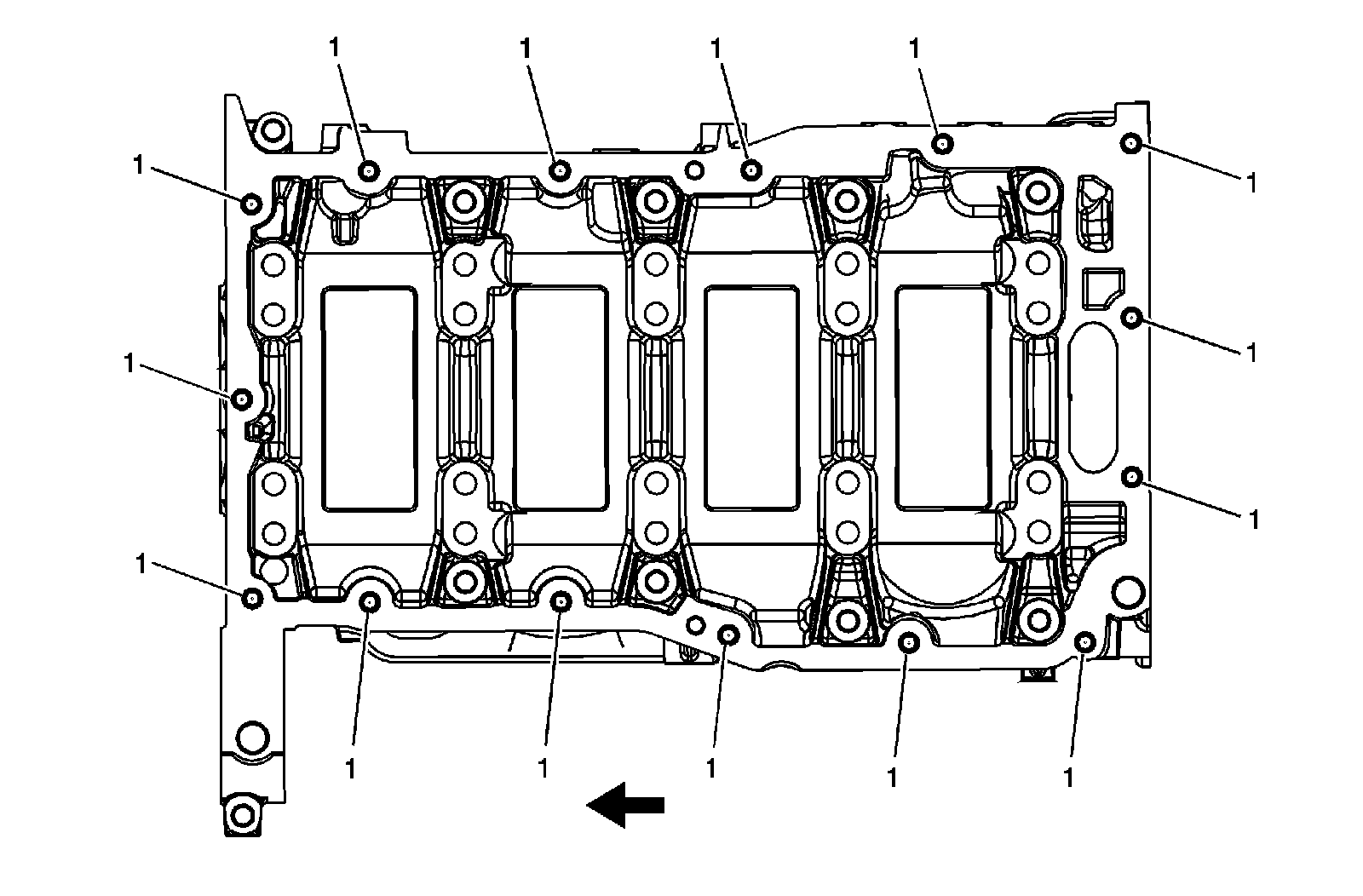

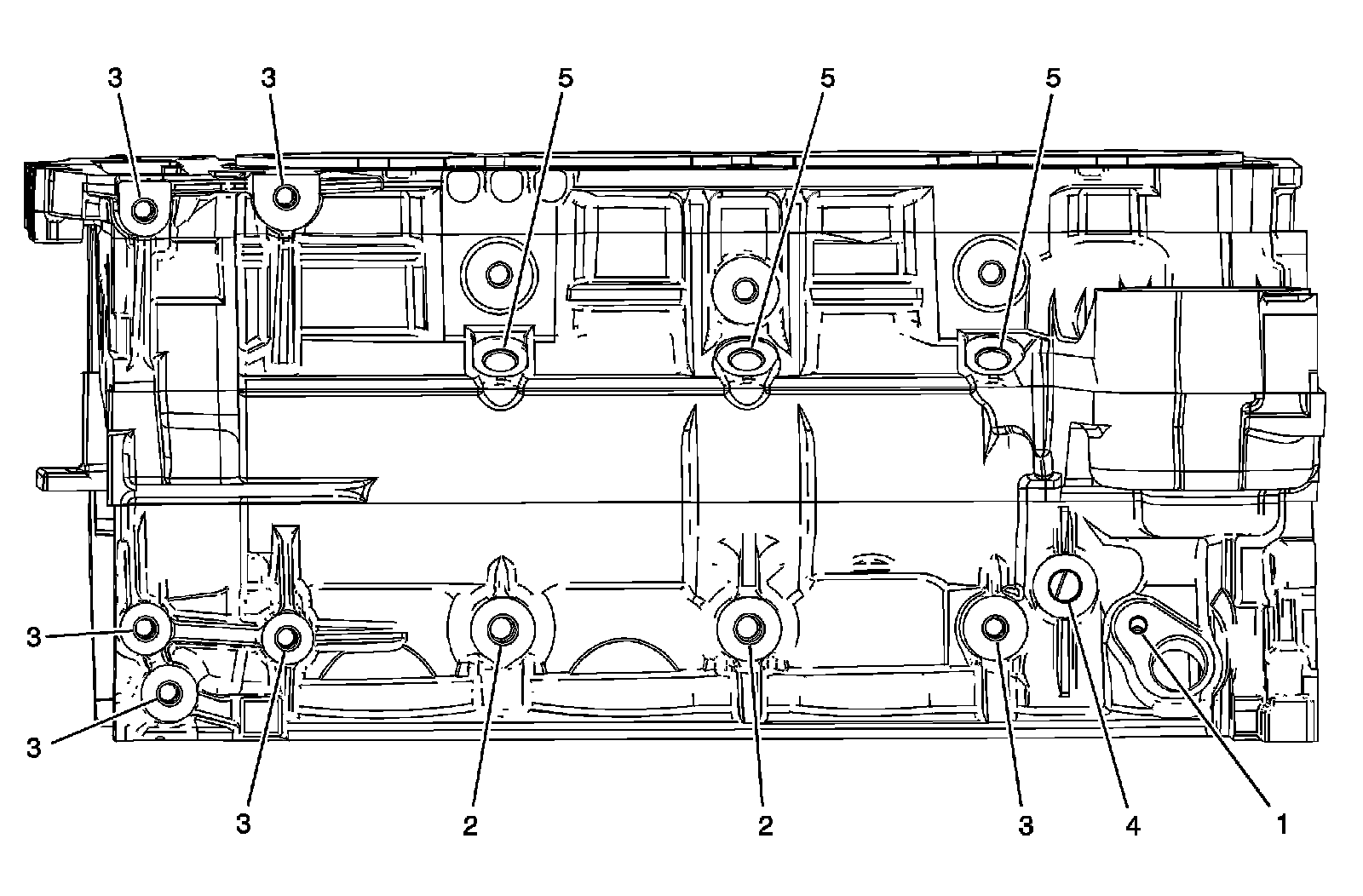

Engine Block - Bottom View

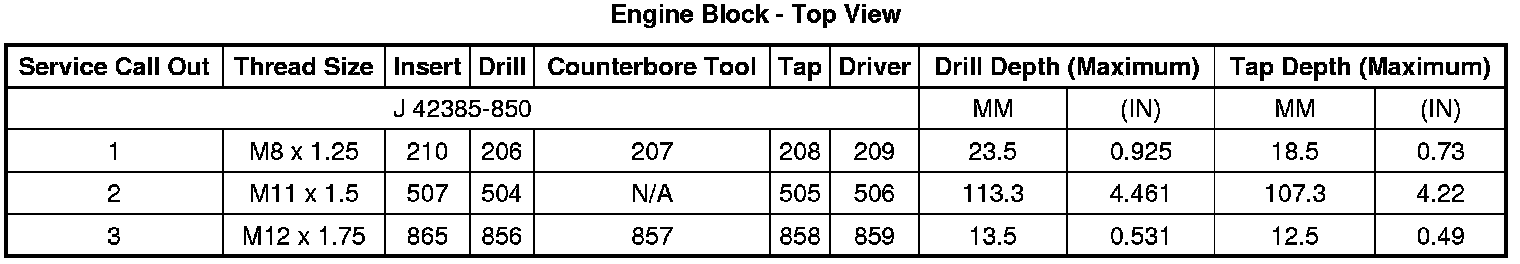

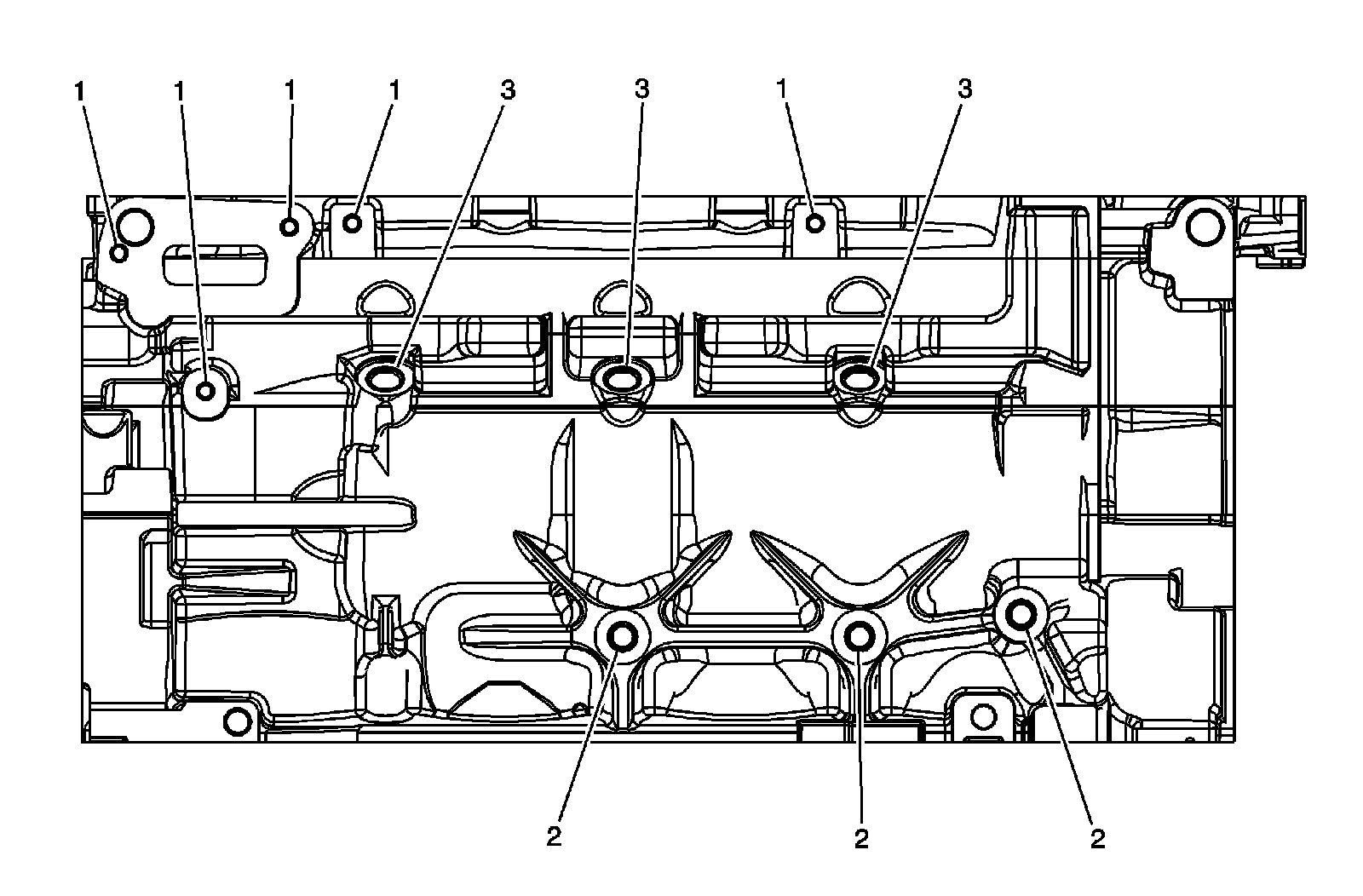

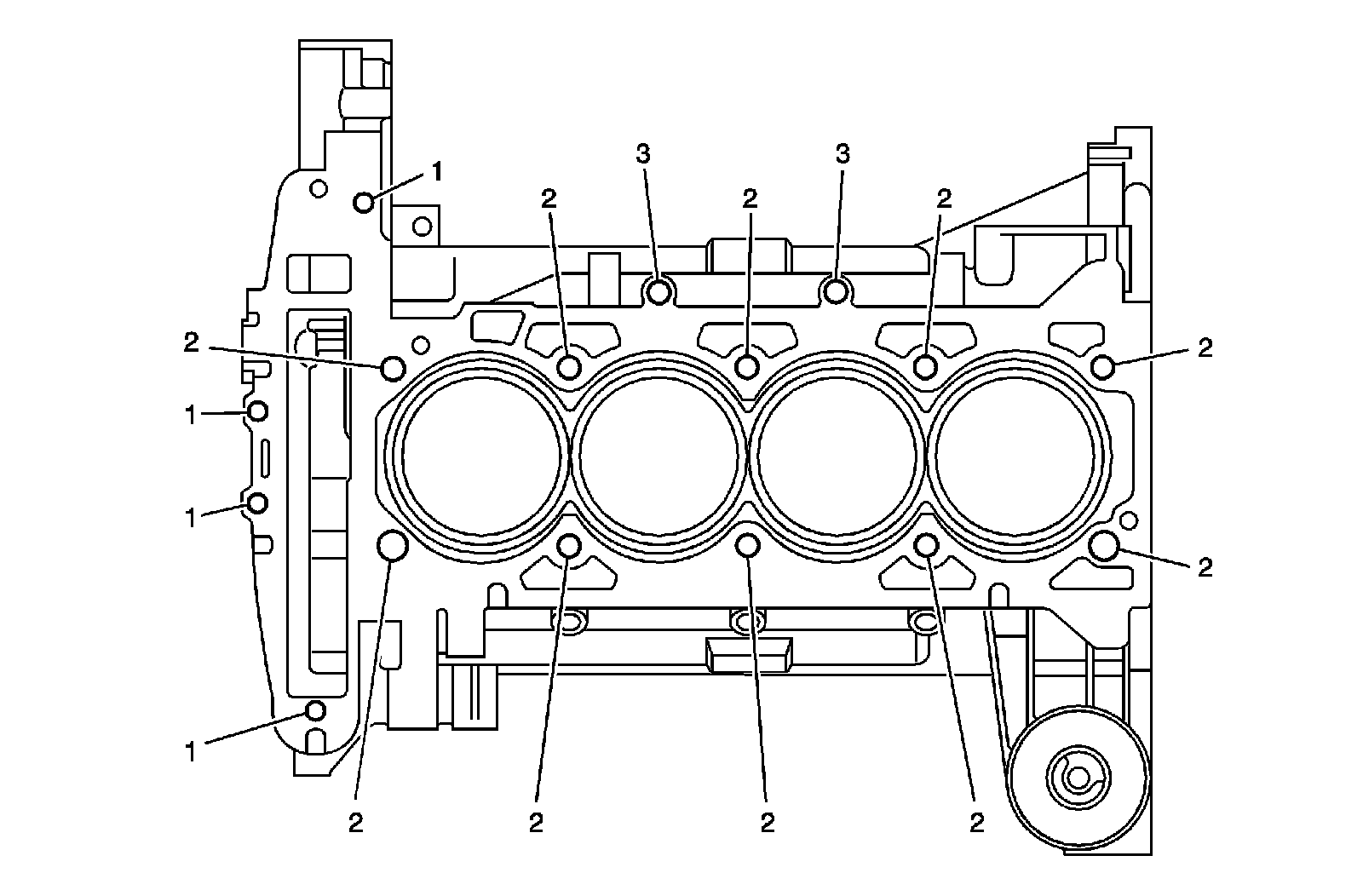

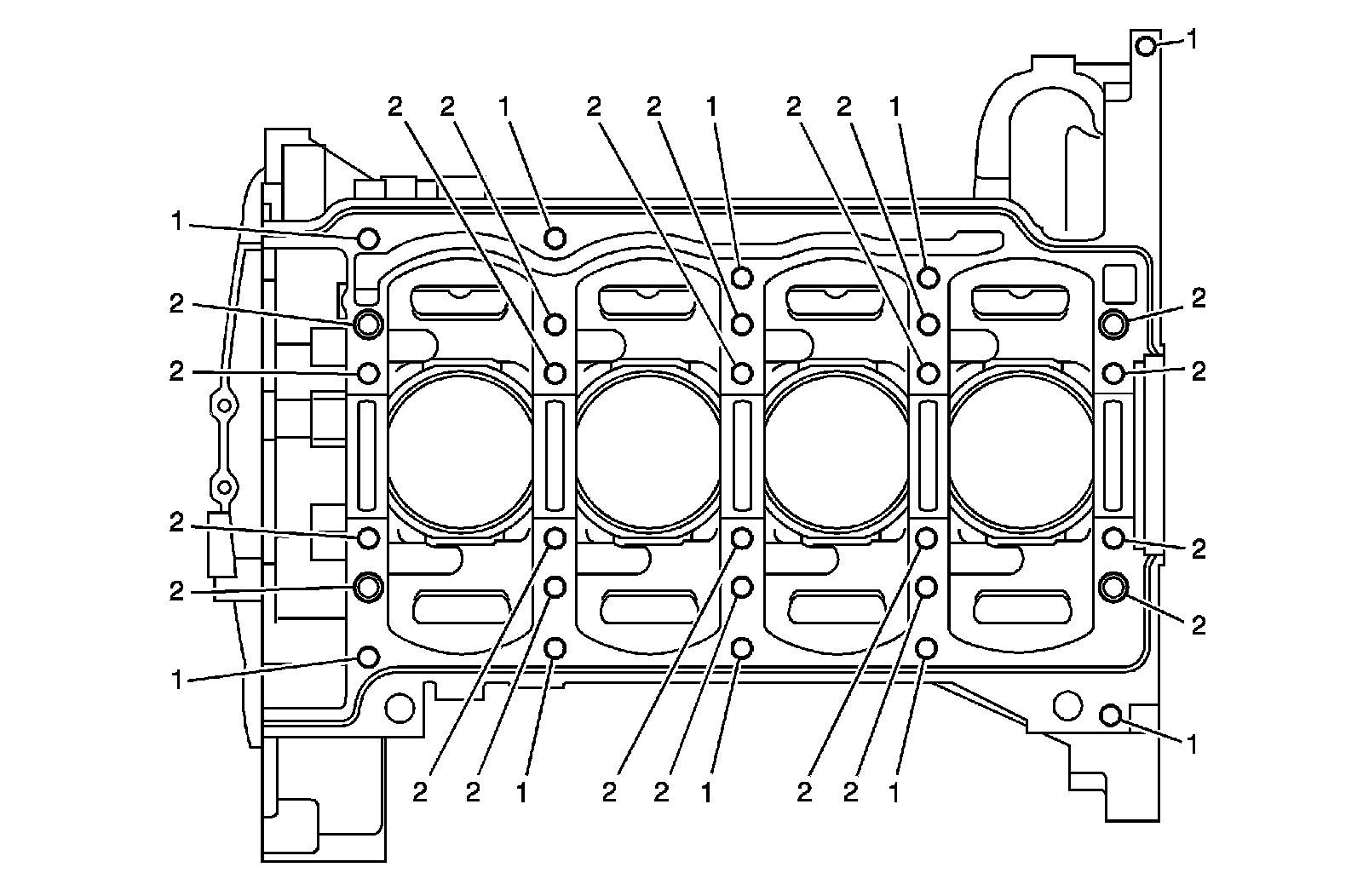

Engine Block - Top View

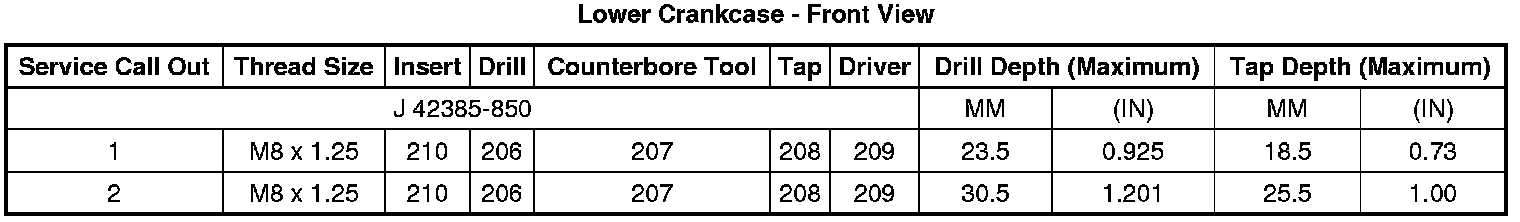

Lower Crankcase - Front View

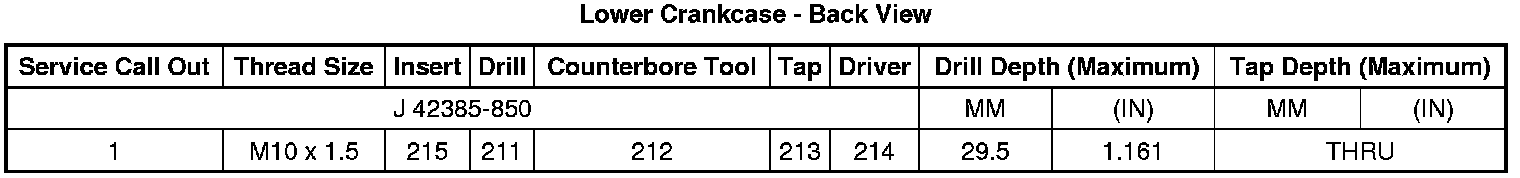

Lower Crankcase - Back View

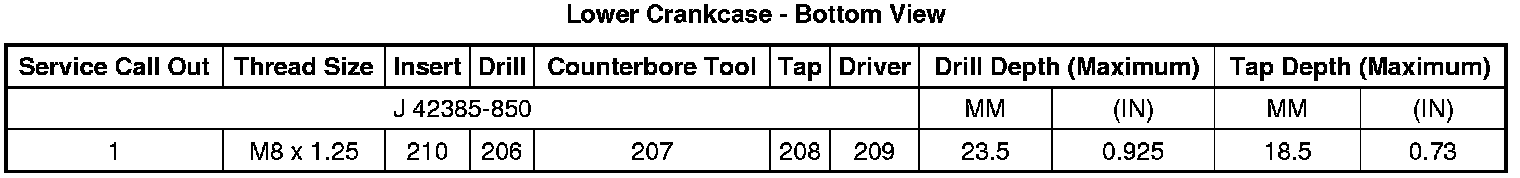

Lower Crankcase - Bottom View

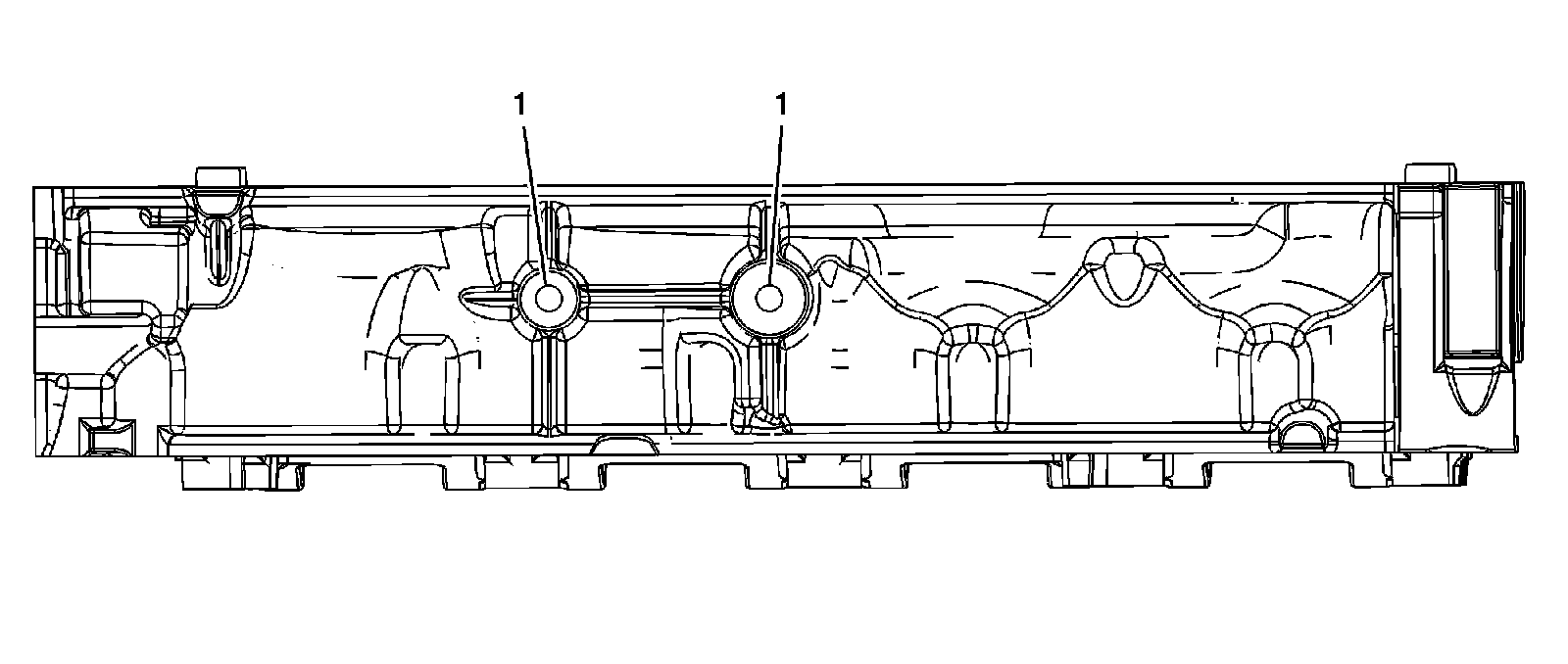

Lower Crankcase - Right View
Lower Crankcase - Left View

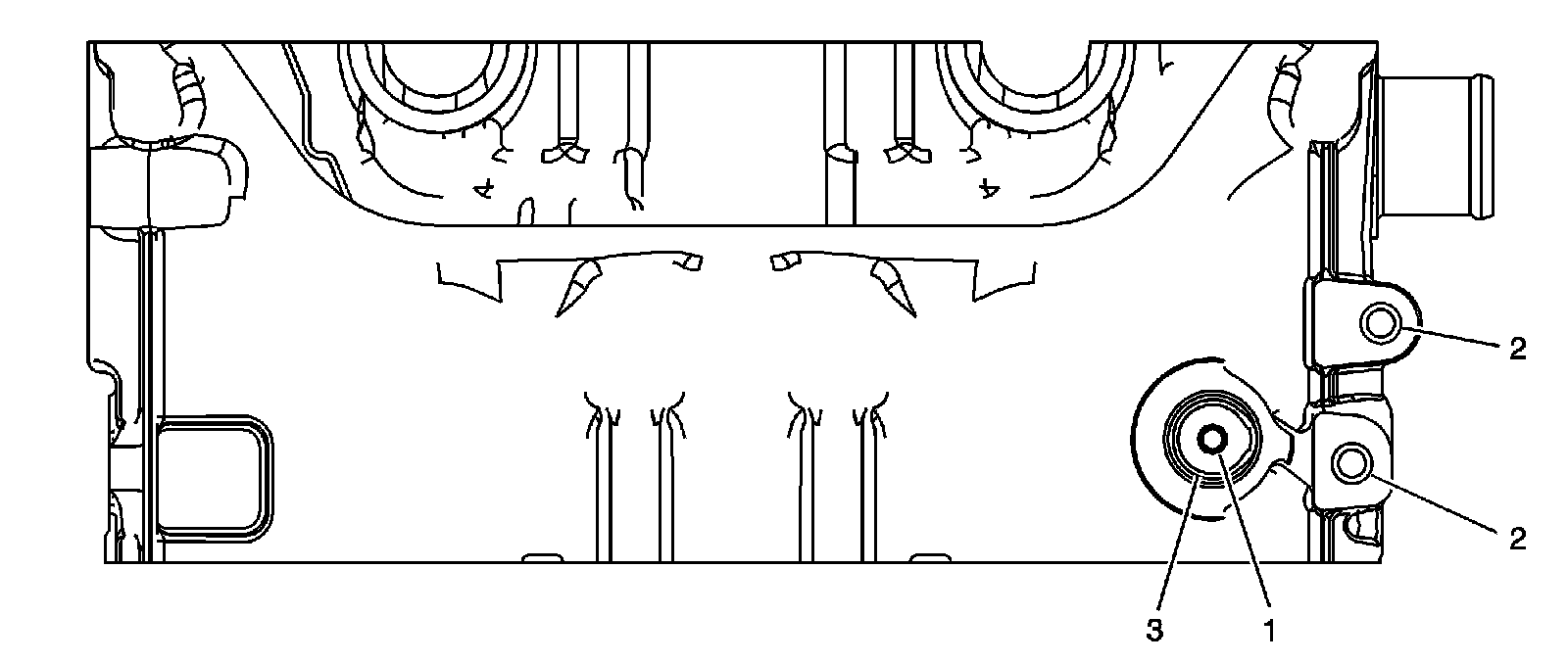

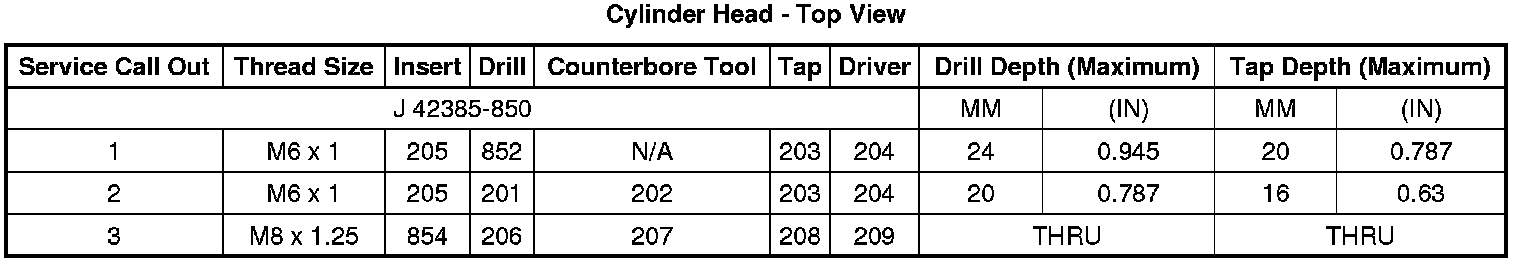

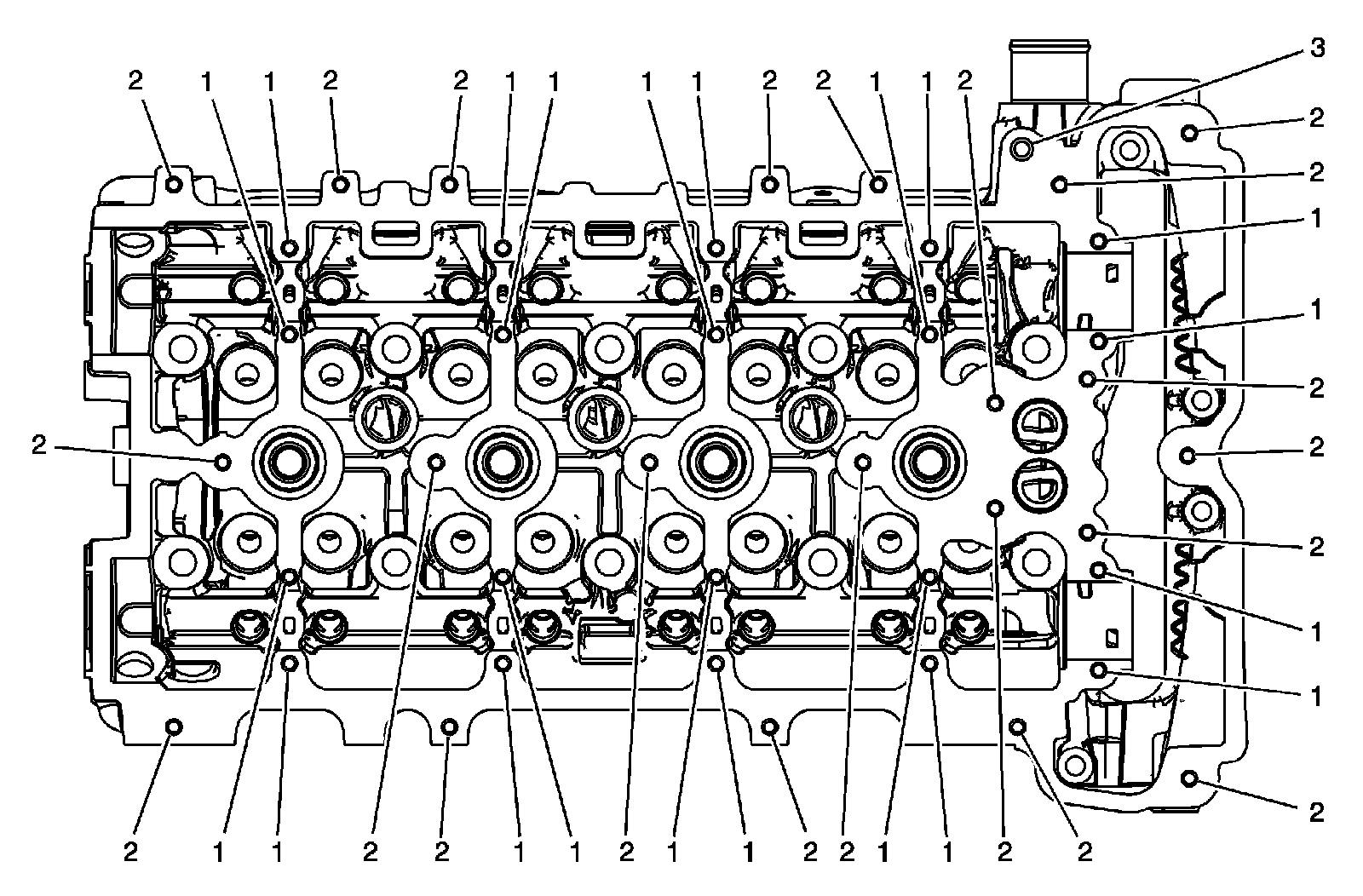

Cylinder Head - Top View

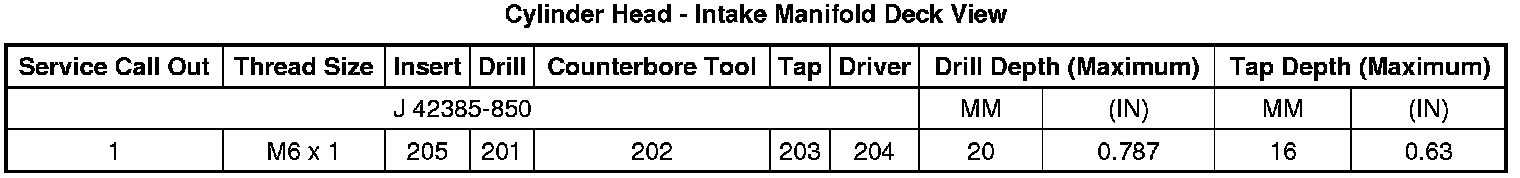

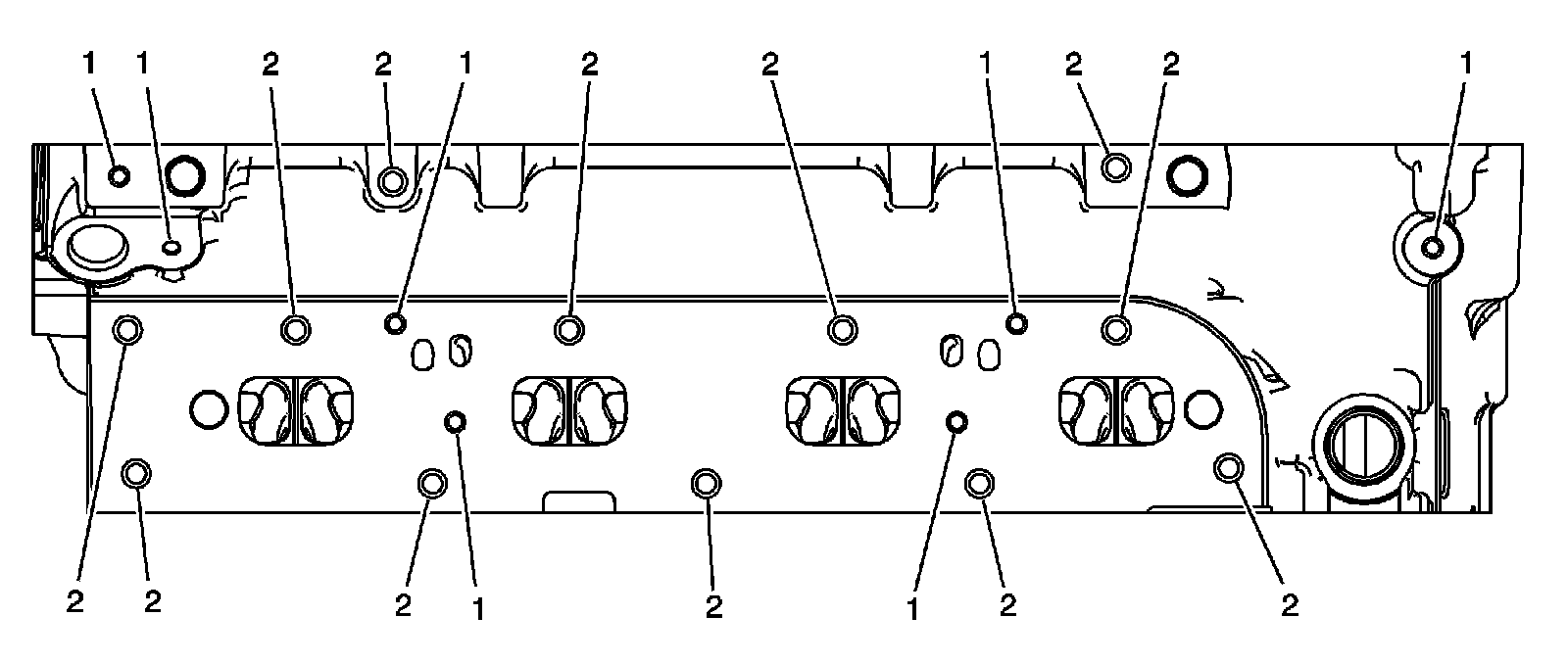

Cylinder Head - Intake Manifold Deck View

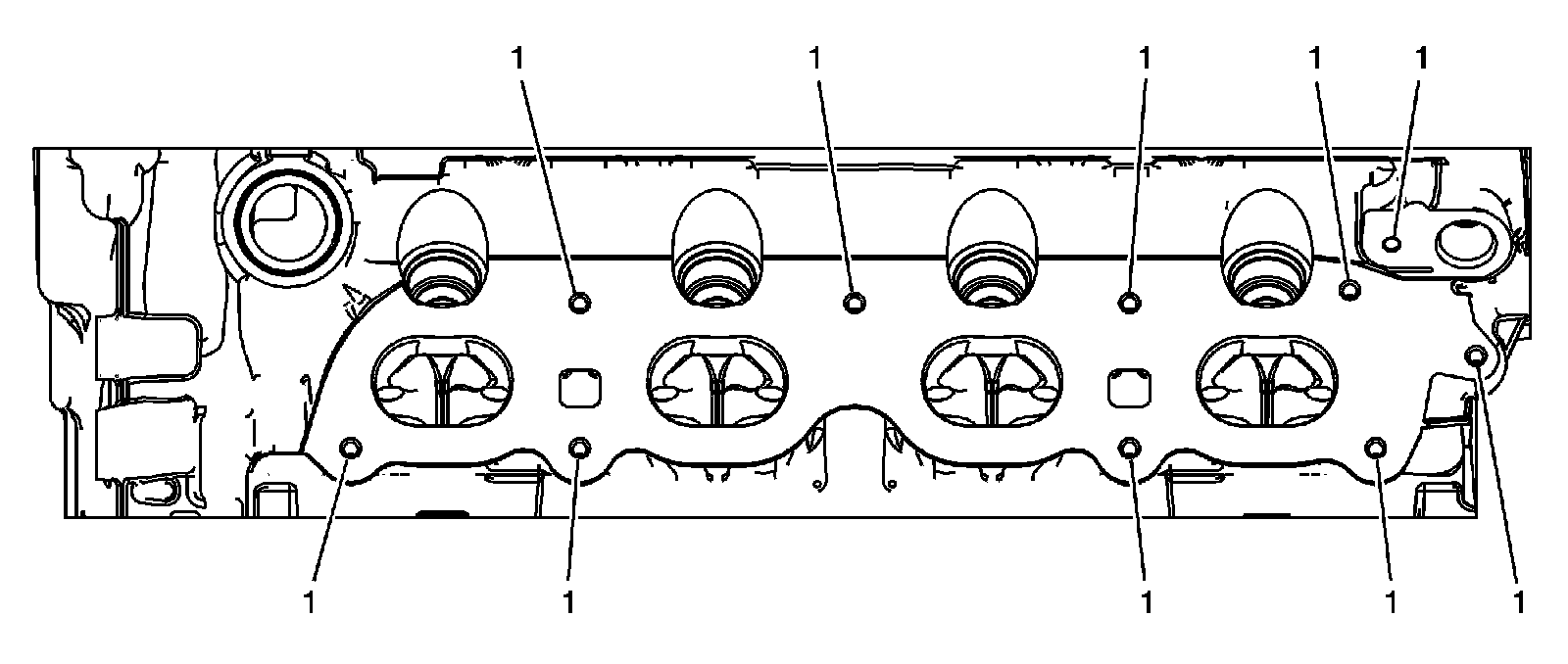

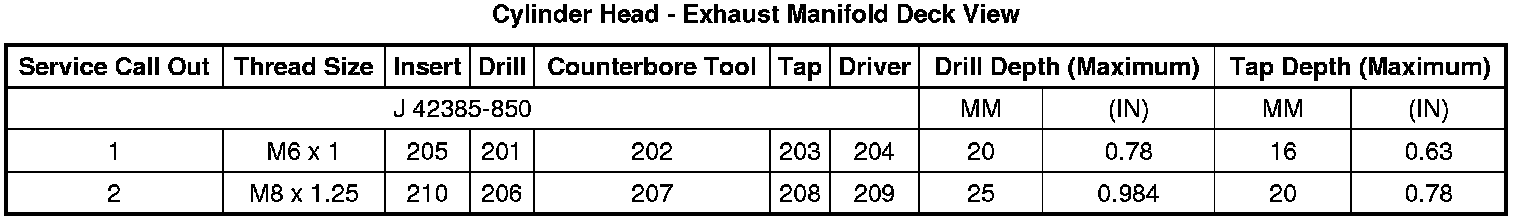

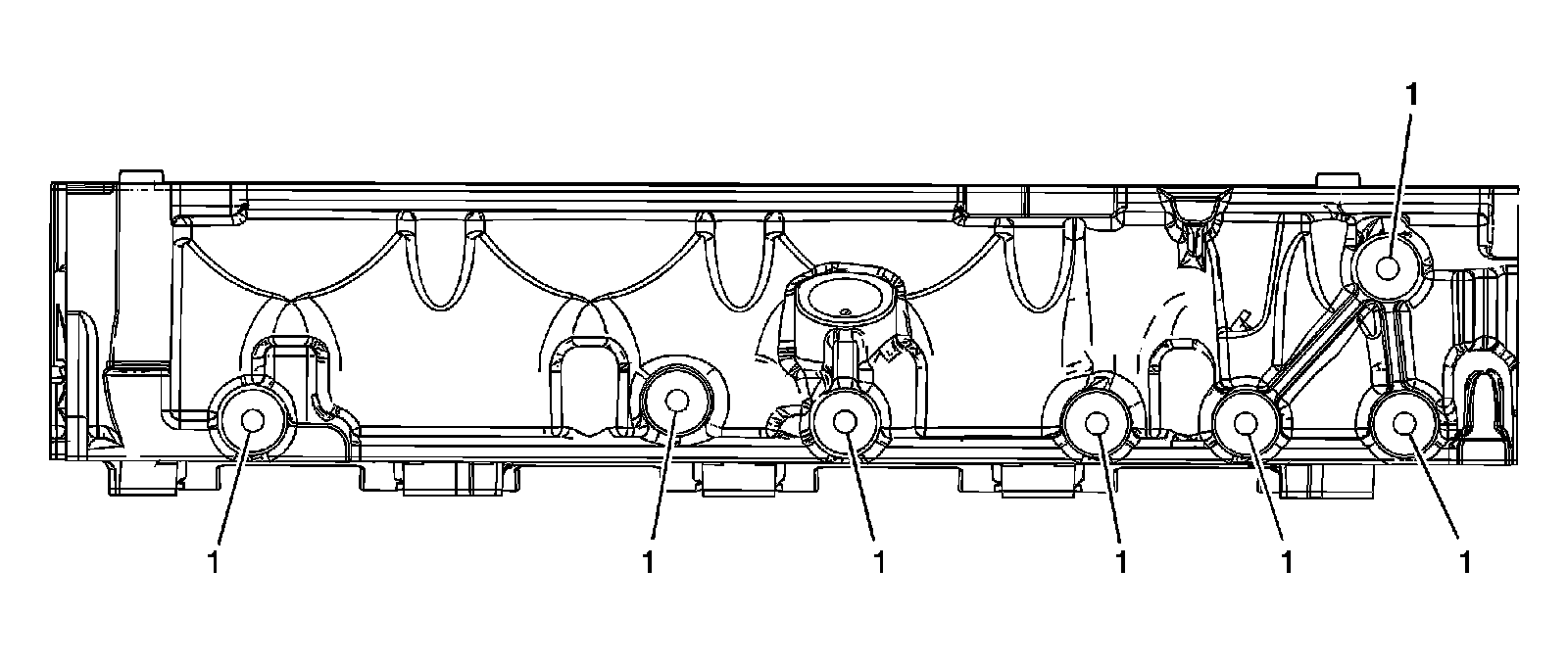

Cylinder Head - Exhaust Manifold Deck View

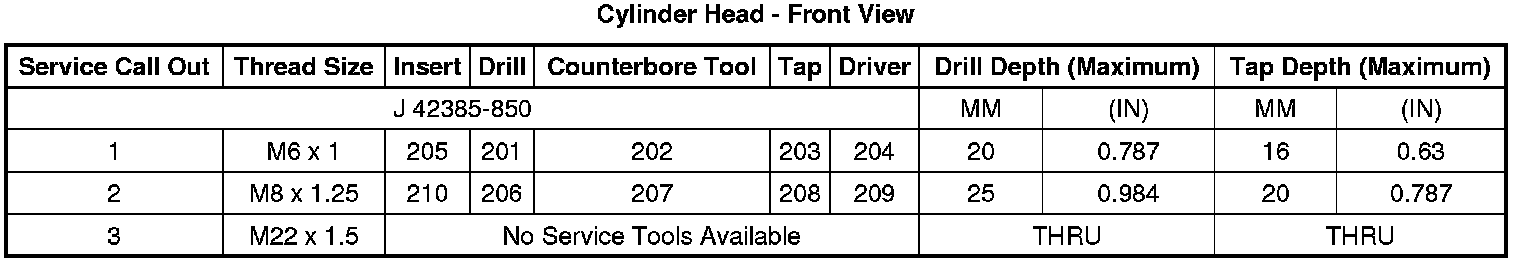

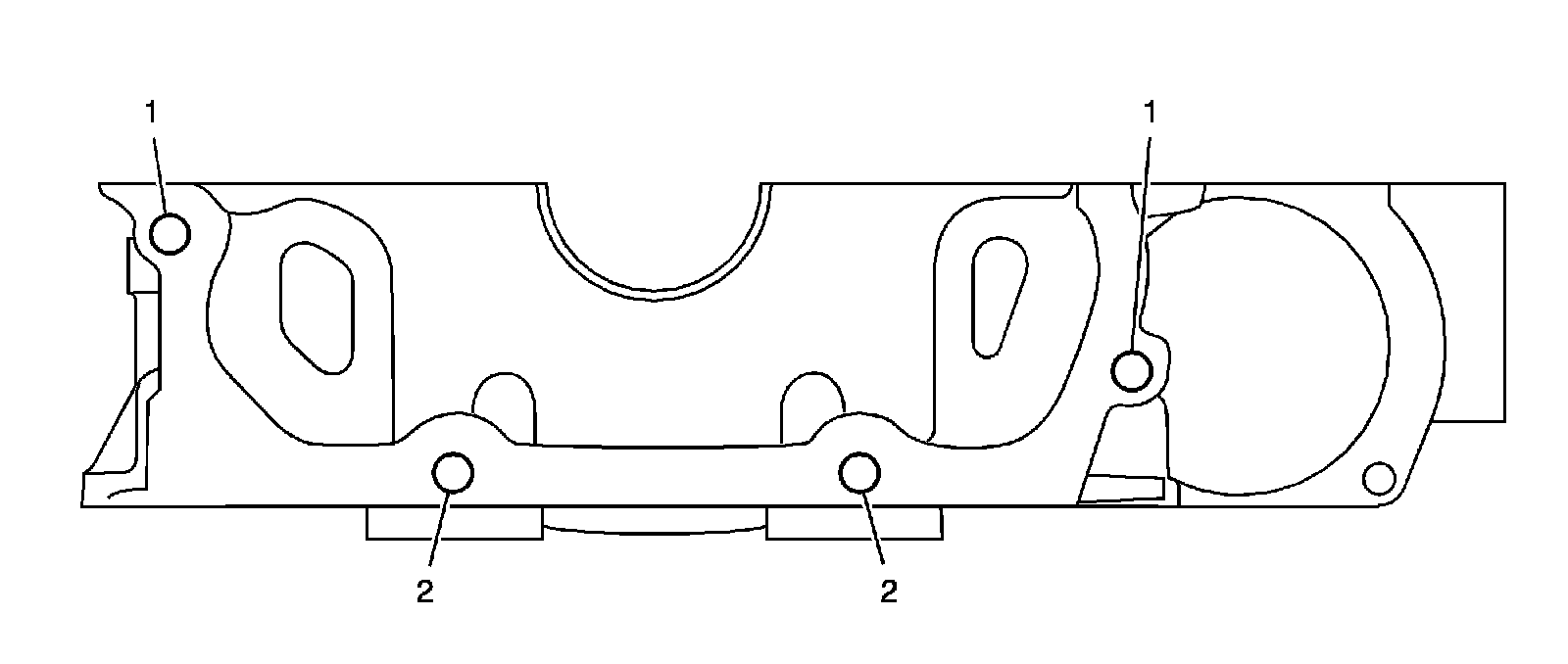

Cylinder Head - Front View

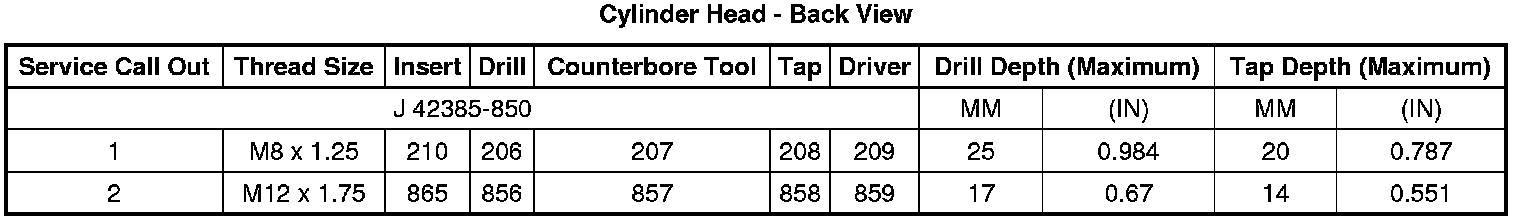

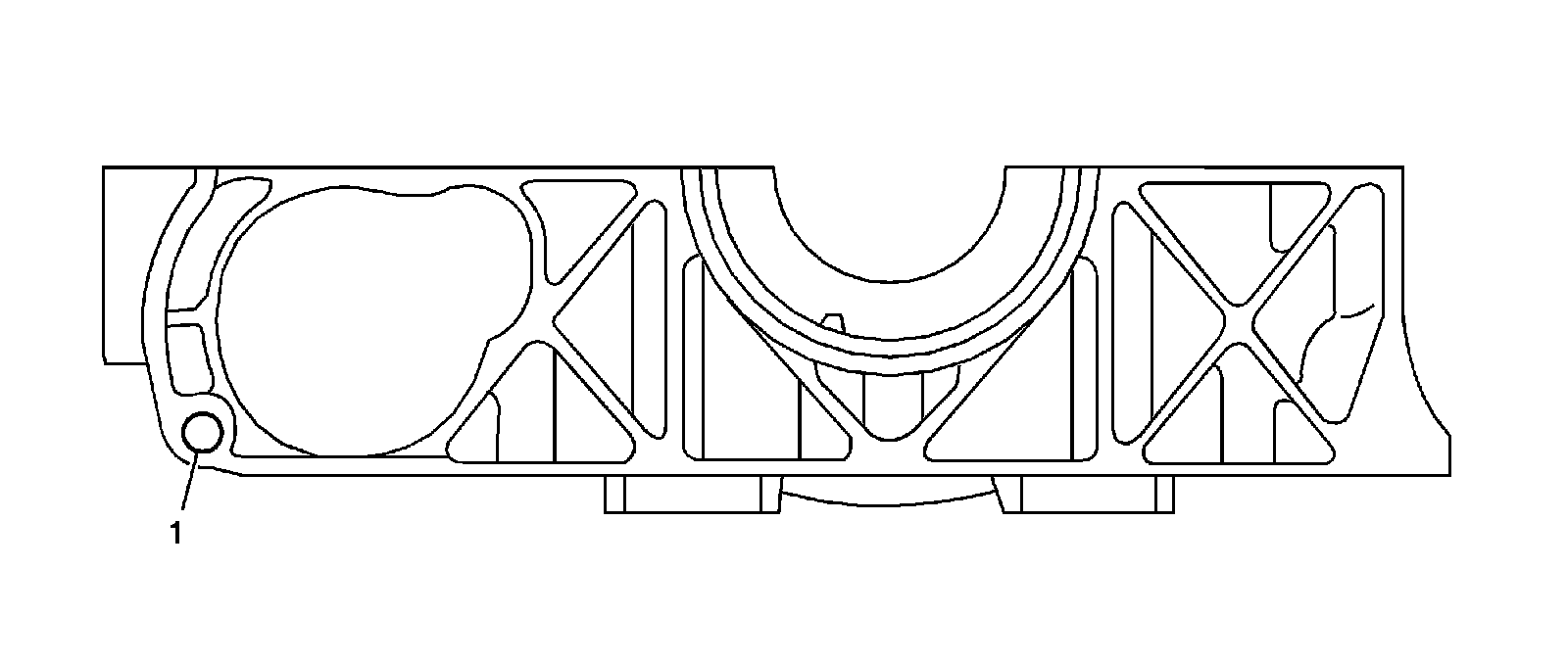

Cylinder Head - Back View
