2009 Chevrolet Impala V8-5.3LFACTORY OEM SERVICE PROCEDURE
Battery Current Sensor: Service and Repair
Battery Current Sensor Replacement (RPO LS4-5.3L)
Removal Procedure

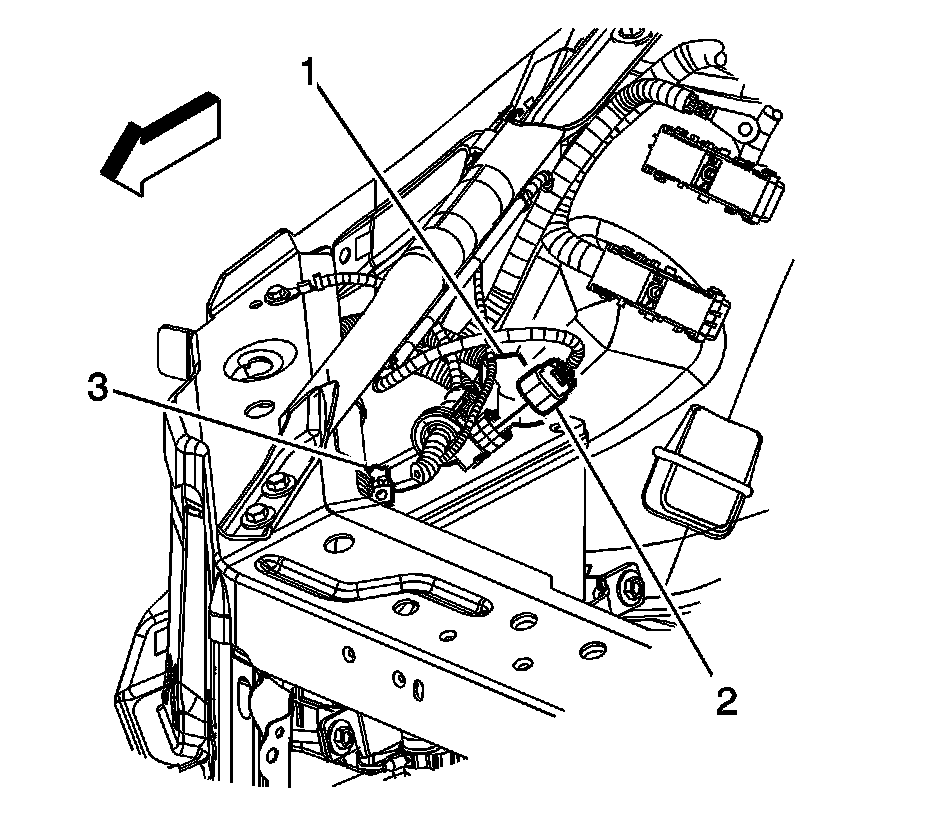

1. Disconnect the instrument panel (I/P) harness electrical connector (2) from the battery current sensor.
2. Remove the positive and negative battery cable. Refer to Battery Positive and Negative Cable Replacement (RPO LS4) (Service and Repair)Battery Positive and Negative Cable Replacement (RPOs LZE/LZ4/LZ8) (Service and Repair).
3. Cut the tie straps and electrical tape attaching the battery current sensor to the positive battery cable.
4. Squeeze the battery cable branches together.
Important: Note the position of the battery current sensor prior to removal.
5. Slide the battery current sensor (1) off of the battery cable.
Installation Procedure
Important: Ensure that the tape tab is pointing away from the battery prior to installation.

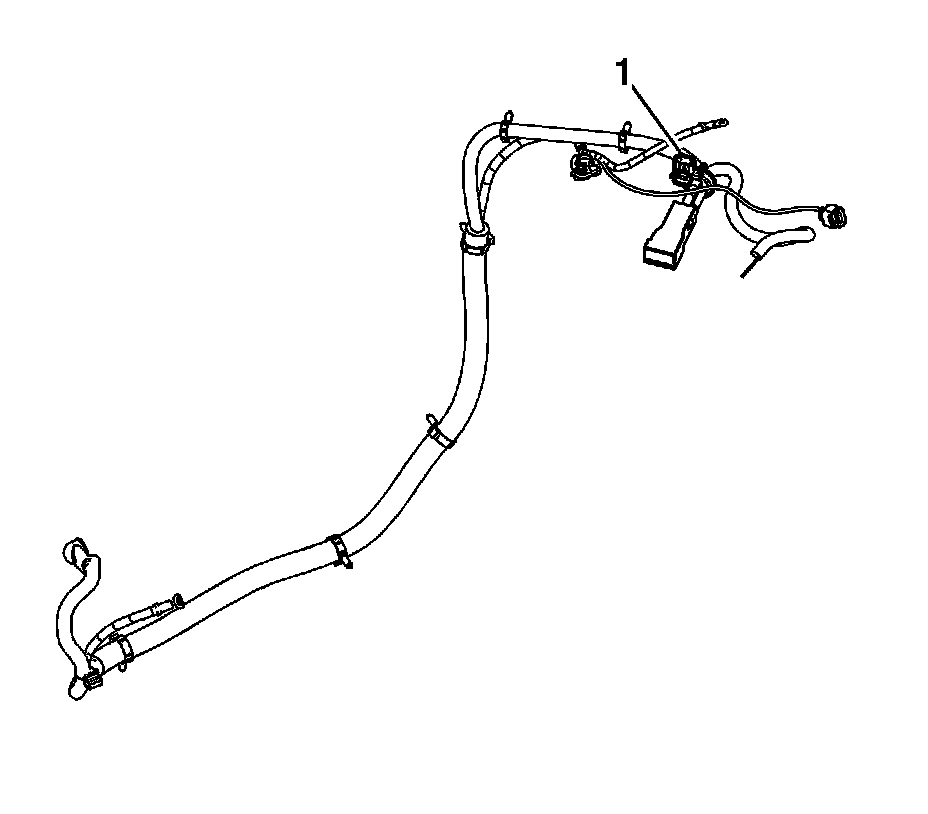

1. Slide the NEW battery current sensor (1) up onto the battery cable.
2. Using NEW tie straps and electrical tape, attach the battery current sensor to the positive battery cable.
3. Install the positive and negative battery cable. Refer to Battery Positive and Negative Cable Replacement (RPO LS4) (Service and Repair)Battery Positive and Negative Cable Replacement (RPOs LZE/LZ4/LZ8) (Service and Repair).
4. Connect the I/P harness electrical connector (2) to the battery current sensor.
