2009 Chevrolet HHR LT, 2.4 V, StandardFACTORY OEM SERVICE PROCEDURE

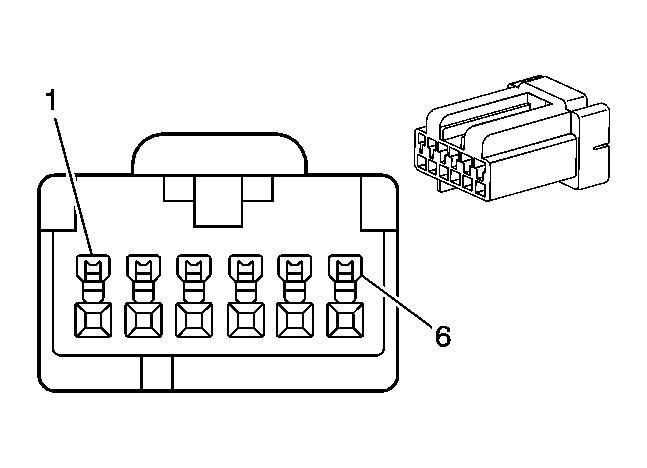

Power Steering Control Module (PSCM) X2 (L61/LE5)
Power Steering Control Module (PSCM) X2 (L61/LE5)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.35 TN/BK | 2500 | High Speed GMLAN Serial Data (+) |
| 2 | 0.35 TN | 2501 | High Speed GMLAN Serial Data (-) |
| 3 | - | - | Not Used |
| 4 | 0.35 TN/BK | 2500 | High Speed GMLAN Serial Data (+) |
| 5 | 0.35 TN | 2501 | High Speed GMLAN Serial Data (-) |
| 6 | 0.35 PK | 1539 | Ignition 1 Voltage |
