2009 Chevrolet HHR LS, AutomaticFACTORY OEM SERVICE PROCEDURE

Installation Procedure

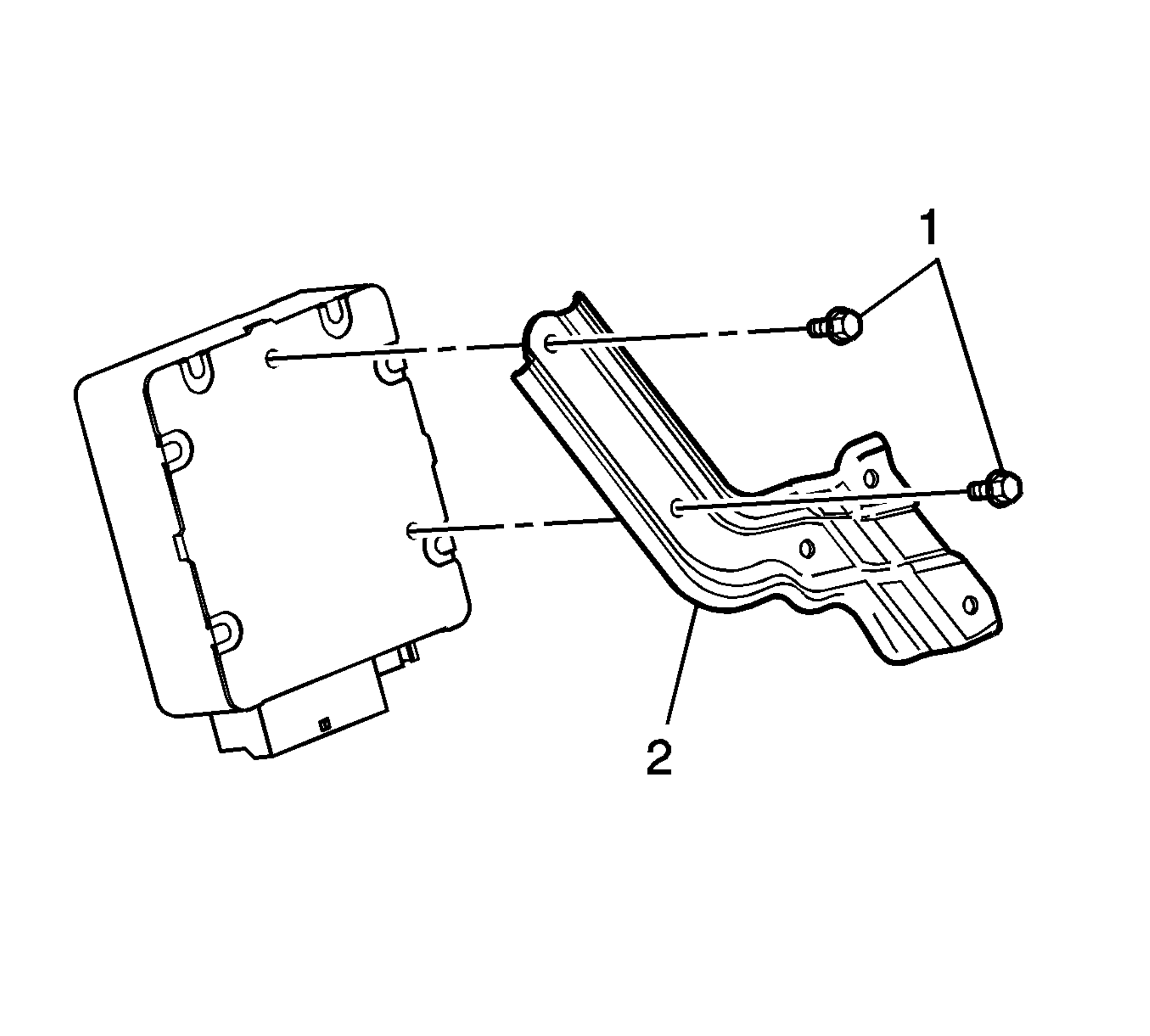

Fig 1: Identifying Electronic Power Steering Motor Control Module Bracket & Bolts

Courtesy of GENERAL MOTORS CORP.

Position the electronic power steering motor control module and bracket (2) together.

CAUTION: Refer to Fastener Caution .

Install the electronic power steering motor control module bolts (1).
Tighten: Tighten the bolts to 11.5 N.m (102 lb in).

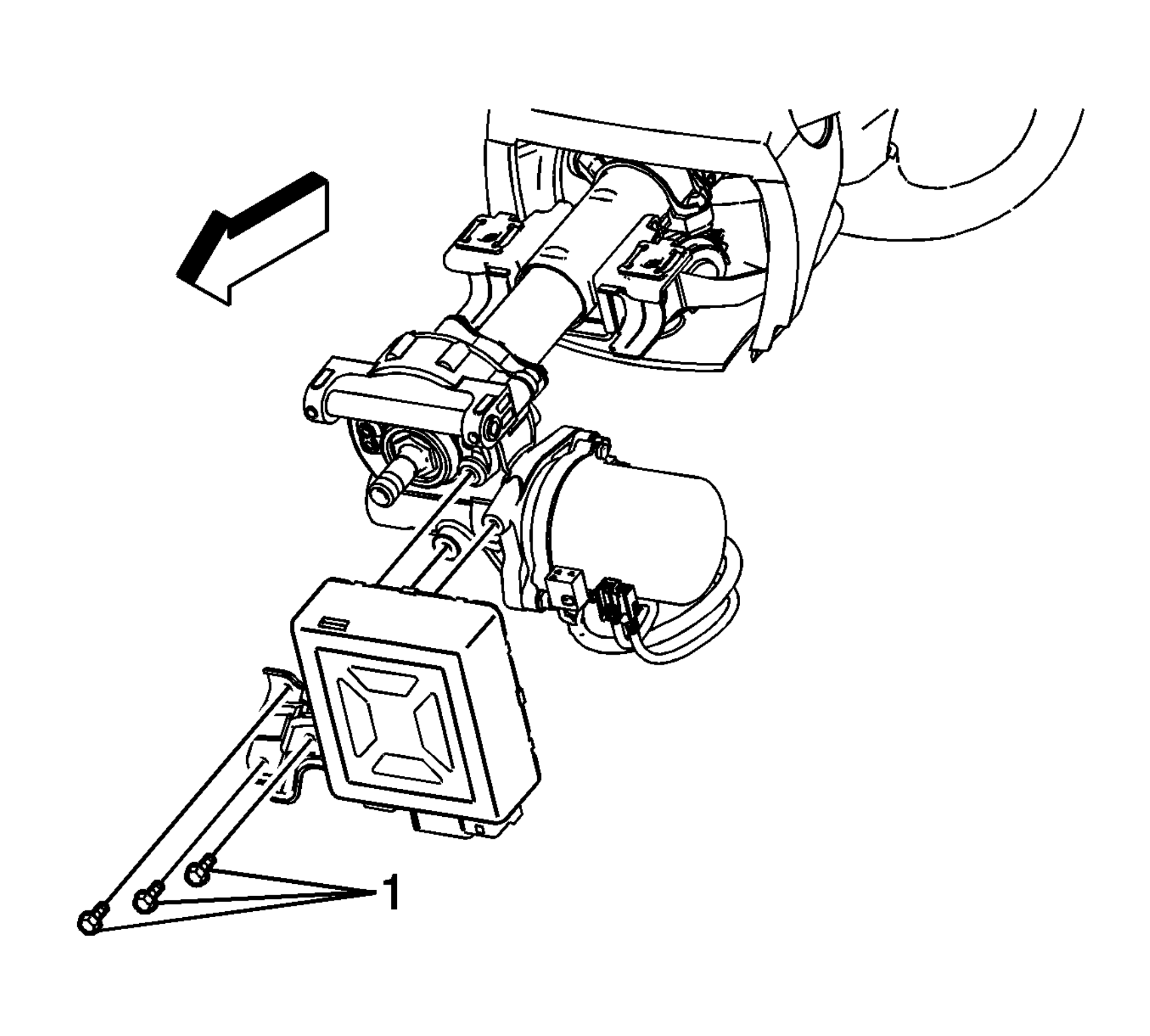

Fig 2: Identifying Electronic Power Steering Motor Control Module Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Install the electronic power steering motor control module and bracket to the vehicle.
Install the electronic power steering motor control module bracket bolts (1).
Tighten: Tighten the bolts to 11.5 N.m (102 lb in).
Connect the electronic power steering motor control module electrical connectors.
