2009 Chevrolet Corvette V8-6.2L SCFACTORY OEM SERVICE PROCEDURE
Intake Manifold
INTAKE MANIFOLD

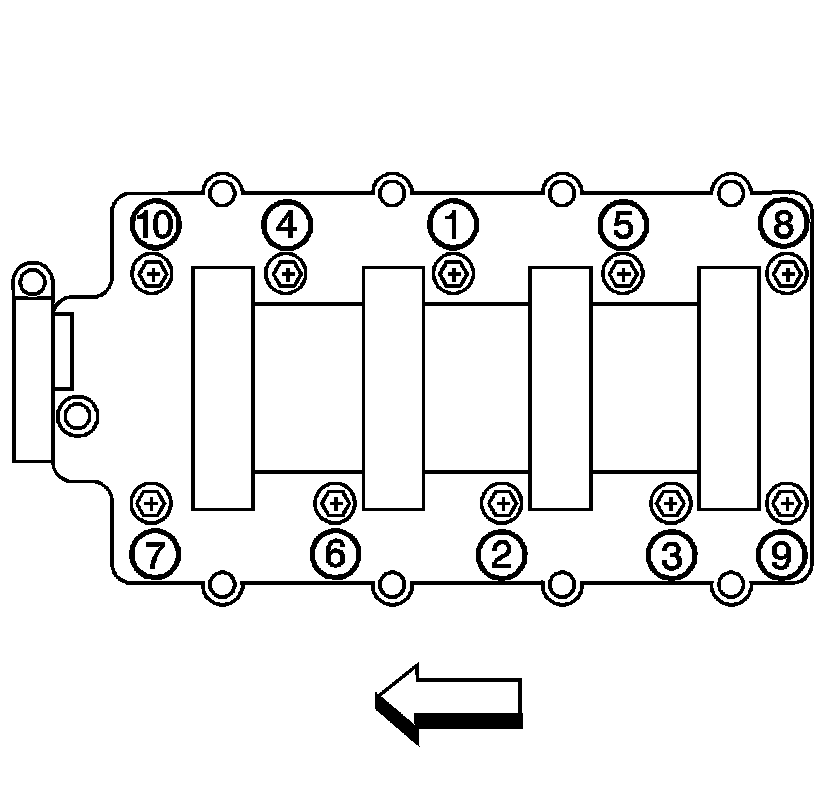

Tighten the intake manifold bolts to the sequence below:
First Pass: Tighten the intake manifold bolts in sequence to 5 Nm (44 lb in).
Final Pass: Tighten the intake manifold bolts in sequence to 10 Nm (89 lb in).
THROTTLE BODY
Throttle Body Bolts 10 Nm (89 lb in)
Tighten the intake manifold bolts to the sequence below:
First Pass: Tighten the intake manifold bolts in sequence to 5 Nm (44 lb in).
Final Pass: Tighten the intake manifold bolts in sequence to 10 Nm (89 lb in).
THROTTLE BODY
Throttle Body Bolts 10 Nm (89 lb in)
