2009 Chevrolet Corvette V8-6.2L SCFACTORY OEM SERVICE PROCEDURE
Harness Routing Views
Harness Routing Views

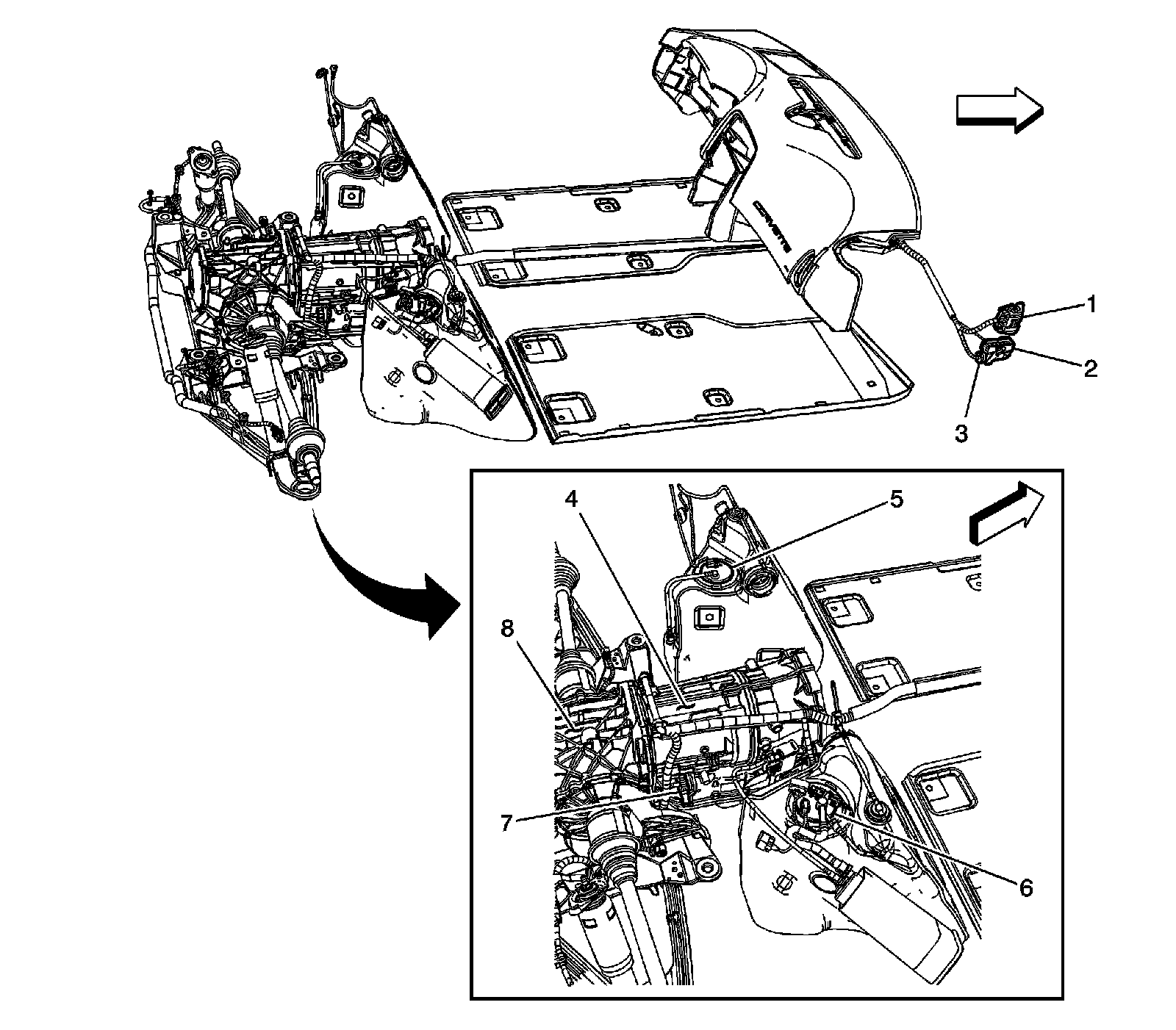

Automatic Transmission Harness Routing
1 - X184
2 - Electronic Suspension Control (ESC) Module (F55)
3 - X168
4 - Automatic Transmission (MYC)
5 - Fuel Pump and Sender Assembly - Primary
6 - Fuel Level Sensor - Secondary
7 - X400
8 - Differential Carrier

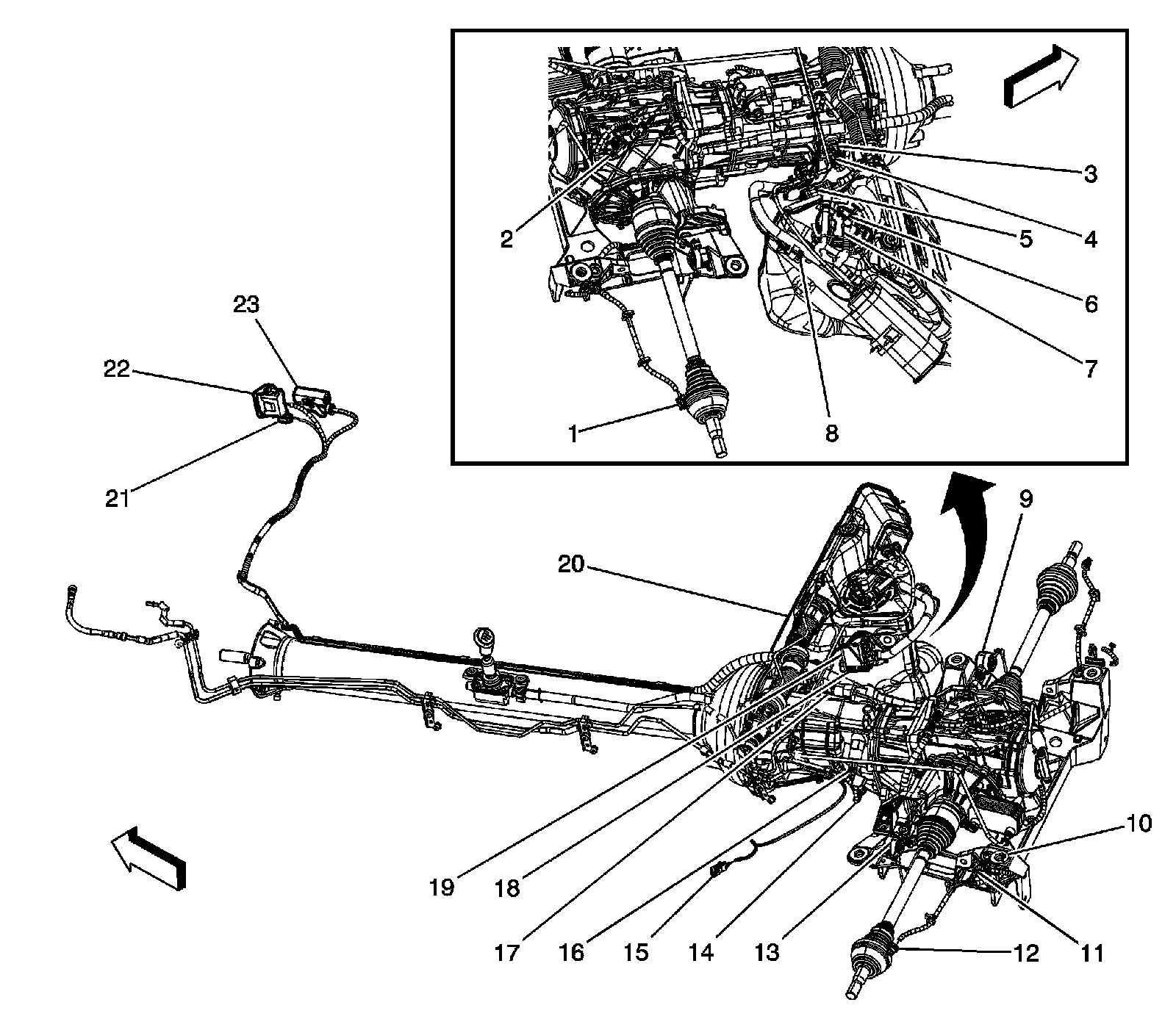

Manual Transmission and Fuel Tank Components
1 - Wheel Speed Sensor (WSS) - Right Rear
2 - Vehicle Speed Sensor (VSS) (MM6/MZ6/MN6)
3 - Backup Lamp Switch 1 (MM6/MZ6/MN6)
4 - Backup Lamp Switch 2 (MM6/MZ6/MN6)
5 - X420 (LS3/LS7) or X421 (LS9)
6 - Fuel Tank Pressure (FTP) Sensor
7 - Fuel Level Sensor - Secondary
8 - X460
9 - Suspension Position Sensor - Right Rear (FE2)
10 - G401
11 - X439
12 - Wheel Speed Sensor (WSS) - Left Rear
13 - Suspension Position Sensor - Left Rear (FE2)
14 - Transmission Fluid Temperature (TFT) Sensor (MM6/MZ6/MN6 with KNP)
15 - X459 (LS3/LS7) or X469 (LS9)
16 - Skip Shift Solenoid (MM6/MZ6/MN6 with JL5)
17 - Reverse Lockout Solenoid (MM6/MZ6/MN6)
18 - X460
19 - Fuel Pump
20 - Fuel Pump and Sender Assembly - Secondary
21 - X168
22 - X184
23 - Electronic Suspension Control (ESC) Module
